Hotels & resorts

BMS for hotels & resorts

BMS for guests:

Hotel rooms must be adapted to different user groups. With changing hotel guests and their preferences regarding lighting, shading, heating and air conditioning, the regulation of a room should be as comfortable and easy as possible. The first time you enter the room, the information from a locking system (e.g. Vingcard) activates a presetting for room air conditioning. With a web-based visualization for touch screens, the guest can customize his room himself after he has been greeted with a personal welcome message in his language (data from the hotel management software such as Fidelio / Opera or Protel).

BMS for hotel staff cleaning:

For this group, an overview of the respective room status (MUR, DND) and the occupancy of the individual rooms is important. Most of the time, the employees are assigned to a certain floor or part of the building. A visualization that is able to display different partial visualizations for each floor or each part of the building is suitable for this.

BMS for house staff maintenance:

The technical house staff must be able to control and regulate the entire building in order to be able to counter-steer quickly if necessary. A central visualization of the entire hotel is required for this.

BMS for hotel operators:

For many hotel operators it is important to implement the corporate design (logo, colors, font) also in the visualization. With a visualization, this requires a high degree of design freedom.

Our tip:

In order to keep costs for visualization creation, maintenance and staff training low, it is advisable to create different partial visualizations in addition to the main visualization for a better overview. If there are many different users (user groups), a user administration is useful for regulating the access rights to the building management

Lighting

HVAC

Shading

Trends/reports

Alarm management

Hotelmanagement

Door locking systems

Security

KNX - BAcnet - ONQ

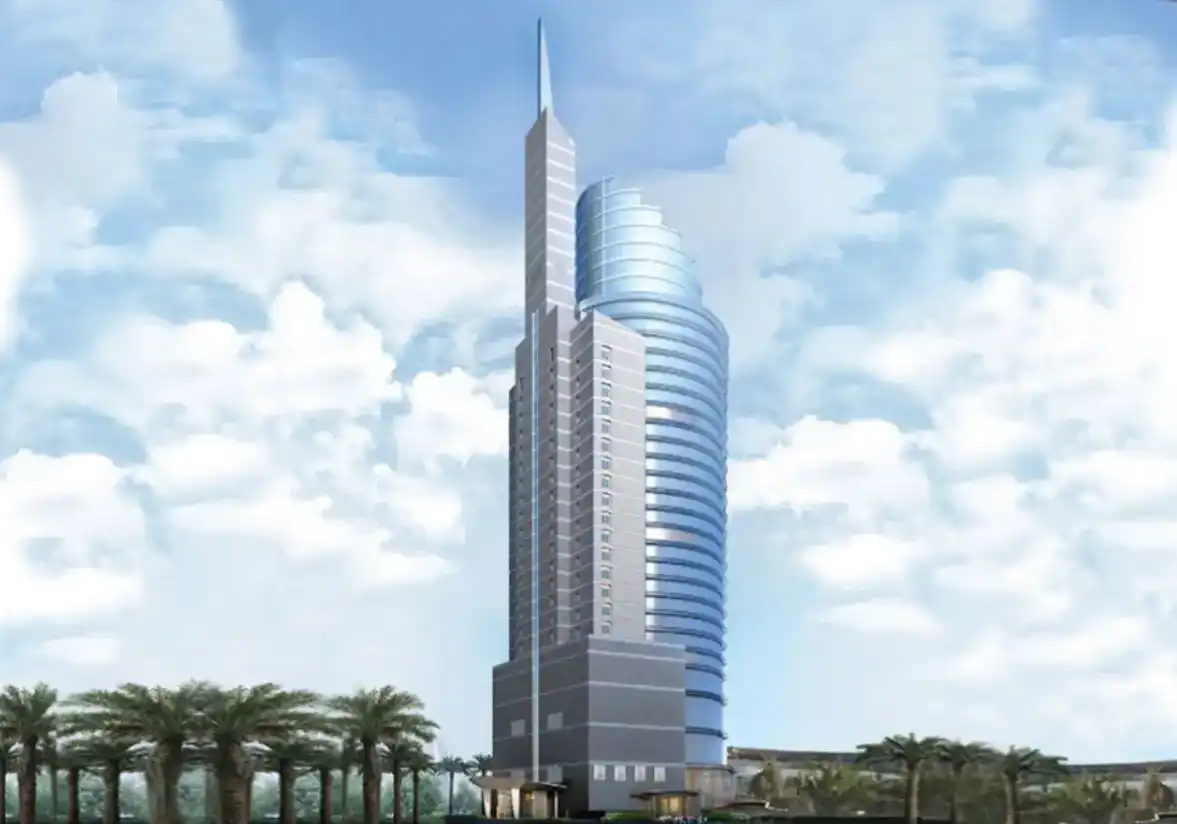

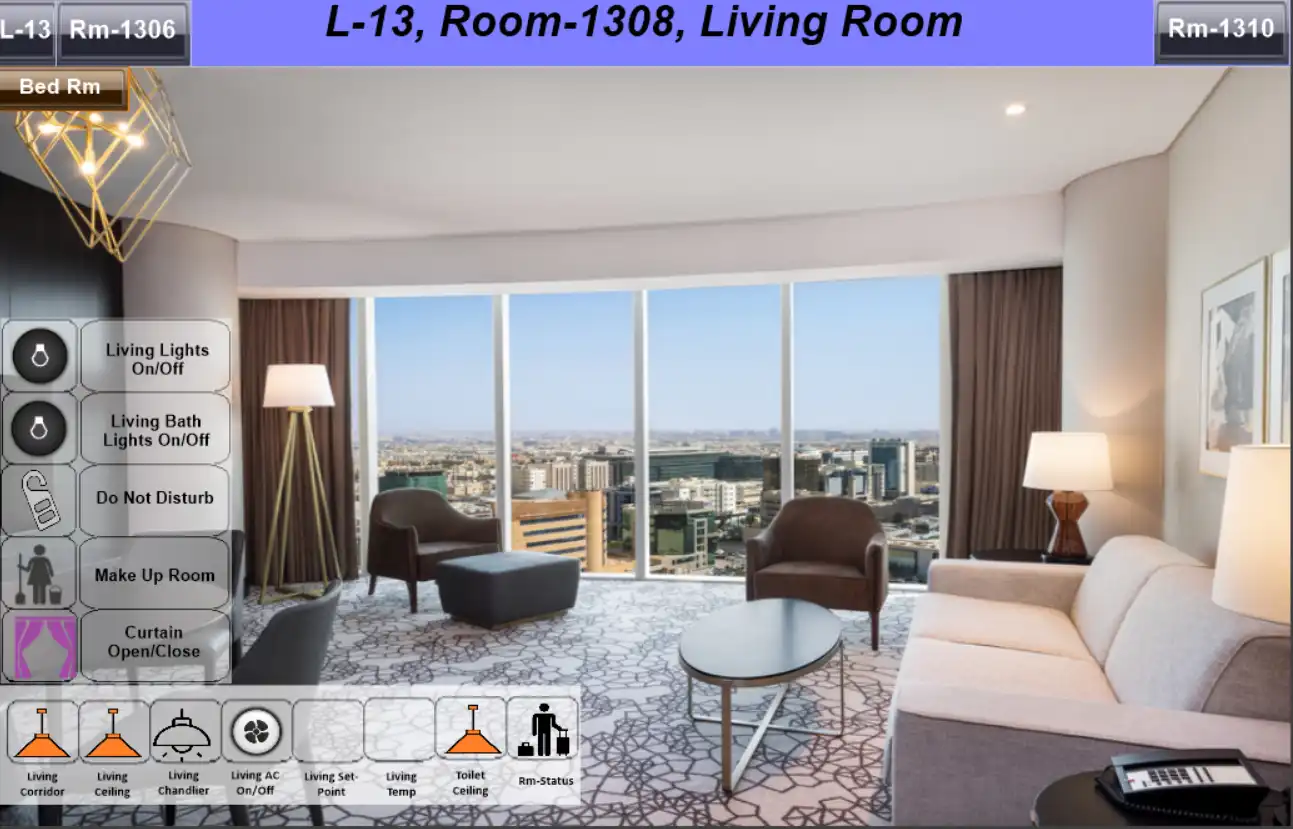

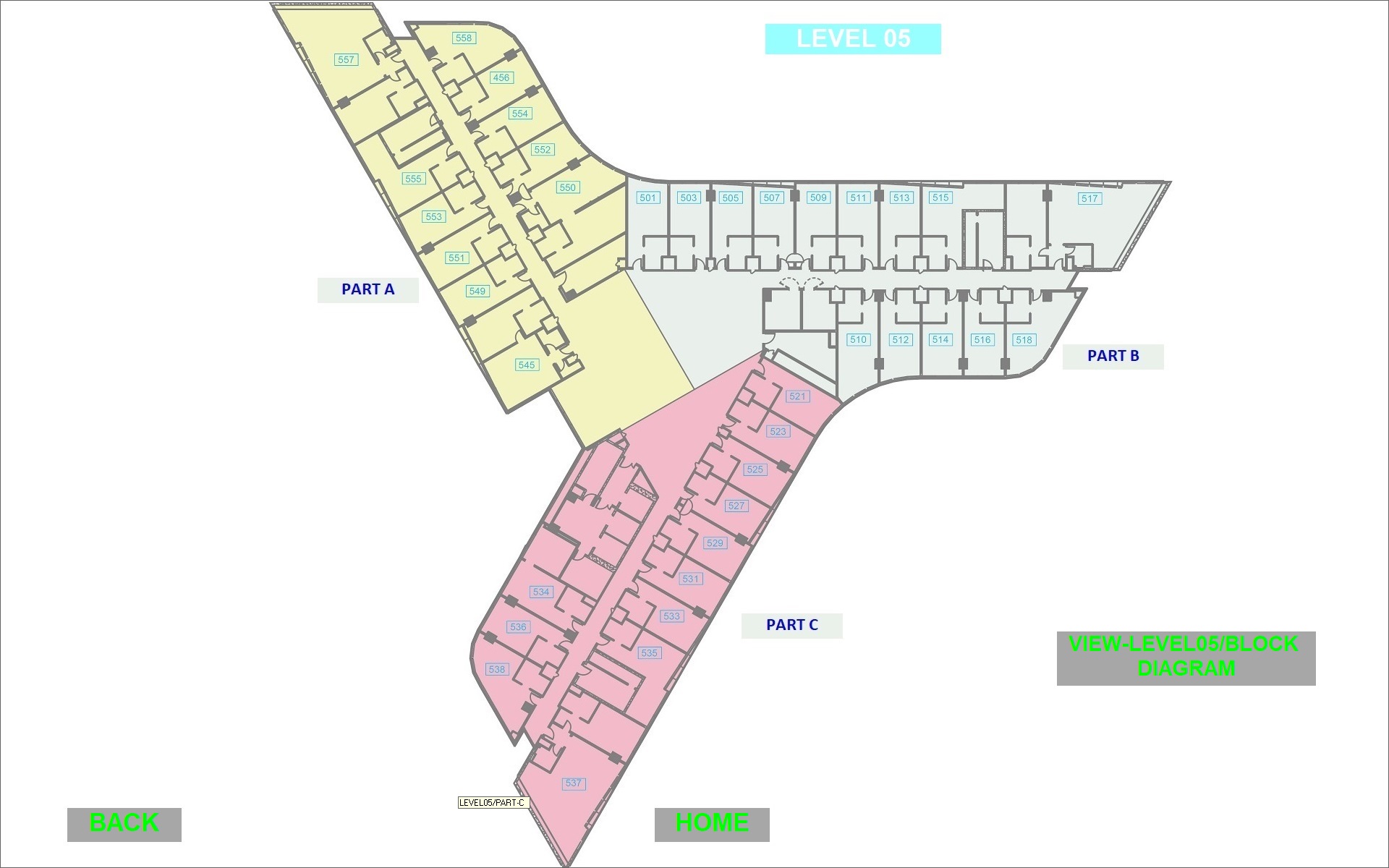

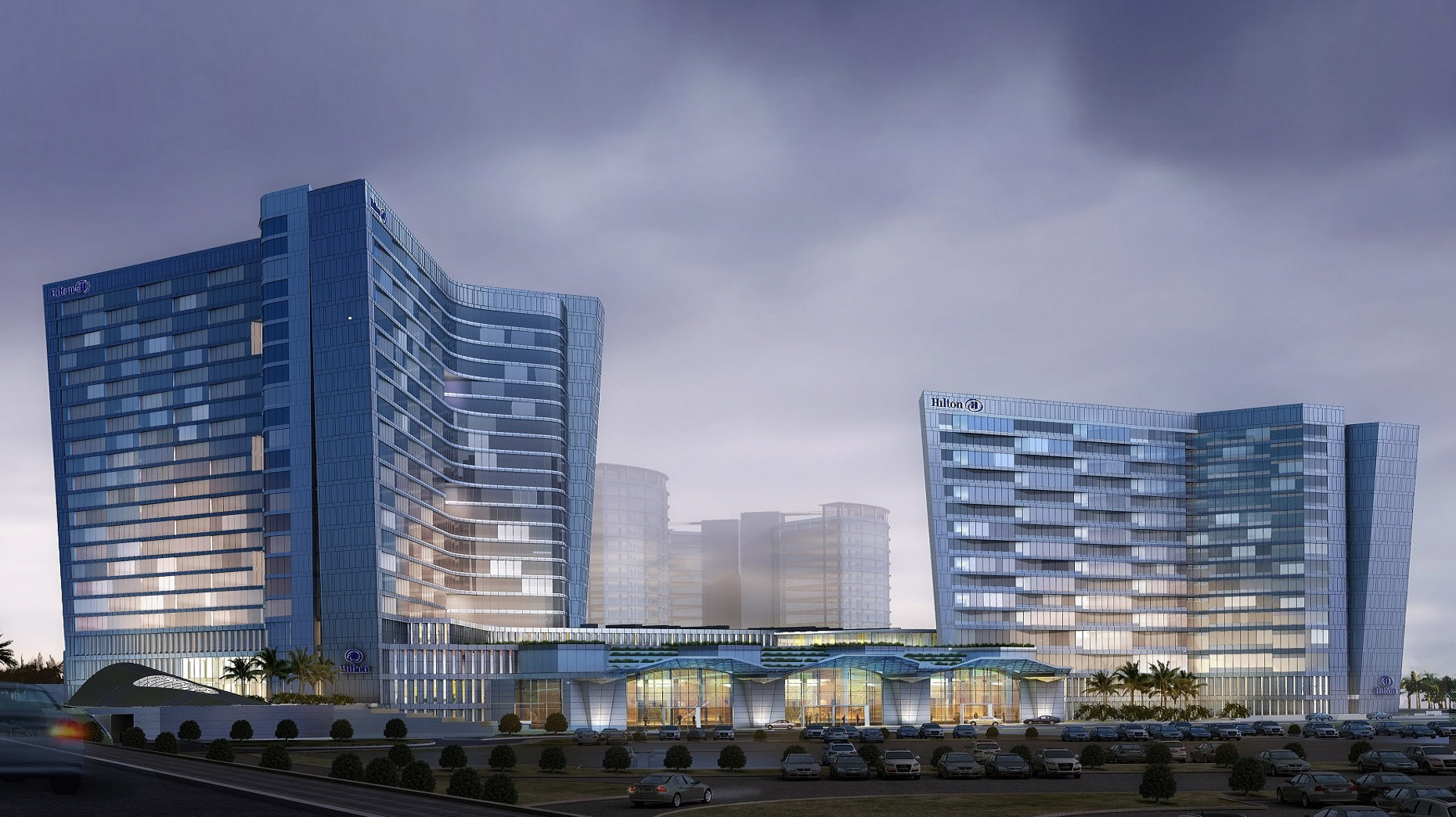

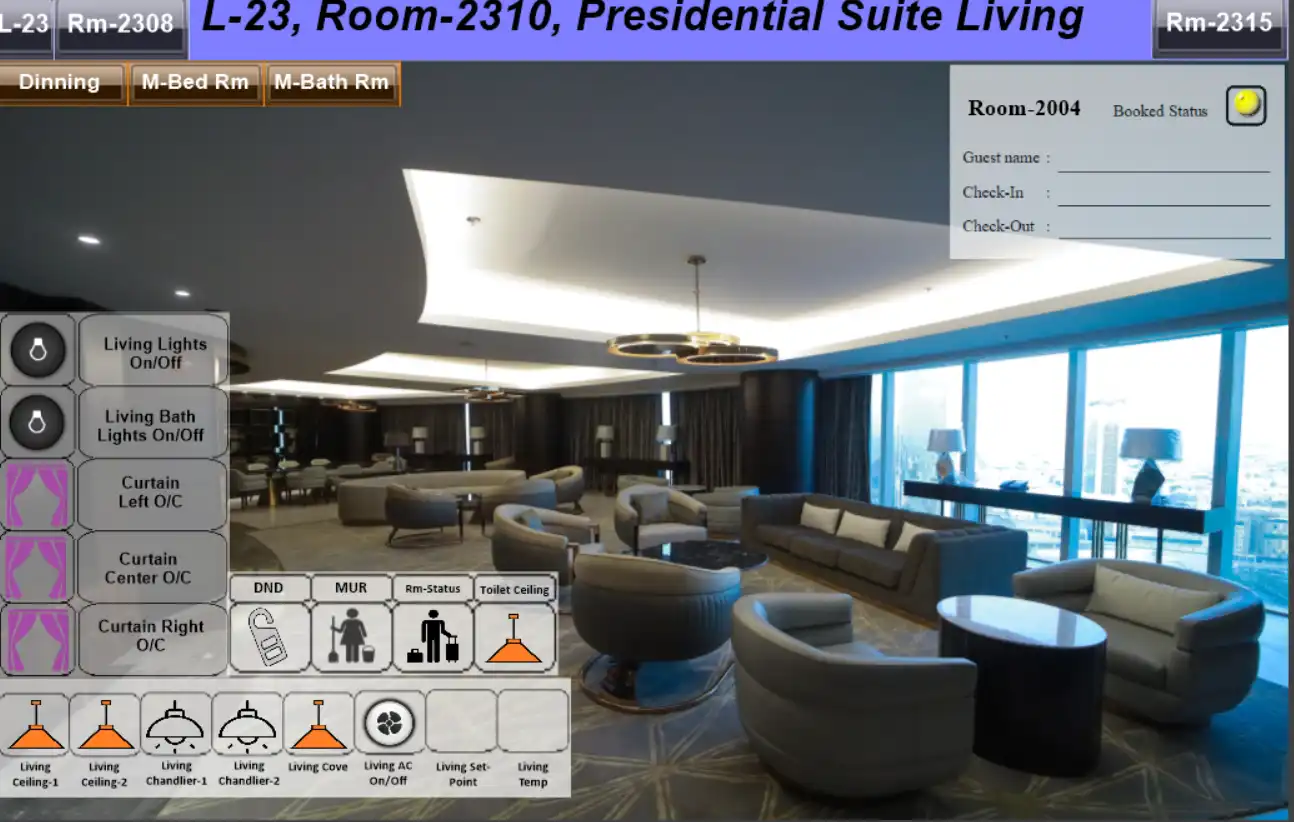

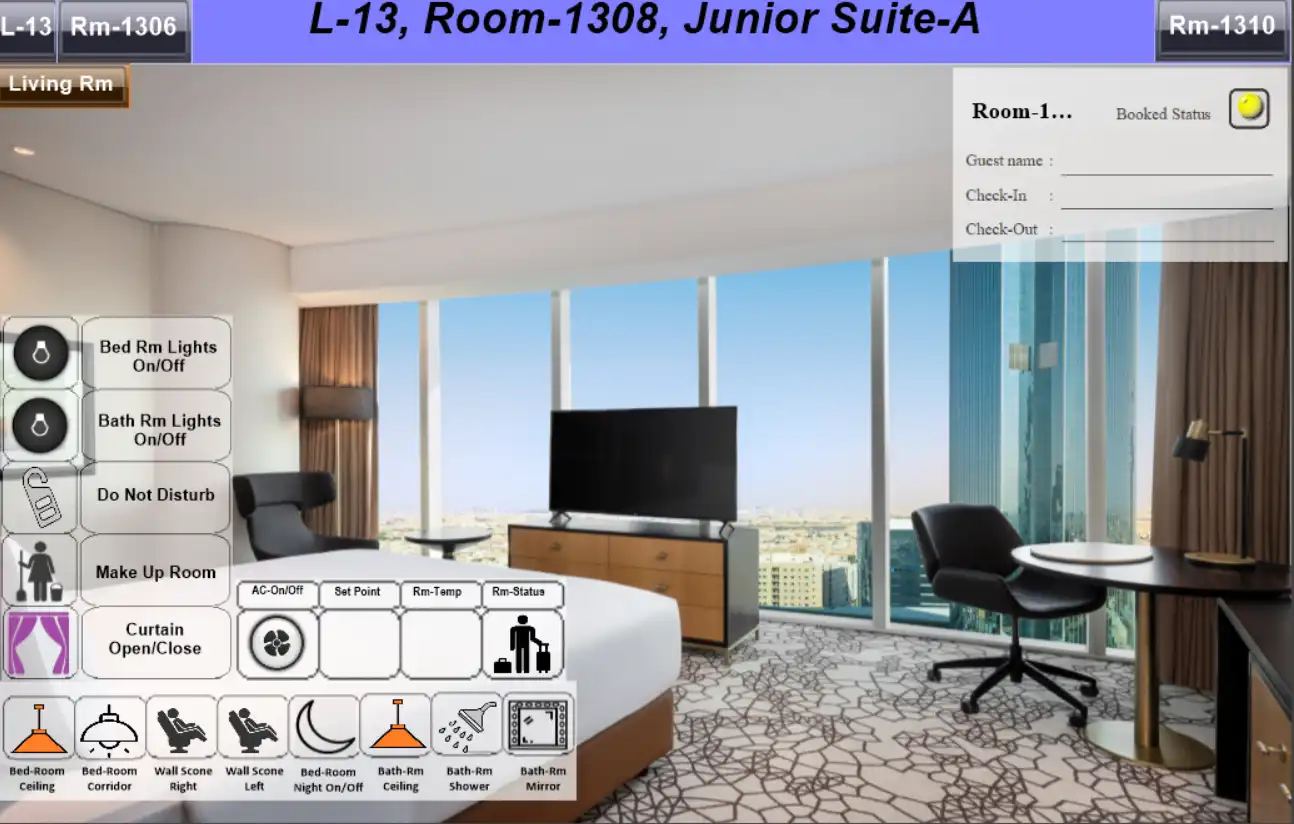

Hilton Riyadh Olaya

Saudi Arabia

NETx BMS Server, NETx Voyager
Data points: 10,000
Elements/pages: 10,000
Devices: 2,942
Trades: Lighting, HVAC, Hotel Management ONQ
System integrator: ELECTRICAL MABANI COMPANY

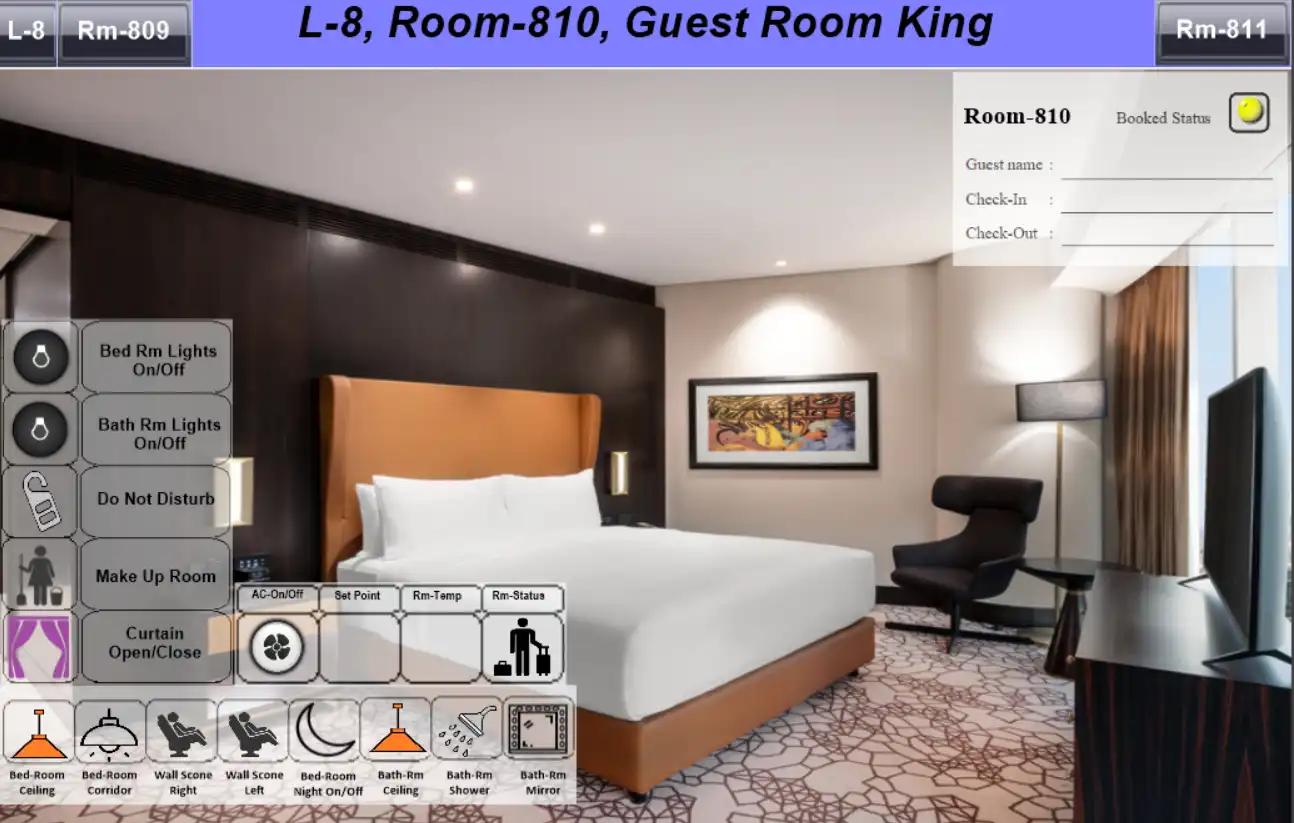

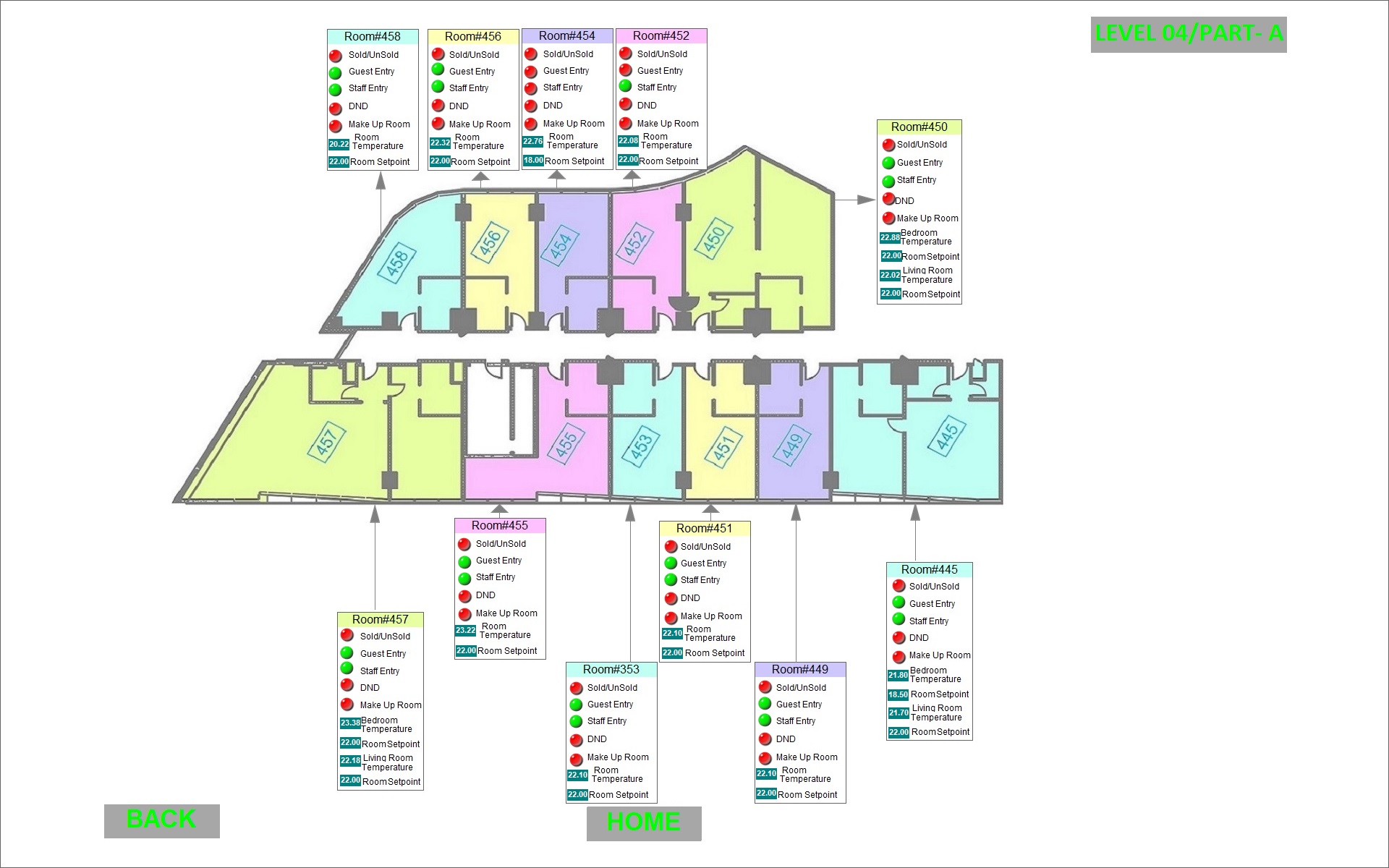

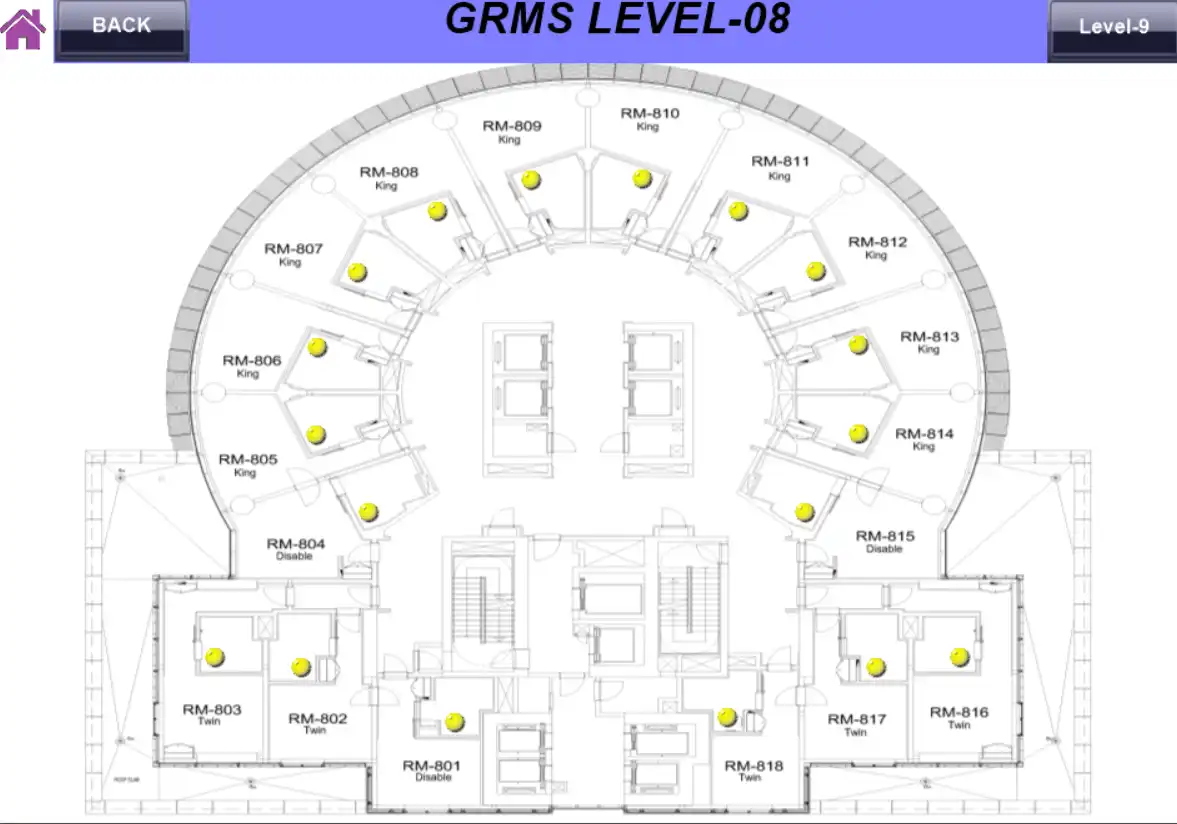

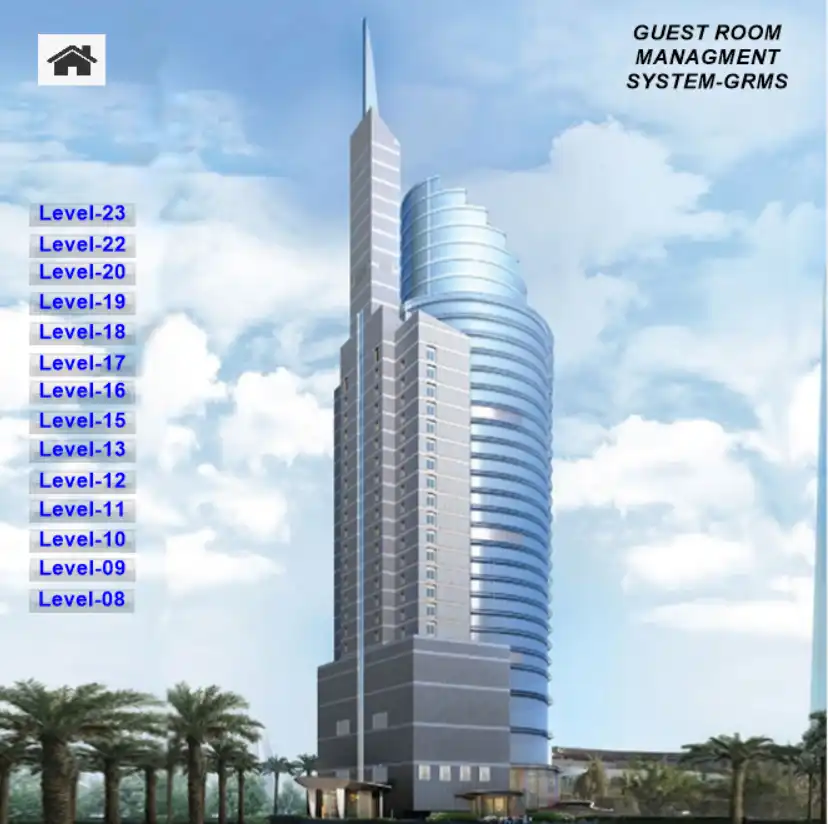

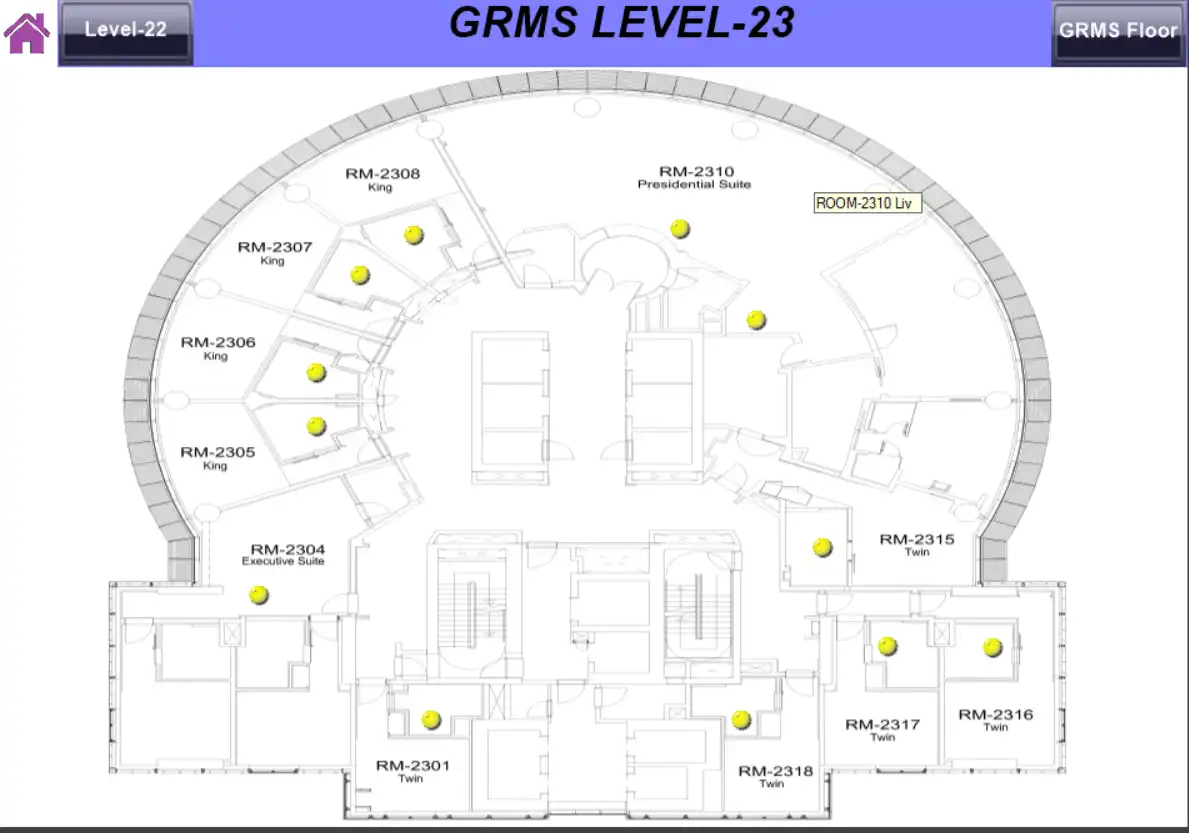

The NETx Guest Room Management System (GRMS) is executed through ABB-KNX system. Our solution provides centralized control through the visualization over the installed KNX Systems, as well as integration with other system such as The Hilton OnQ Hotel Management System. The created Visualization shows many functionalities required by the hotel operator.



KNX - DALI

Katara Towers

Qatar

NETx BMS Platform
Data points: 20,000
Trades: Lighting
System integrator: PAC

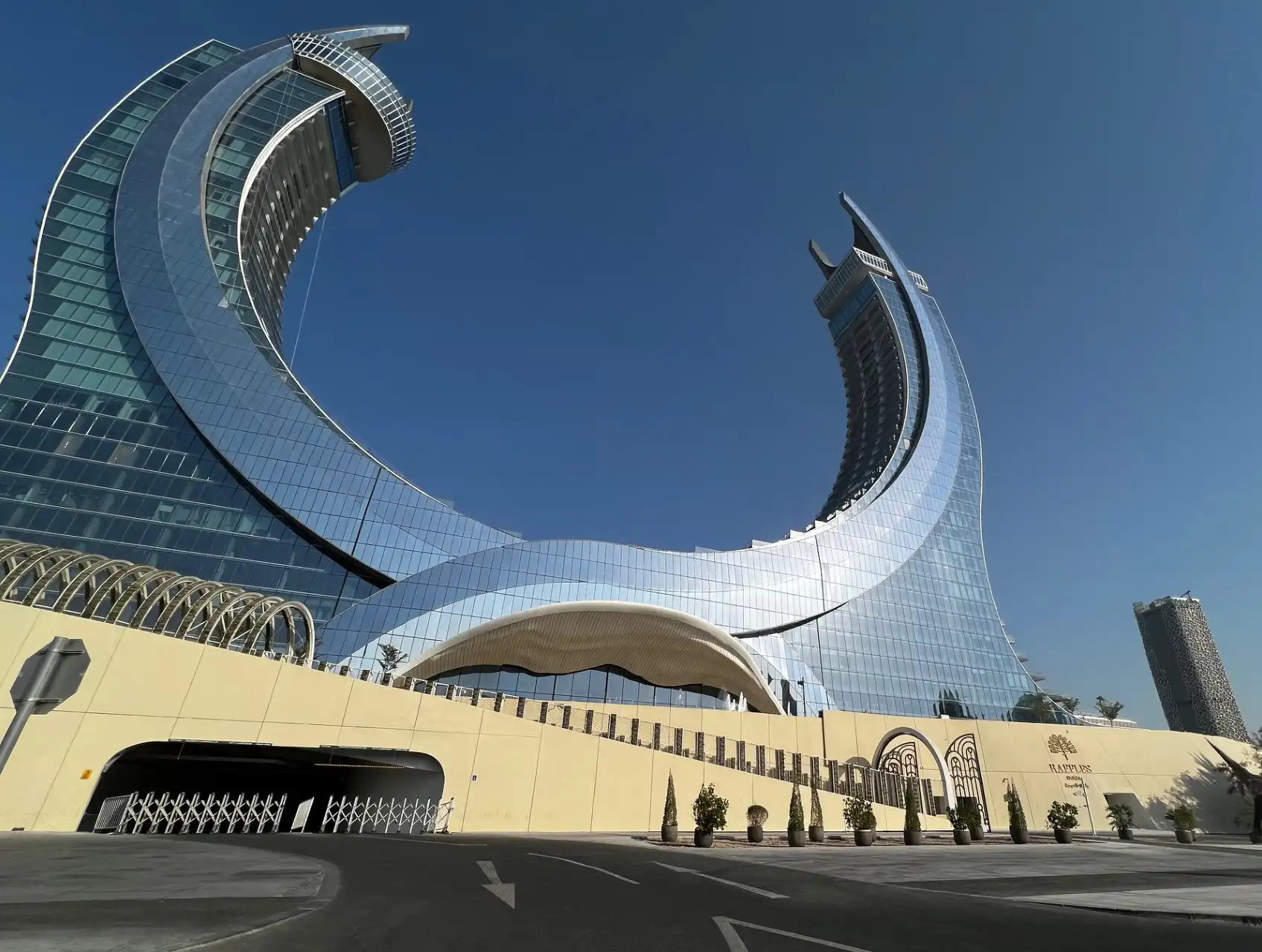

The 211-meter-high crescent building is a modern interpretation of the national emblem of Qatar: two crossed scimitars. The 542 rooms and 49 apartments are spread over 36 floors, including all the amenities for their guests, it is no surprise that the Enterprise version, which supports up to 20,000 datapoints, of our BMS Platform was needed. In addition, our LaMPS module is used to manage the buildings lighting-system.



To make sure everything runs smoothly even in the event of a system failure, a main-backup-system was set up, which allows the backup server to take over as soon as the connection to the main server is interrupted.



KNX - BACnet - Modbus - DALI

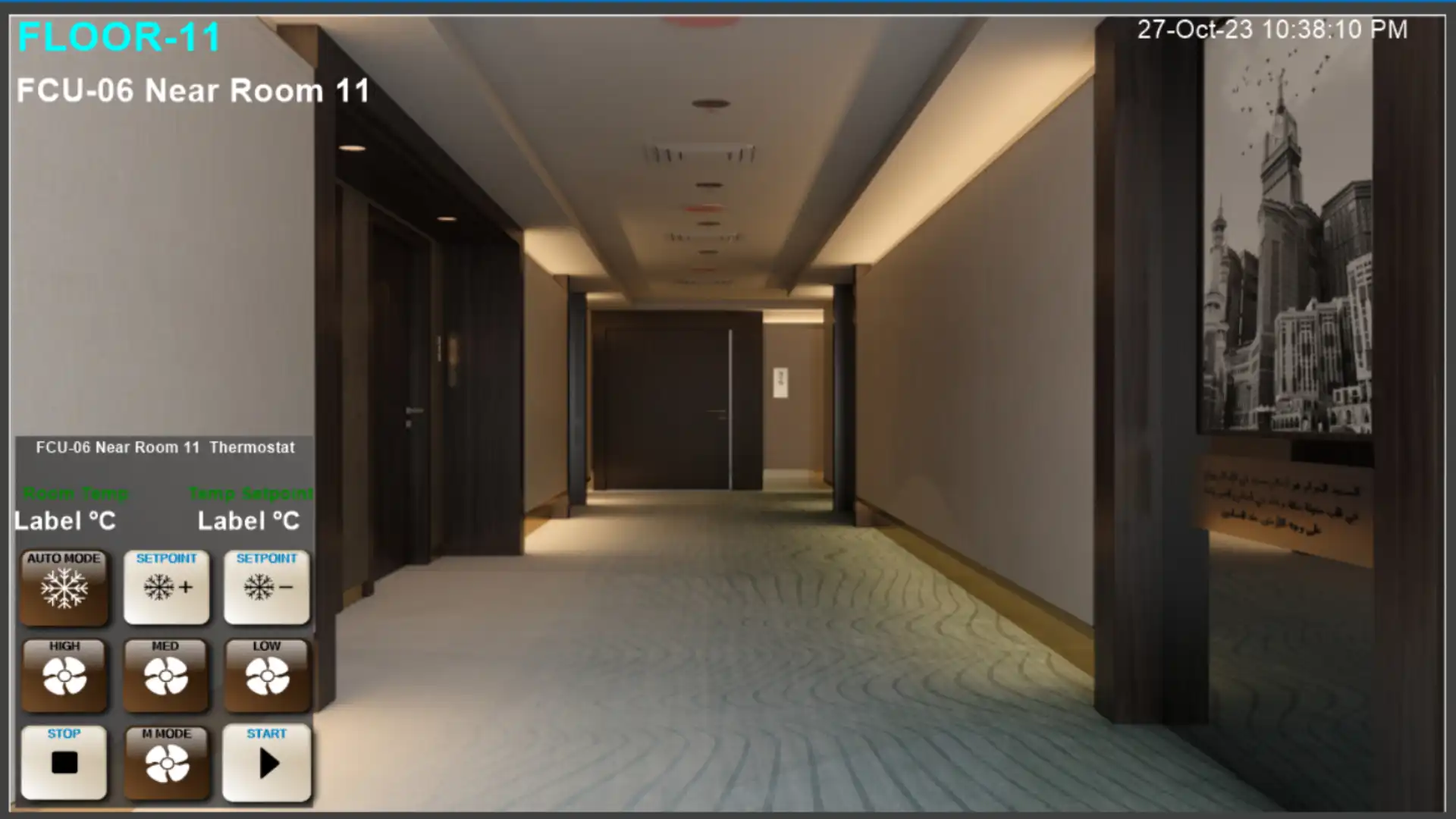

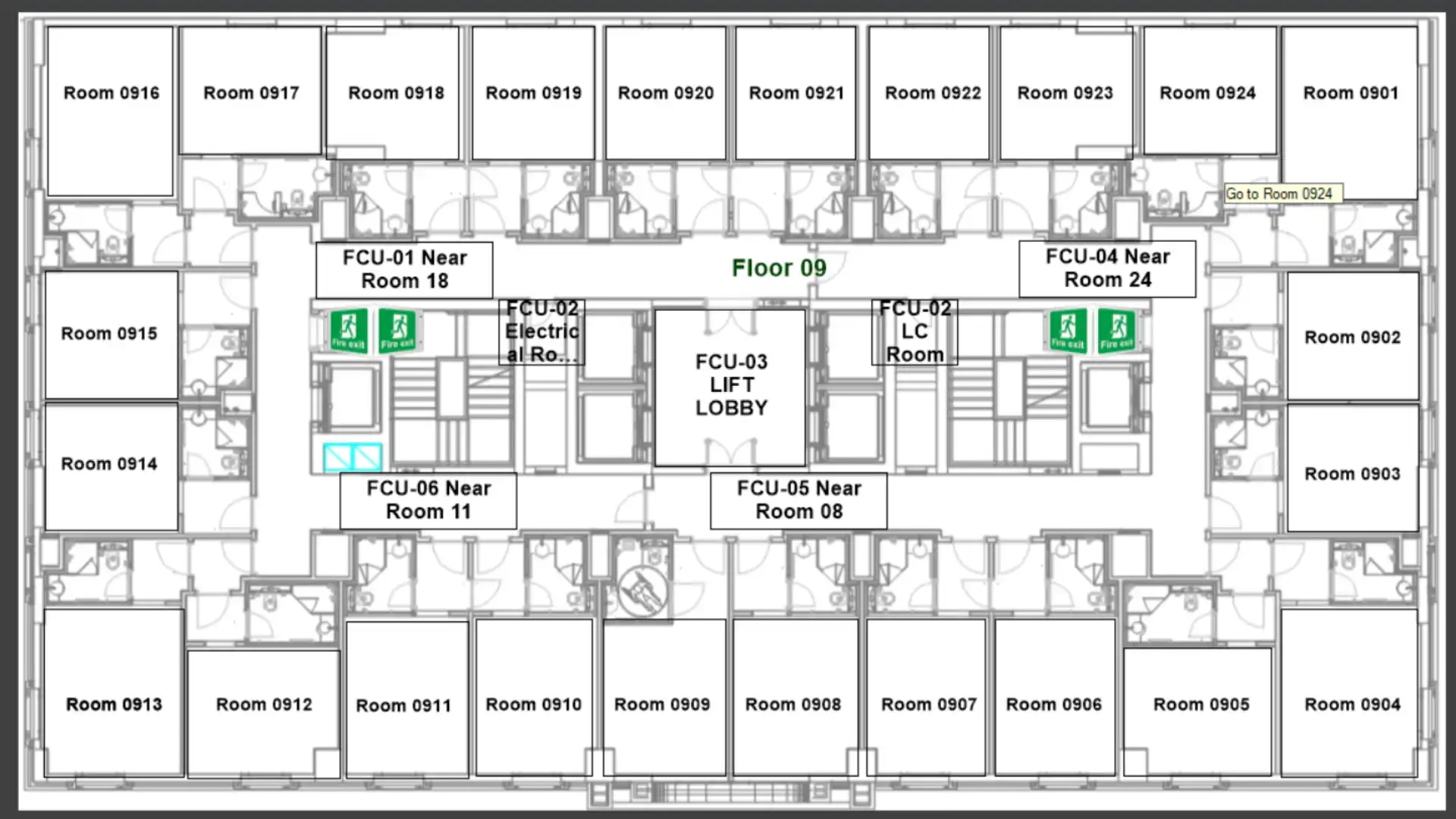

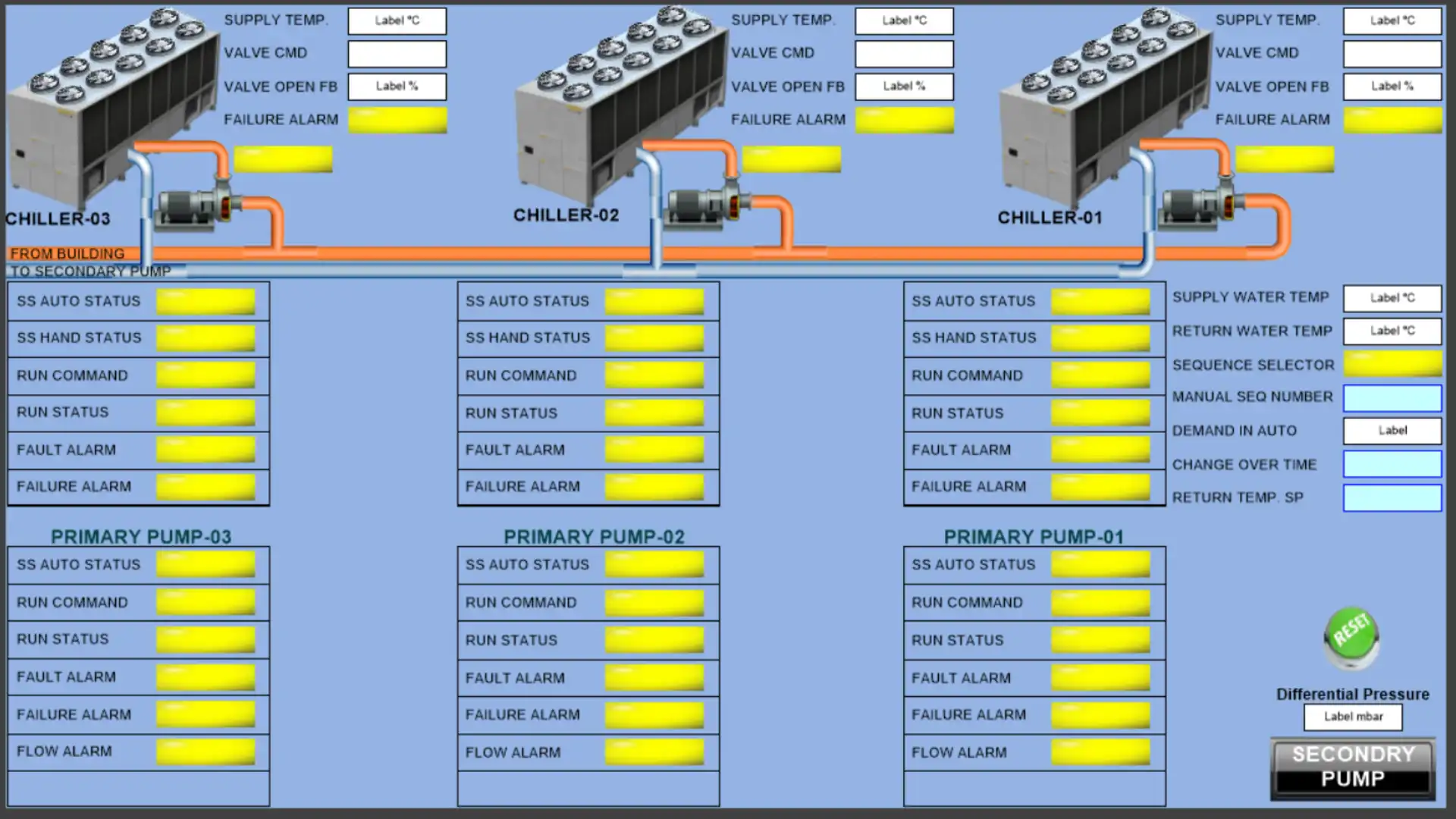

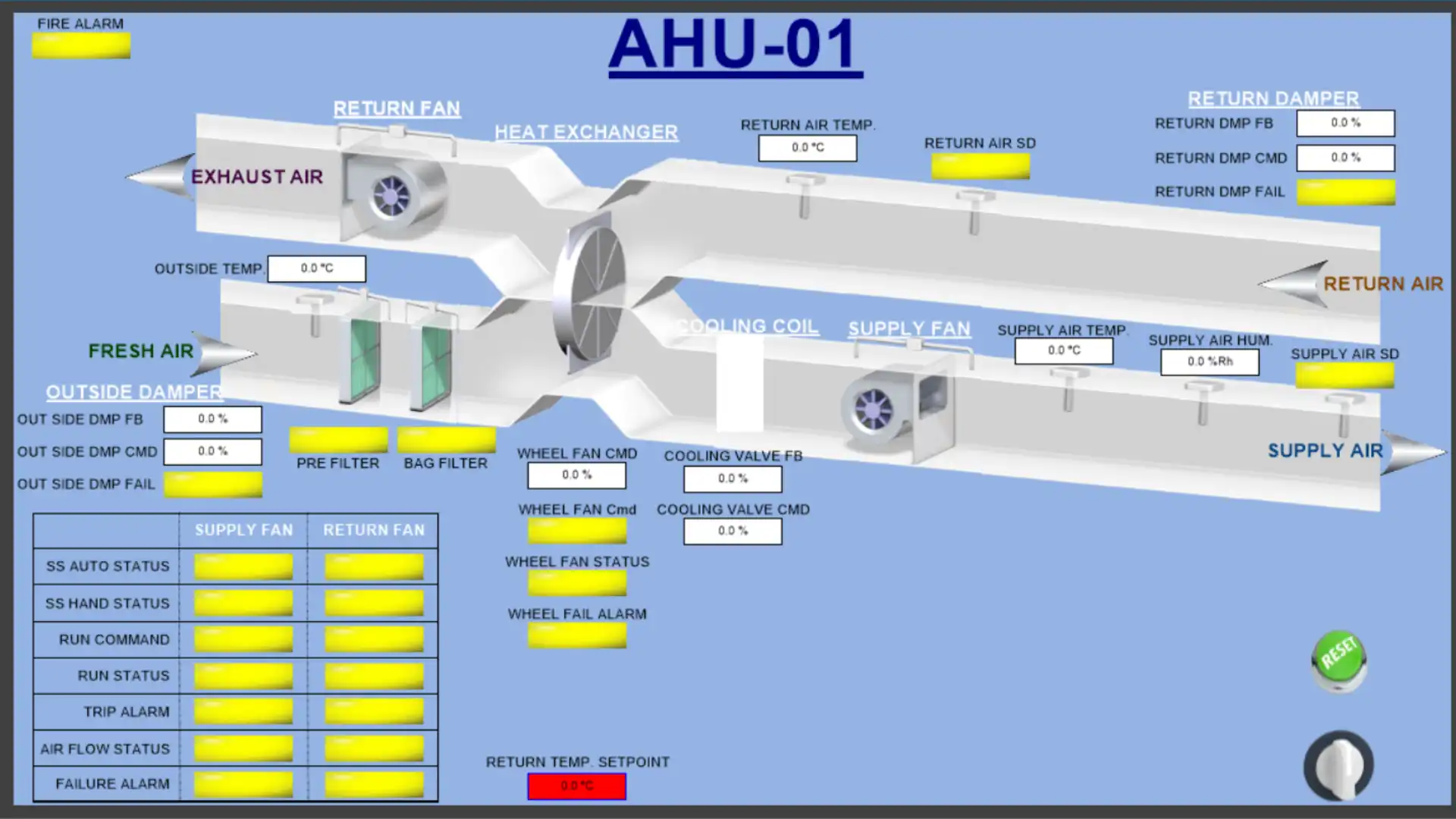

Jayden Hotel

Saudi Arabia

NETx BMS Platform
Data points: 7,000
Devices: 320
Trades: lighting, HVAC
System integrator: NESMA UNITED INDUSTRIES

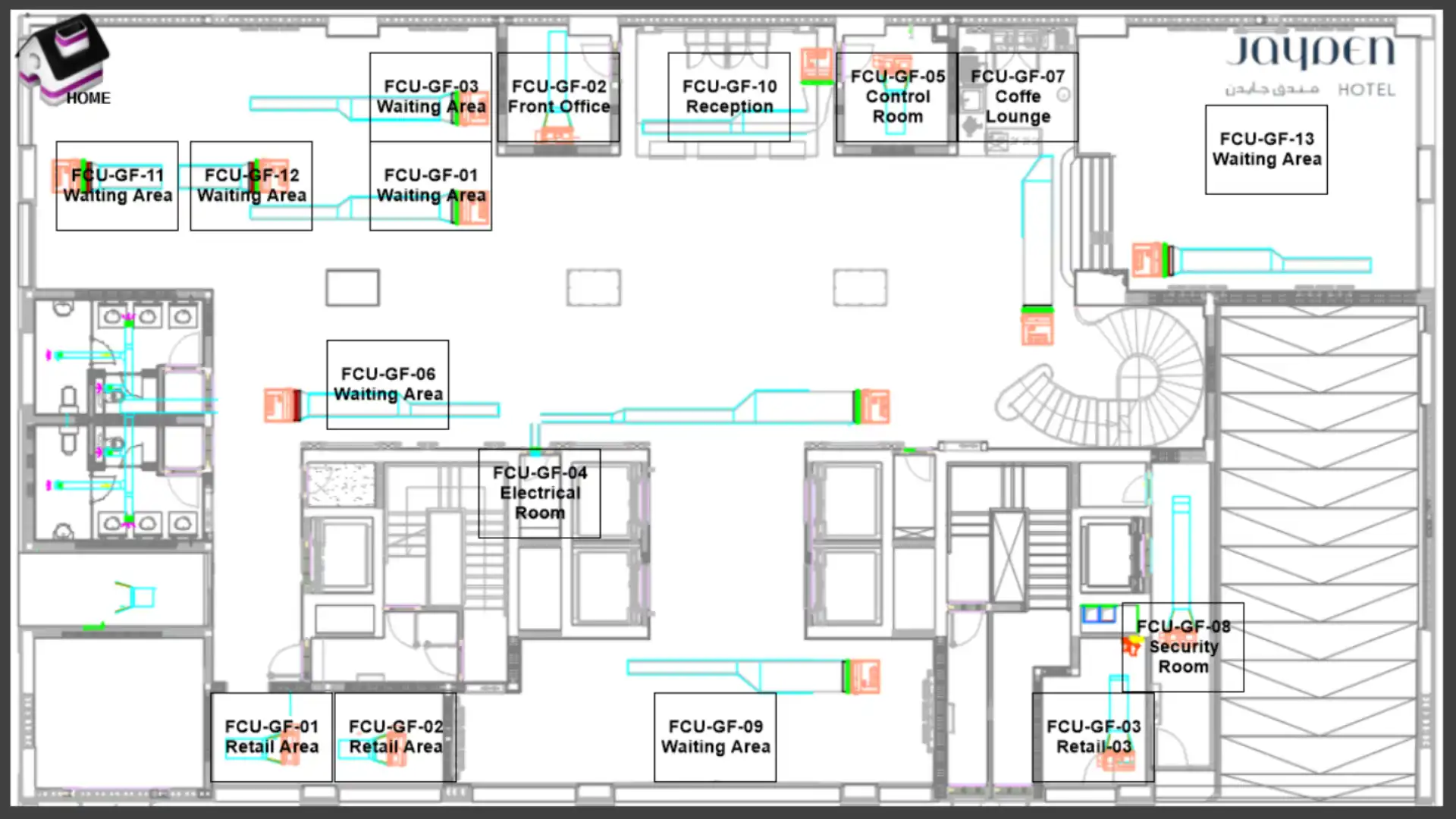

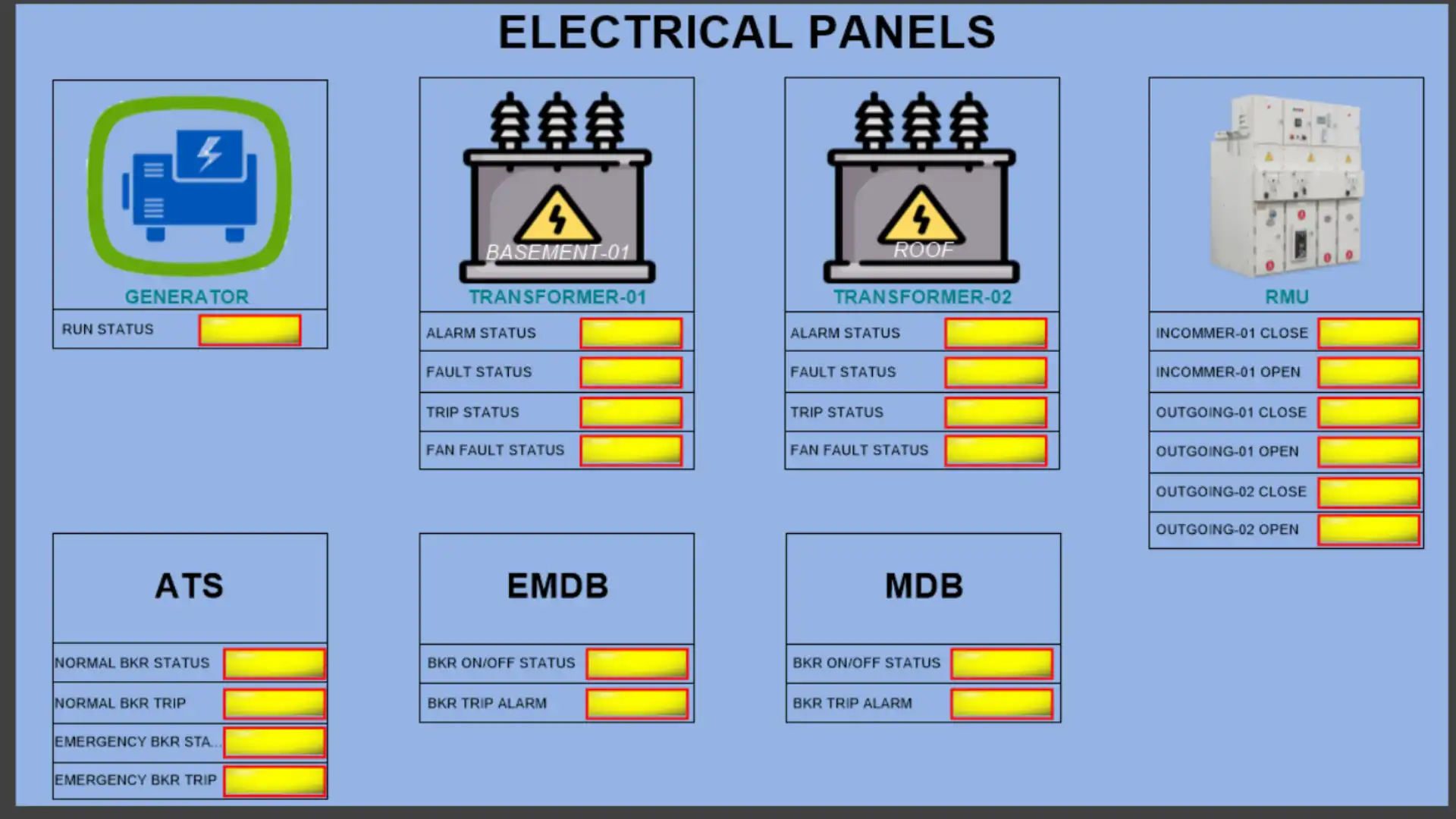

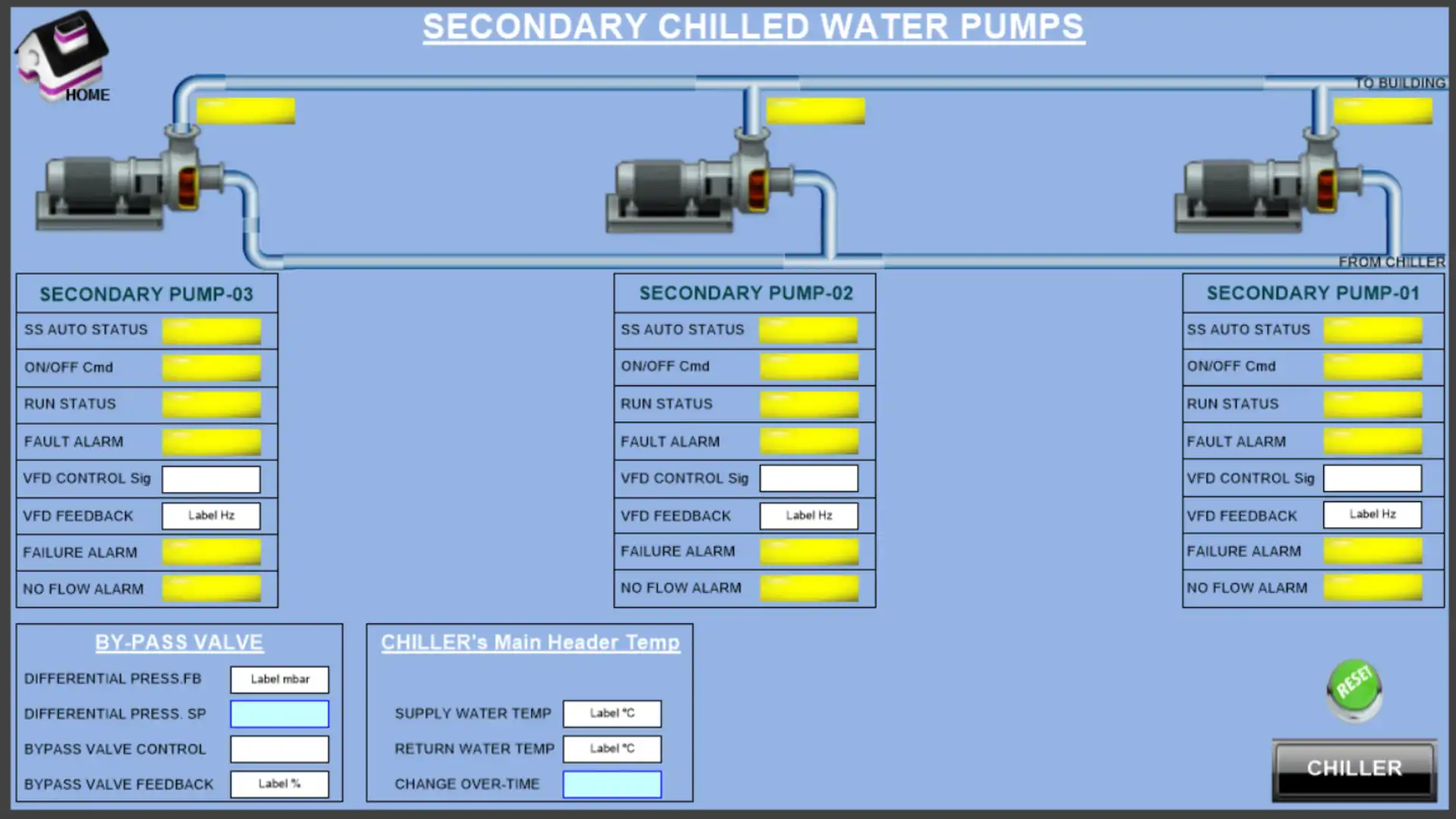

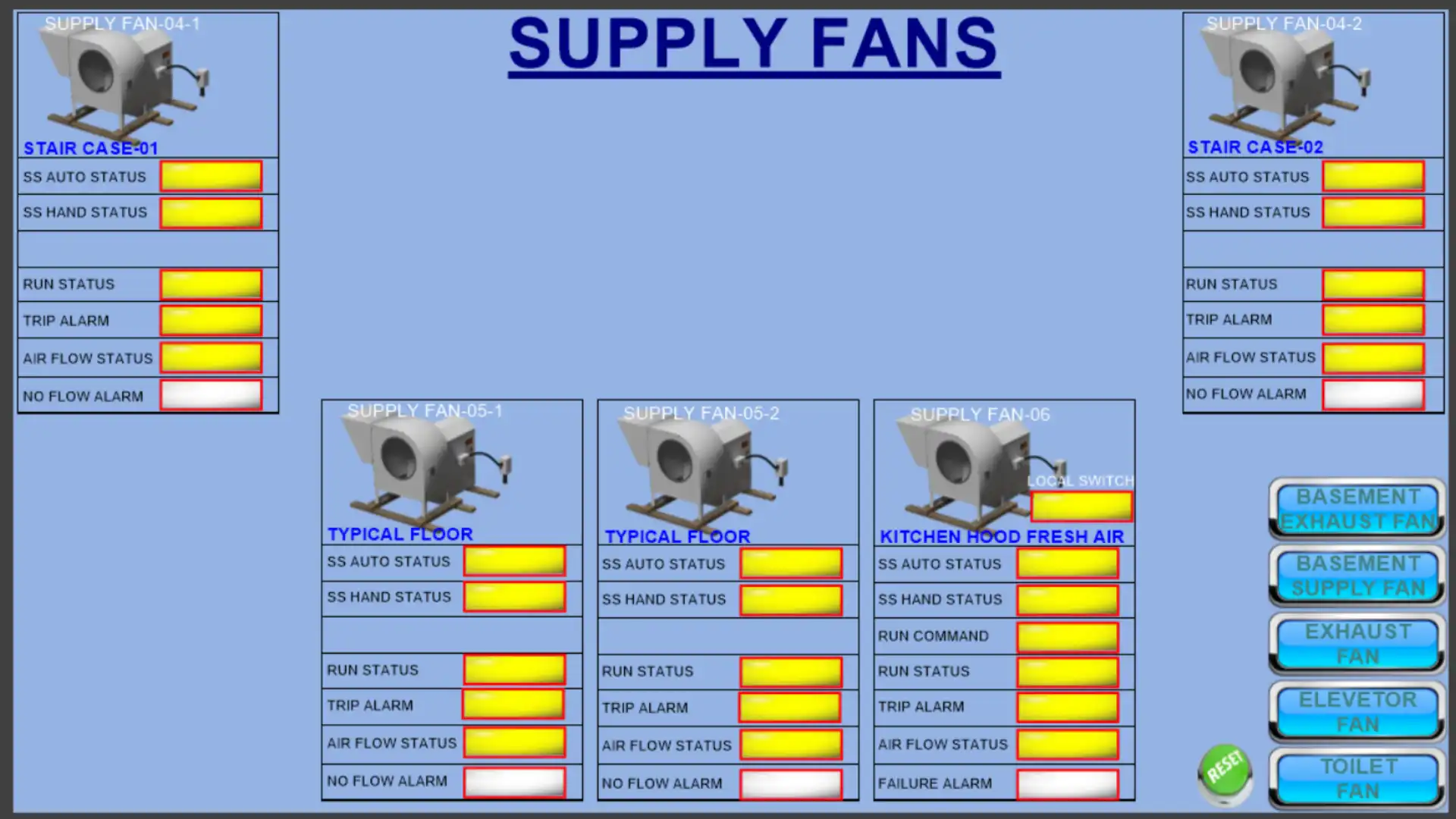

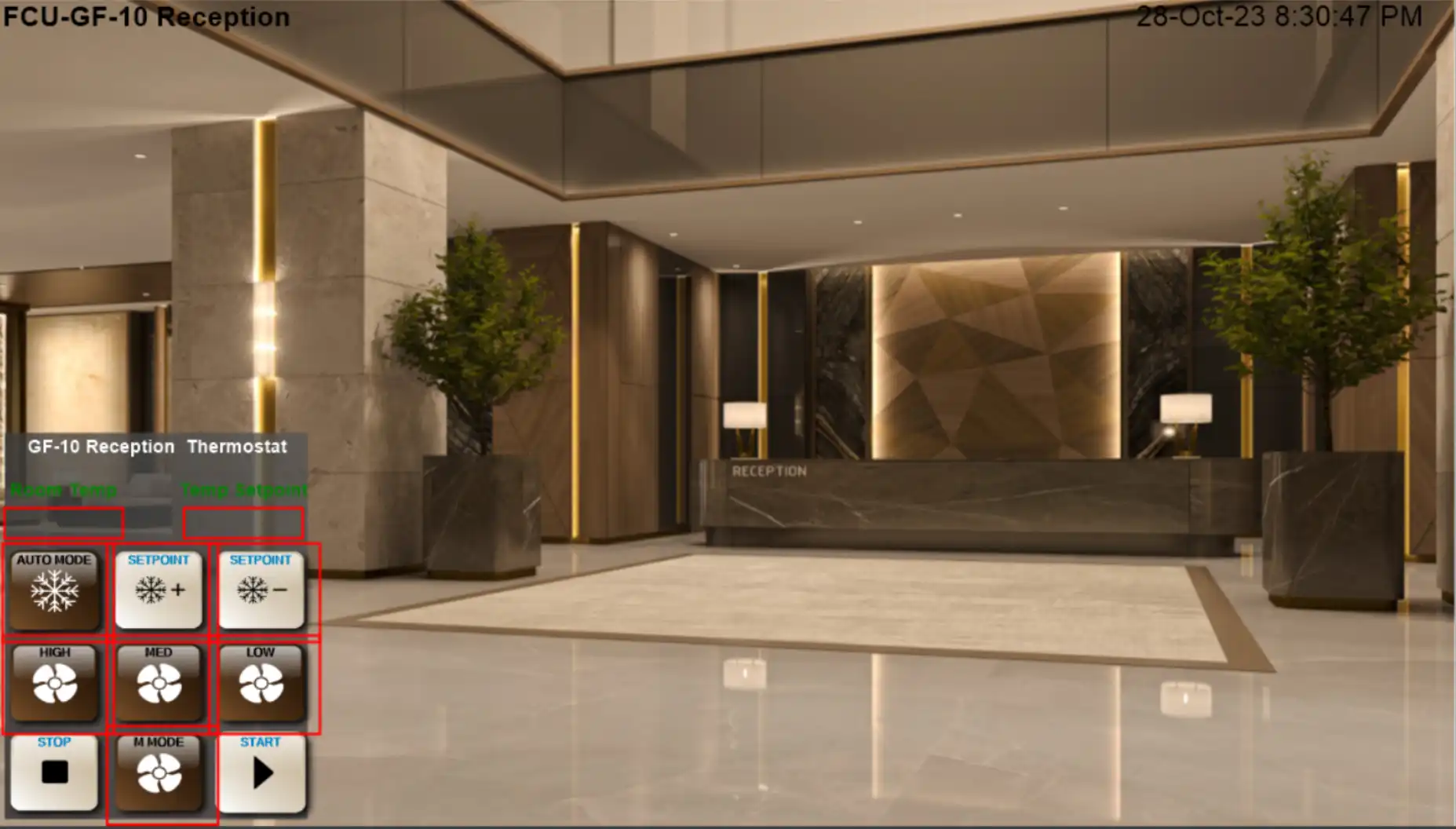

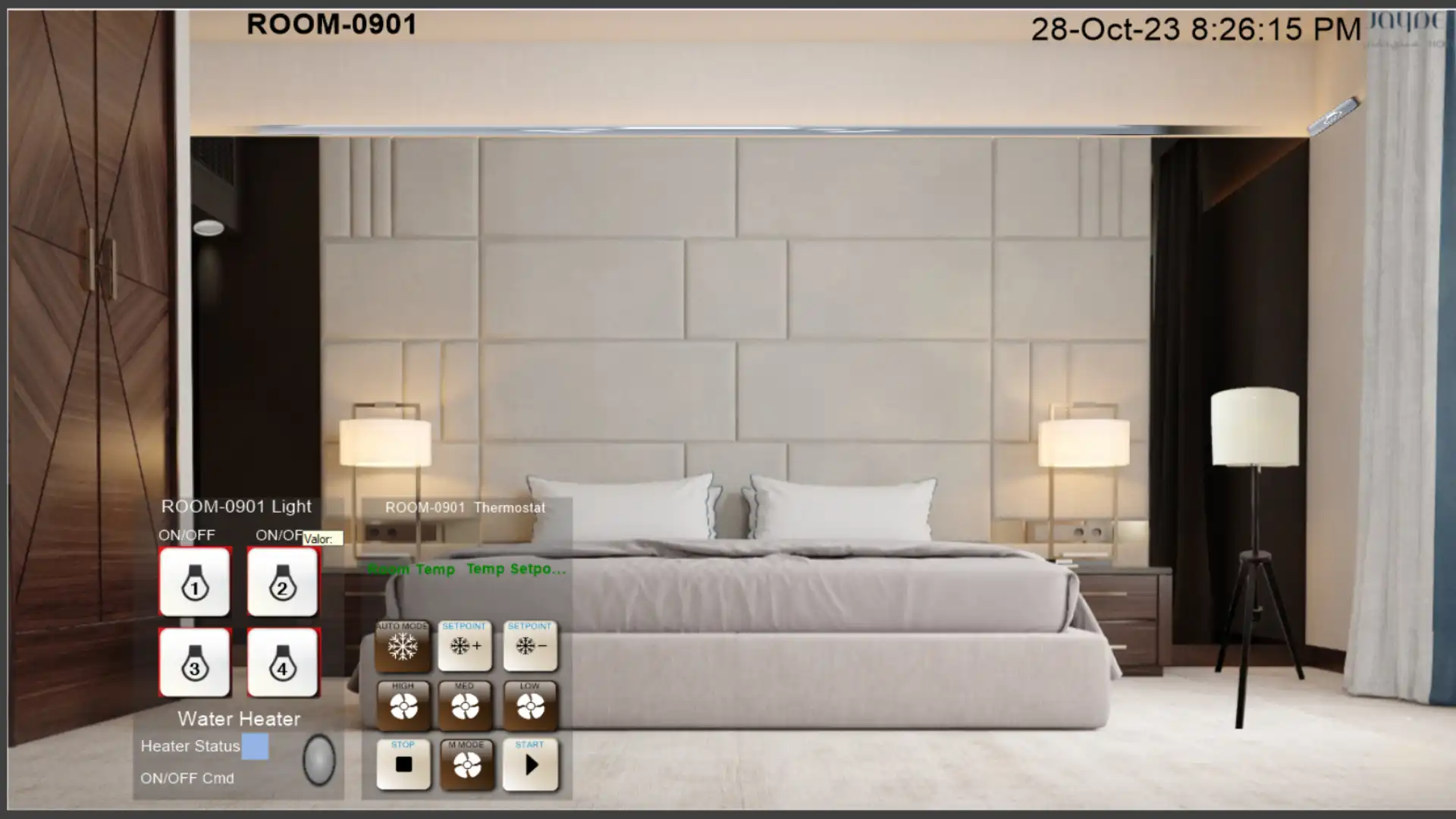

At the Jayden Hotel, all of the 288 guest rooms as well as the public area are controlled by the NETx BMS Platform, customized for this project to manage the 320 devices and 7000 datapoints.



The DALI module allows the easy control of the lightning system while the standard functionalities of the BMS Platform cover the controlling and monitoring of the HVAC system.



All of the 12 floors are managed from the central BMS room, which makes adjusting specifics of the different areas uncomplicated and quick to handle.



KNX - BACnet - Modbus - HDL GRMS (Buspro)

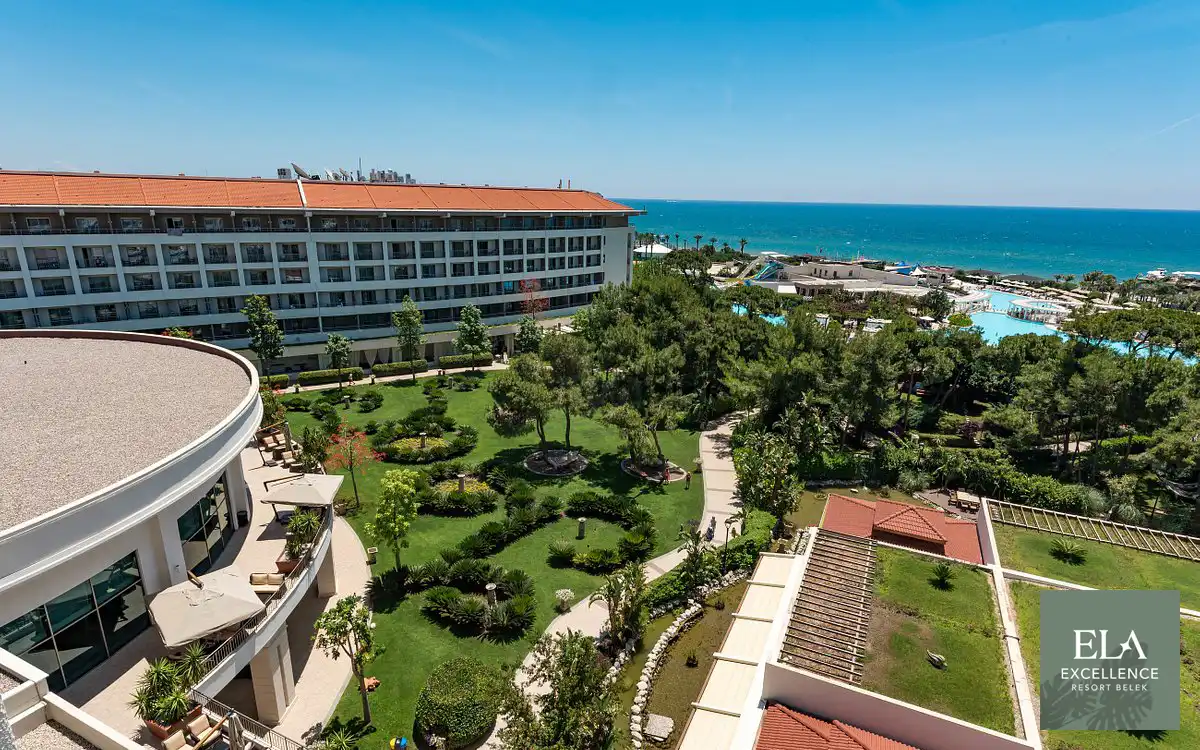

Ela Excelence Resort Belek Hotel

Turkey

NETx BMS Platform
Data points: 10,000
Devices: 5000 - HDL Hotel Modules, Thermostat, Sensor, Automation Switch,DND/MUR Unit
Trades: lighting, HVAC, DND/MUR, VRV
System integrator: HDL Otomasyon San. Sist. ve Tic. Ltd. Şti.

15 golf courses in Belek, 270 m² beach, 1100 m² pier, 110,000 m² green area, 653 rooms in total, 18 different types of rooms and villas, two main buildings and 26 villas.



Automation is used in all rooms and common areas. With the HDL GRMS Buspro system in rooms and common areas, the controls can be centrally controlled and monitored in the BMS system, integrating with NETxAutomation. Lighting in the rooms, FCU and VRF, DND/MUR systems are made by HDL automation. All room and common area automation devices are HDL automation Buspro system.



KNX - DALI

Legoland

Dubai, UAE

NETx BMS Server
Data points: 2,500
Group addresses: 300
Visualization clients: 1
Devices: 195 - switches - actuator - power supply
Trades: lighting
System integrator: Armiti Trading LLC

The LEGOLAND Hotel has 250 rooms and 4 floors with five different themes.

Within this project, the whole public area of the building is controlled by the NETx BMS Server. It is used for lighting control (on/off and dimming control) and for integrating a high number of sensors. The advantage of using NETx BMS Server is that all levels of the building can be controlled from the central BMS room.

KNX - DALI

The Address Residence Fountain Views

Dubai, UAE

NETx BMS Server, NETx Voyager
Data points: 10,000
Group addresses: 600
Visualization clients: 1
Devices: 1.101 - actuator / dim - switches - power supply
Trades: Lighting
System integrator: Armiti Trading LLC

The Address Fountain Views comprises accommodations, restaurants, free private parking, an outdoor swimming pool and a fitness center.

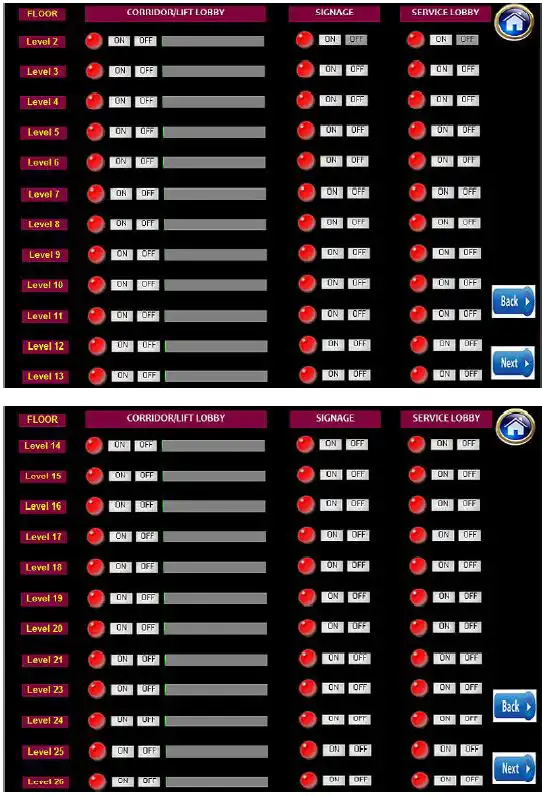

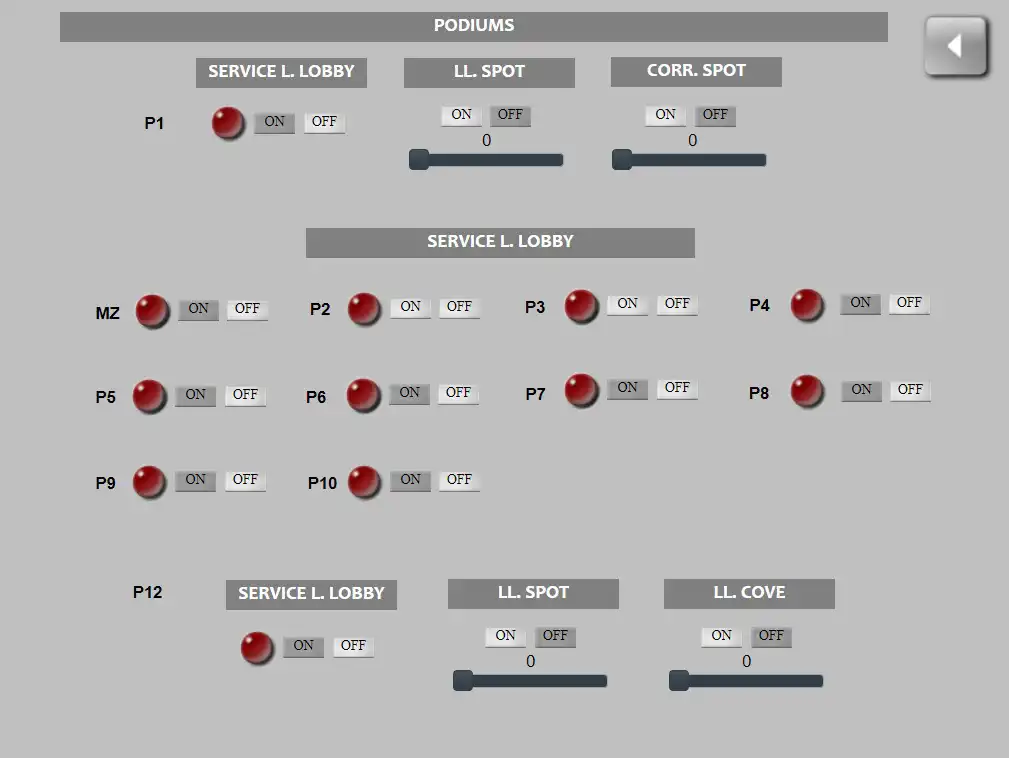

Within this project, the whole public area of the building is controlled by the NETx BMS Server. It is used for lighting control (on/off and dimming control) and for integrating a high number of sensors. The advantage of using NETx BMS Server is that all levels of the building can be controlled from the central BMS room.

KNX - DALI

Tiara Hotel and Residences

Dubai, UAE

NETx BMS Server
Data points: 10,000
Group addresses: 1,700
Visualization clients: 1
Devices: 1,116 - switches - actuator - power supply - sensor
Trades: lighting, access control
System integrator: Armiti Trading LLC

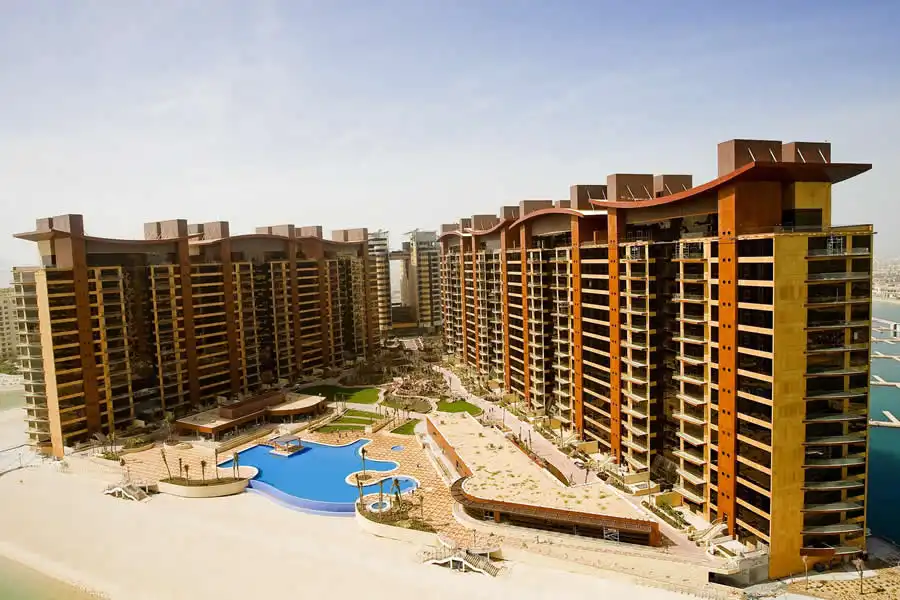

The Tiara Hotel and Residences is located on the upper right side of the Palm Jumeirah. It has two hotel towers, each with 22 floors and a total area of approximately 60,000 square meters.



Within this project, the whole public area of the building is controlled by the NETx BMS Server. It is used for lighting control (on/off and dimming control) and for integrating a high number of sensors. The advantage of using NETx BMS Server is that all levels of the building can be controlled from the central BMS room.

BACnet - Modbus - Fidelio/Opera

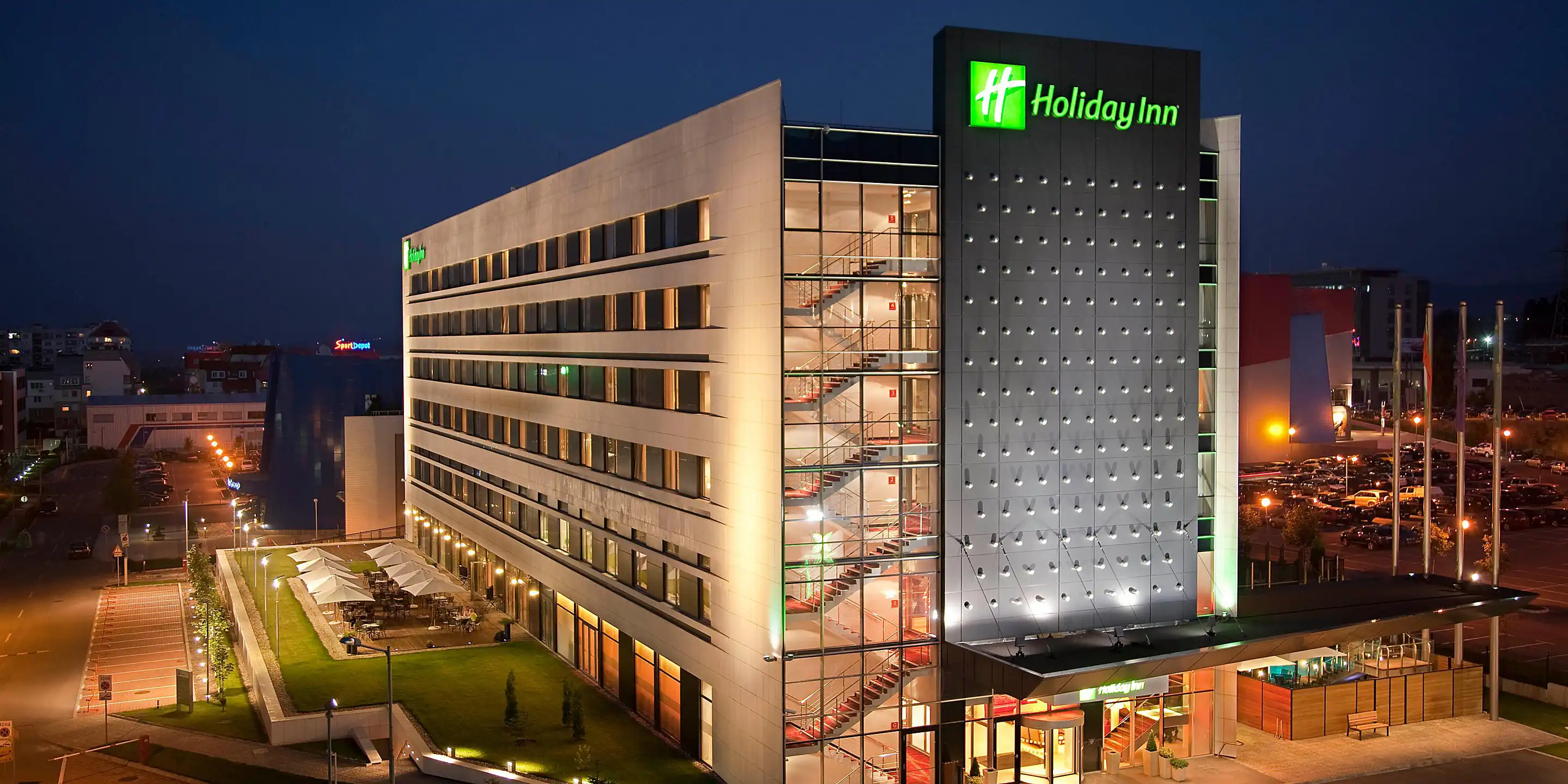

Holiday Inn Sofia

Bulgaria

NETx MP Server
Data points: 2,500
Group addresses: 650
Devices: 10+ - BACnet IP DDC controllers with extension I/O modules and additional Modbus RTU communication modules
Trades: HVAC
System integrator: Rising BMS Ltd.

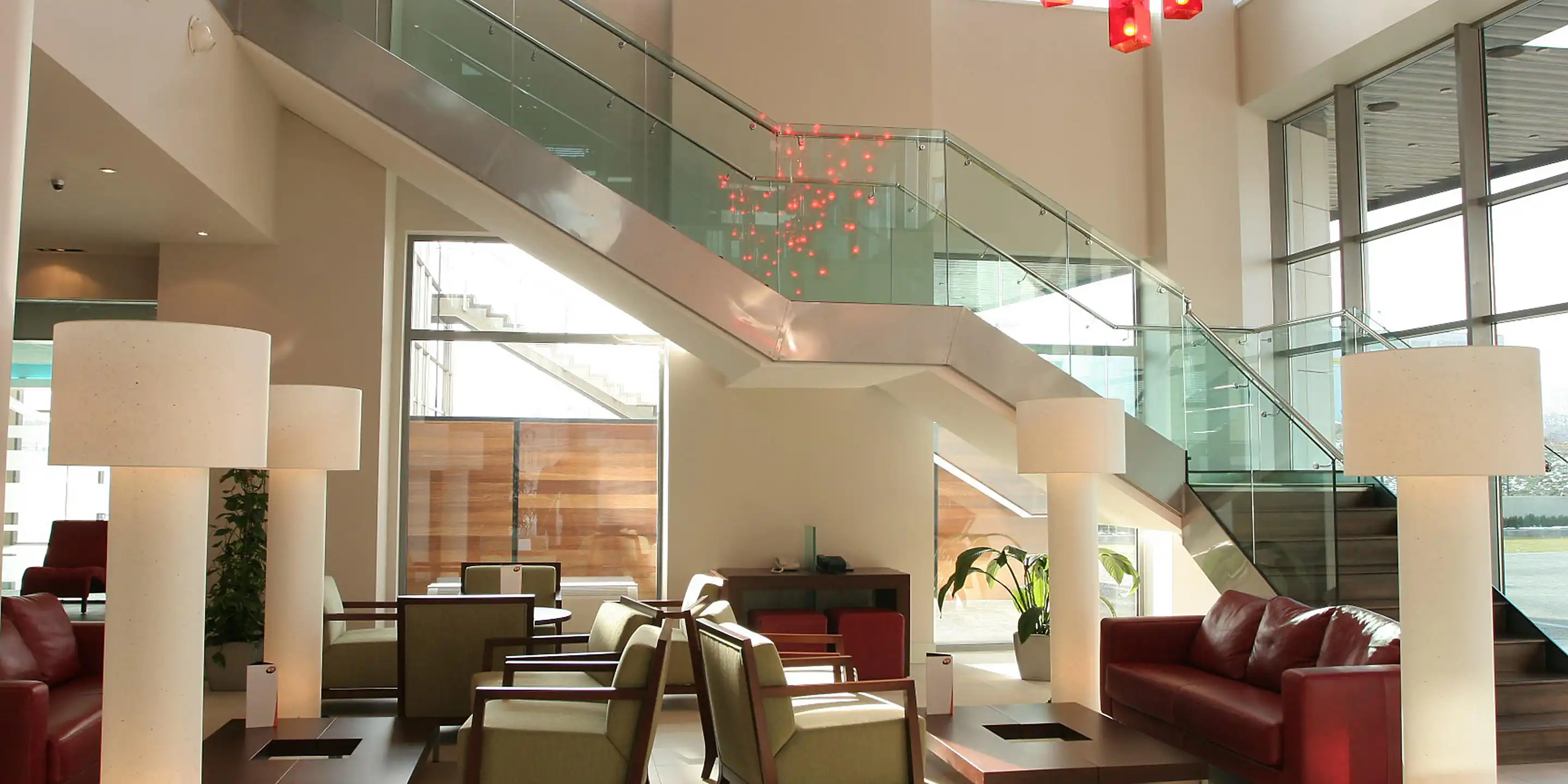

The project is in the suburbs of Sofia. It is a part of IHG Hotels & Resorts group.

The reason for using NETx MP Server software was to integrate the hotel PMS and related information into a larger BACnet IP system to make the relevant data available for BMS visualization. Some of the data points were also used in BACnet IP DDC controllers to implement them in a software application.

KNX - Fidelio/Opera

Botaniq Tura Castle

Hungary

NETx BMS Platform
Data points: 2,000
Visualization clients: 2
Trades: lighting, HVAC, access control
System integrator: Elektro_Kamleithner Kft.

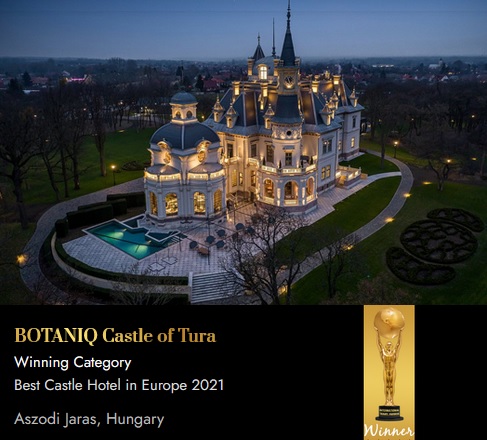

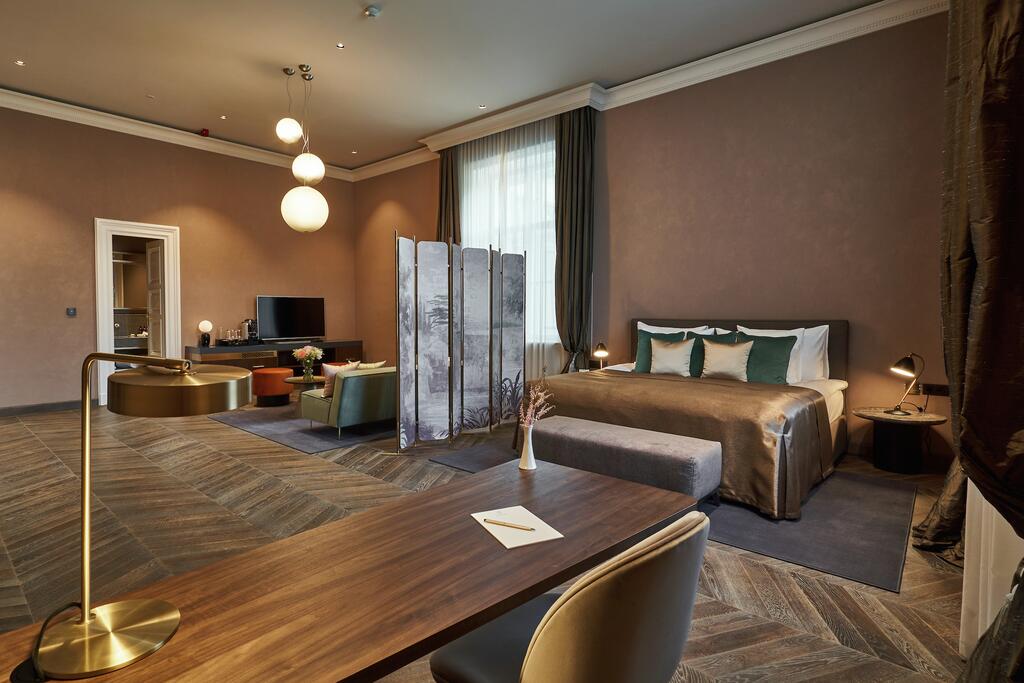

The Botaniq Tura Castle is one of the most beautiful castles in Hungary and was built in 1883. The castle with its neo-Renaissance and neo-Baroque elements, together with a 10-hectare forest, a park and a lake surrounding the castle, offers all the prerequisites for an exclusive recreational holiday.

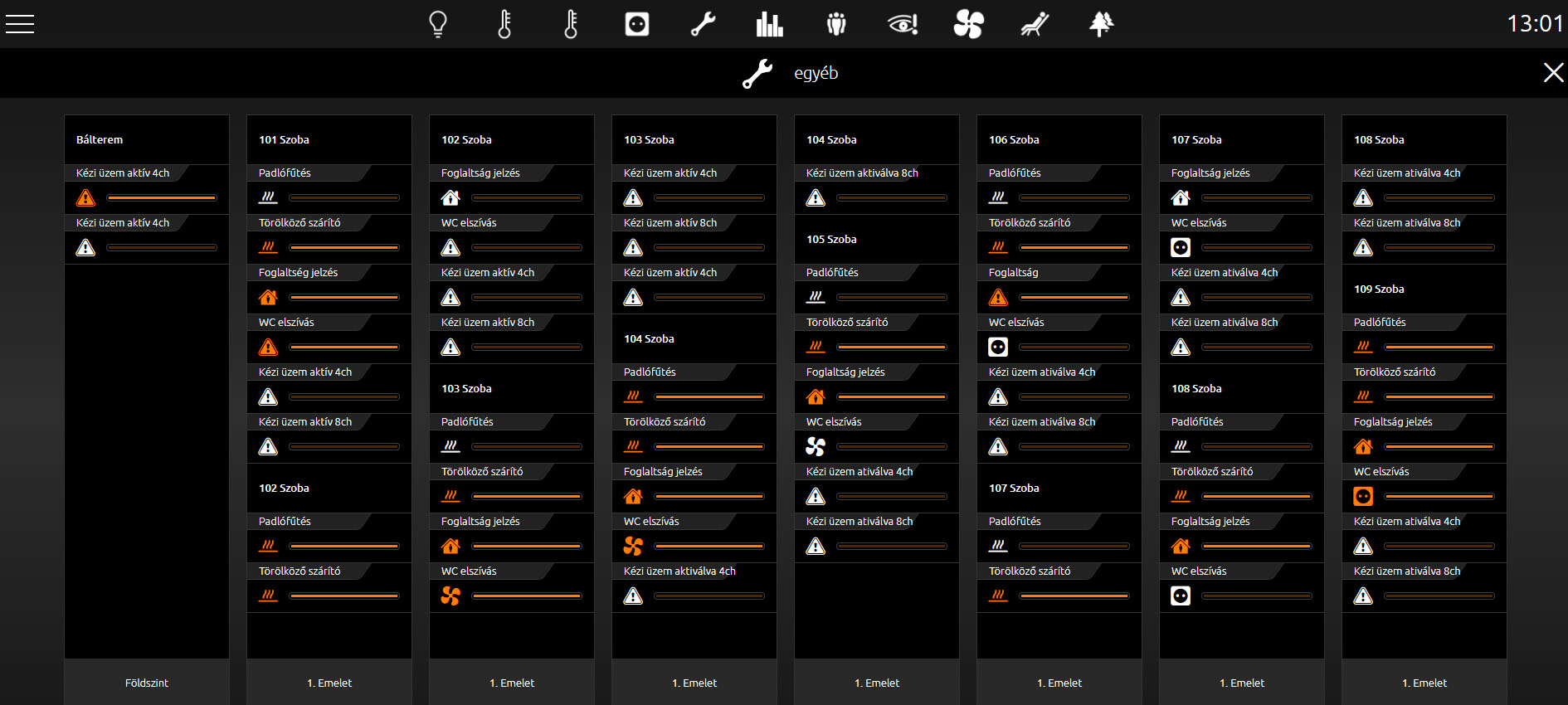

The technical equipment of the 5-star hotel also meets all modern requirements. The NETx BMS Platform provides the appropriate high-end software solution for this award-winning project.



KNX - BACnet - Modbus - Fidelio/Opera - DALI

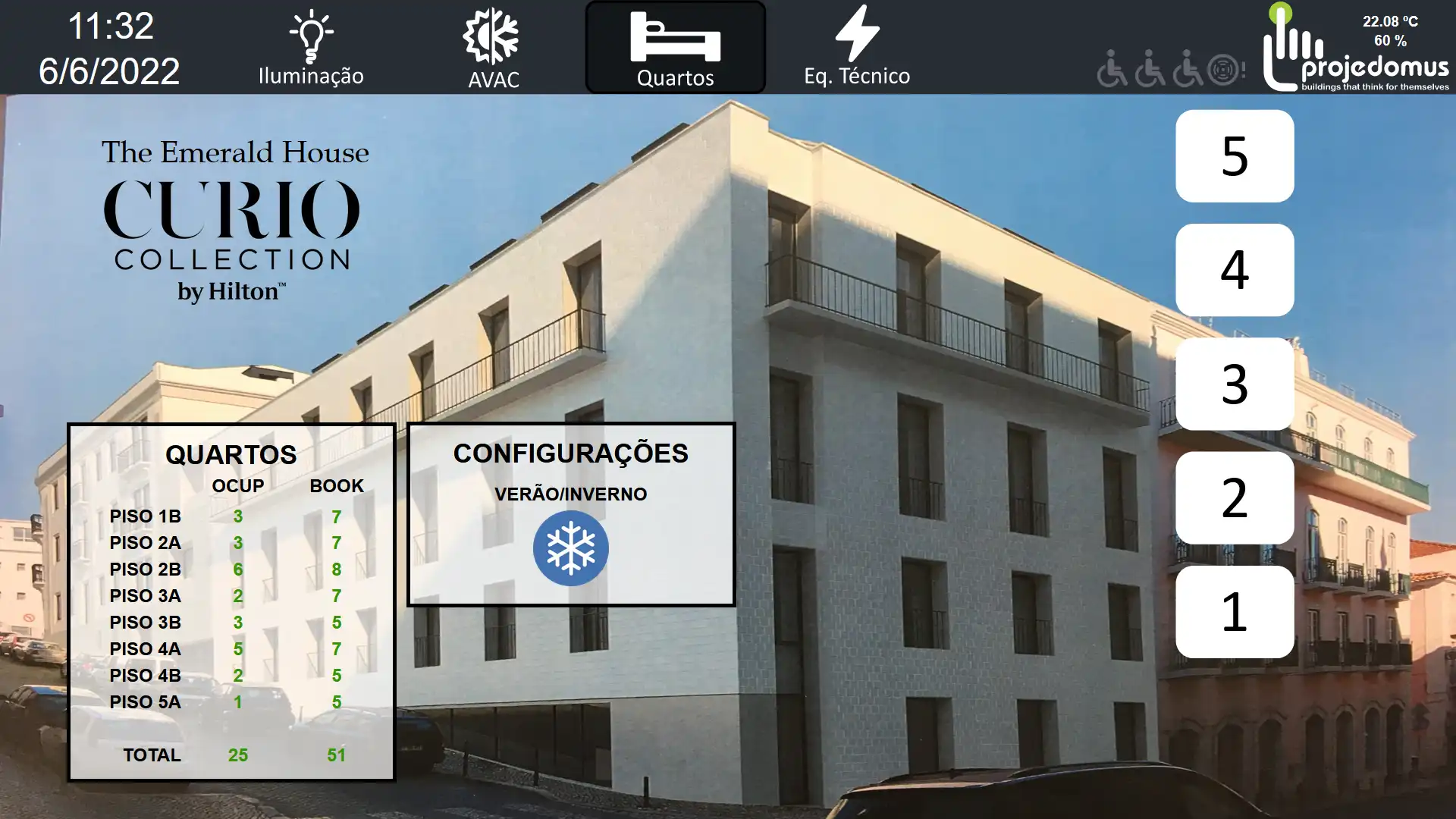

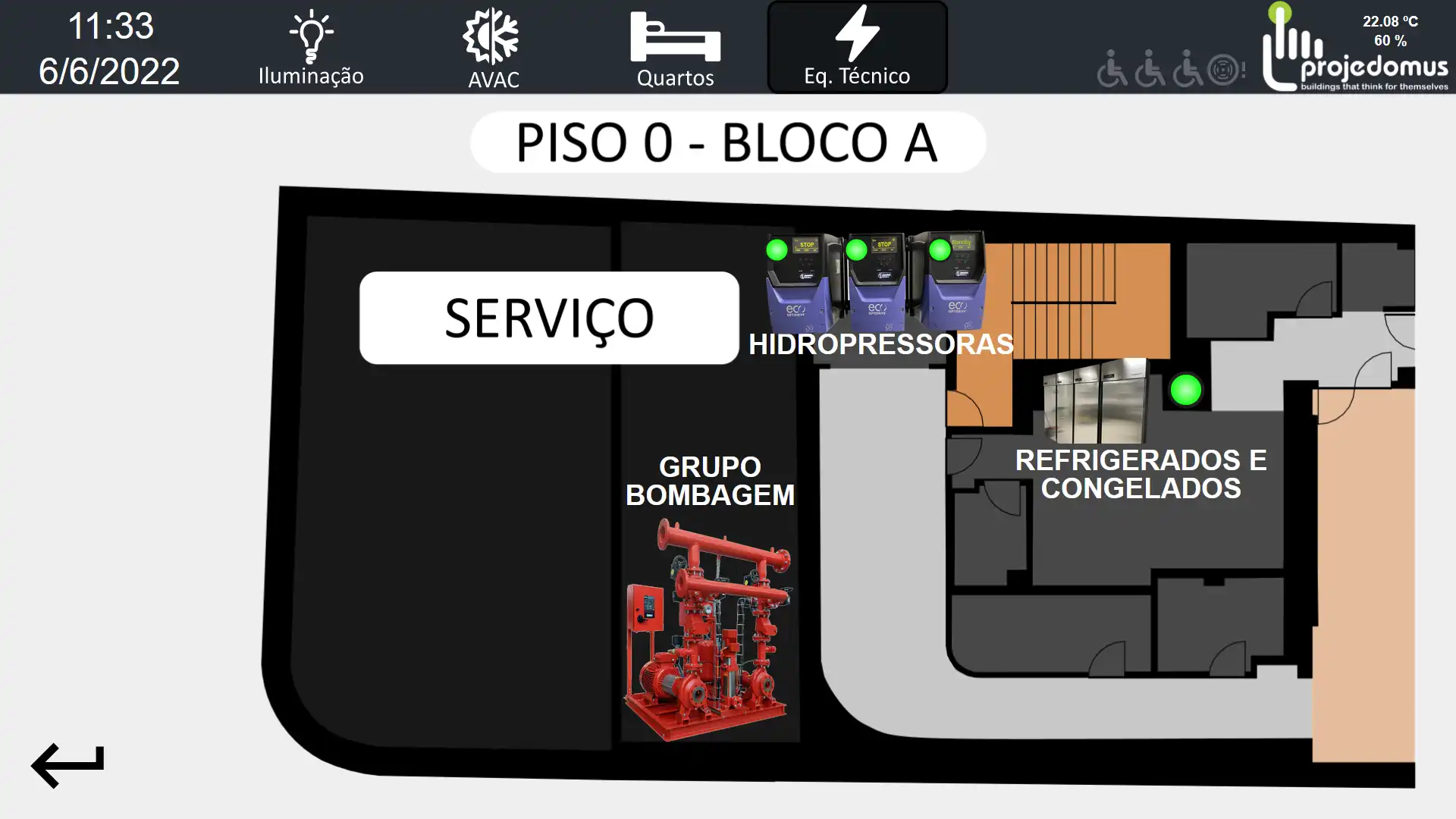

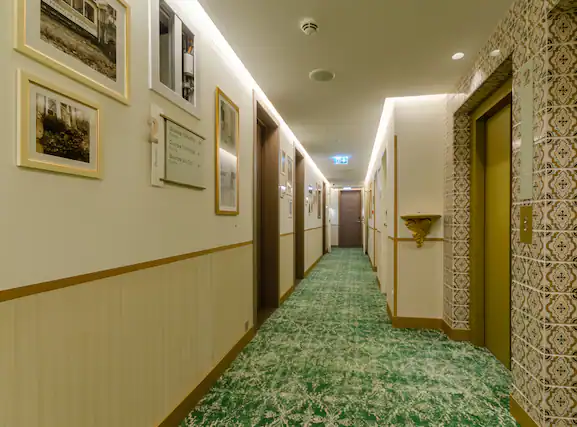

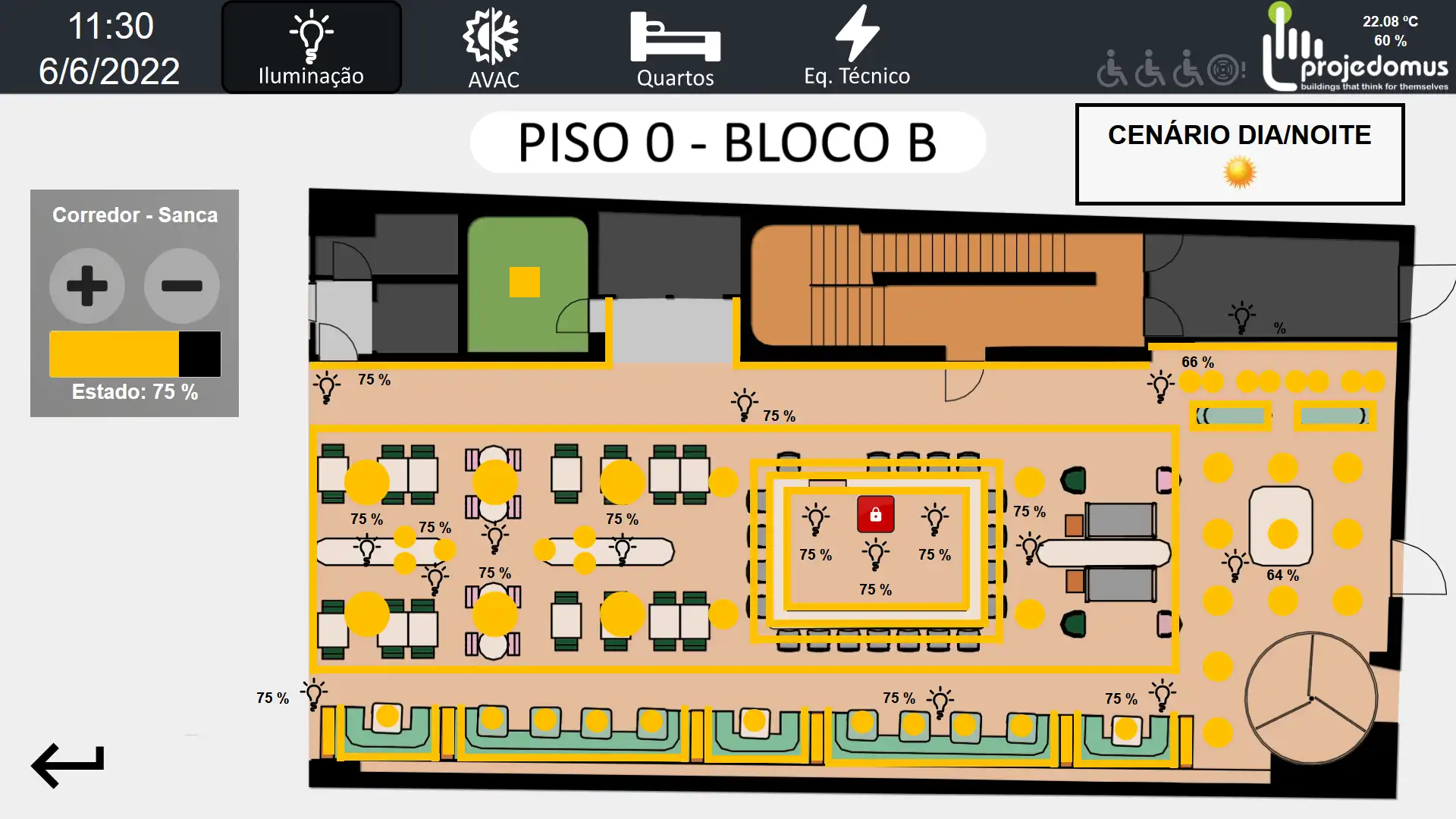

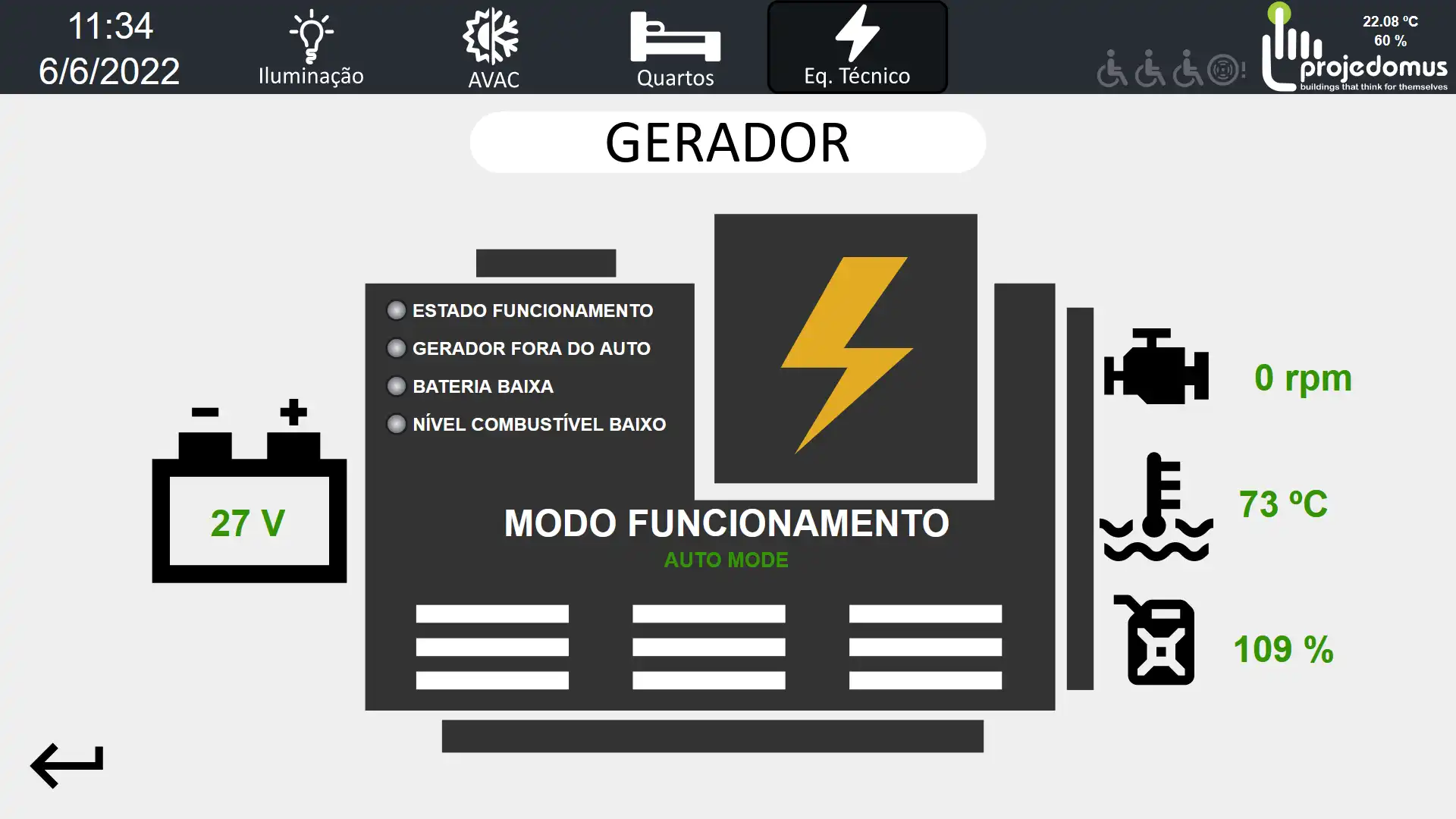

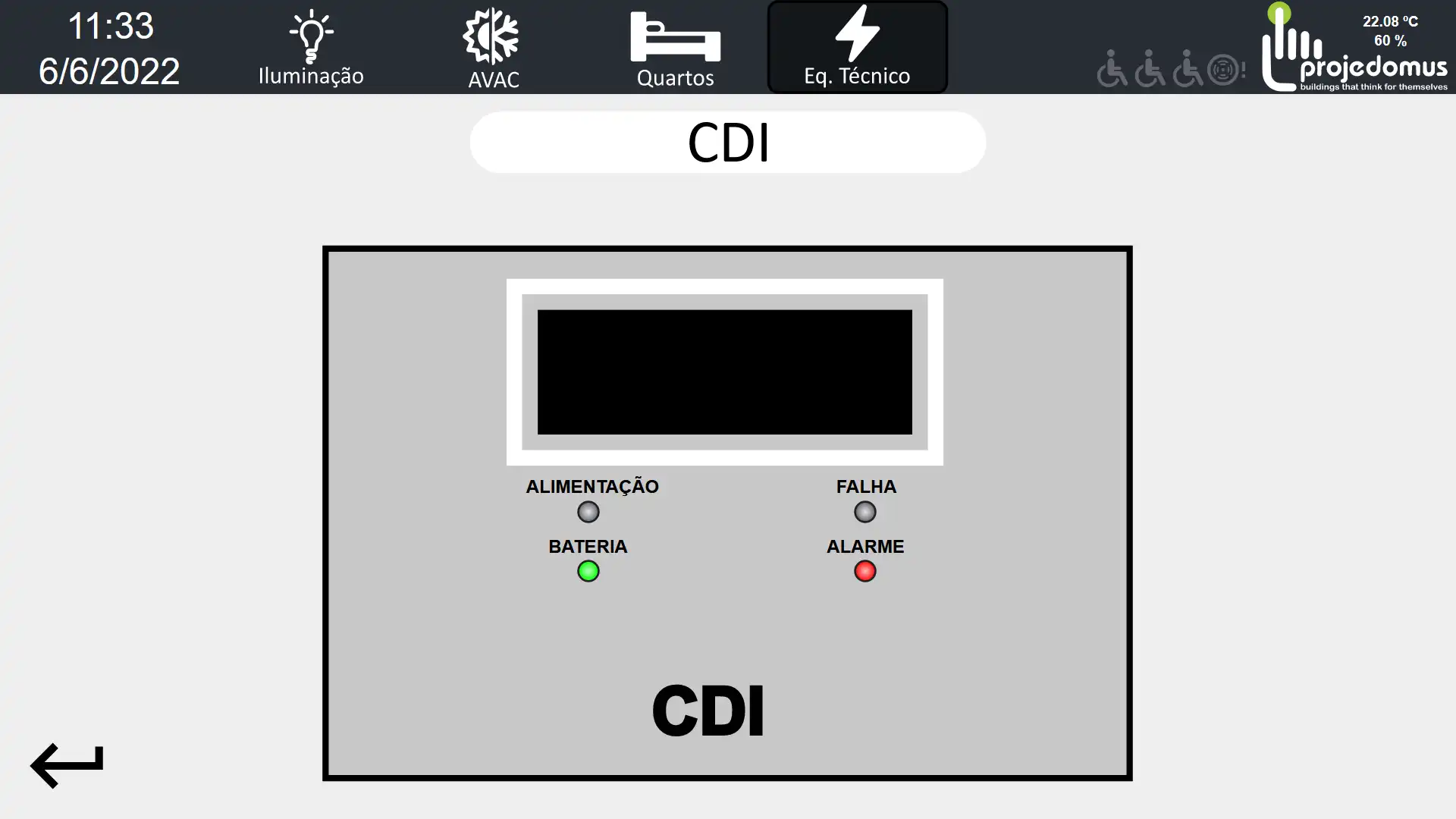

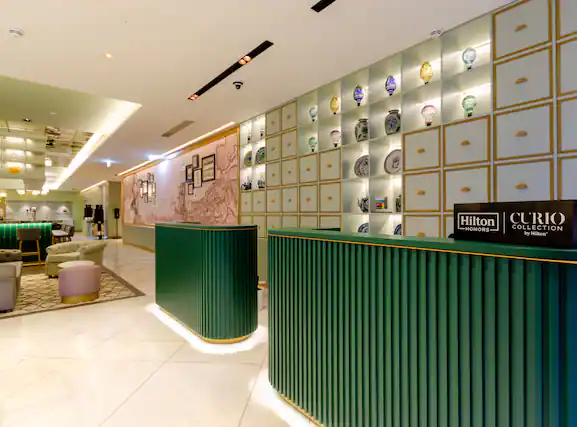

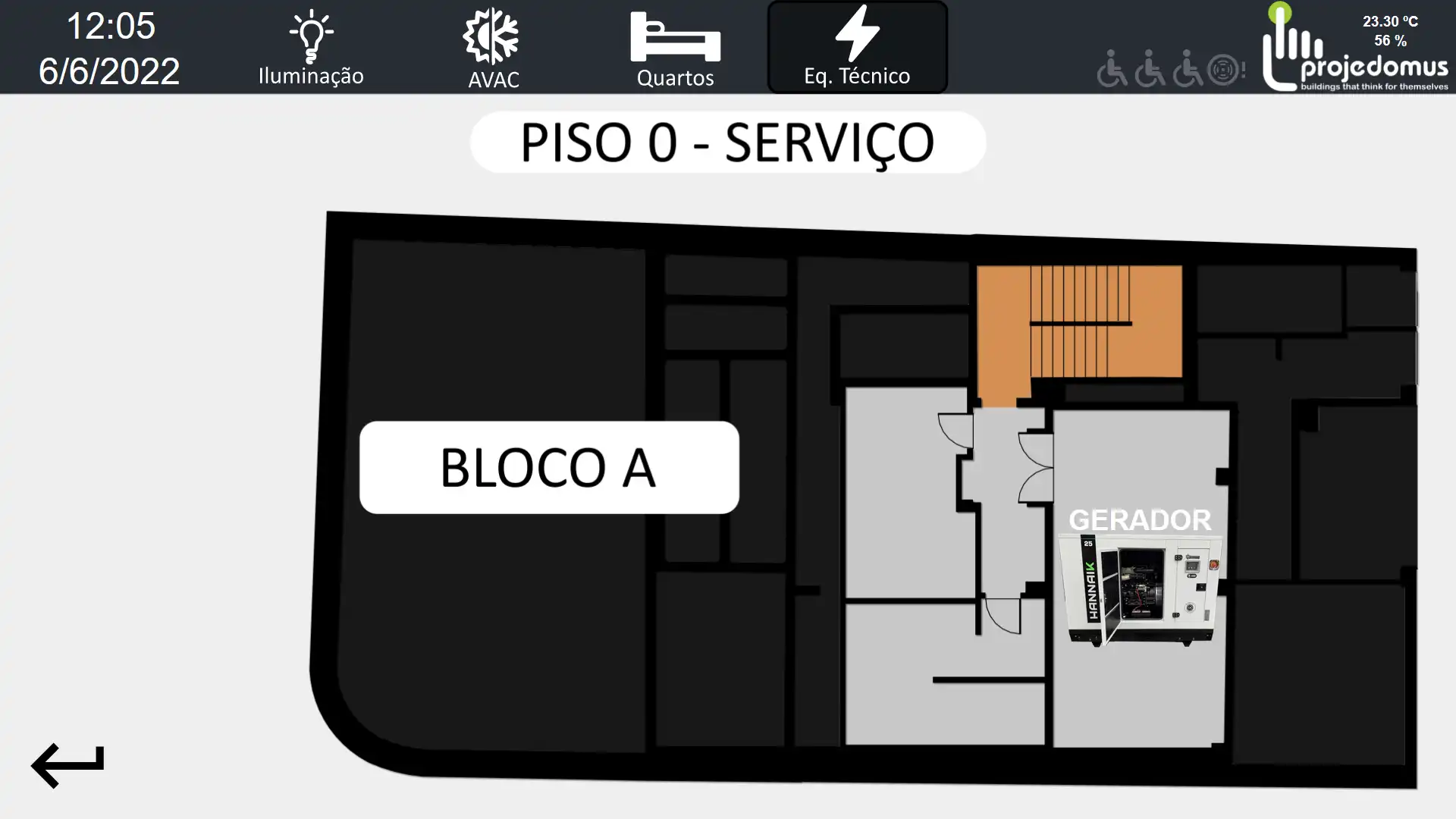

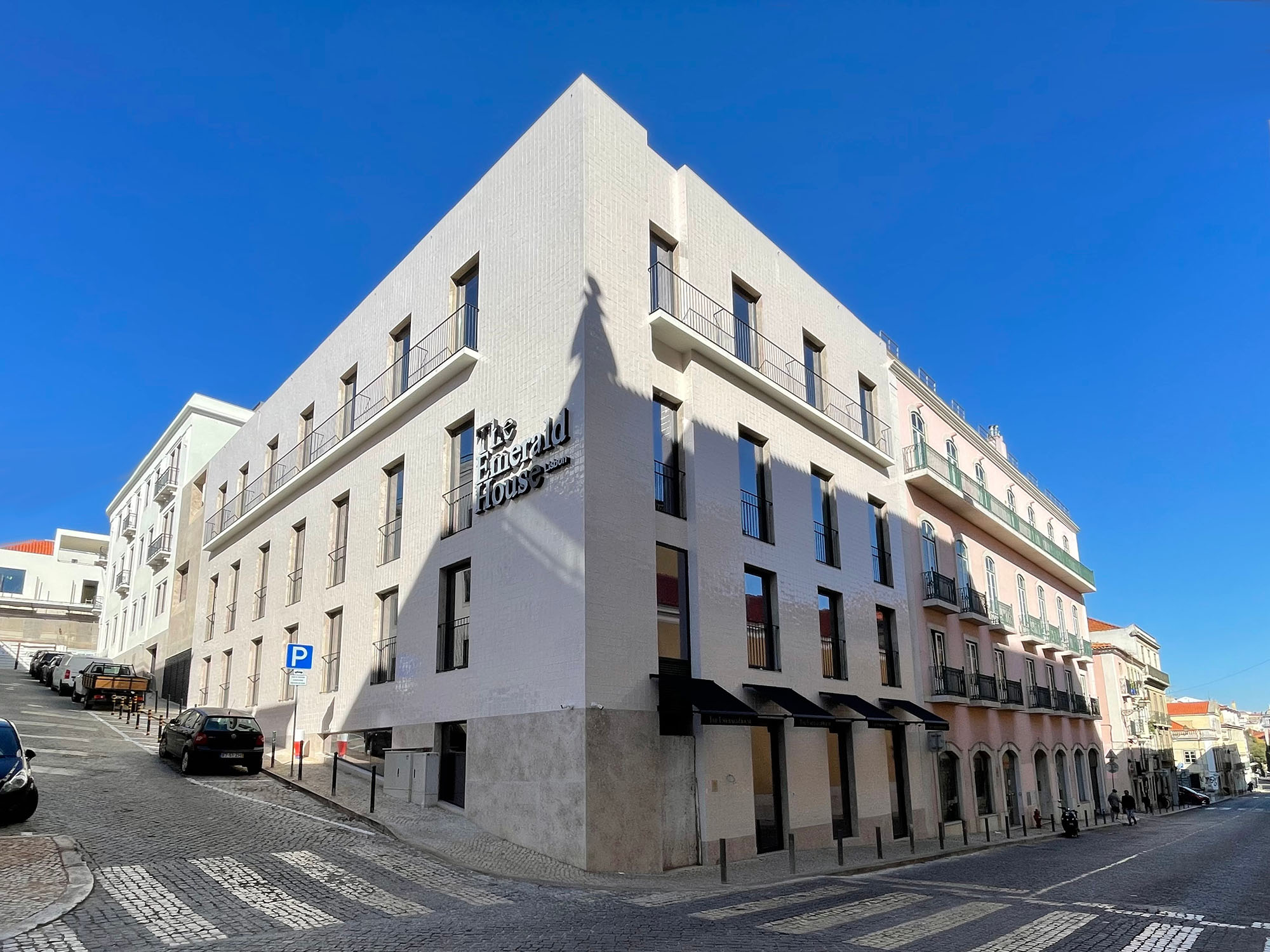

The Emerald House Lisboa

Portugal

NETx BMS Platform
Data points: 3,000
Group addresses: 6,154
Visualization clients: 2
KNX devices: 766
Trades: lighting, HVAC, shading, security
System integrator: Projedomus

This is the first Curio Collection hotel in Portugal, built by the Hilton Group. Located on Rua das Janelas Verdes, in one of Lisbon´s most emblematic historical neighborhoods, called The Emerald House. It is more than a hotel, it is a home. The warm and Portuguese style of welcome was the motto for this project.

In this remodel, Projedomus took care of the control of the interior and exterior lighting, shutters, HVAC systems, panel monitoring, thermal systems, temperatures, and technical alarms.

The rooms have input and output scenarios integrated with the hotel management system, with the aim of creating a good experience and comfort for the customer and energy savings for the hotel manager.

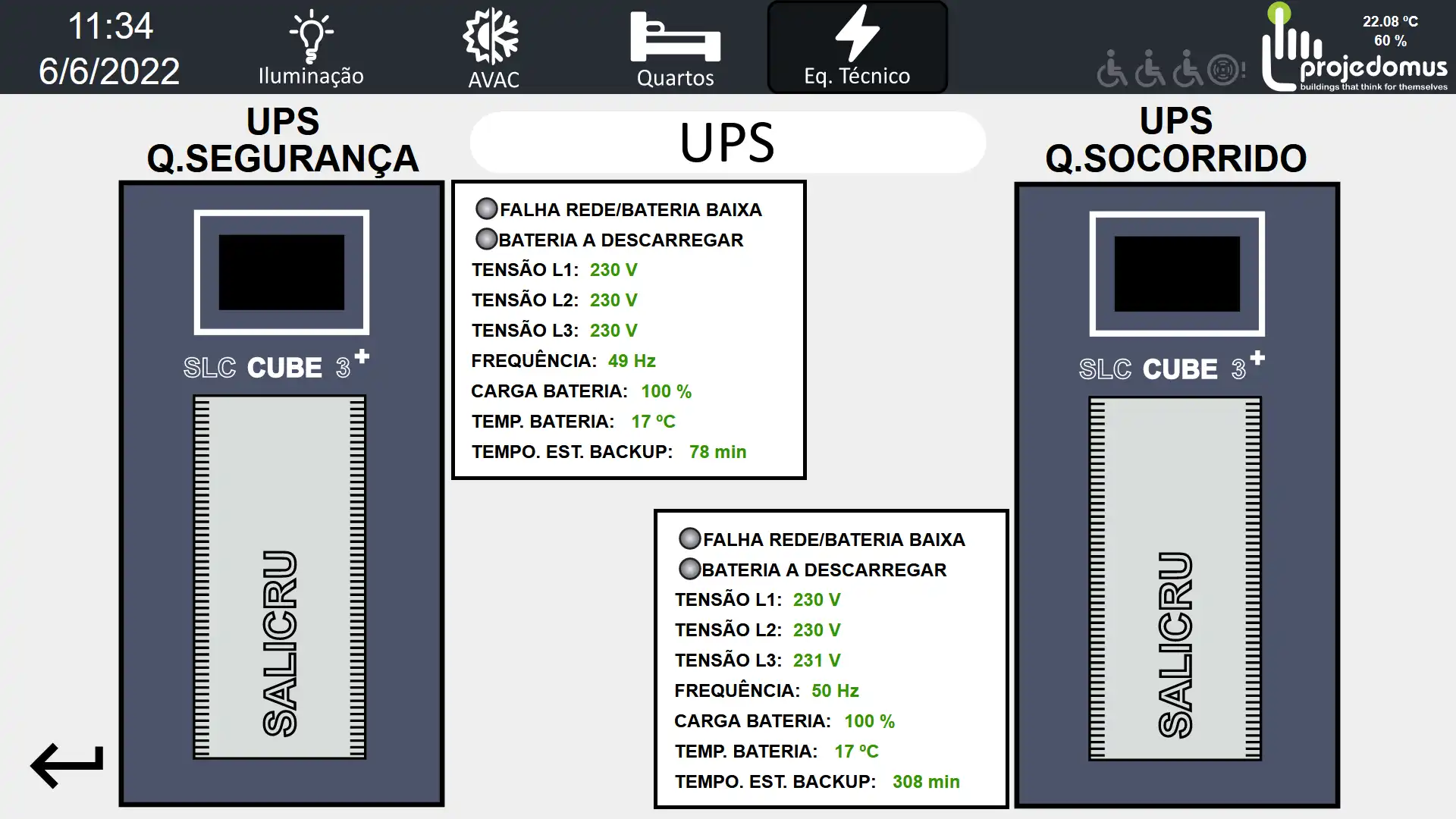

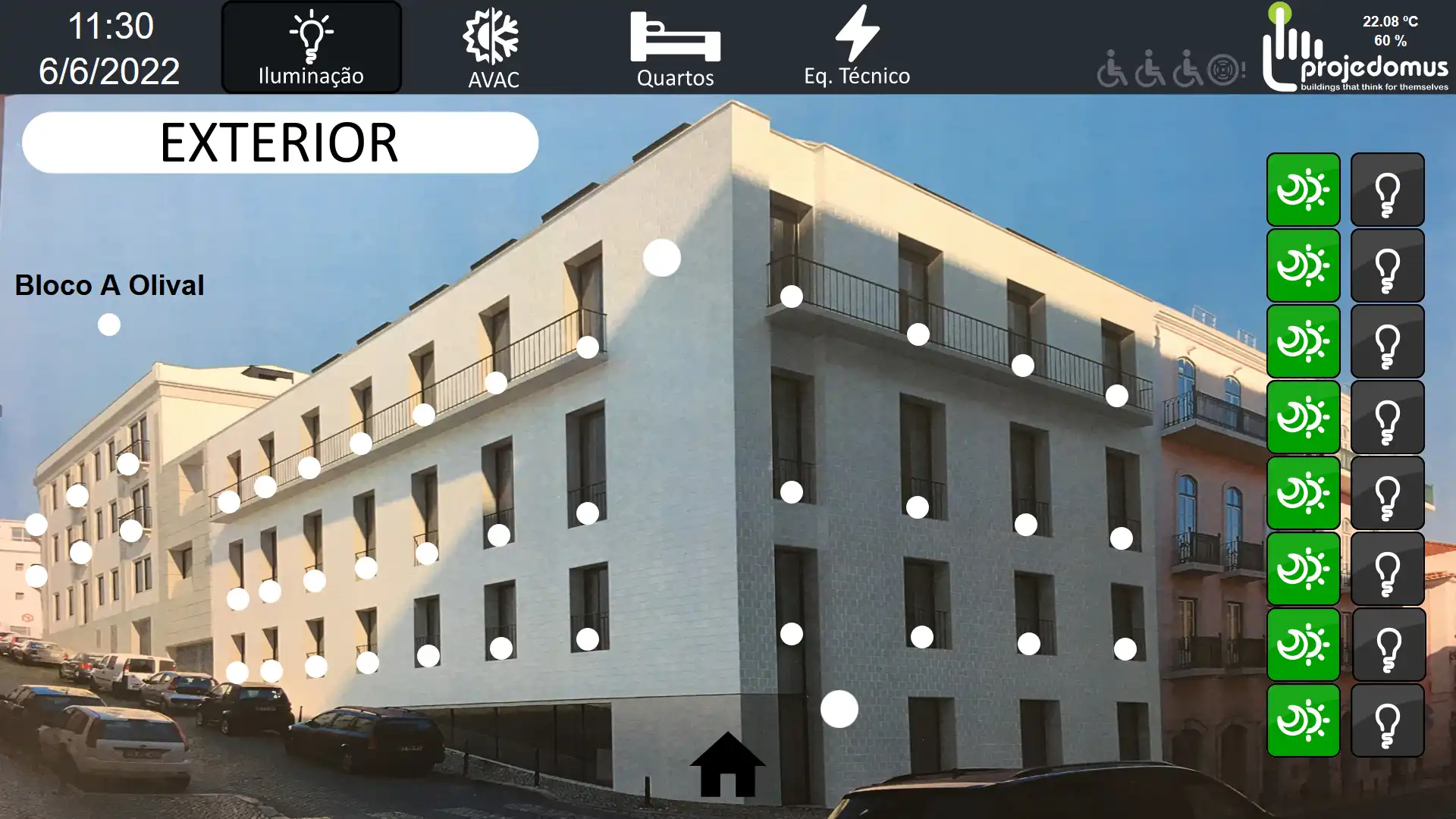

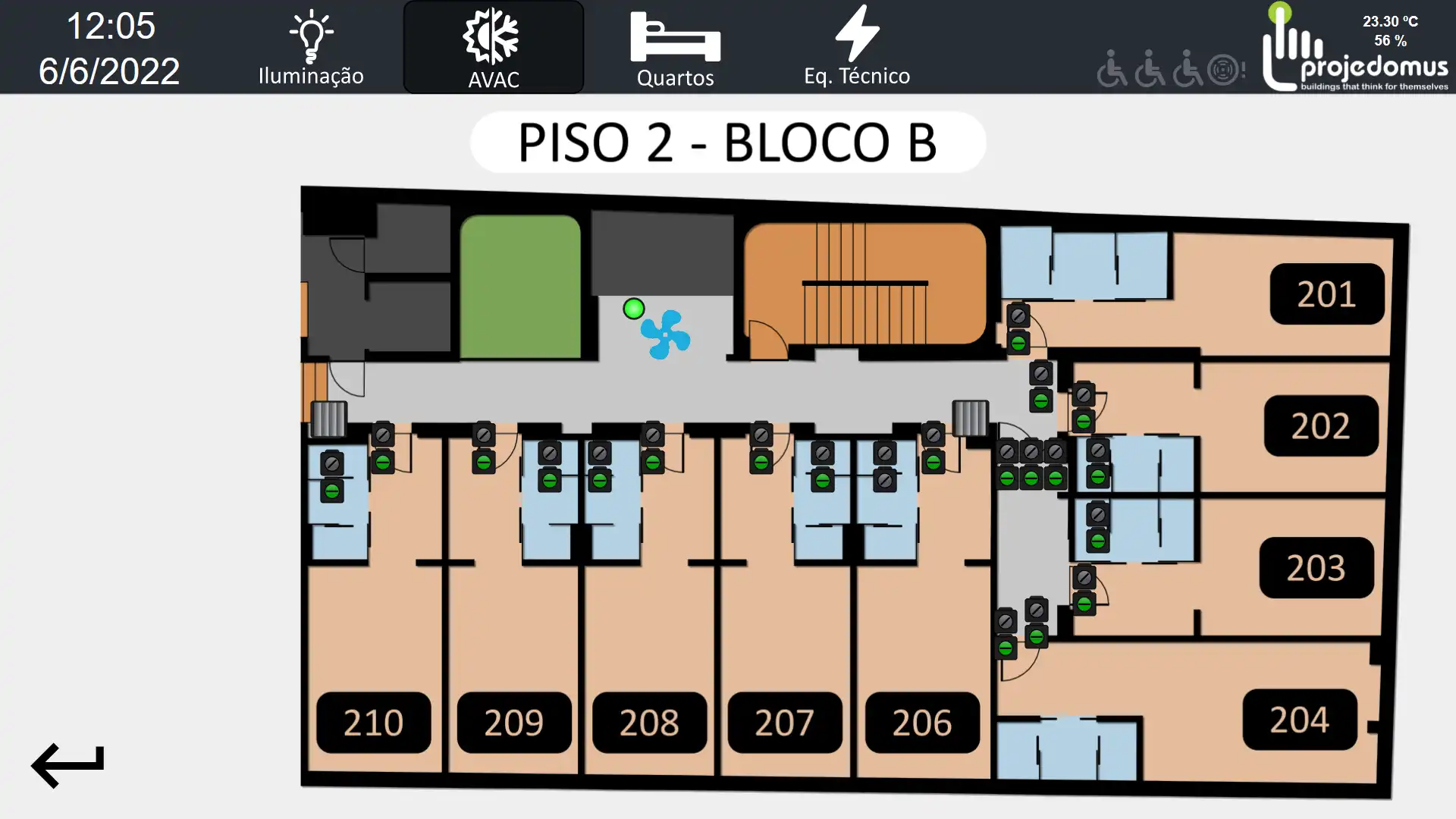

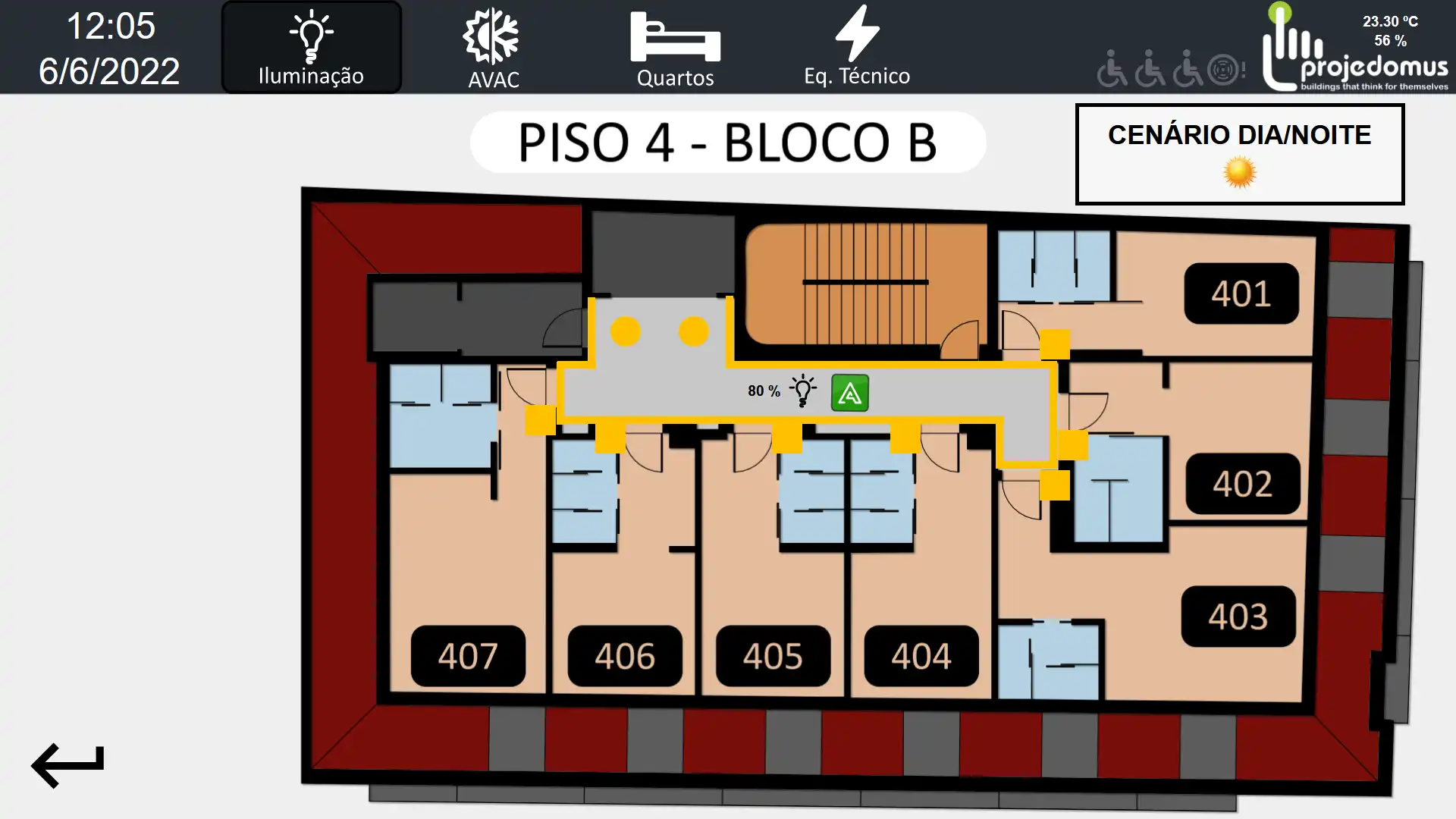

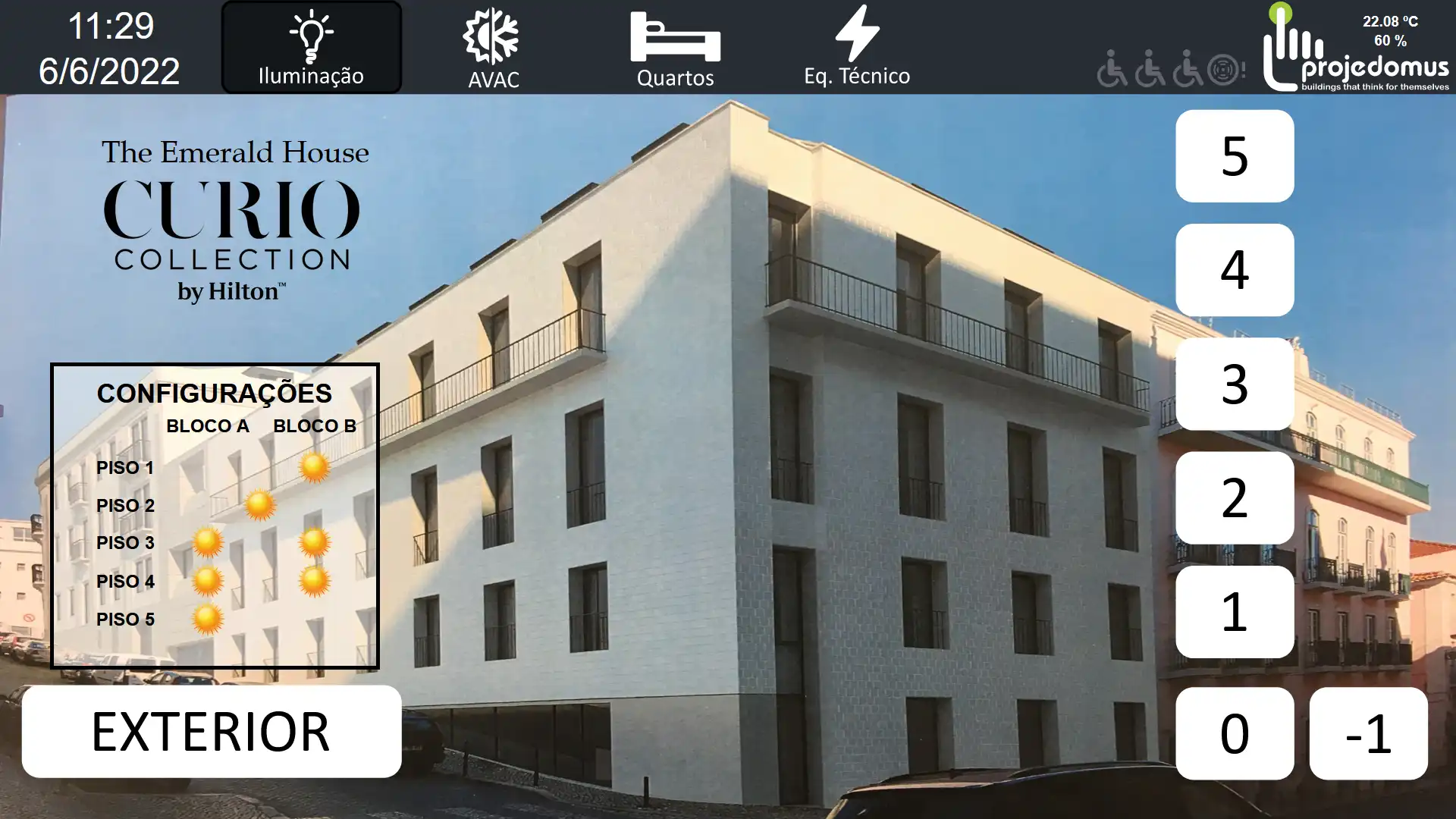

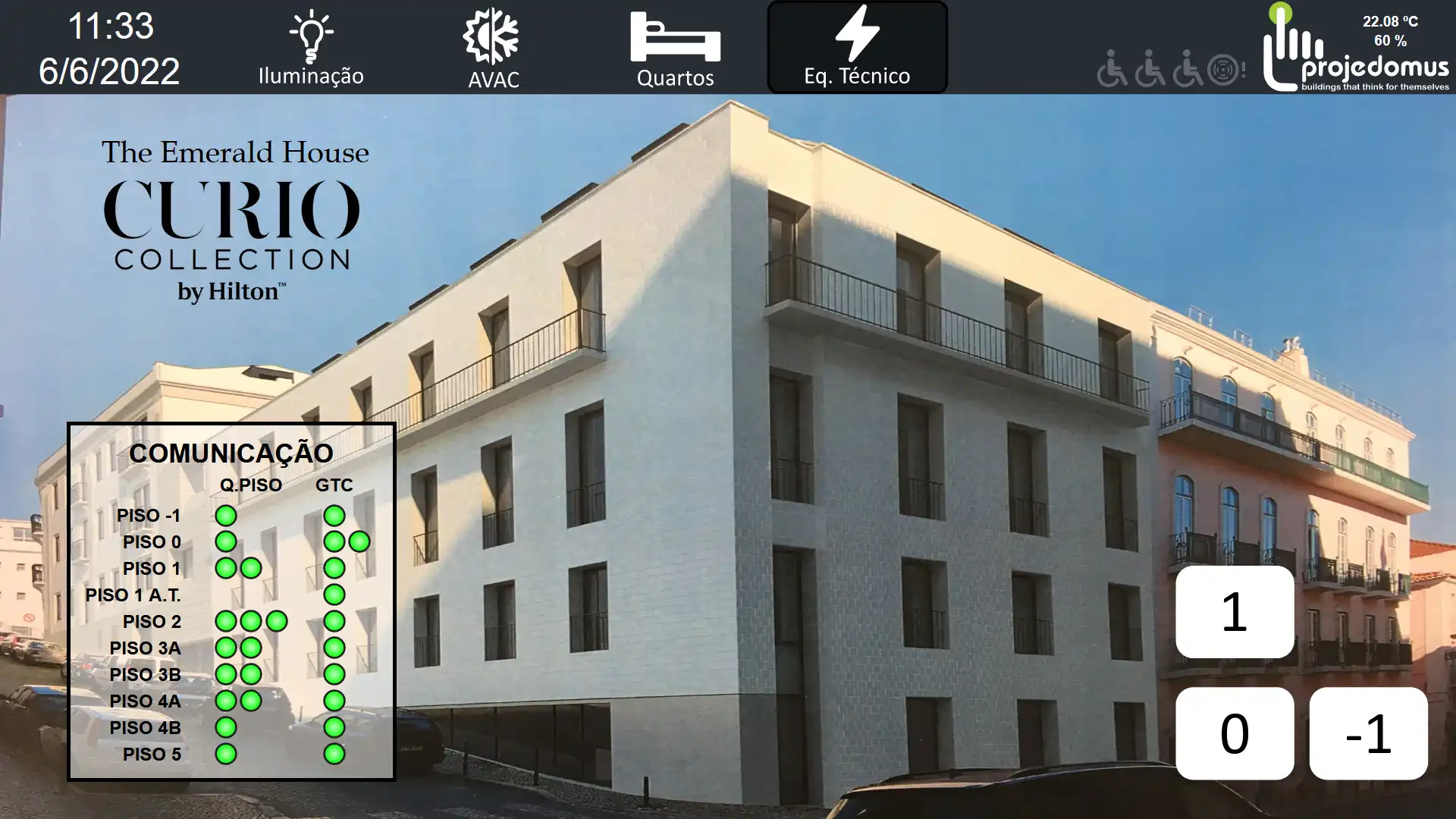

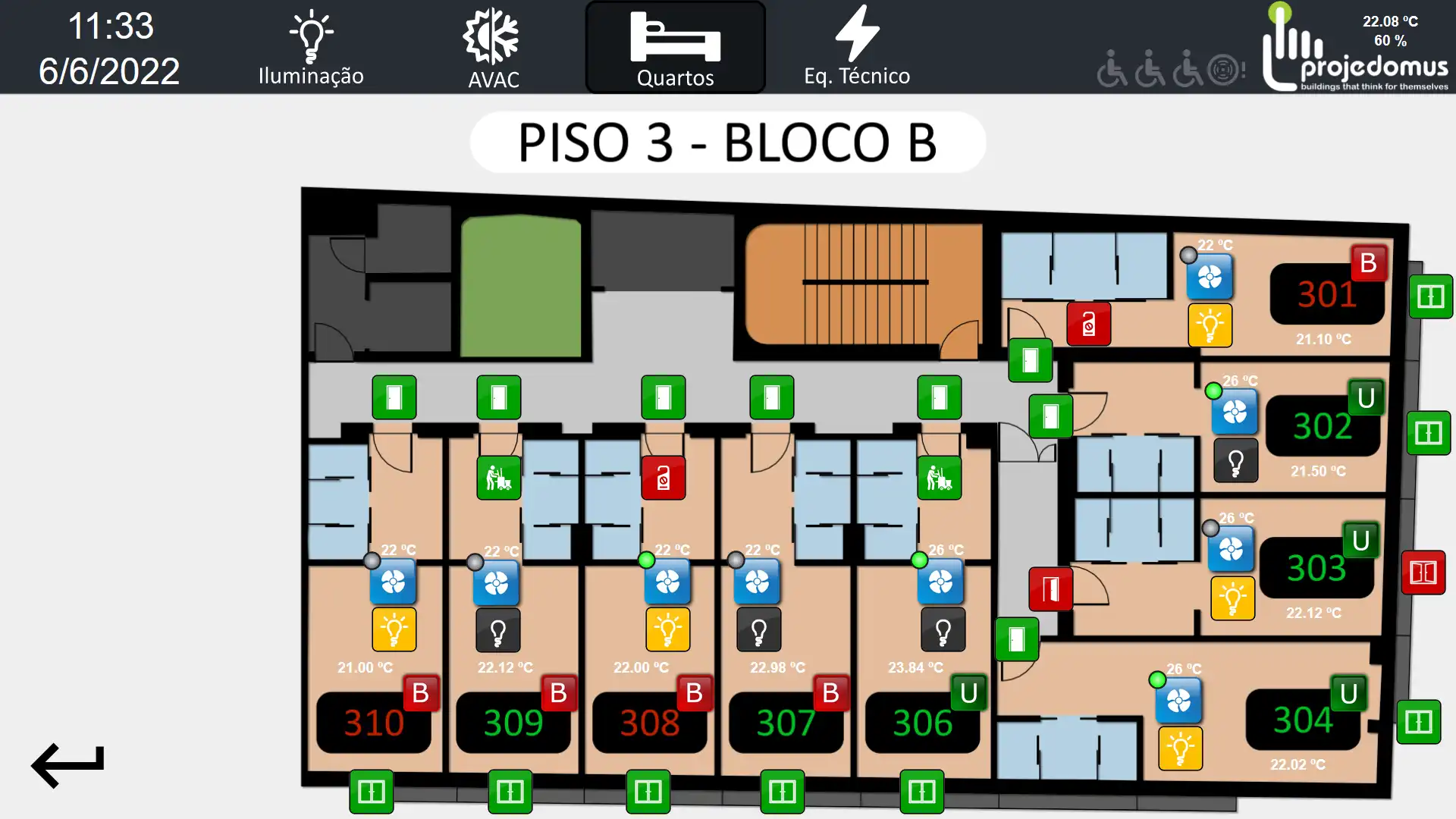

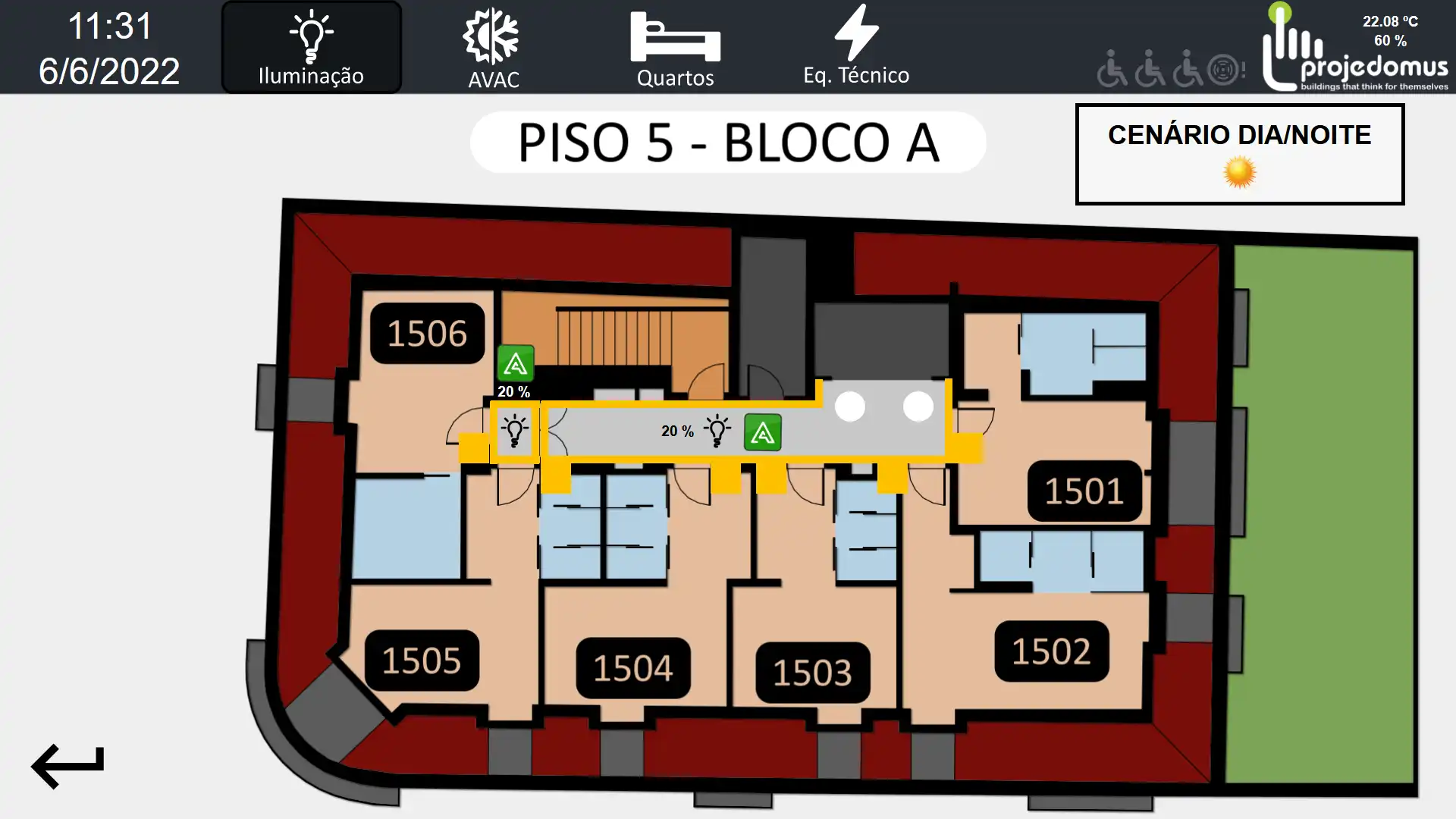

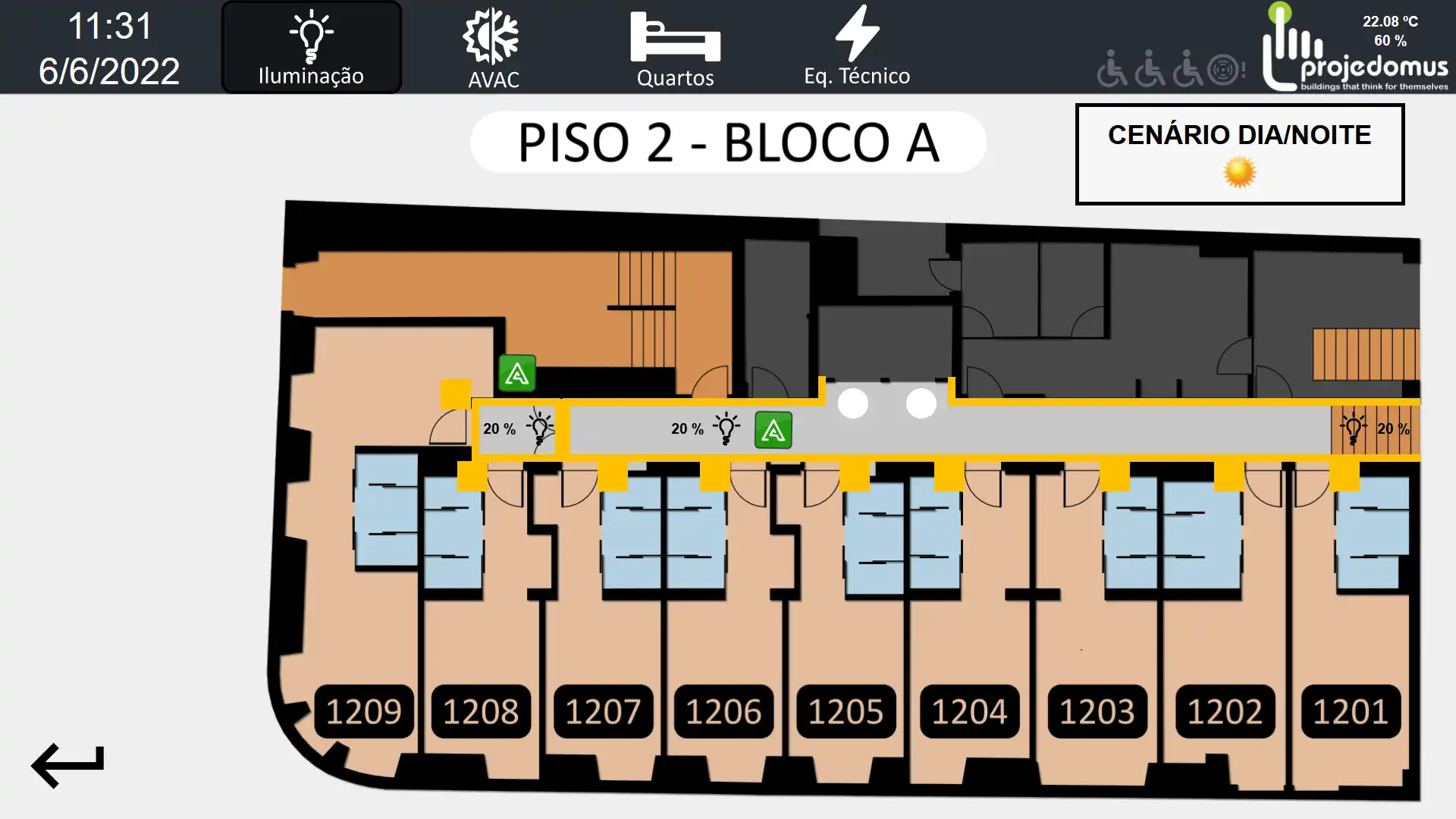

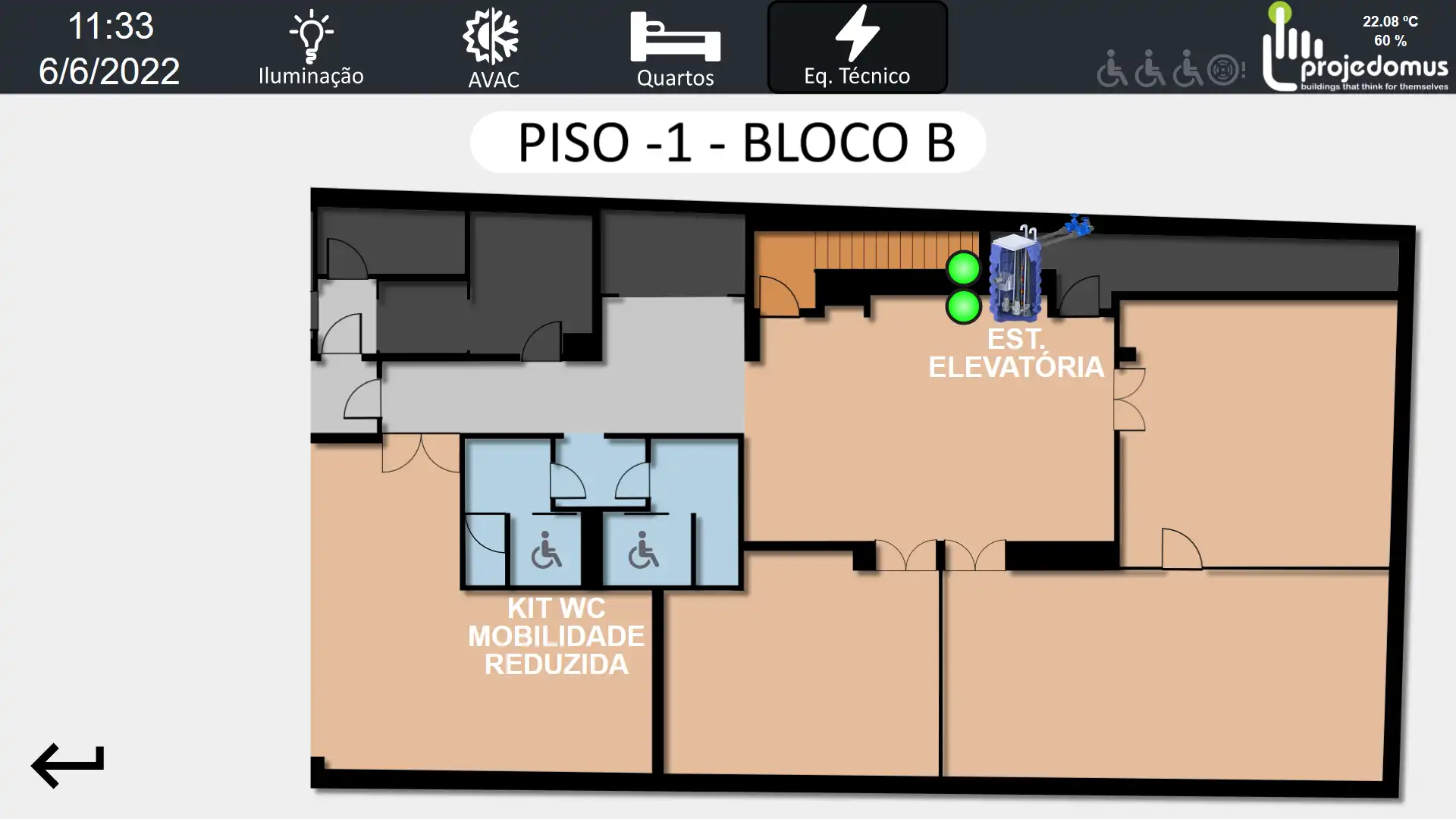

All systems are integrated and can be controlled through a visualization interface for the building users.

The entire system is scalable and can be integrated with a wide range of communication protocols used in buildings.

KNX - BACnet - Fidelio/Opera - VingCard - DALI

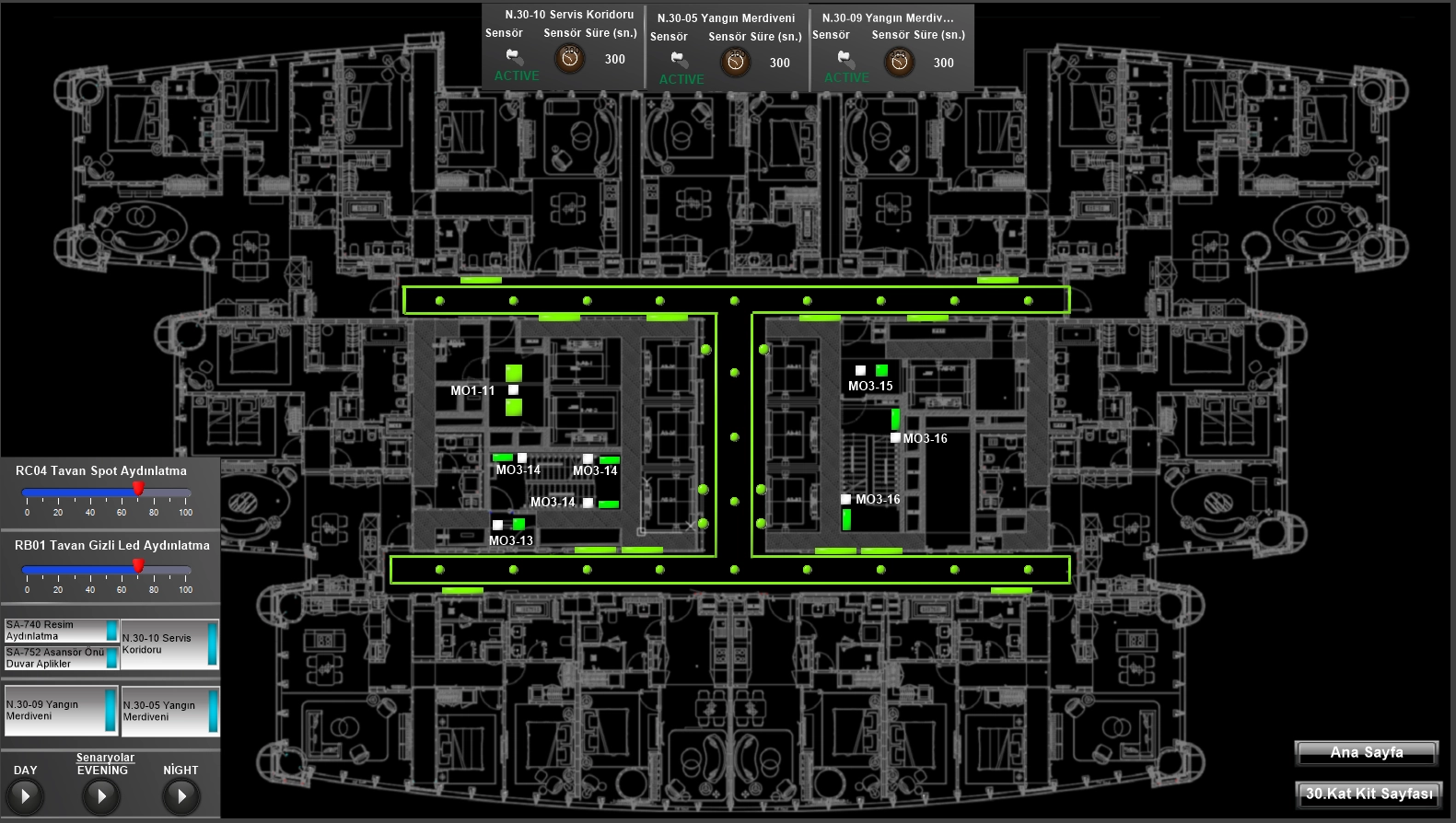

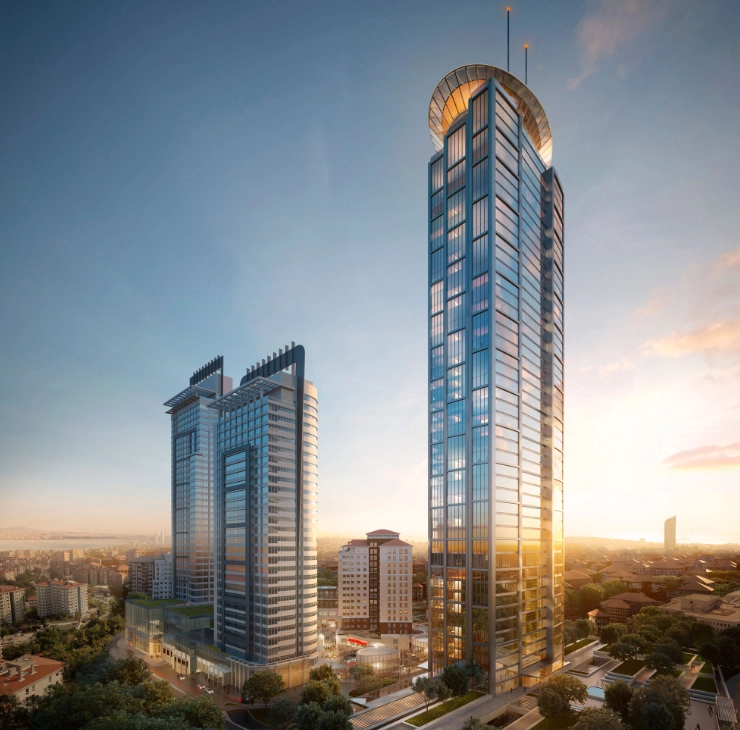

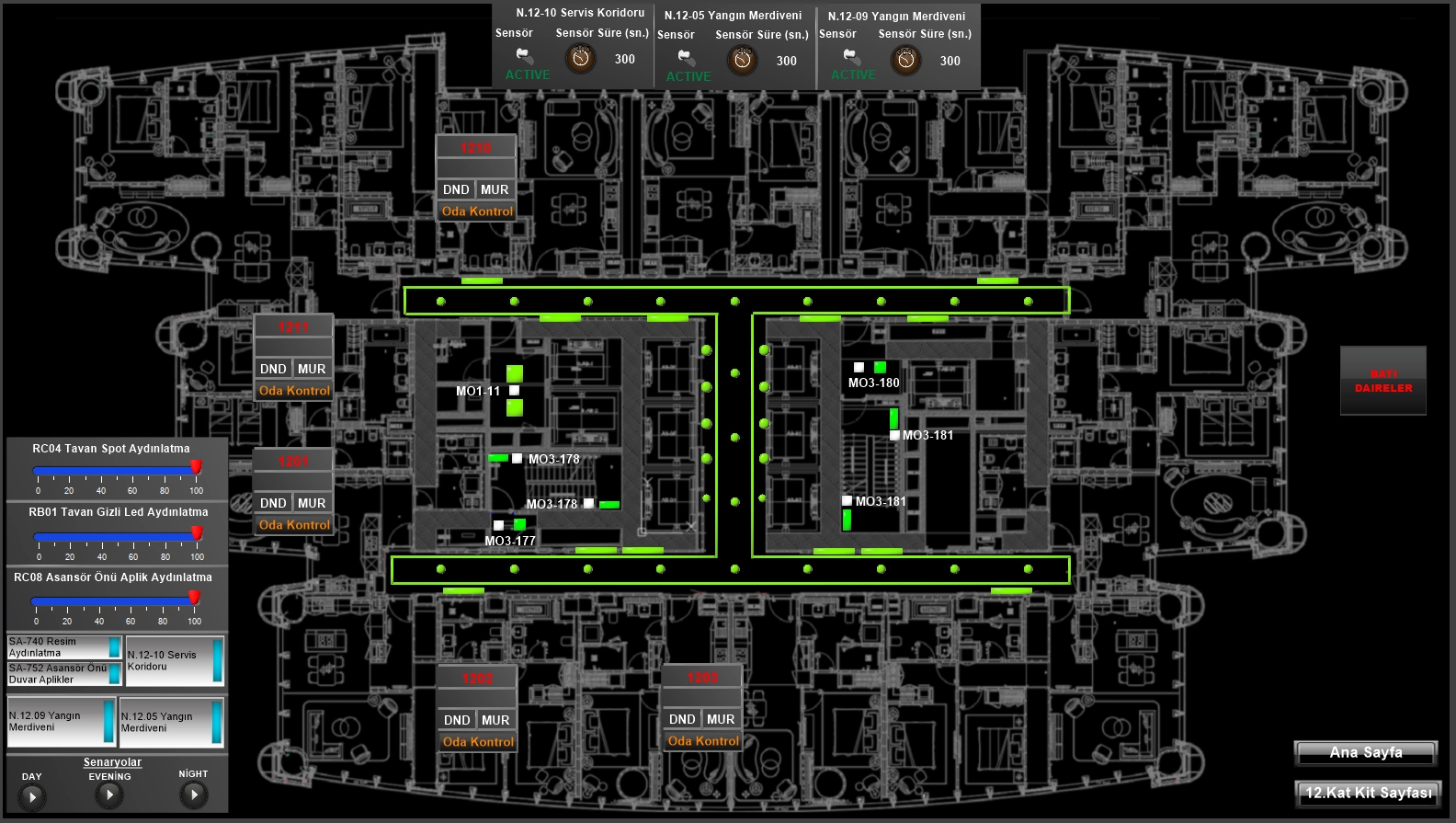

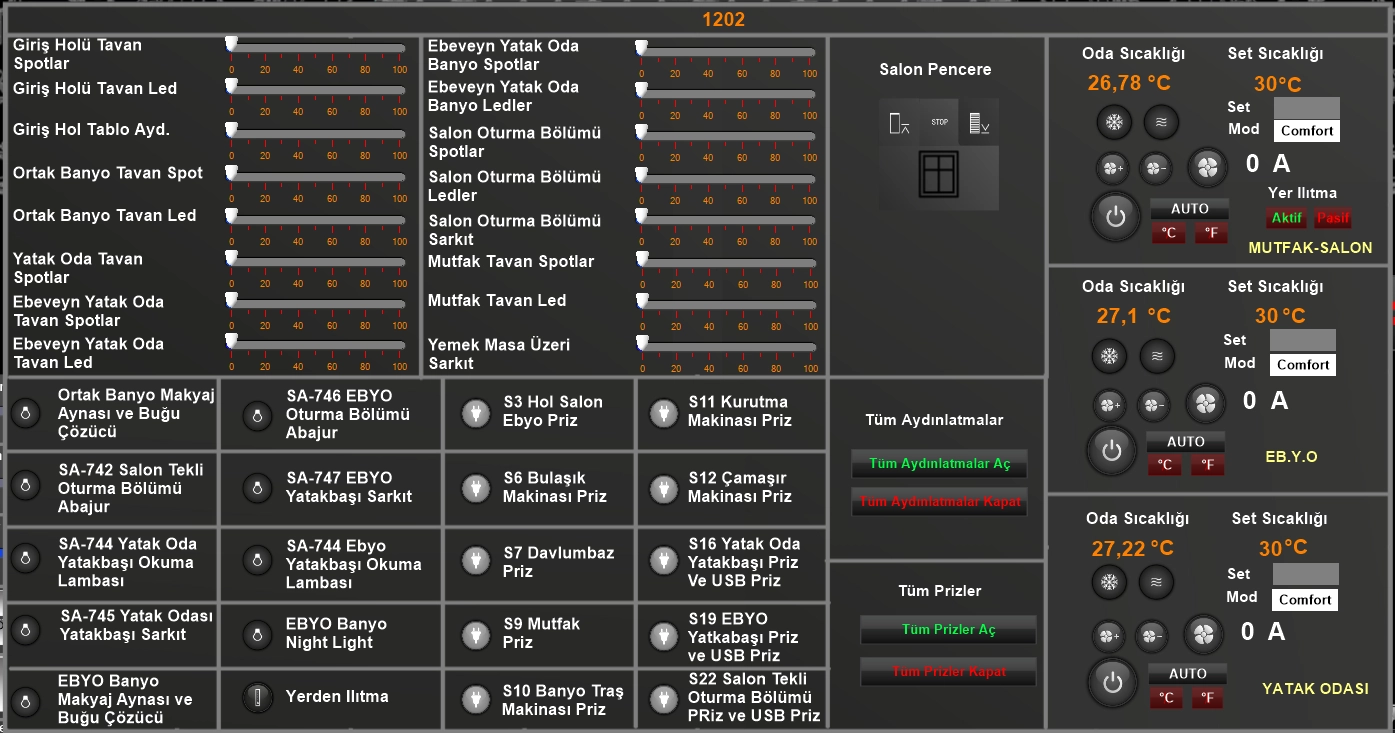

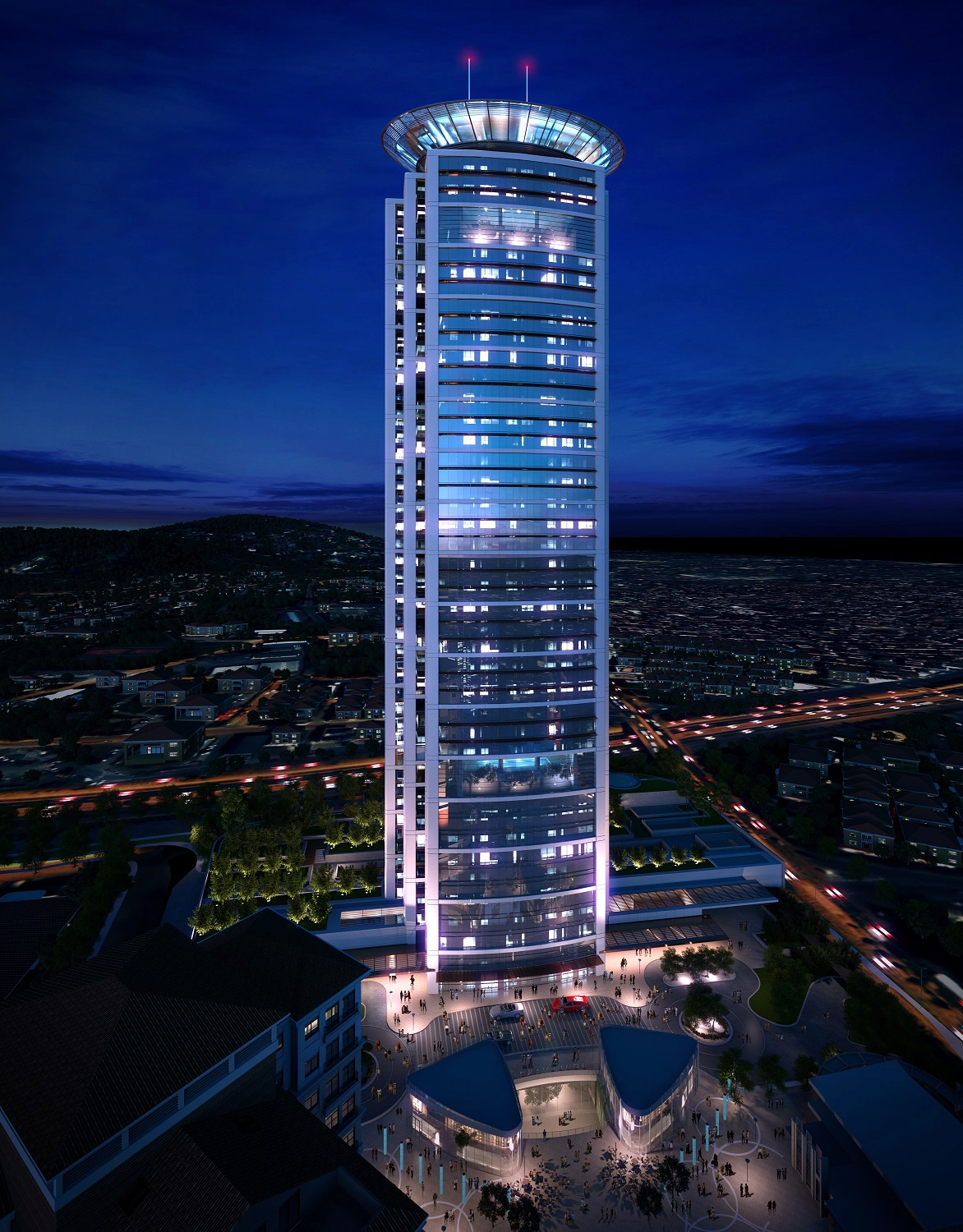

Emaar Square North Tower Hotels & Residential

Turkey

NETx BMS Platform, LaMPS Module
Data points: 70,000
Group addresses 70,000
DALI devices: 300
Measurement data points: 25,000
Trades: lighting, HVAC
System integrator: OPTİMUS DORUK A.Ş.
  • GMRS Hotel Integration
  • VingCard Integration
  • Digivalet Integration
  • Opera/Fidelio Integration
  • Lighting Automation with DALI Emergency Lamp Integration
  • HVAC Automation Integration (FCU)

KNX - Modbus - Fidelio/Opera - VingCard - DALI - DMX

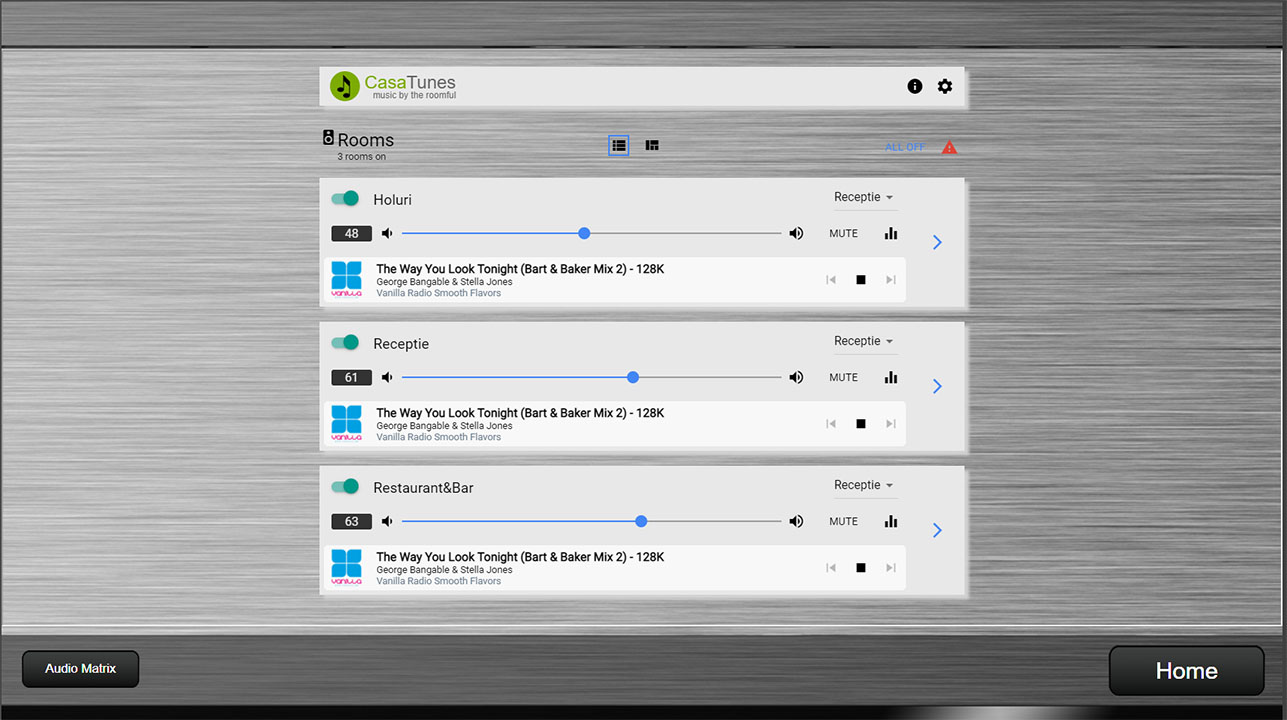

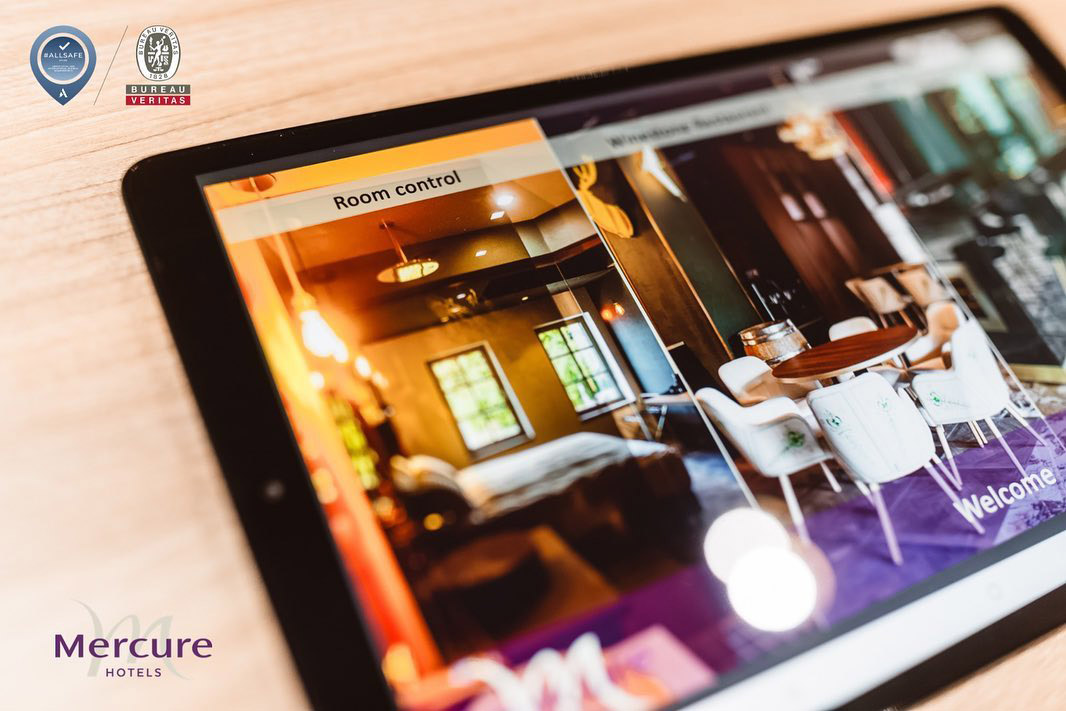

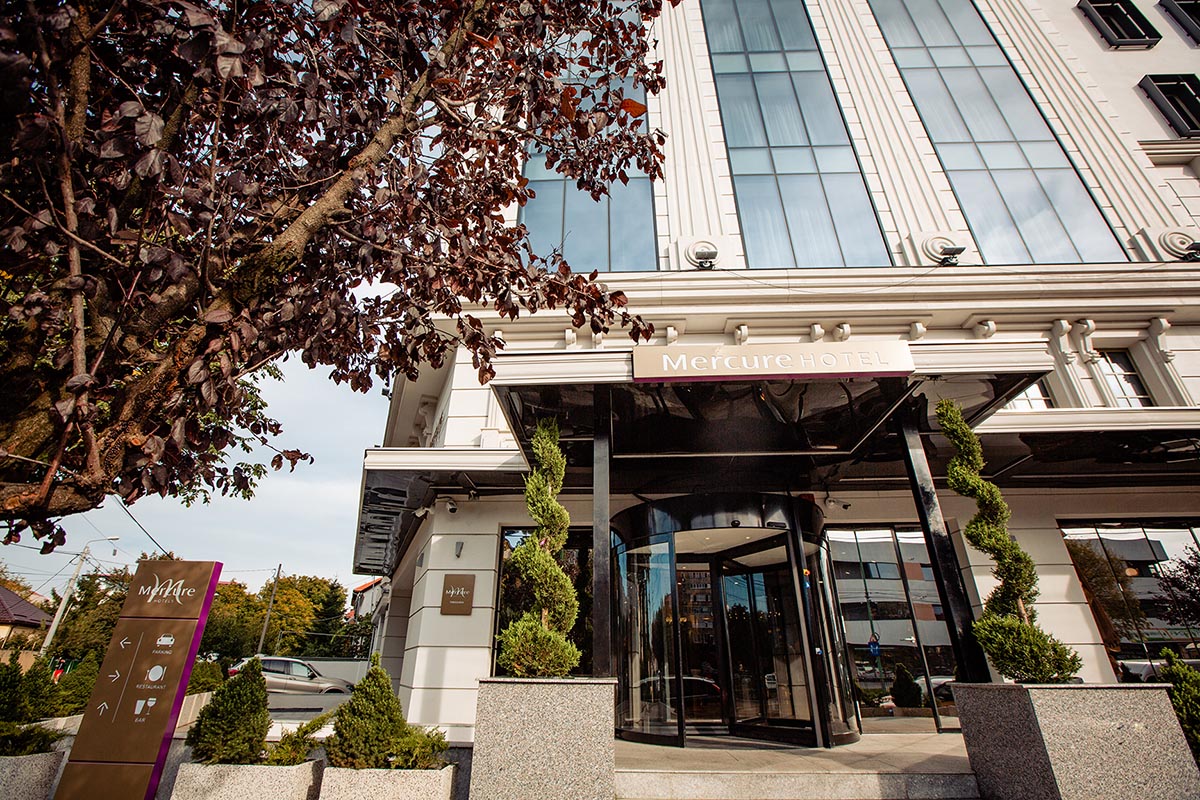

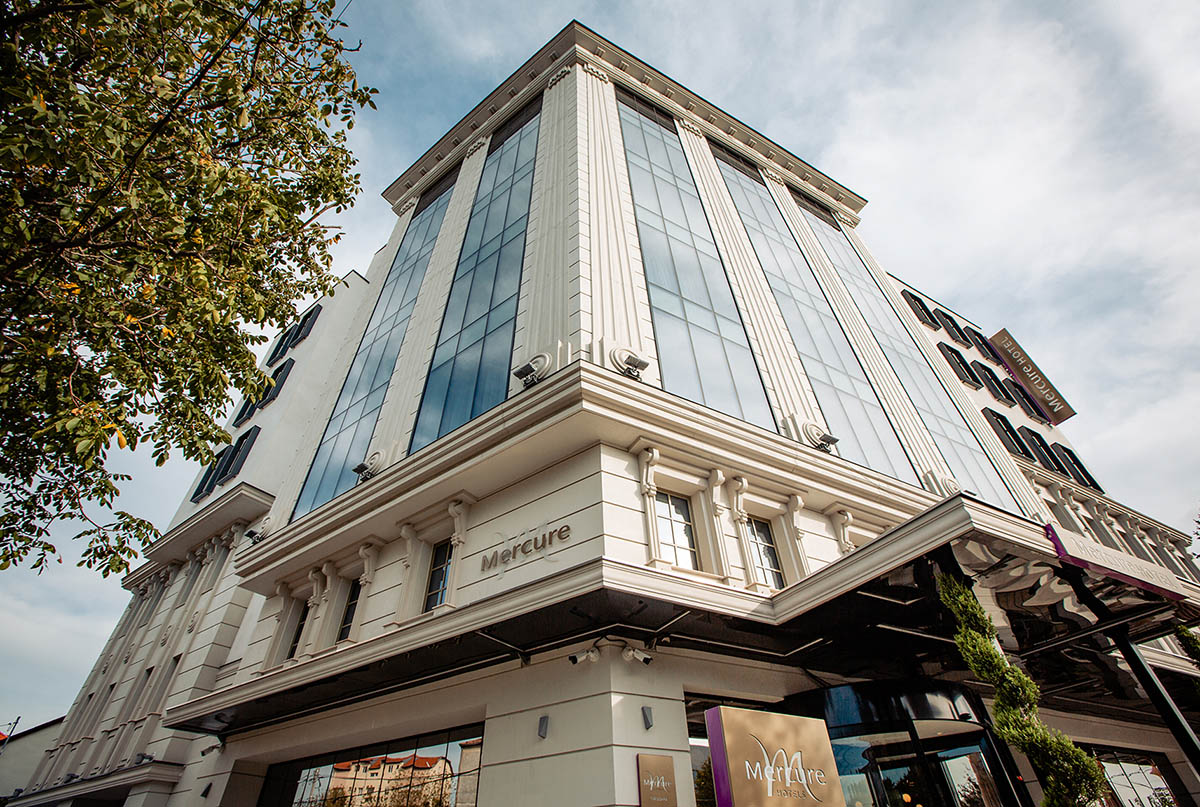

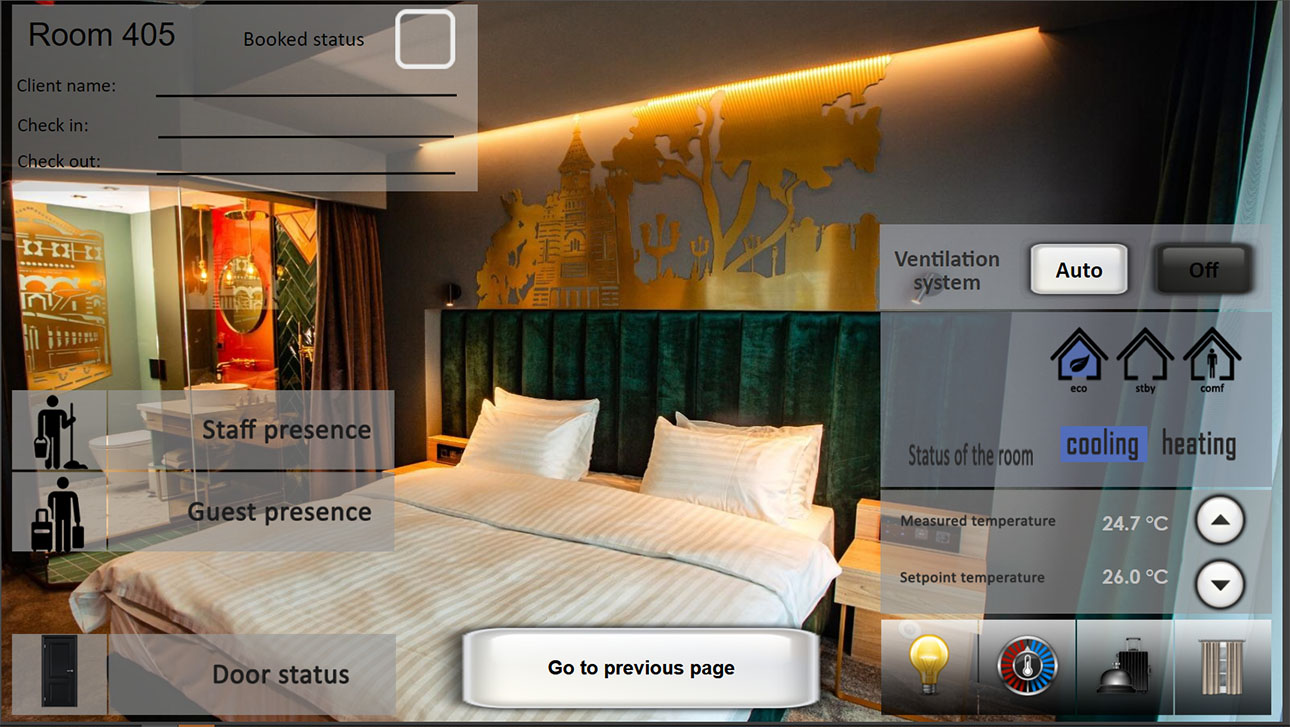

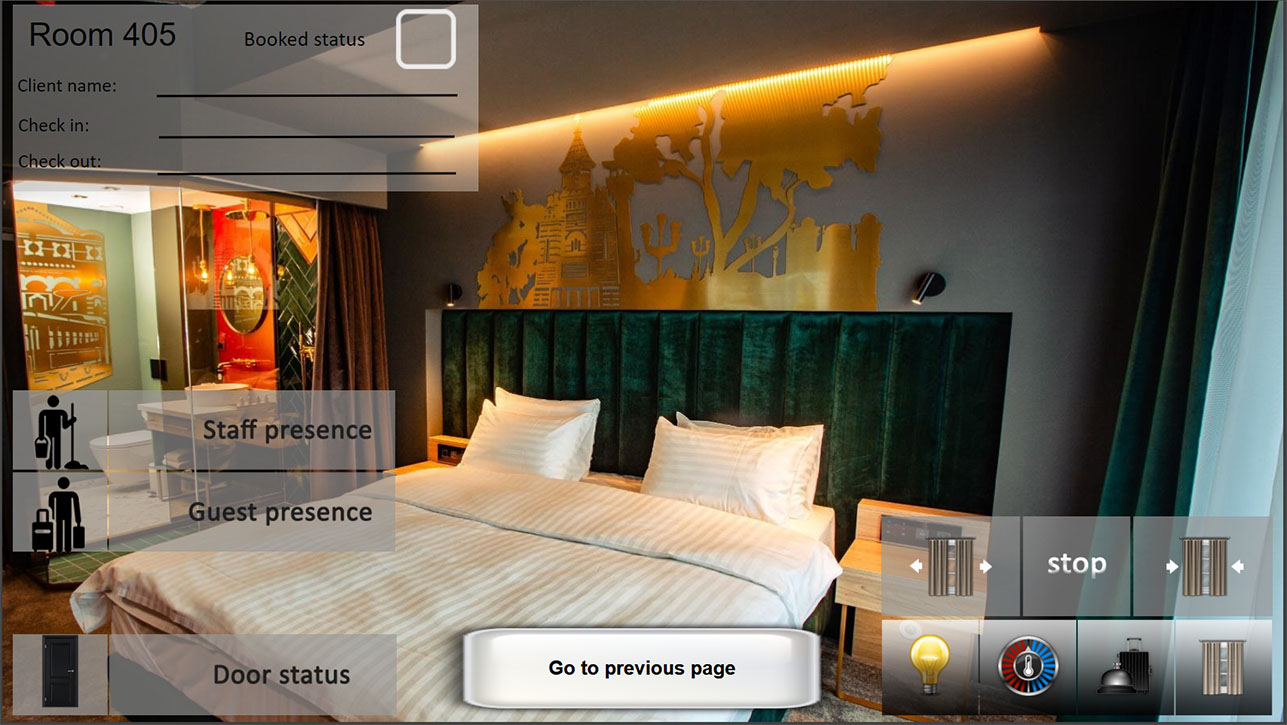

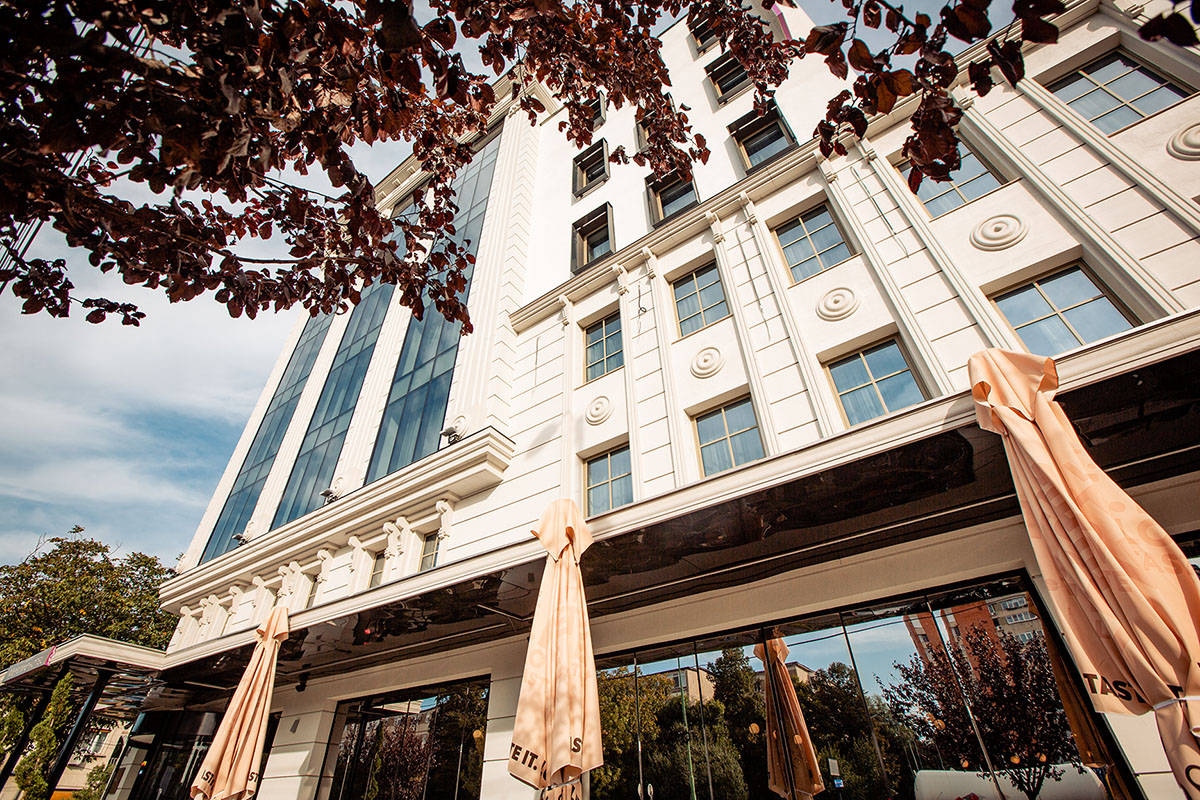

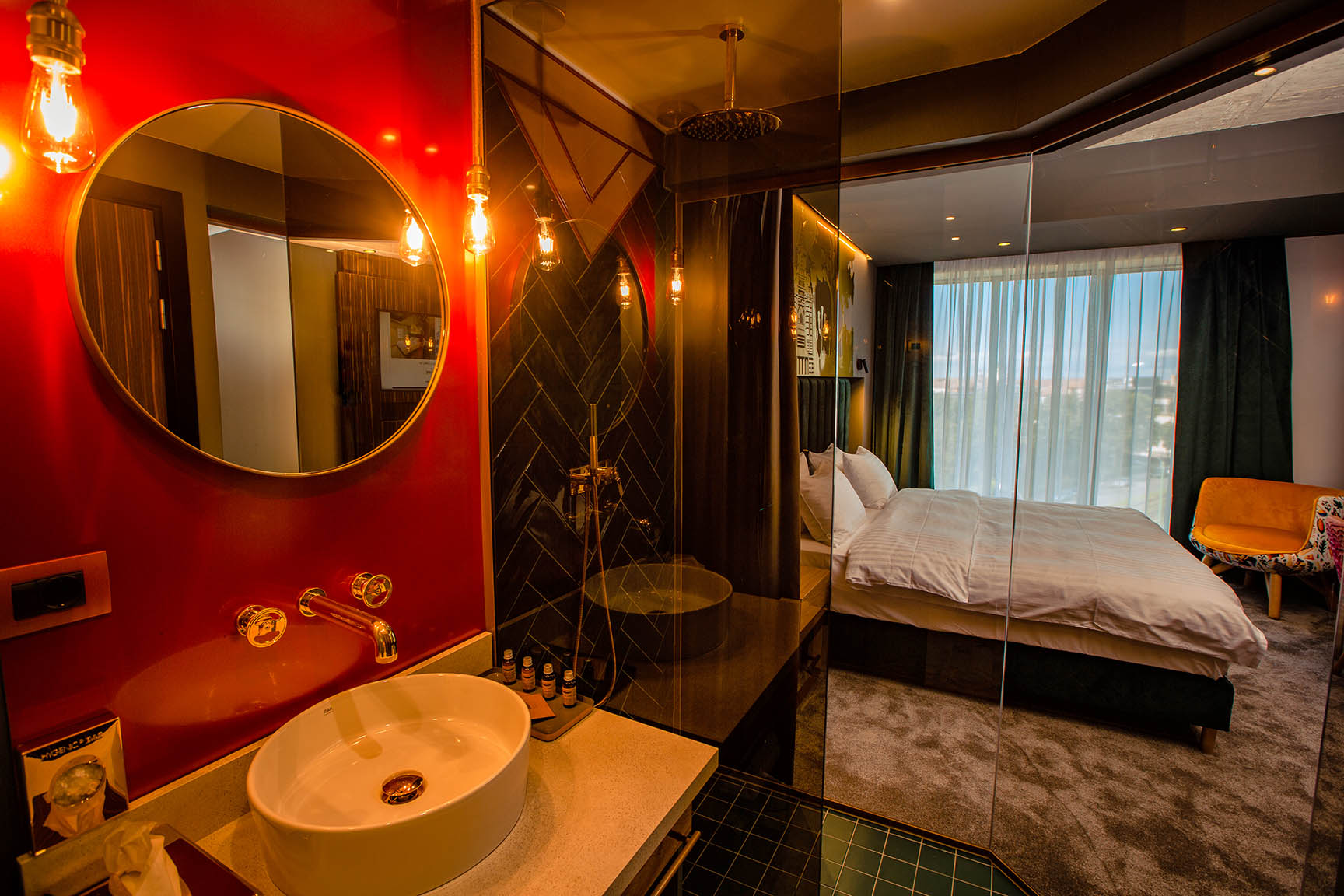

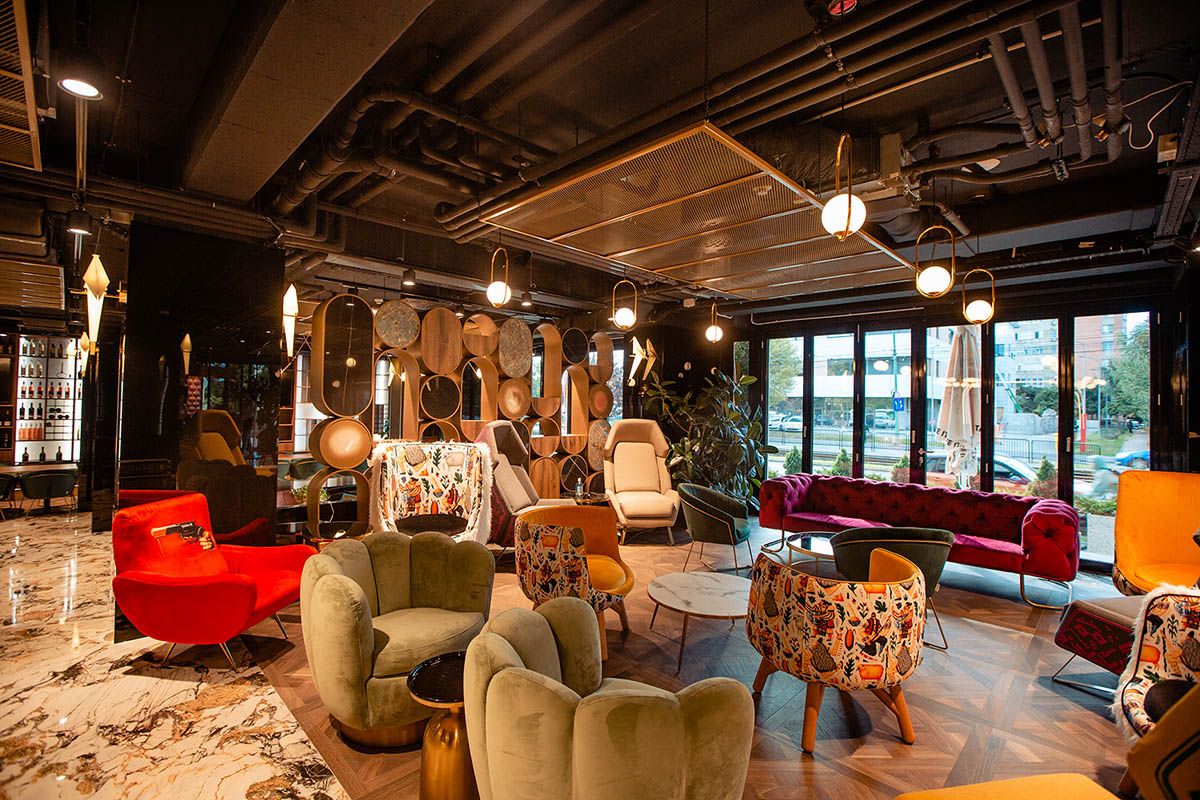

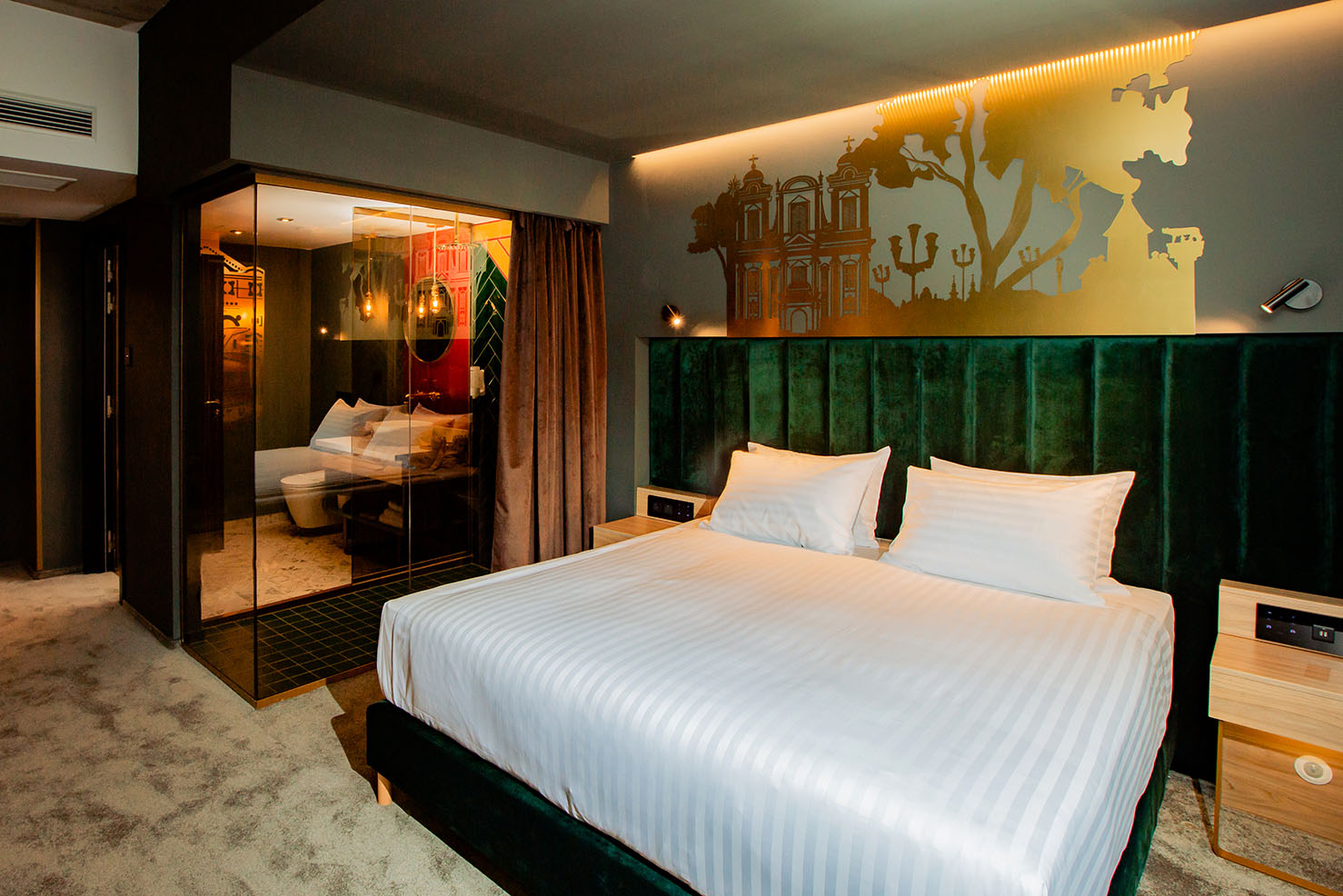

Mercure Timisoara

Romania

NETx BMS Server
Data points: 5,000
Group addresses: 15,000
Visualization clients: 75
Trades: lighting, HVAC, Shading, Security, Access Control
System integrator: IntelligentBuildings

Project description:

Power Point Presentation

KNX - Modbus

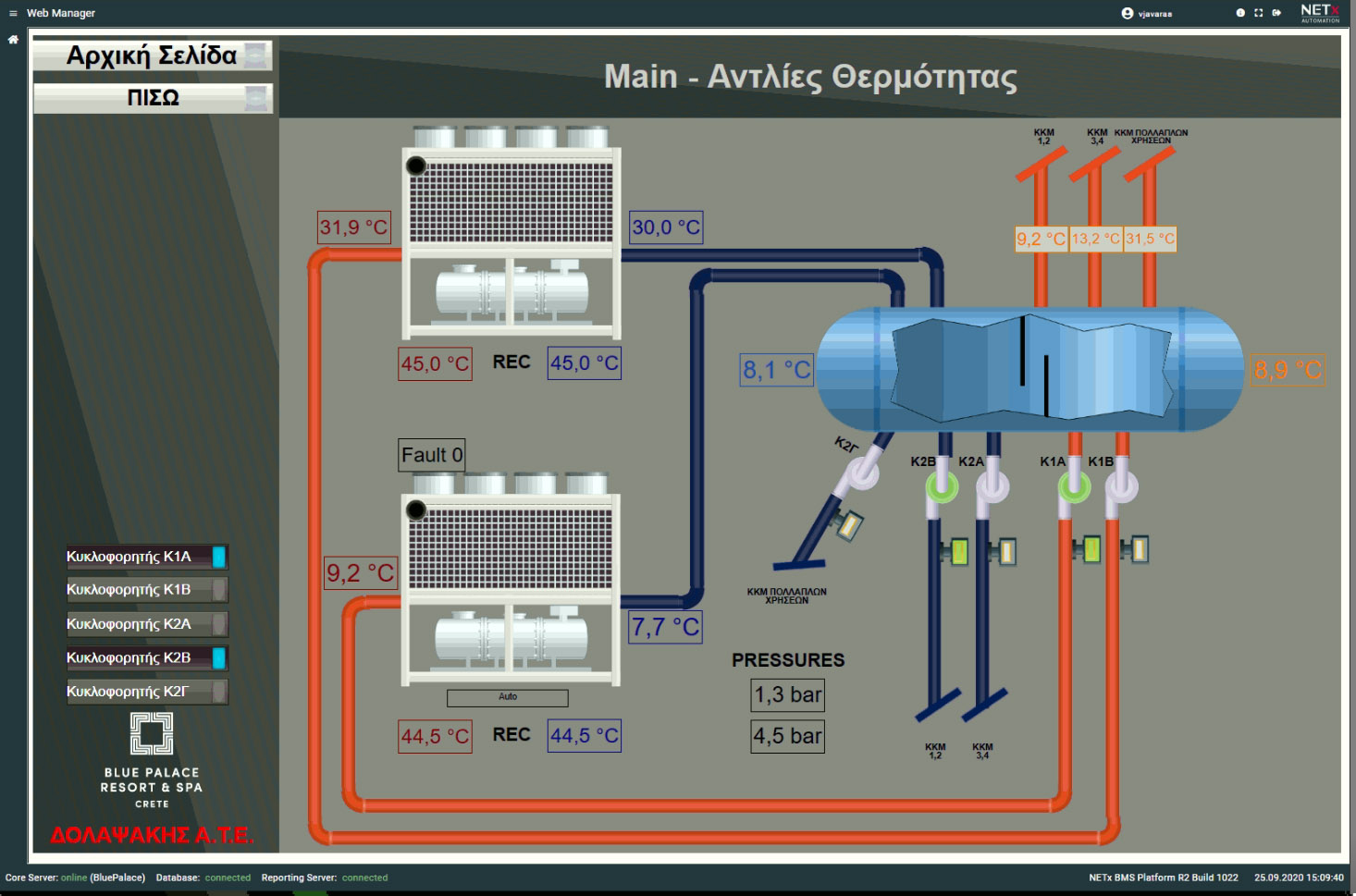

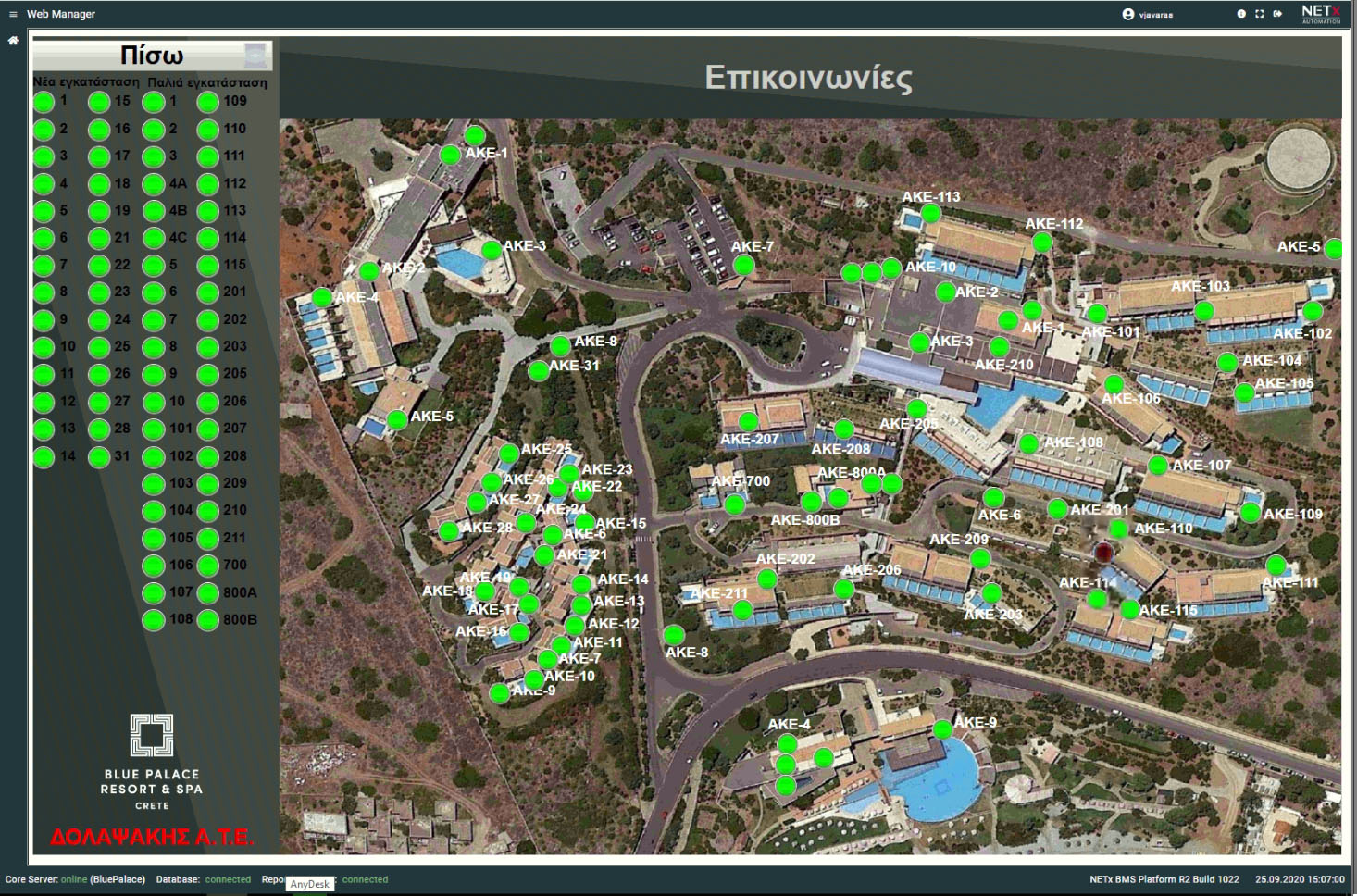

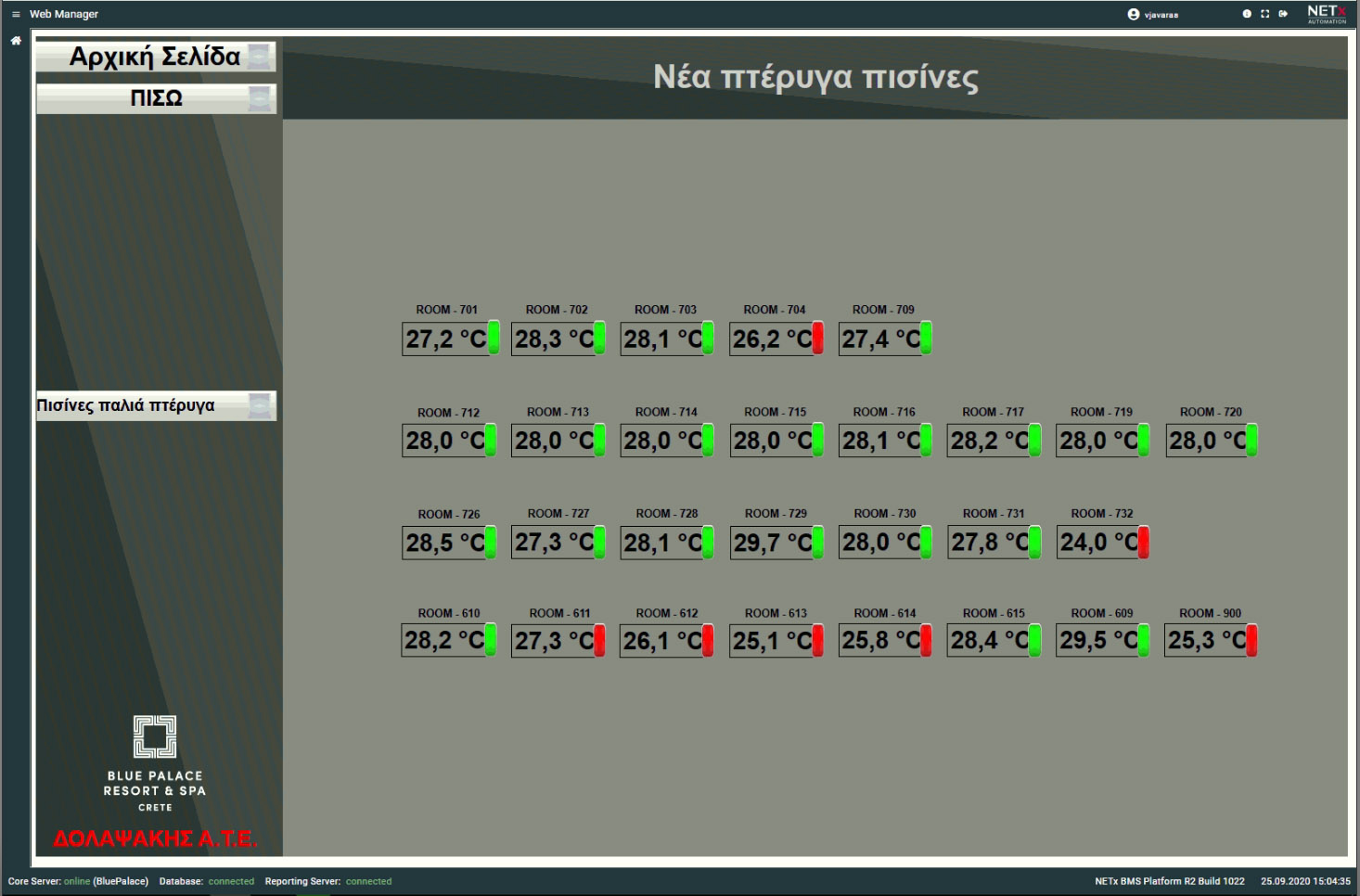

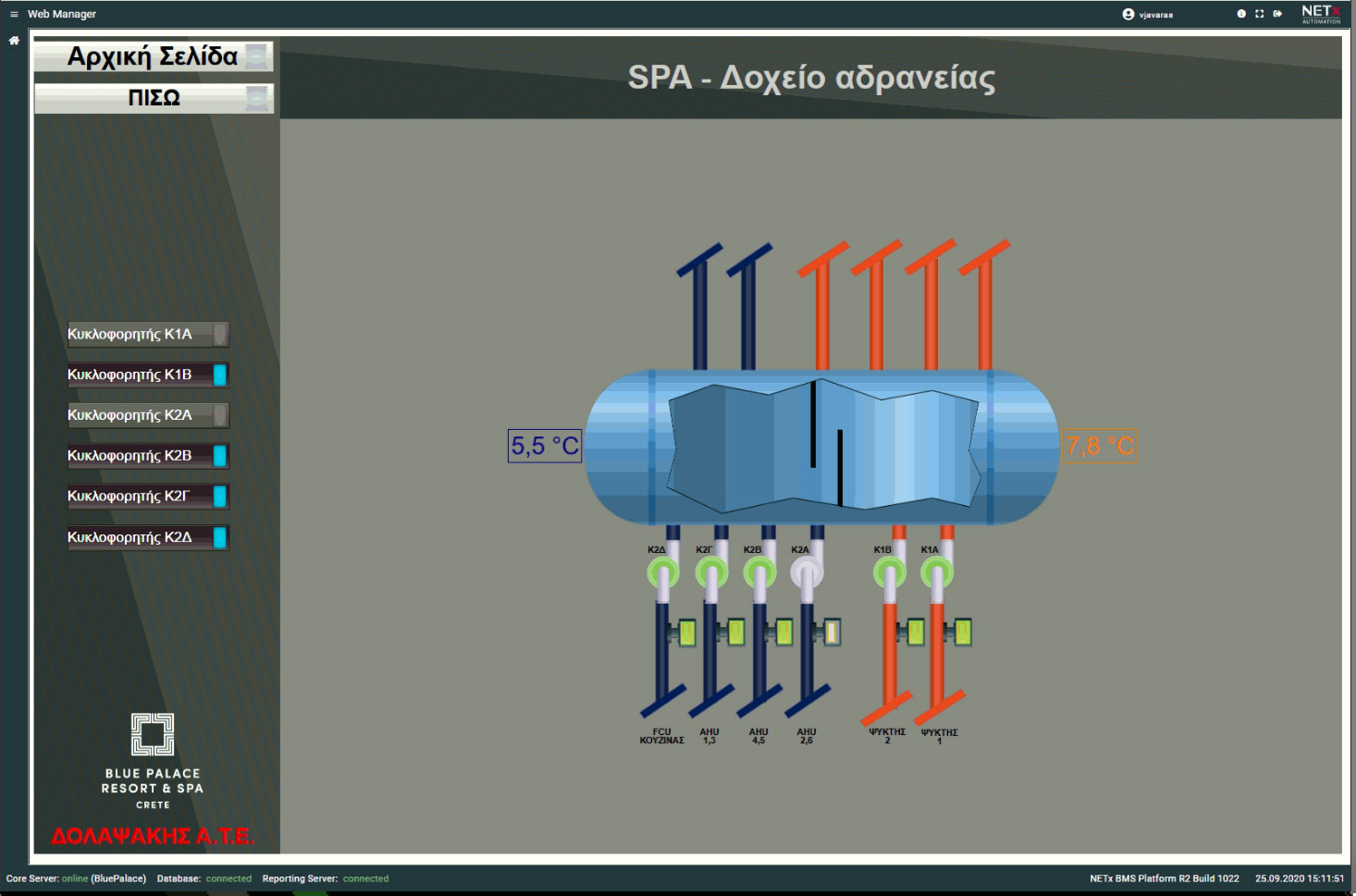

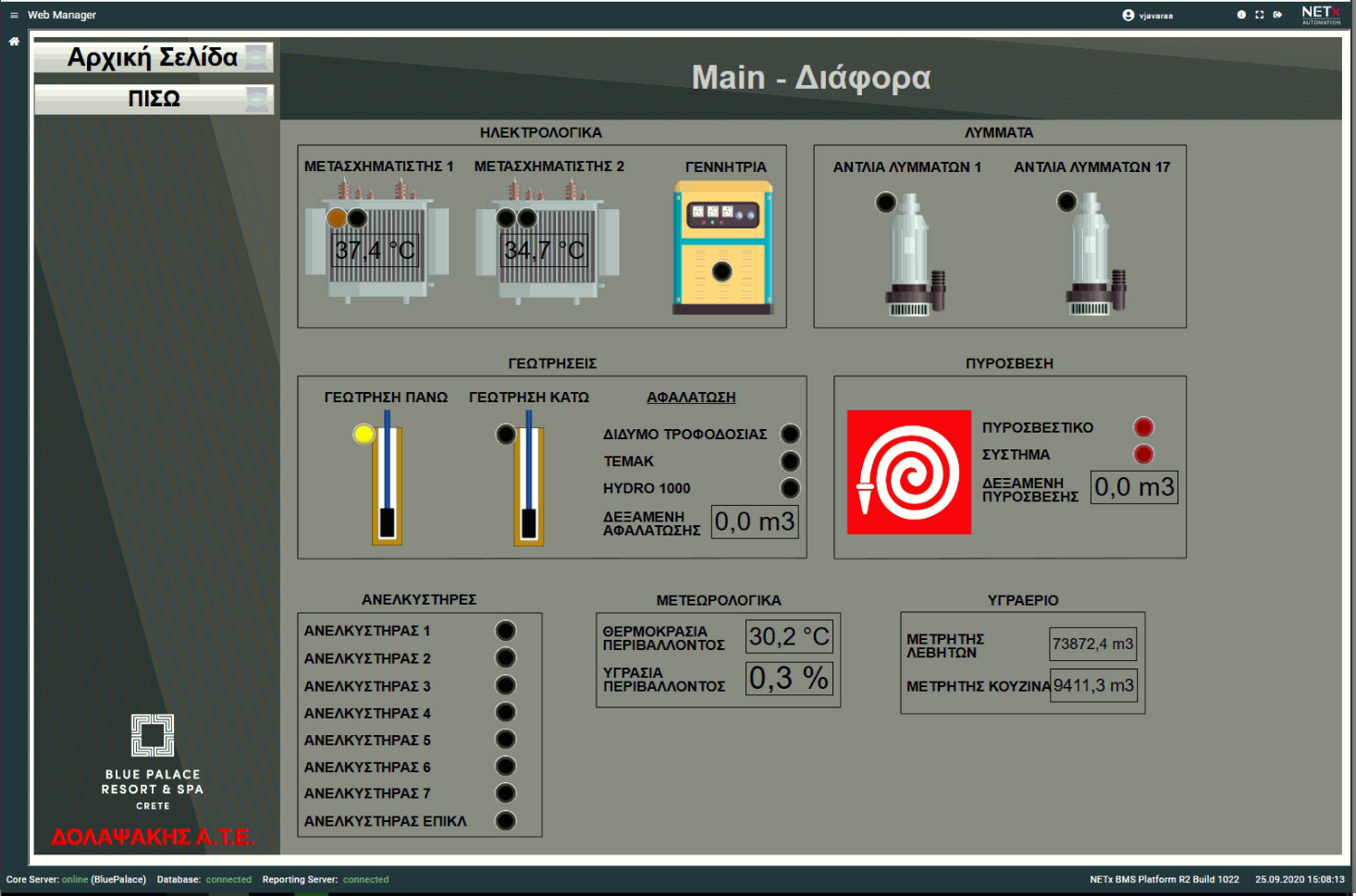

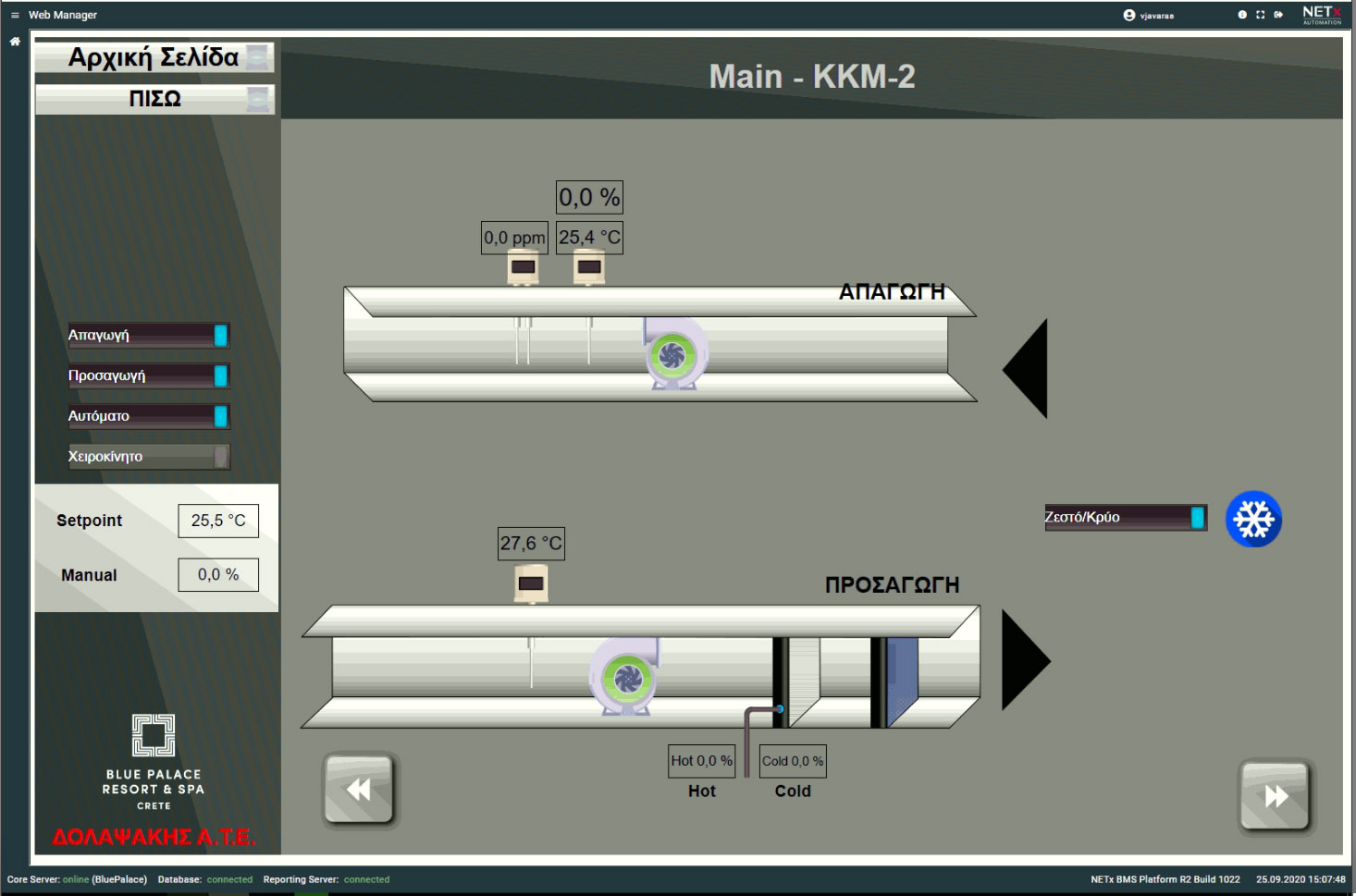

Phaea Resorts - Blue Palace

Greece

NETx BMS Platform
Data points: 2,500
Visualization clients: 5
Devices: 69 - PLC M241
Trades: lighting, HVAC
System integrator: DOLAPSAKIS SA

Project description from our customer:

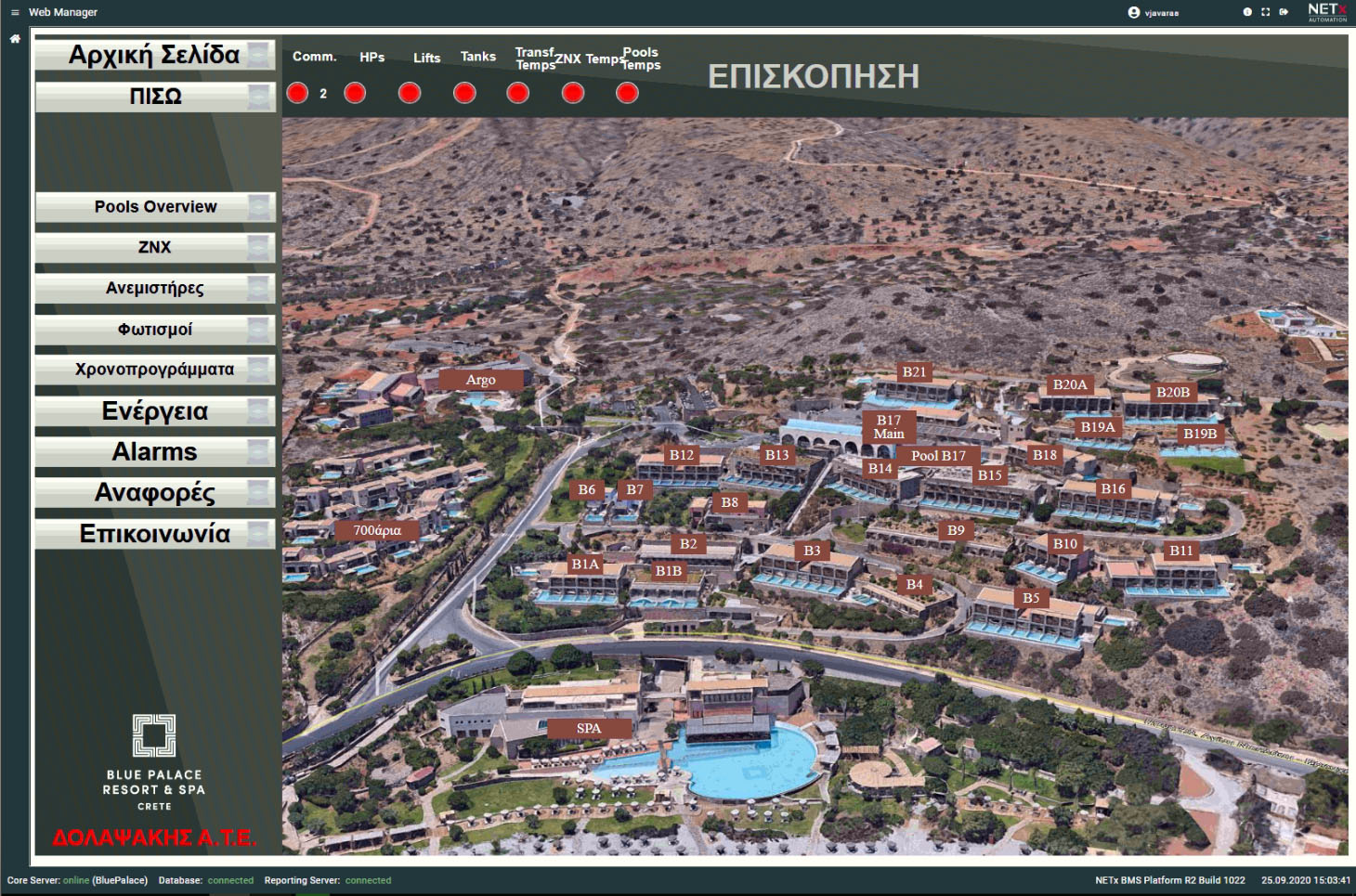

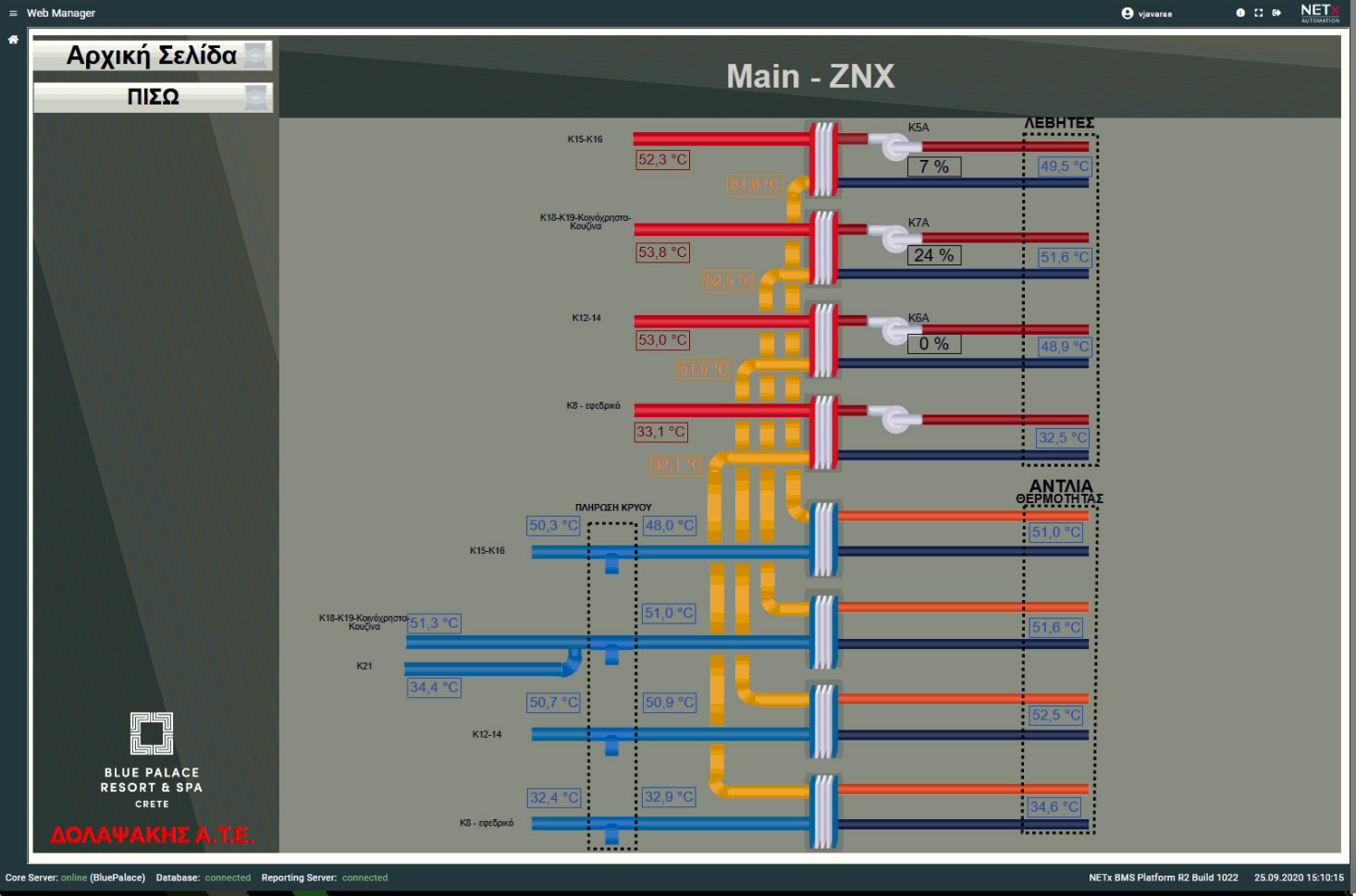

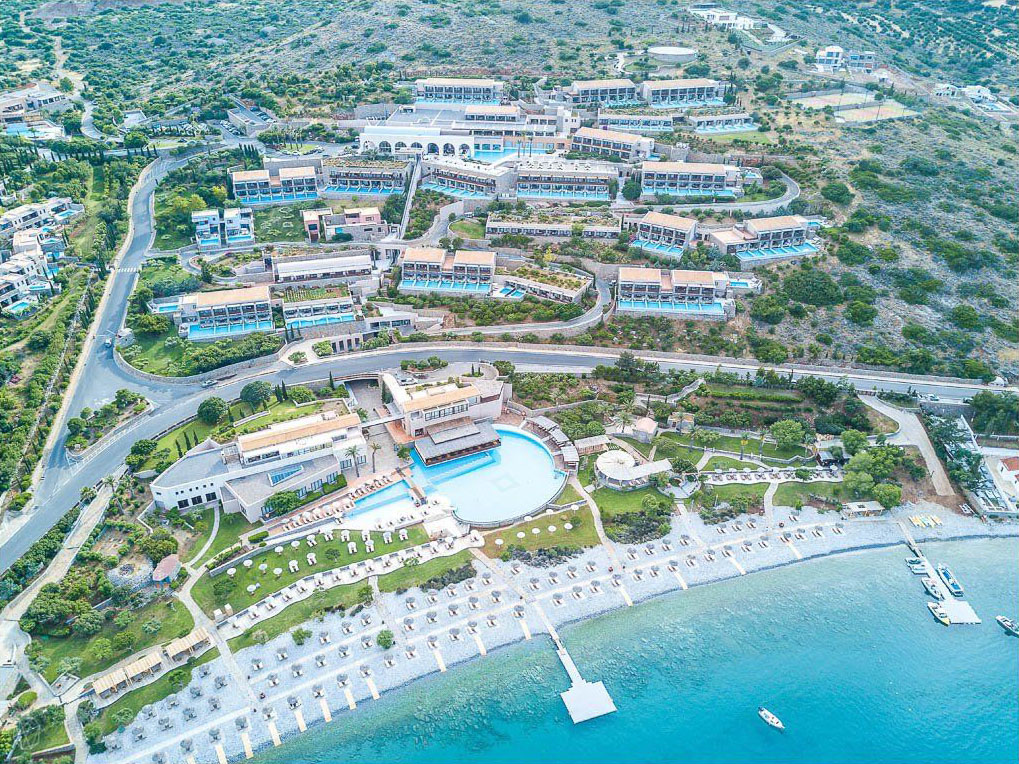

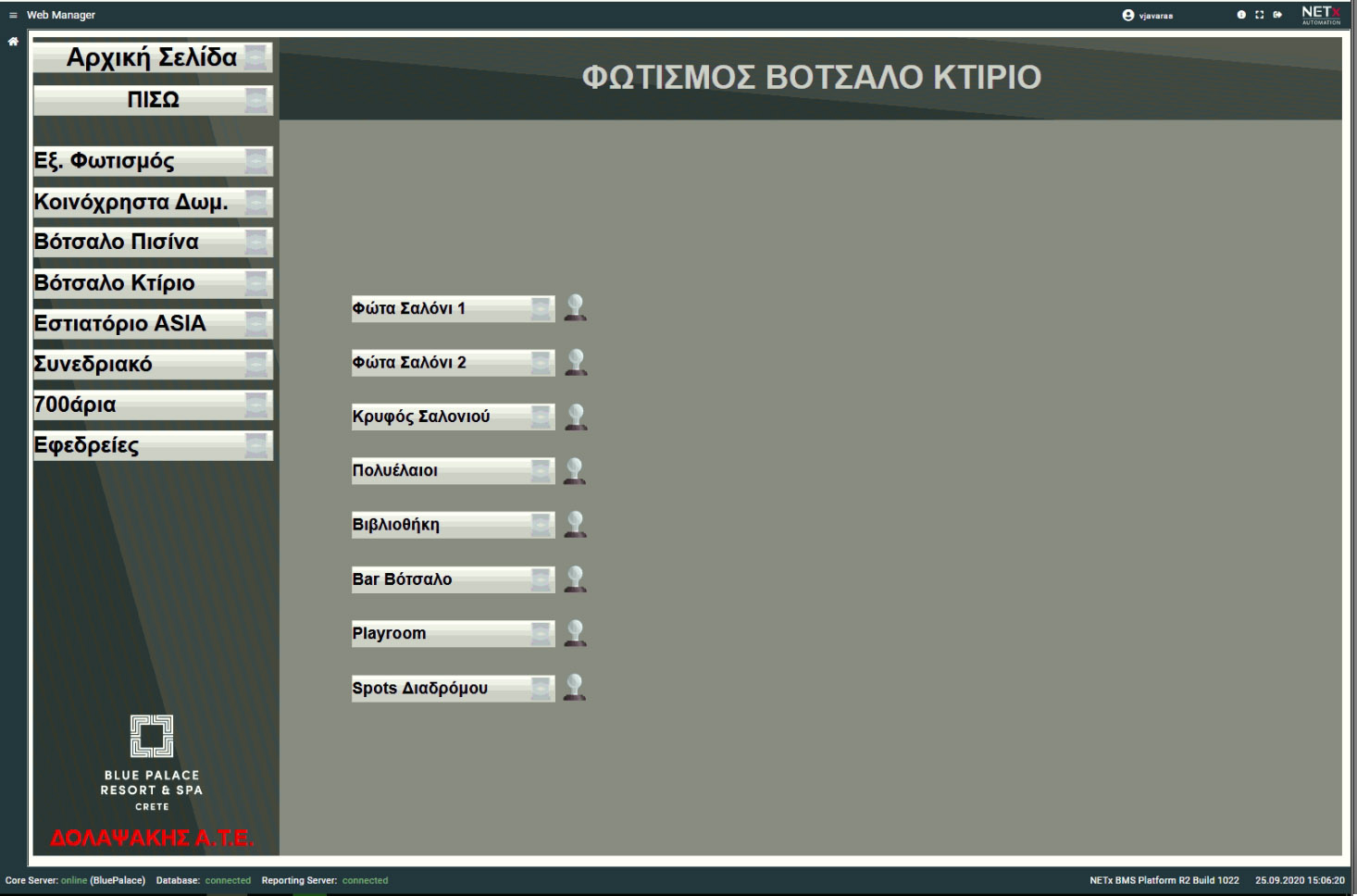

"Blue Palace is located in Elounda - Crete, Greece and is a luxurious 5-star hotel with many heated private pools. The project is about the visualisation, control and data logging of the BMS. The BMS devices are PLCs M241 from Schneider Electric and we communicate with these with the protocol Modbus/TCP. On the site there was an old BMS system, with many damaged devices and many damaged sensors. We have replaced all the old BMS equipment with 69 PLCs M241, replaced all the damaged sensors and also integrated in the system all the Heatpumps through Modbus/Serial. Now the hotel staff has a full view and control of all the mechanical equipment. We also monitor and have trends from all the temperatures of the heated pools and alarms are triggered if the temperature are low. All the external lights and domestic hot waters are also controled. Schedules are also used for lights and mechanical equipment used for the heating and cooling of the areas."

KNX - BACnet - VingCard - DMX - OnQ

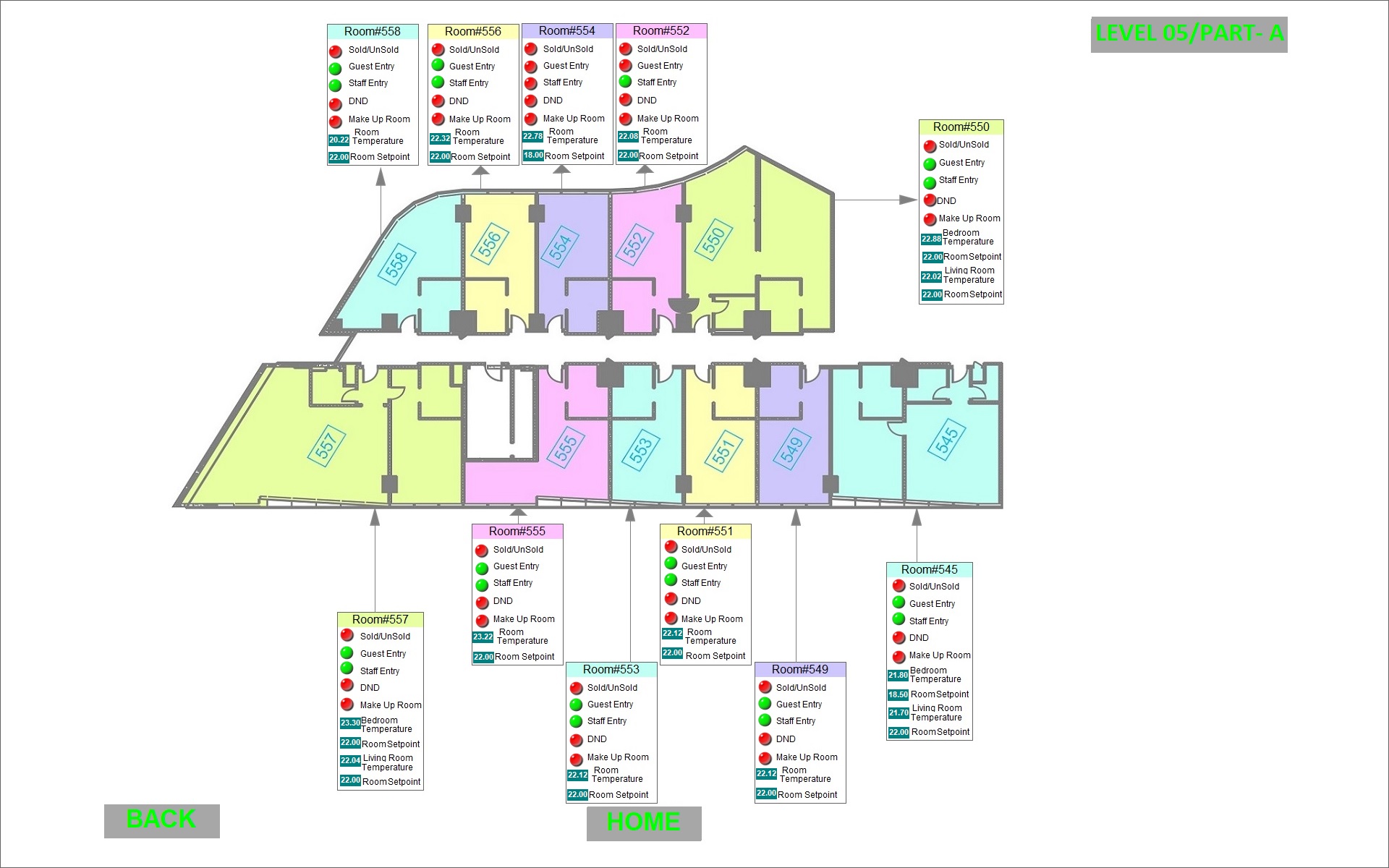

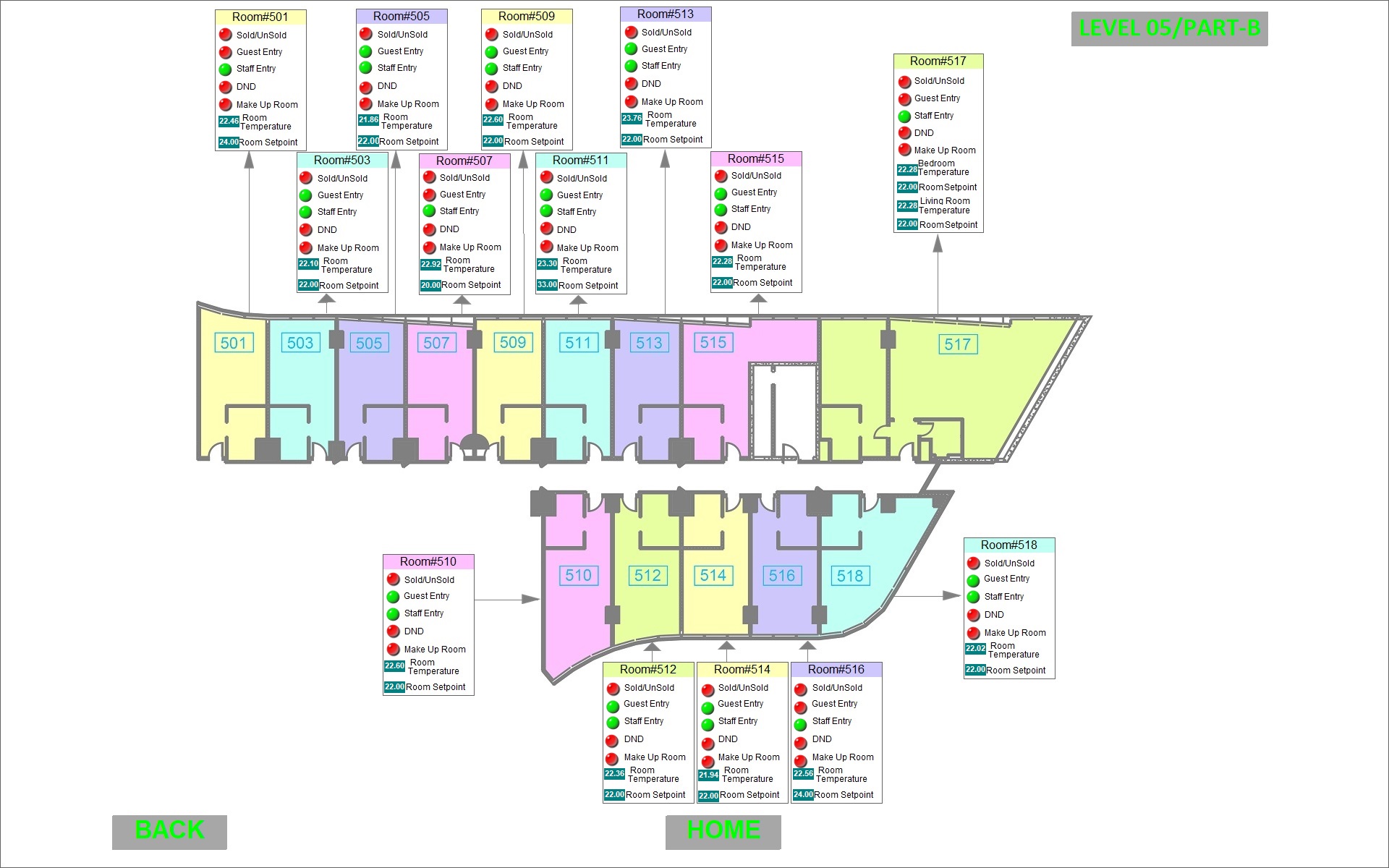

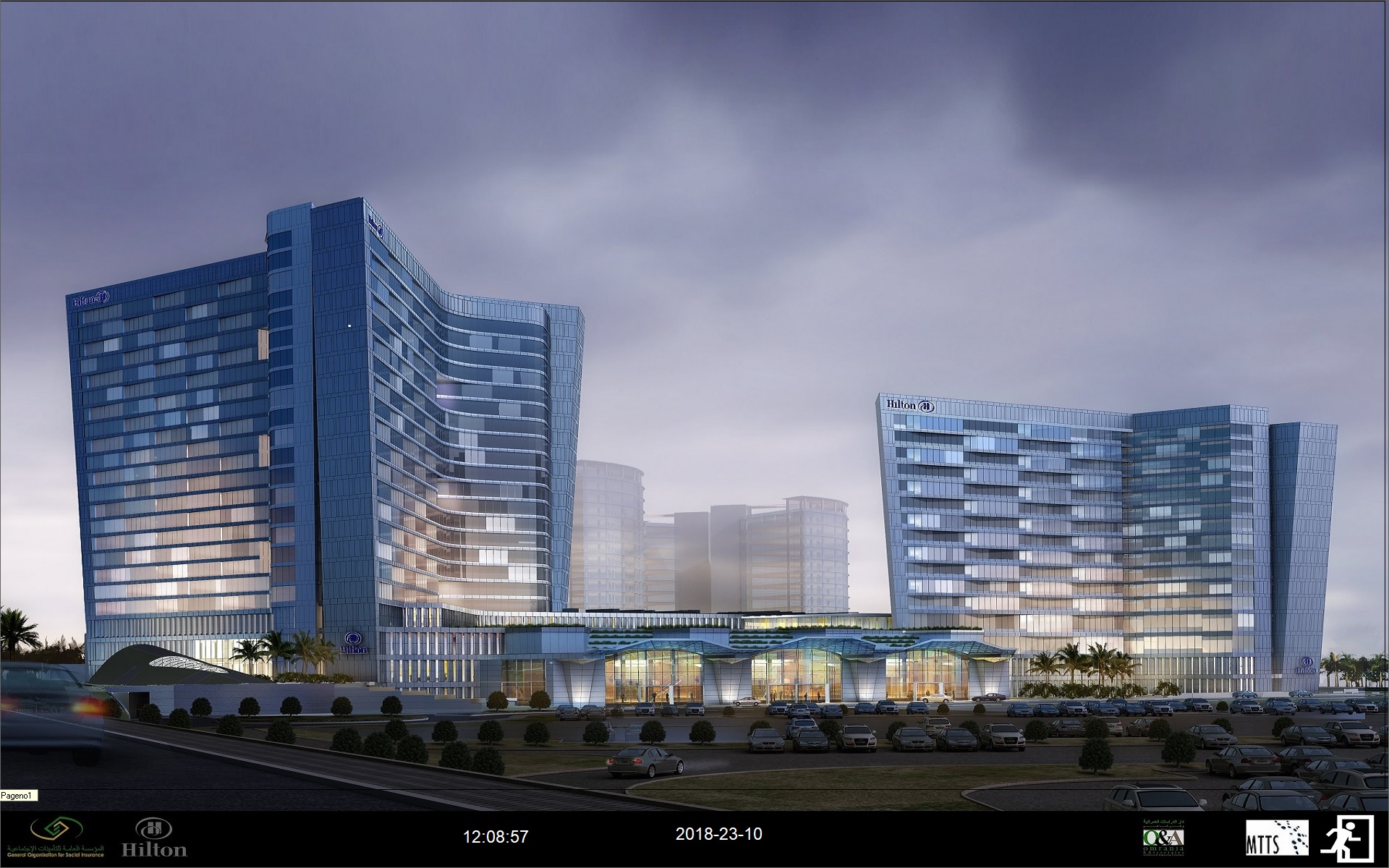

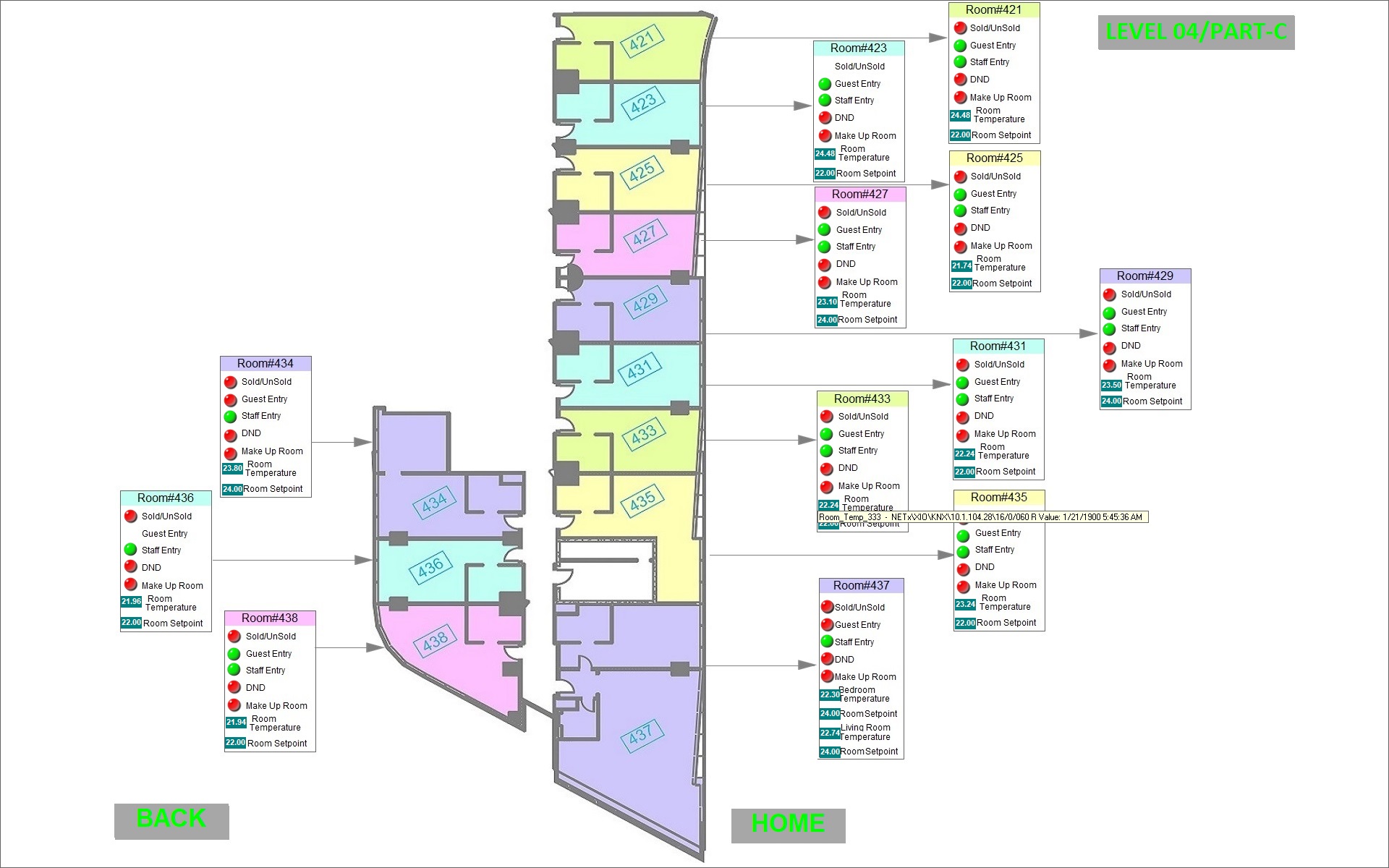

Hilton Hotel

Riyadh, Saudi-Arabia

NETx BMS Server, NETx Voyager
Data Points: 13,000
Group addresses: 40,000
Visualization: 10,000 elements / 200 pages
Additional interfaces: OnQ
BMS Clients: 1
Devices: 17,000 - dimmers, switch actuators, FCU controllers, blind actuators, DMX controllers, Glass KNX switches
Trades: lighting, HVAC, shading, integration with BACnet BMS, VingCard and OnQ HMS
System integrator: Modern Times Techncial Systems - MTTS

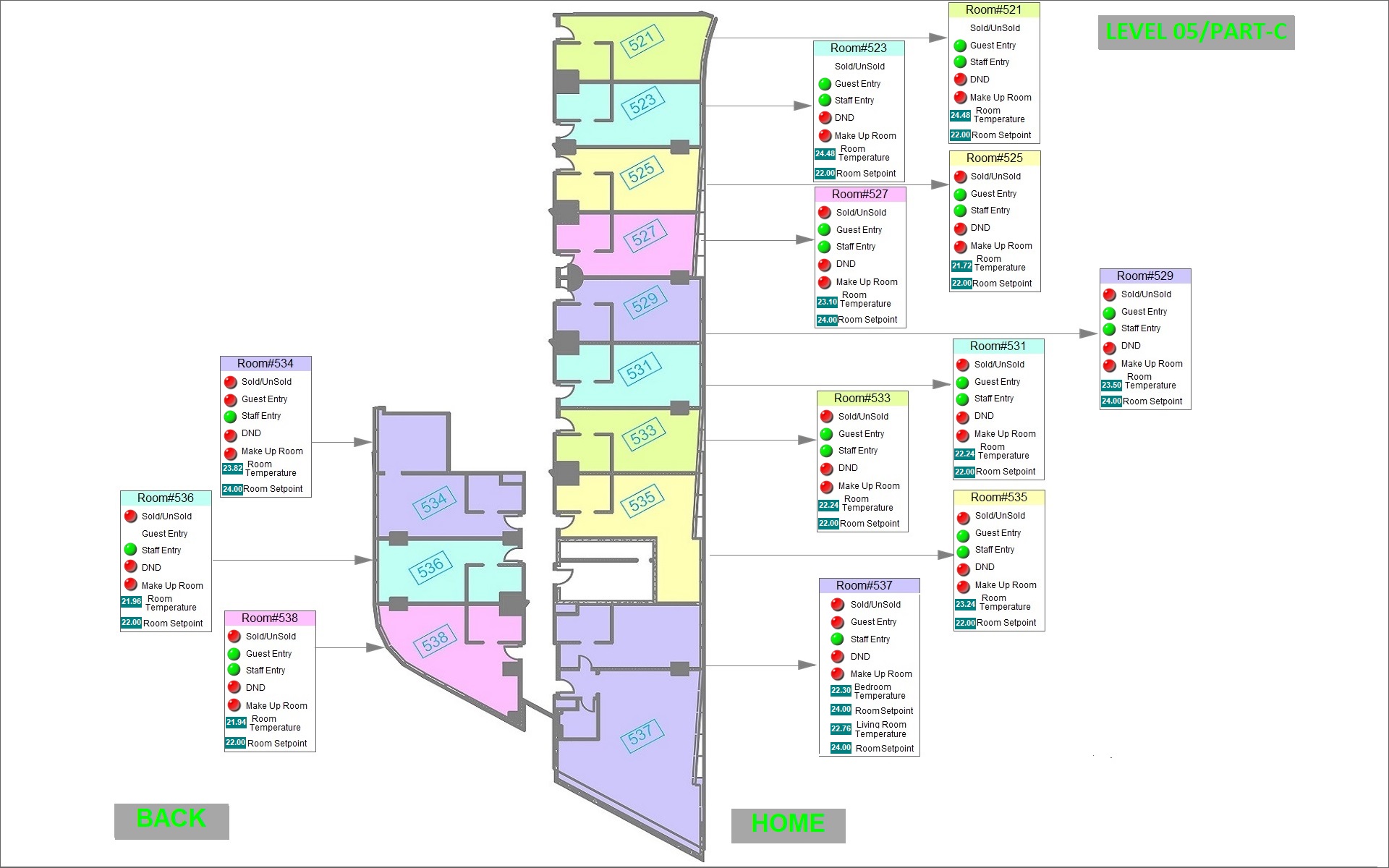

Hilton Hotel Project is a 645 rooms / 5 stars luxurious hotel. The KNX system is used for comfort, luxury and energy saving.



  • KNX Guest Room Management System for light dimming/switching, blind control, air conditioning control, KNX dual technology motion sensors and scene recall
  • VingCard door lock system, Siemens BACnet / IP BMS system and the Hilton OnQ Hotel Management System integrated
  • KNX light dimming system is used in public areas, hallways, lobbies, meeting rooms and large halls
  • Control of RGB lights via KNX
  • Visualization with powerful management tools

KNX - HVAC - Fidelio/Opera - VingCard

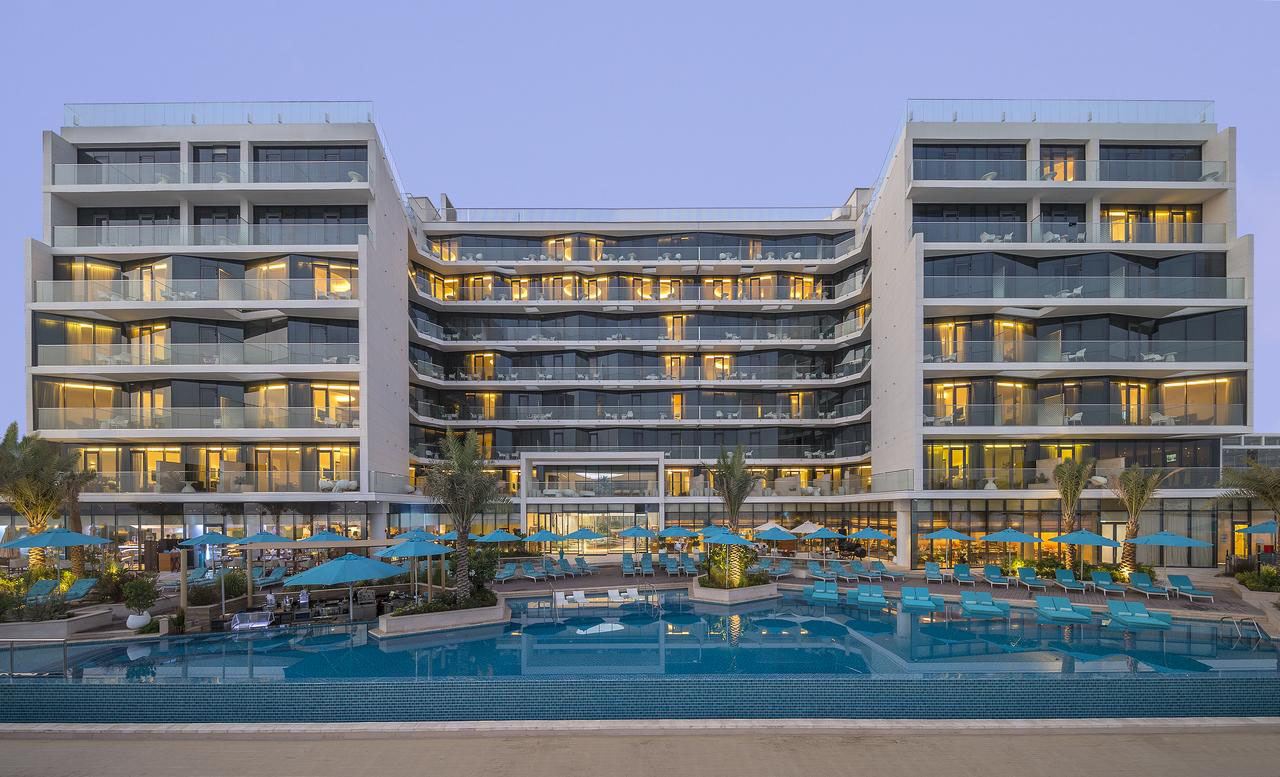

The Retreat Palm Dubai by Sofitel

Dubai, UAE

NETx BMS Server, NETx Voyager
Data points: 10,000
Group addresses: 6,000
Visualization: 10,000 elements / 500 pages
Trades: lighting, HVAC, access control
System integrator: Greentec Automation DMCC

227 Guest Room Hotel in Palm Jumeirah Dubai. Visualization and interface between KNX (inside guestroom), Fidelio/Opera and VingCard.

KNX - BACnet - Fidelio/Opera

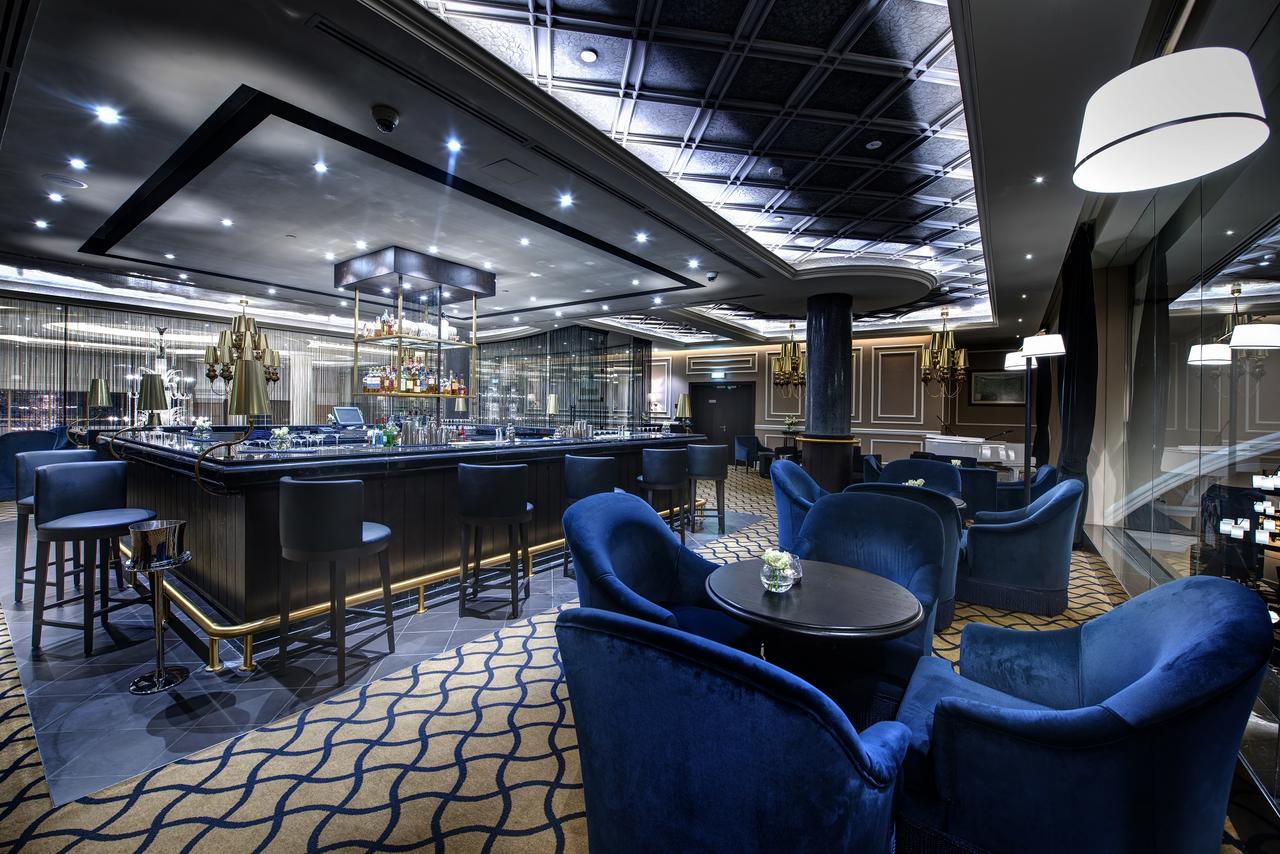

Dukes The Palm

Dubai, UAE

NETx BMS Server, NETx Voyager
Data points: 10,000
Group addresses: 8,000
BMS clients: 4
Visualization 10,000 elements / 500 pages
Trades: lighting, HVAC
System integrator: Greentec Automation DMCC

516 Guest Room + Apartment Hotel in Palm Jumeirah Dubai. Visualization and interface between KNX (inside guestroom), BACnet and Opera/Fidelio.

KNX

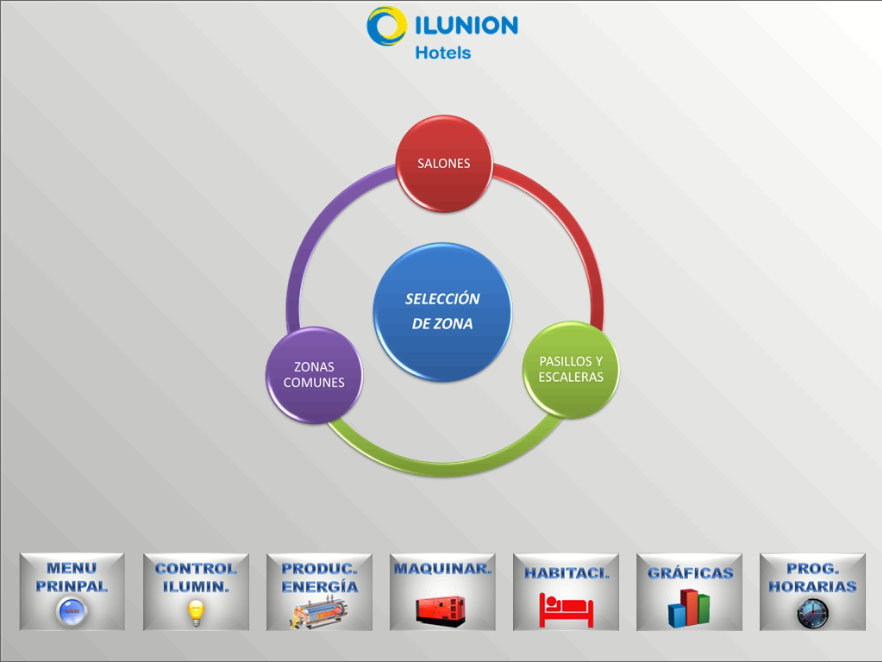

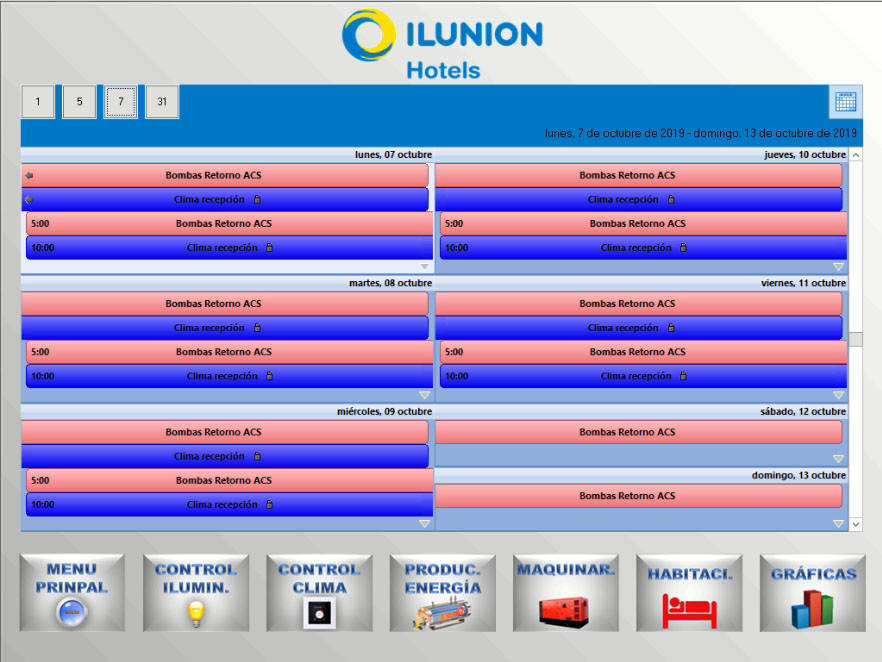

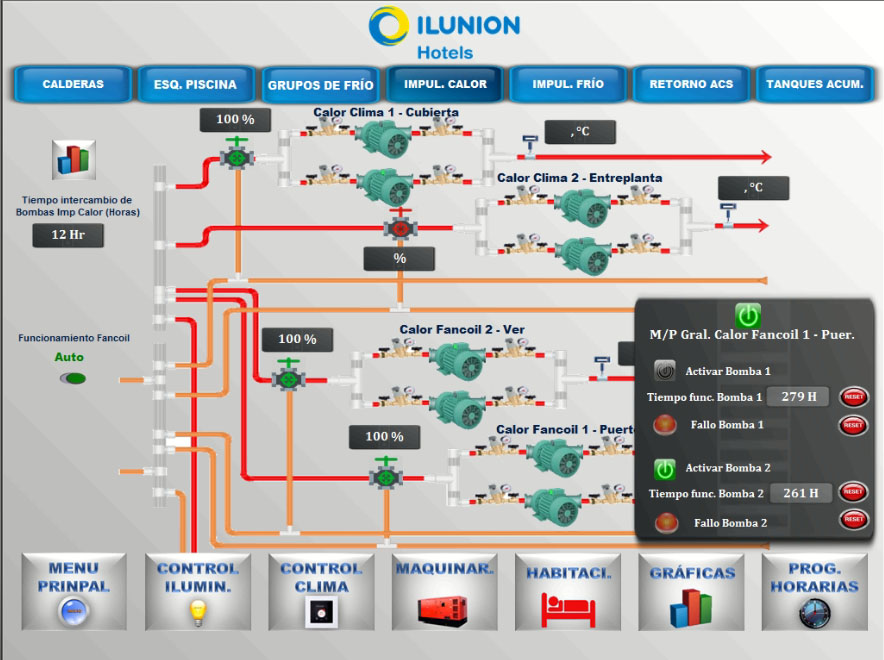

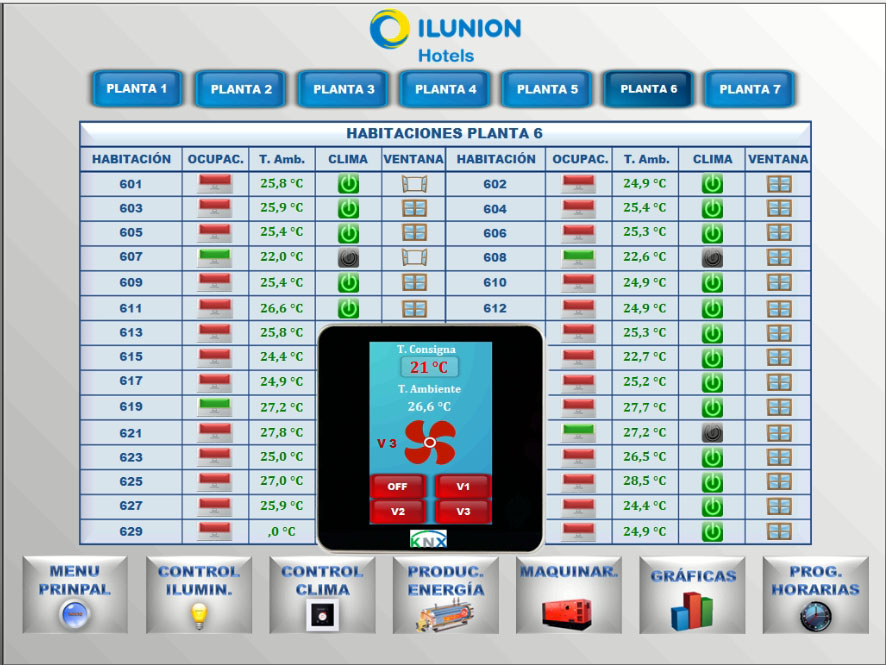

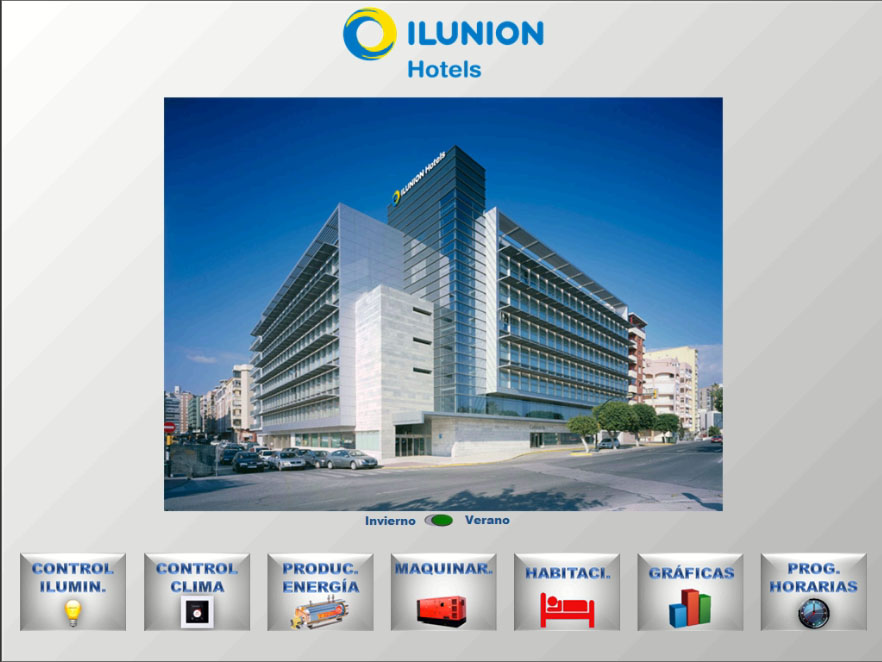

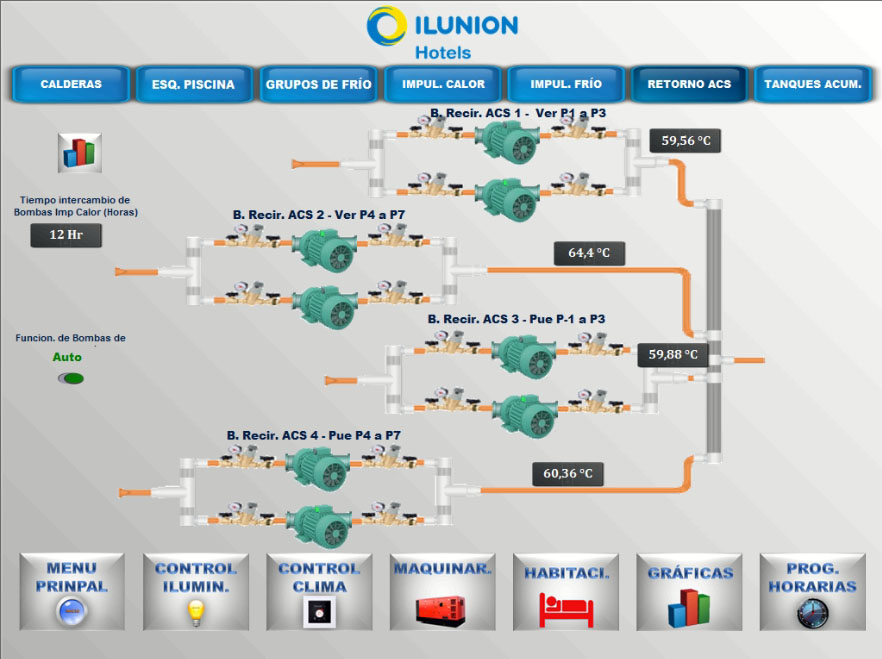

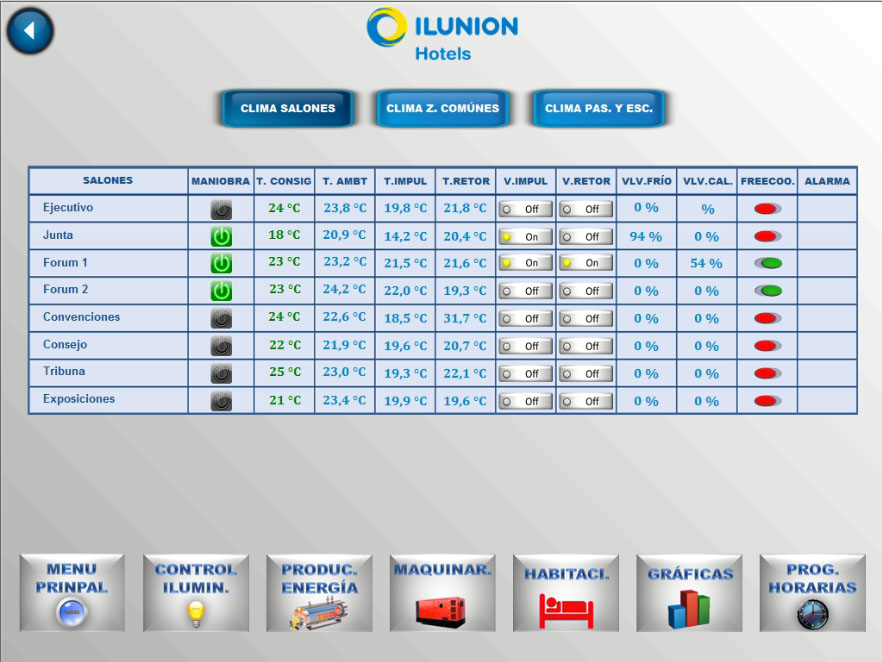

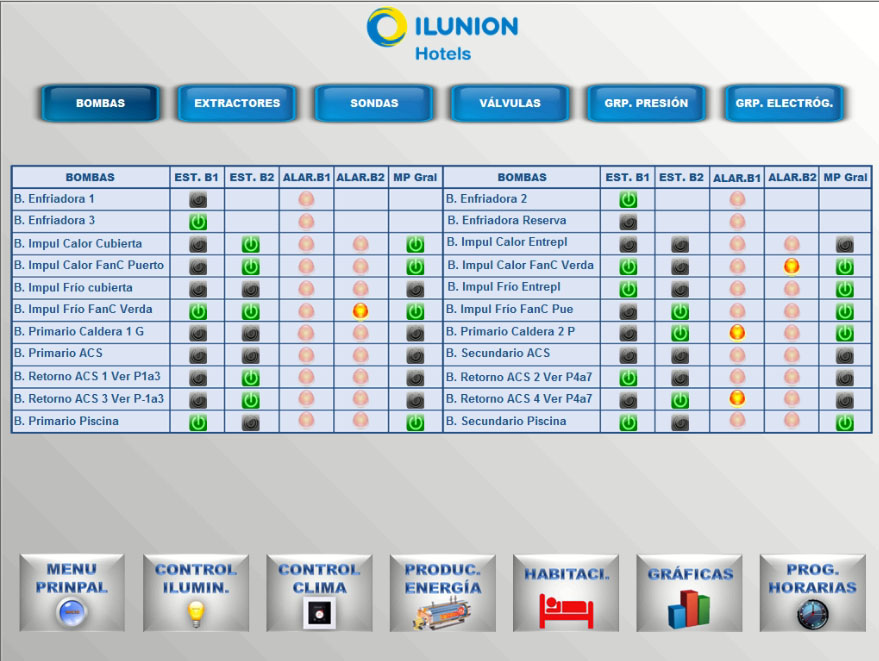

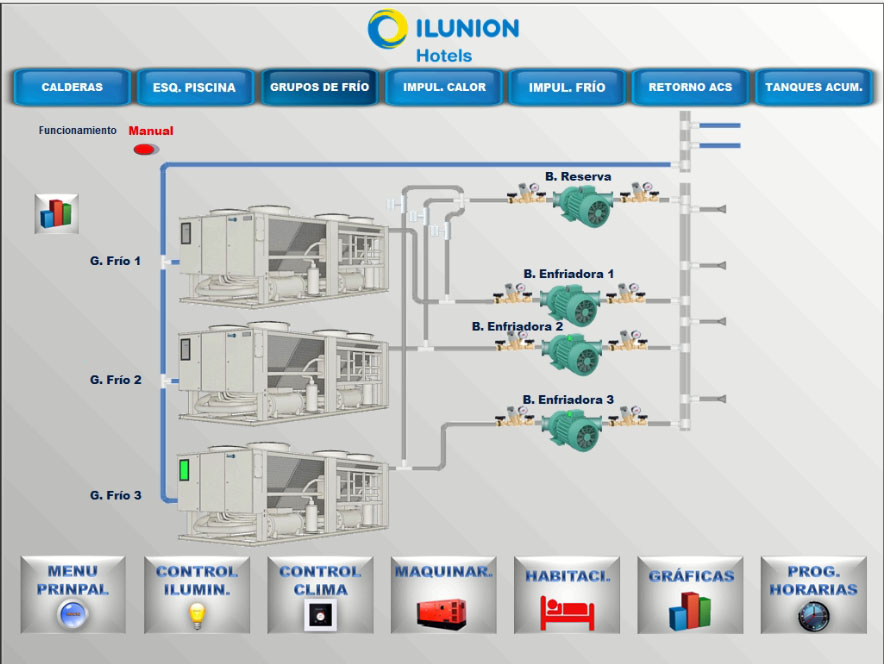

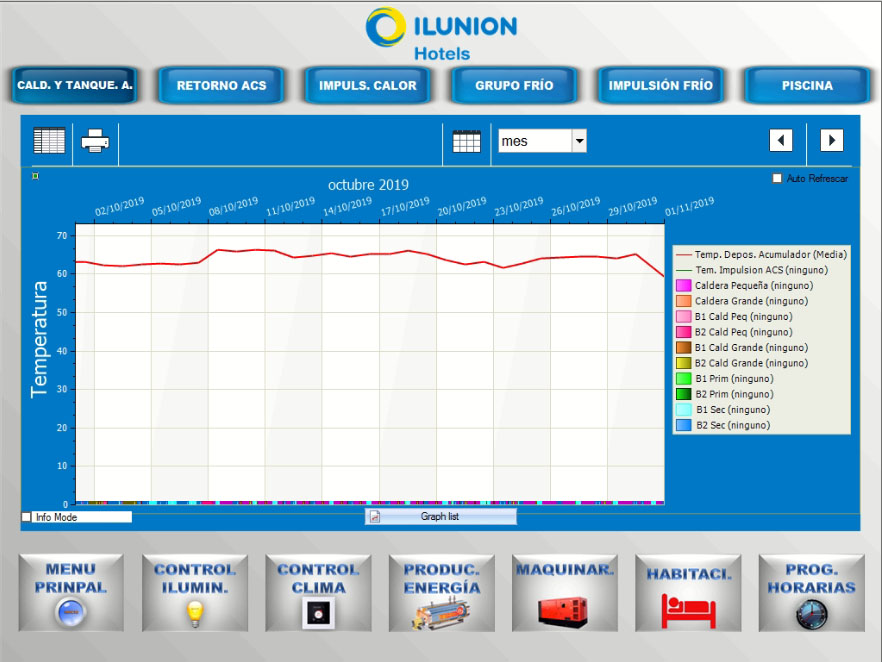

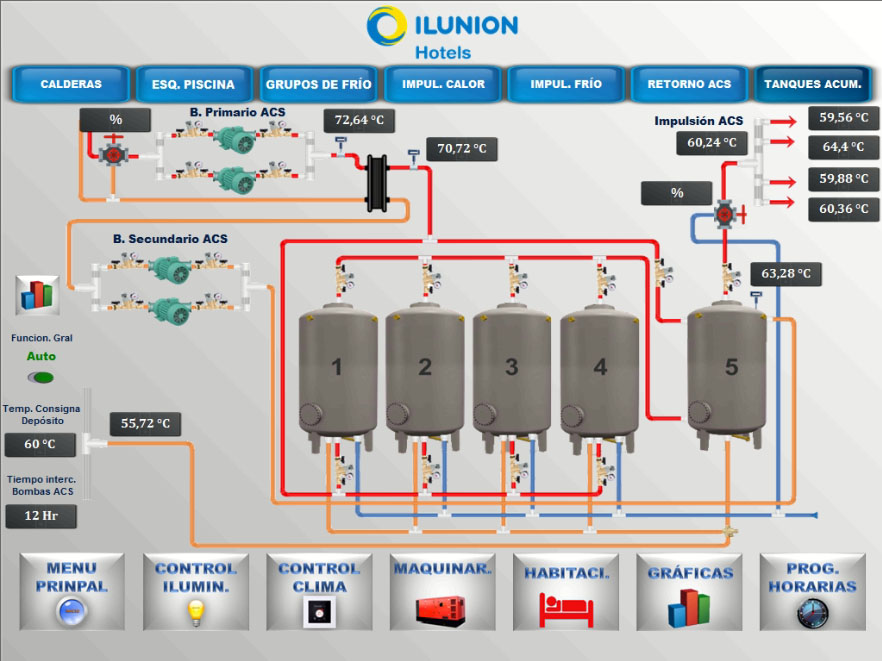

Ilunion Hotel Malaga

Spain

NETx BMS Server, NETx Voyager
Data points: 10,000 - Main/Backup
Group addresses: 5,000
Visualization: 10,000 elements / 200 pages
Trades: lighting, HVAC
System integrator: AMG Energía y Telecom., S.L.

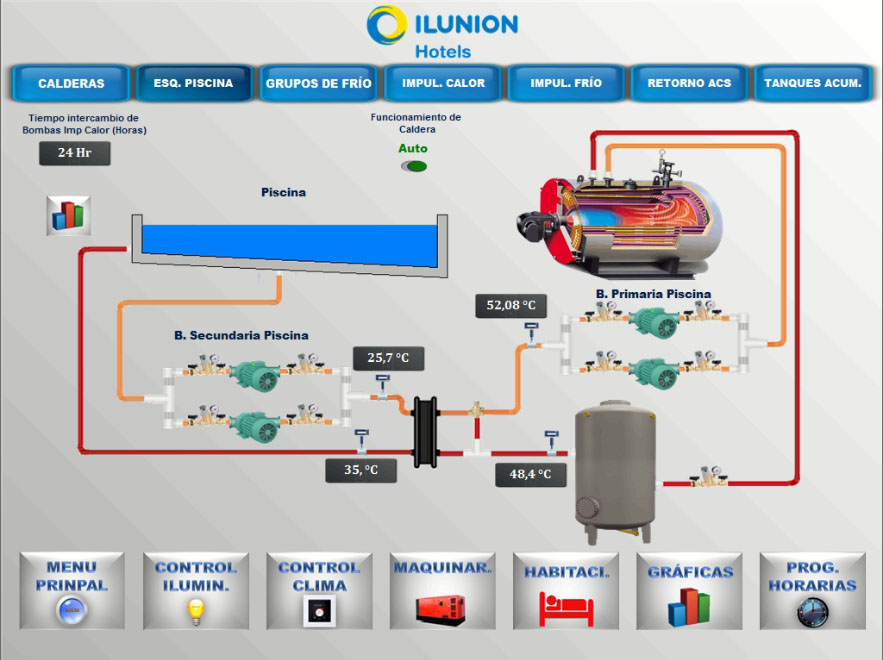

The replacement of an old third-party web server with a new redundant system was performed with two main and backup servers. The system controls the hotel's lighting, air conditioning, ventilation and ACS and is integrated into the same environment for better management by the hotel maintenance staff.

KNX, DALI, Protel

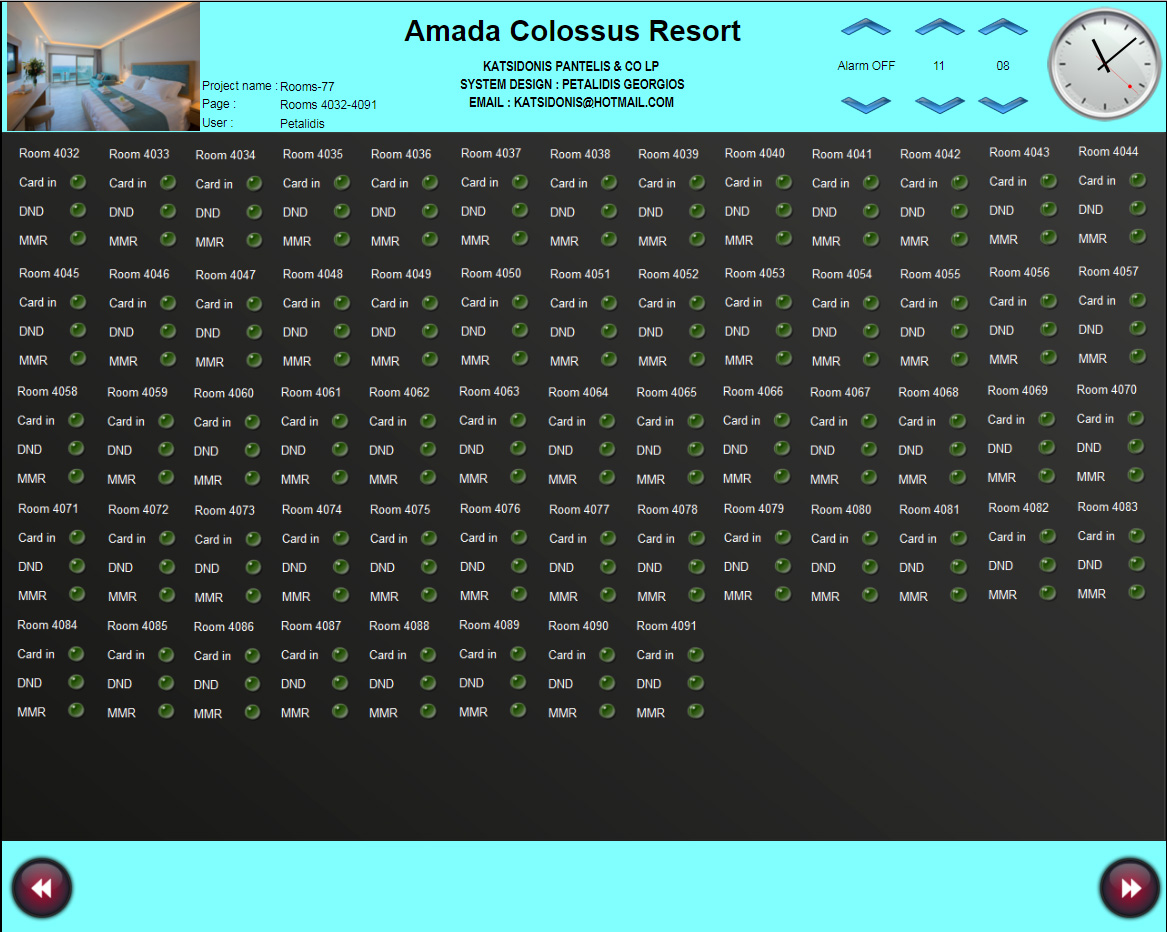

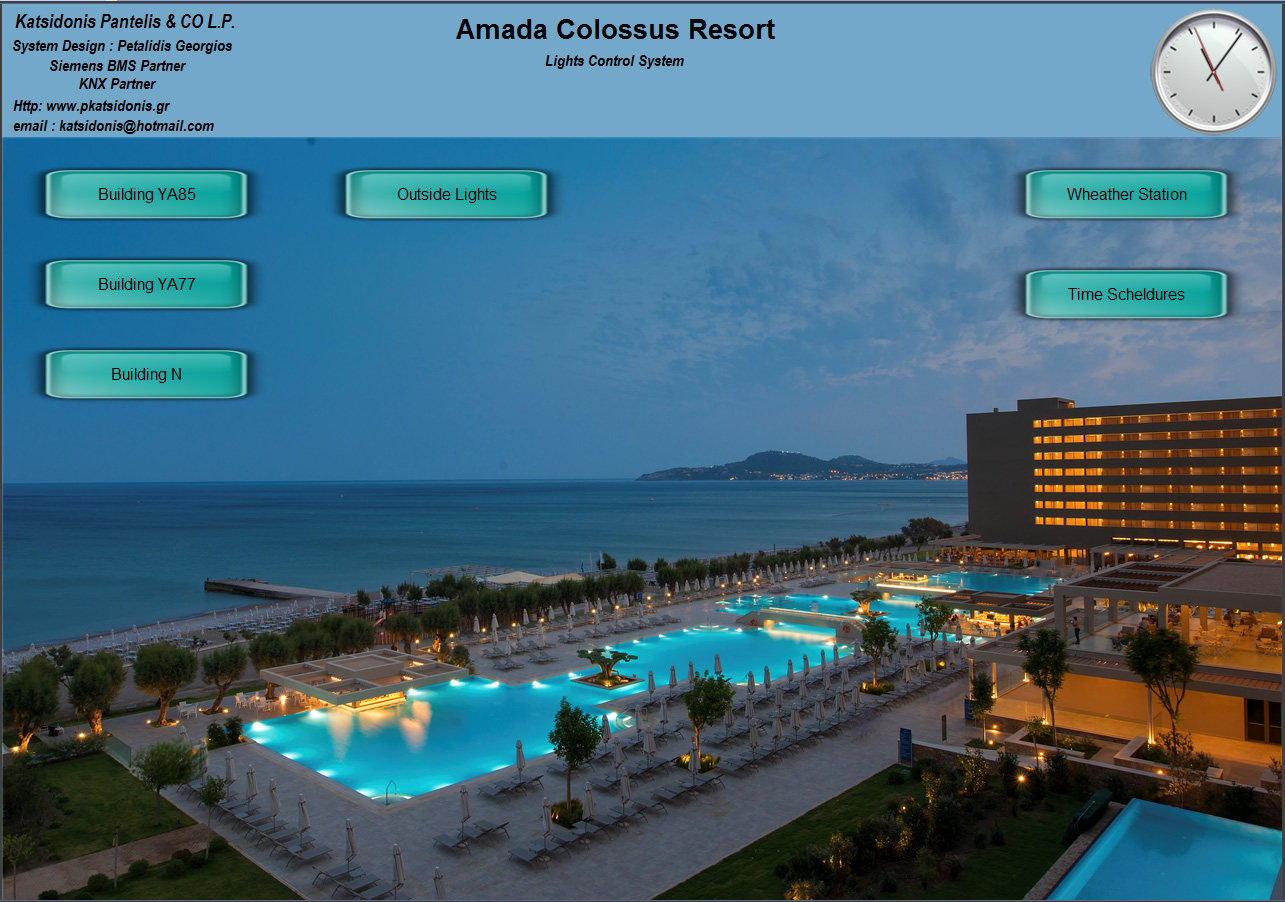

Amada Colossos Resort

Greece

NETx BMS Server
Data points: 8,102
Group addresses: 32,461
BMS clients: 13
Trades: lighting, HVAC, shading, access control
System integrator: KATSIDONIS PANTELIS & CO LP

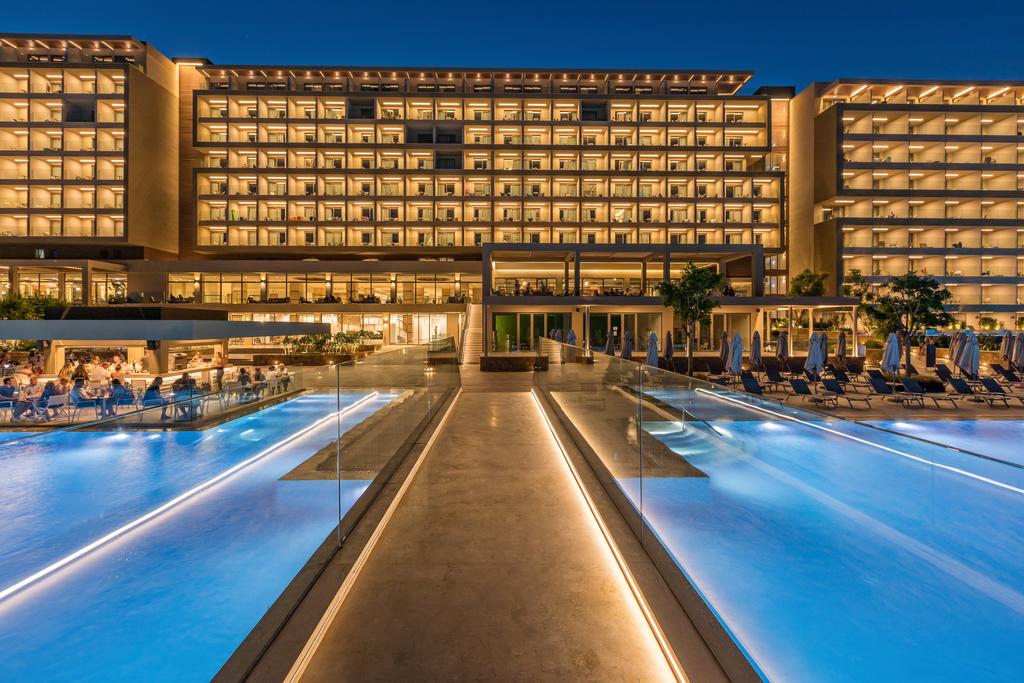

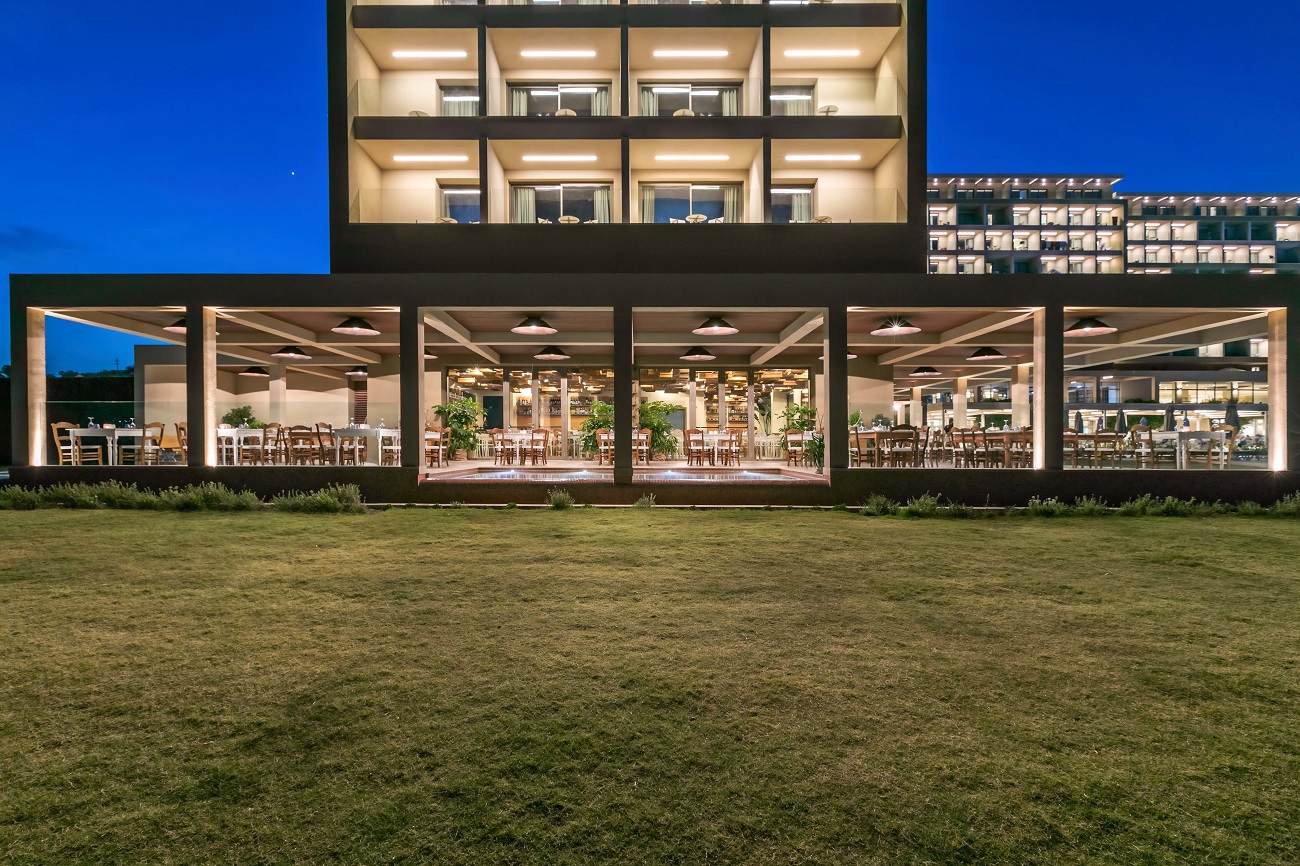

The project consists of 700 rooms. Each room contains a KNX controller with integrated FCU actuator and two RFID KNX access control devices (card reader and card holder). The total number of devices in the project is about 4000. The hotel software allows activation of pre-cooling during guest check-in. The visualization platform of the NETx BMS Server enables monitoring of loads, changing the setpoints of the thermostats and controlling of lighting and shading.

KNX - Fidelio/Opera

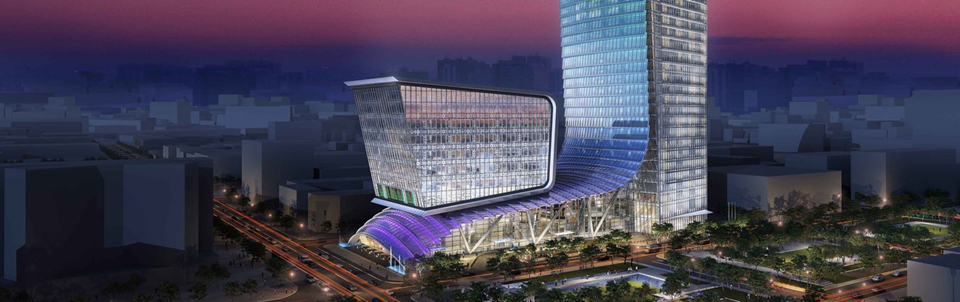

Rosewood Phnom Penh

Cambodia

NETx BMS Server
Data points: 10,000
Trades: lighting, shading, HVAC
System integrator: Jung Asia Pte. Ltd.

KNX, VingCard, Fidelio/Opera

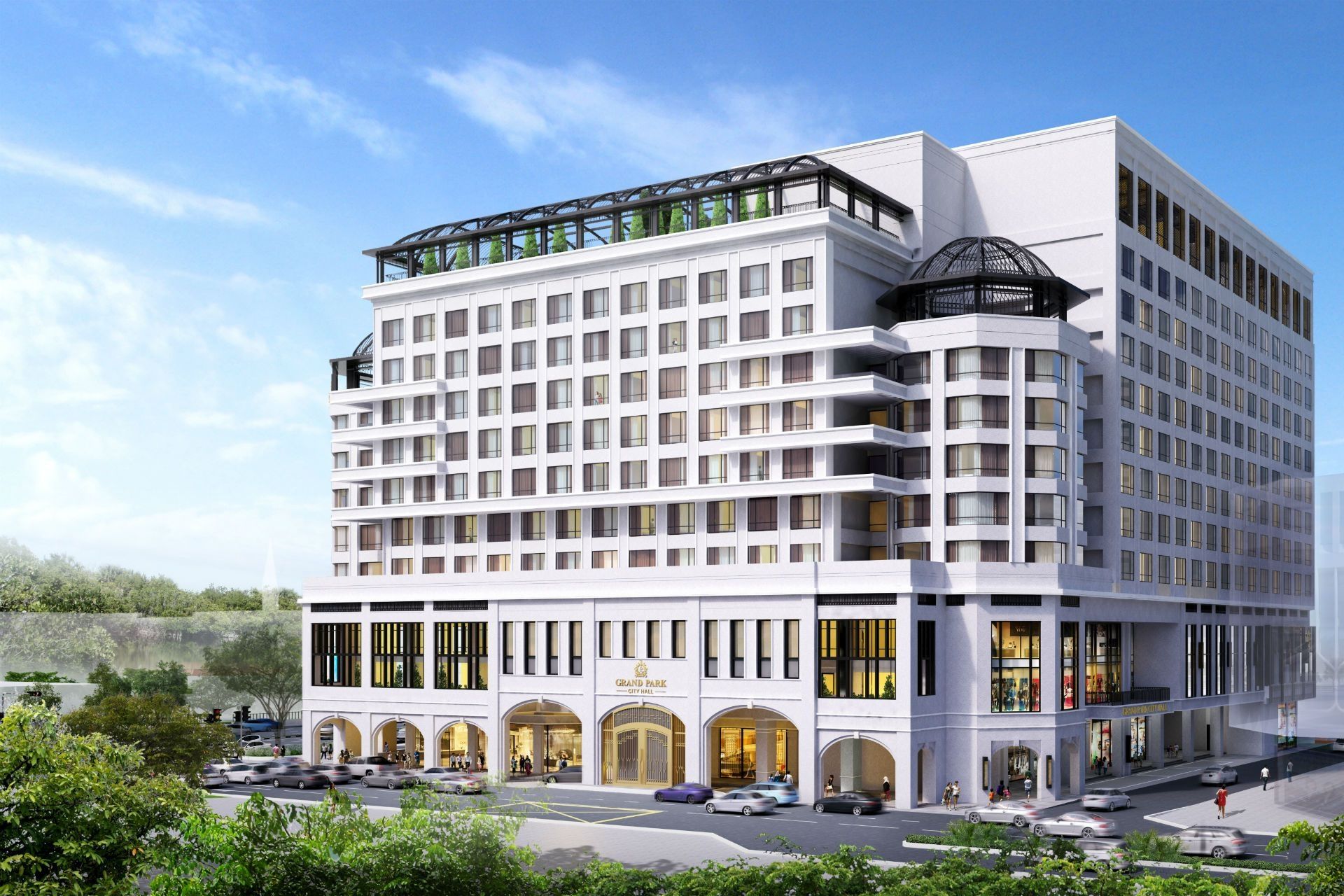

Grand Park City Hall

Singapore

NETx BMS Server, NETx Voyager
Data points: 25,000
Trades: lighting, HVAC, shading, access control
System integrator: Jung Asia Pte. Ltd.

Lake Hotel
Dubai, UAE
Al Raha Beach Hotel
Abu Dhabi, UAE
Ian Banham & DMJM
Ciragan Palace Kempinski
Istanbul, Turkey
Optimus Elektronic
Al Aqeeq Palace Arac Hotel
Saudi Arabia
eVision-Setra
Aloft Hotel
Abu Dhabi, UAE
RMJM
Khalidiya Palace Rayhaan by Rotana
Abu Dhabi, UAE
ETA
Emirates Palace Hotel
Abu Dhabi, UAE
KEO
Park Rotana Hotel
Abu Dhabi, UAE
Al Salam/Ian Banham
Etihad Towers
Abu Dhabi, UAE
Cansult Maunsell
Wanda Reign Hotel Wuhan
Wuhan, China
MC Hinwo
Kingkey St Regis Hotel
Shenzhen, China
MC Hinwo
Shahdag Tourism Complex
Qusar, Azerbaijan
ELIN Inc.
Al Areen Resort
Manama, Bahrain
Architrave
Qasr Al Sarab Resort
Abu Dhabi, UAE
ABB Industries
Gran Melia Resort & Luxury Villas
Daios Cove, Greece
TRIANTAFILLIDIS Advanced Electrical Installations
