Lighting/DALI management with
NETx LaMPS

Digital Addressable Lighting Interface (DALI) Management: The LaMPS module provides an advanced, vendor-independent solution for DALI lighting control. It supports KNX/DALI integration, allowing for centralized visualization, monitoring, and testing of lighting systems, including emergency lighting. The module enables uniform data point management, DALI diagnostics, emergency testing, and detailed reporting.

Only included in connection with the NETx BMS Platform

Simplified KNX/DALI Management

A manufacturer-independent interface simplifies DALI test management and gateway integration.

Comprehensive Lighting Monitoring

Monitoring operating hours of lighting circuits with alarm thresholds and approximate energy calculations without a smart meter.

Efficient DALI Test Management

Supports function, duration, and battery tests for reliable DALI emergency lighting maintenance.

Integration into Visualization Systems

Offers server items for visualizations, enabling clear status and error displays for easier monitoring and operation.

Advanced Solutions for Lighting Monitoring and Maintenance

Simplifies lighting management with a manufacturer-independent DALI interface, enabling monitoring, alarm threshold configuration, and energy calculations without requiring a smart meter.

Functions

Uniform Data Point Management

Consistent and centralized view of KNX/DALI gateways to simplify system monitoring and control

Application-Specific Protocol

Tailored protocol for lighting systems, offering vendor-independent support for a range of DALI gateways and devices.

Centralized Visualization and Monitoring

Real-time monitoring capabilities for lighting systems across multiple locations, enhancing operational efficiency

DALI Diagnostics

Built-in tools for testing lamps and ballasts, providing insights into errors and specific device issues for efficient troubleshooting

Emergency Lighting Support

Special features dedicated to emergency lighting, including the ability to conduct automated DALI emergency tests

Data Storage and Reporting

SQL database support for secure data storage, along with a reporting tool for generating custom performance and diagnostics reports

ETS5 Integration

Streamlined configuration and automatic export via the NETx BMS App Secure, allowing quick and easy system updates

Customizable Reporting

Integrated tool for generating tailored reports to analyze system performance and diagnostics

Pure Field Level protocol

Pure field-level protocol, primarily used with system standards like KNX, without a standardized IP interface.

Comprehensive KNX/DALI Gateway Support!

Our solution supports a wide range of KNX/DALI gateways, including top brands like ABB, Gira, Hager, IPAS, Jung, MDT, Schneider, Siemens, Zennio, EAE and more. This ensures compatibility and flexibility for diverse smart building needs. Find the complete list of supported manufacturers here:

Supported Manufacturers

DALI Test Procedure

The DALI test procedure follows a systematic approach to ensure the reliable operation and compliance of DALI lighting systems. This process verifies system functionality, addresses potential issues, and supports ongoing maintenance to keep lighting systems in optimal condition.
1. System Initialization

Begin by initializing the DALI system and verifying that all devices are connected and responding.

2. Device Identification & Functional Testing

Identify each device and test basic functions like dimming and on/off control.

3. Emergency Lighting Check

Test emergency lights to confirm correct activation and safety compliance.

4. Diagnostics & Data Logging

Use diagnostic tools to detect errors and log results for future reference.

5. Report Generation

Compile a report with test results, noting any issues for maintenance.

User Interface

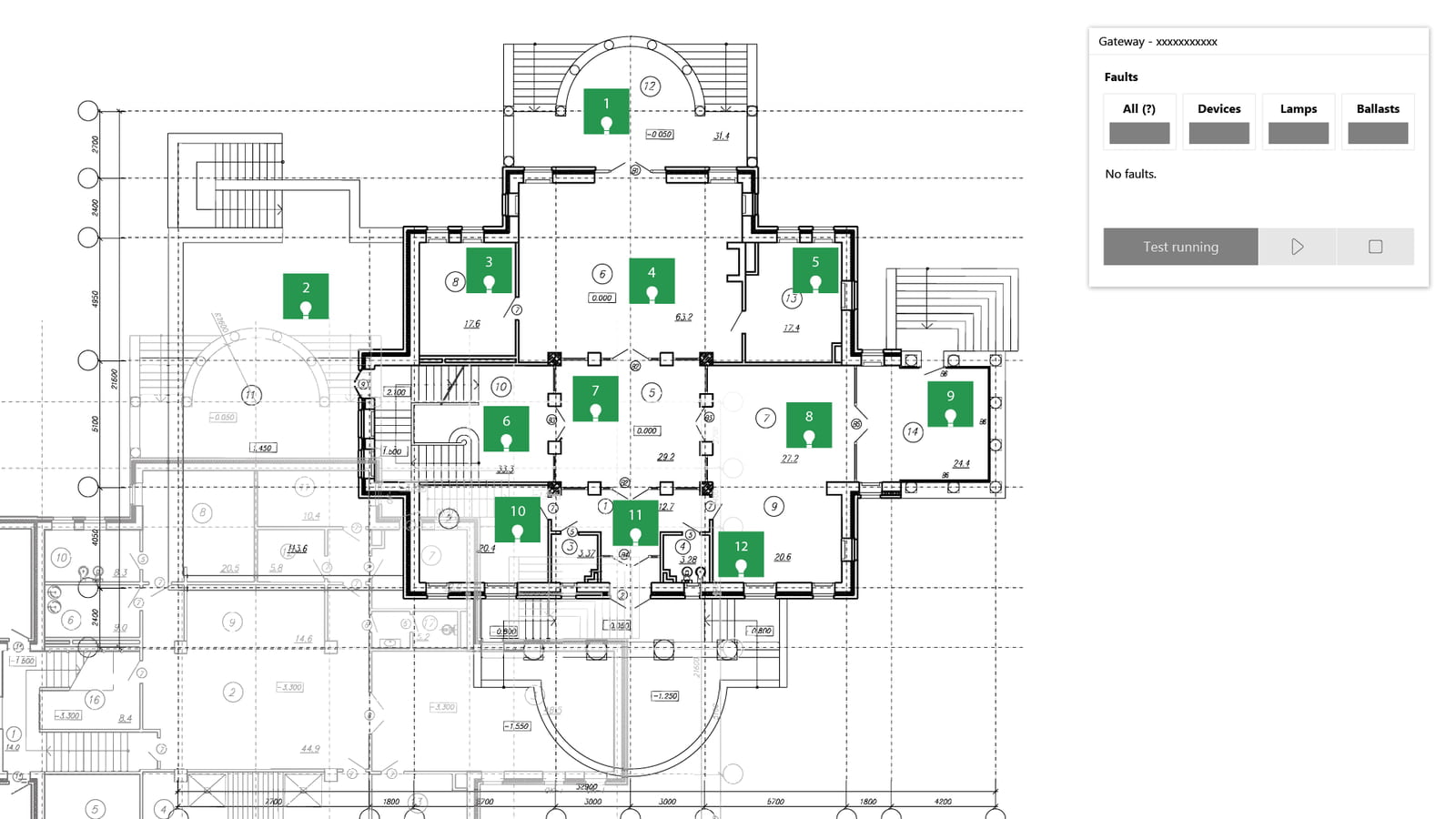

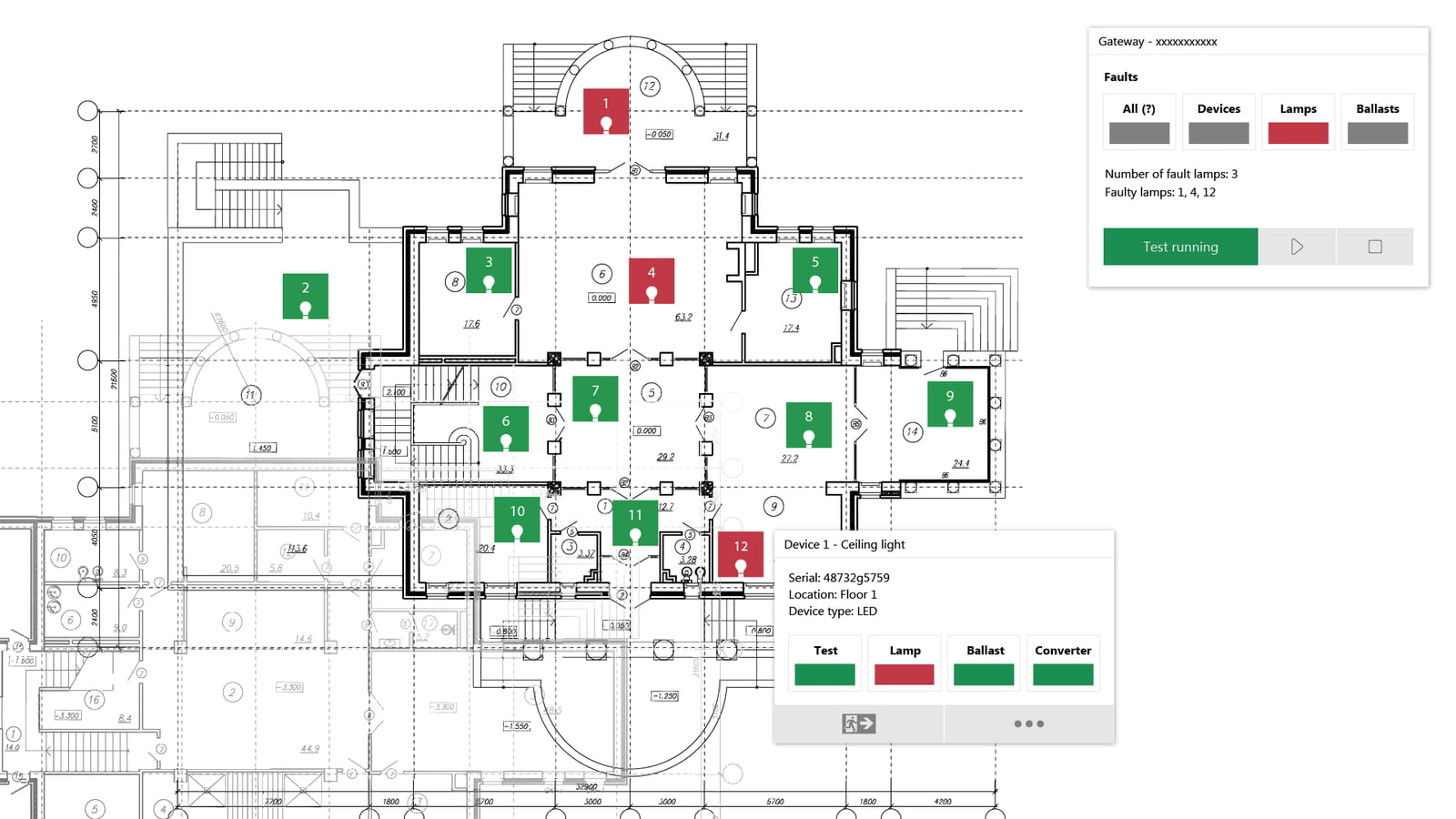

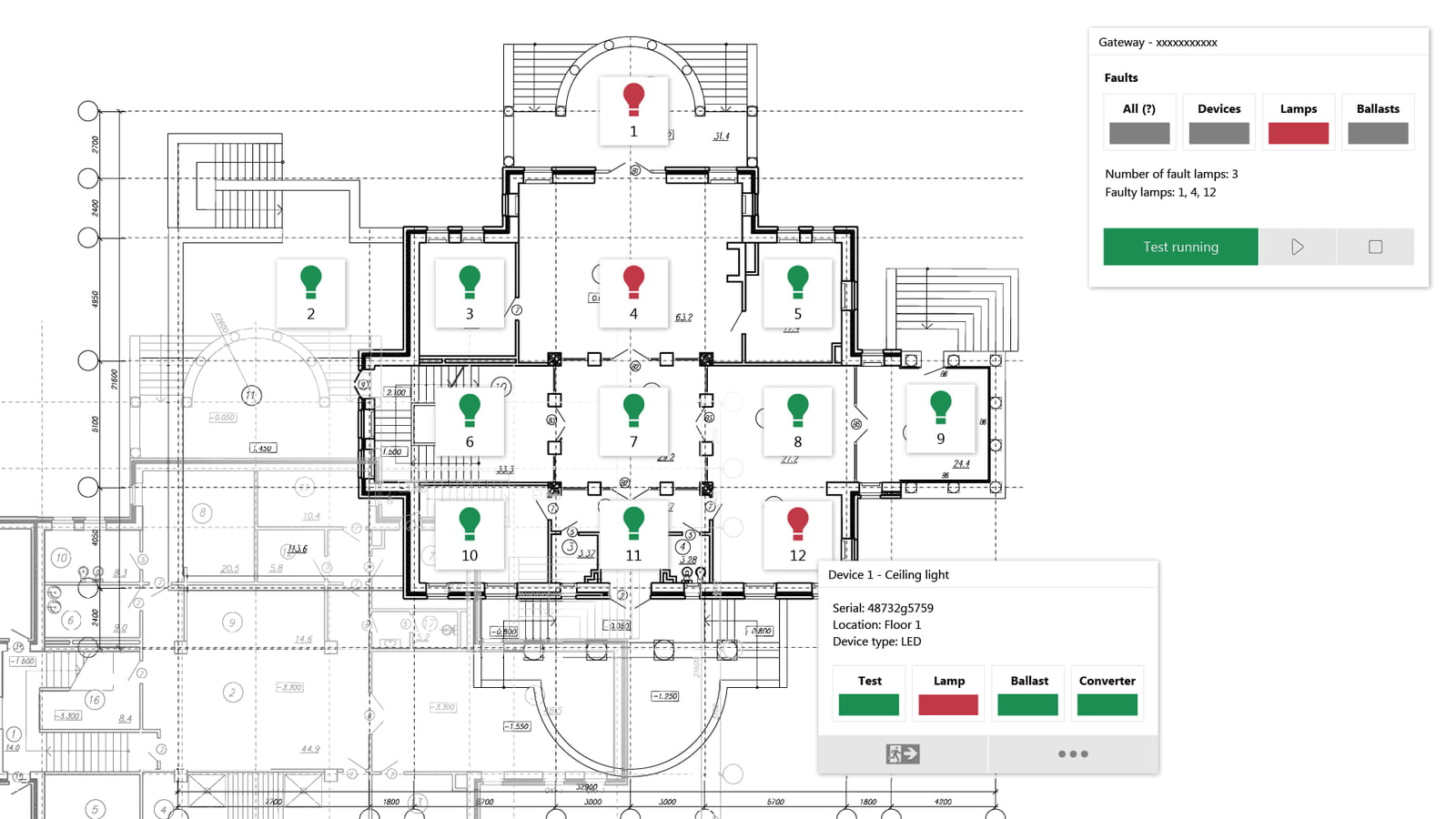

The NETx LaMPS Module user interface simplifies the management of DALI lighting systems. It provides a centralized dashboard for monitoring and controlling DALI gateways, offering device diagnostics, operational status, and emergency test functions. Users benefit from vendor-independent controls, real-time monitoring, and easy access to testing and reporting tools, ensuring seamless integration and efficient management of lighting systems.

Configuration

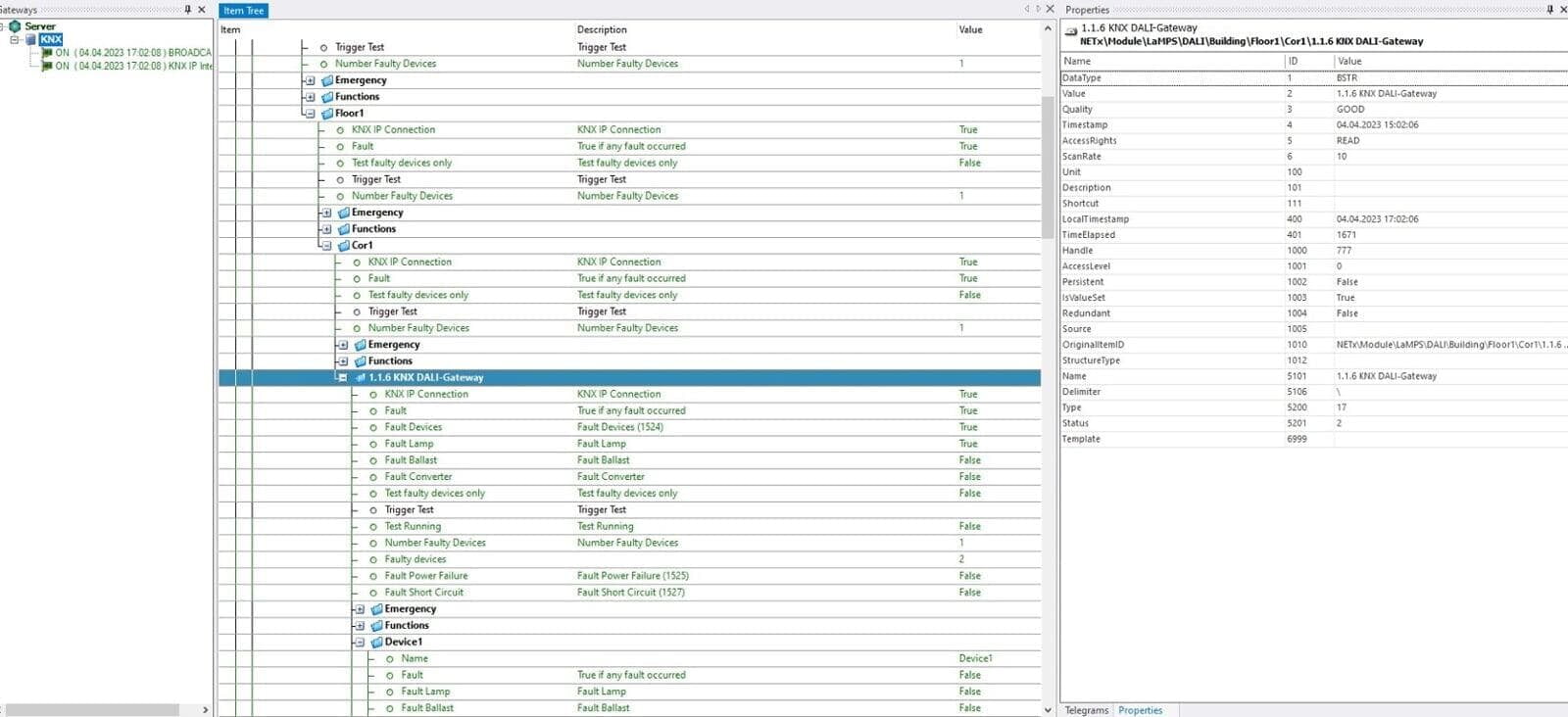

  • The Uniform Data Points View in the LaMPS Module offers a clear, consolidated display of all DALI devices, simplifying system oversight.

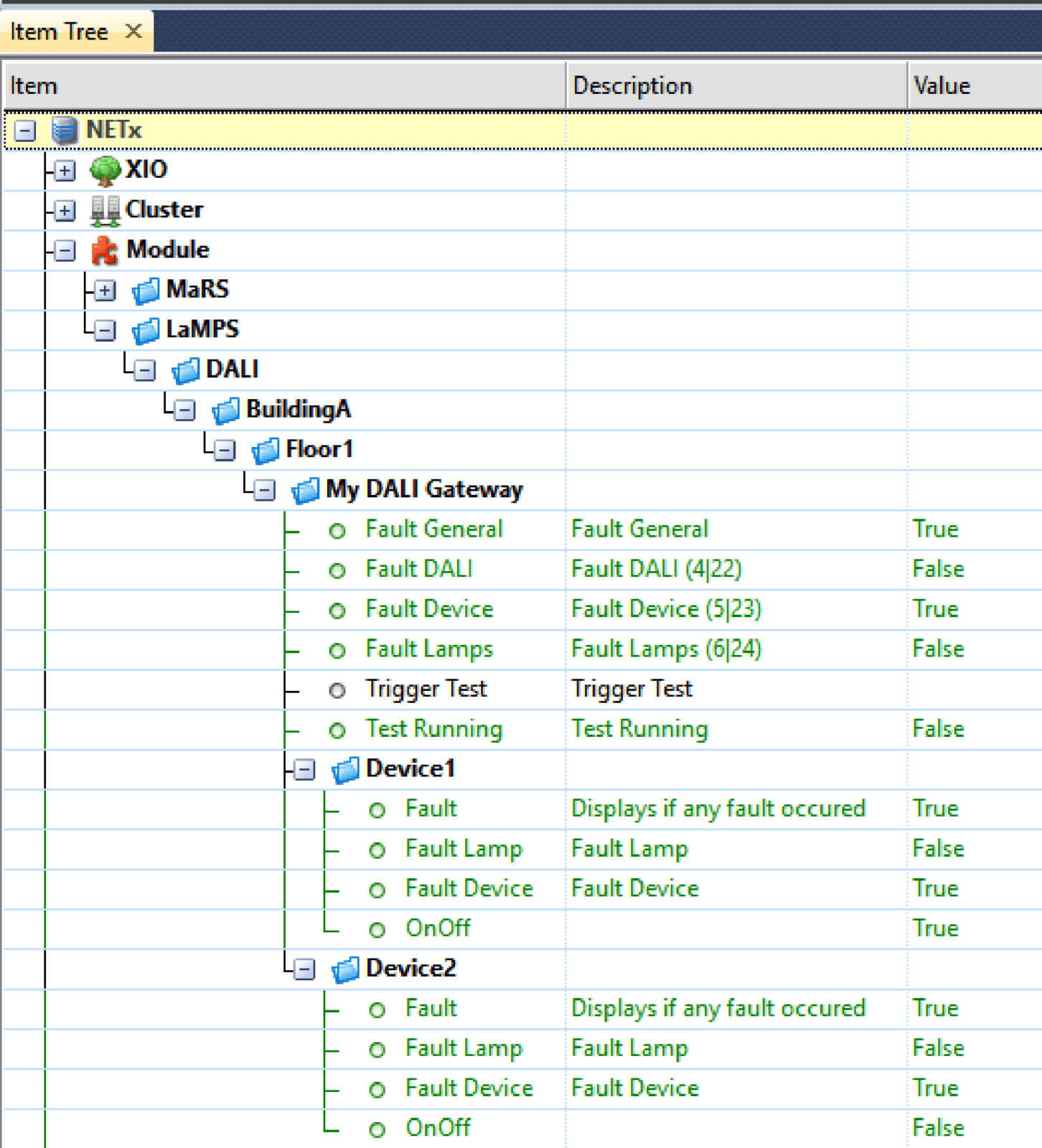

  • The Item Tree provides an organized, hierarchical structure of devices for easy navigation and control.

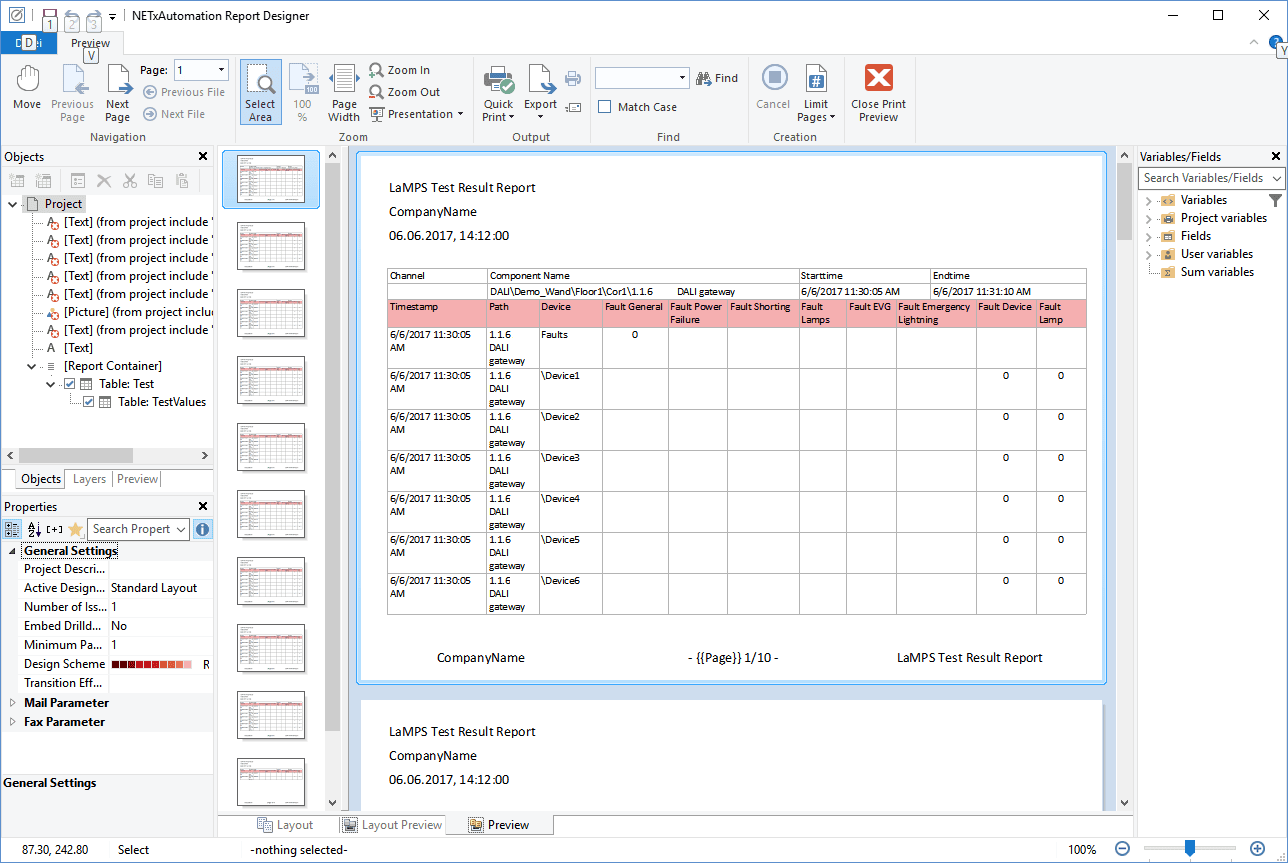

  • The Report Designer allows users to create custom reports on device performance, diagnostics, and test results, supporting in-depth analysis and compliance documentation.

Technical Information

KNX/DALI Integration
KNX Group Object Mapping
KNX Data Point Types (DPTs)
Manufacturer-Specific Implementations
KNX/DALI Integration
  • KNX/DALI Integration
    KNX is the standard method for integrating DALI systems, facilitating seamless communication between DALI and Building Management Systems (BMS) for comprehensive lighting control, visualization, monitoring, and maintenance.
  • KNX/DALI Gateways and Channels
    KNX/DALI gateways serve as the connection point between the DALI bus and KNX networks. Some gateways support multiple channels, with each channel accommodating up to 64 DALI devices.
  • Data Management through KNX Group Objects
    DALI data is provided as KNX group objects, covering lighting control (on/off, dimming, status), maintenance (trigger tests, test results), and emergency lighting control (emergency status, emergency tests).
KNX Group Object Mapping
  • KNX group object mapping allows DALI functions to be integrated within KNX networks.
  • A high number of functions and devices per gateway can result in a large number of KNX group objects at the gateway.
  • To manage this, only selected functionalities are mapped to each DALI device, reducing the total number of group objects.
  • Common group objects per DALI device include on/off control, dimming, and status reporting.
  • Channel-level group objects handle functions like triggering tests and retrieving test results.
  • Stateful communication is required to obtain complete information from each DALI device, such as DALI test results and diagnostics.
KNX Data Point Types (DPTs)
  • KNX Data Point Types (DPTs) are used to standardize DALI functions within KNX systems.
  • Standard DPTs cover basic functions, such as dimming, enabling straightforward integration of core operations.
  • Many KNX/DALI gateways also employ non-standardized DPTs, extending compatibility and functionality based on specific device needs.
  • For advanced functions like diagnostics and testing, complex DPTs, such as DPT_DALI_Control_Gear_Diagnostics, are utilized to handle more detailed data and control requirements.
Manufacturer-Specific Implementations
  • KNX/DALI gateways are produced by various manufacturers, each with unique implementations.
  • Only basic functions, such as on/off and dimming, are standardized across all DALI gateways.
  • Advanced features, like DALI testing, are often manufacturer-specific, resulting in variations in supported capabilities.
  • Manufacturer-specific implementations may use non-standardized DPTs and require stateful communication logic.
  • Integrating these features is a complex, time-consuming task for integrators and electrical engineers, demanding specialized knowledge of each manufacturer's approach.
