Overview
Citi Bank Offices
Uruguay
- NETx BMS Platform - KNX, BACnet, Modbus, SNMP, DALI
- Trades: Lighting, HVAC, security
- Devices: 2,942 - HDL Hotel Modules, Thermostat, Sensor, Automation Switch, DND/MUR Unit
- Visualization clients: 1
- Devices: 158
- Group addresses: 881
- Data points: 2,351

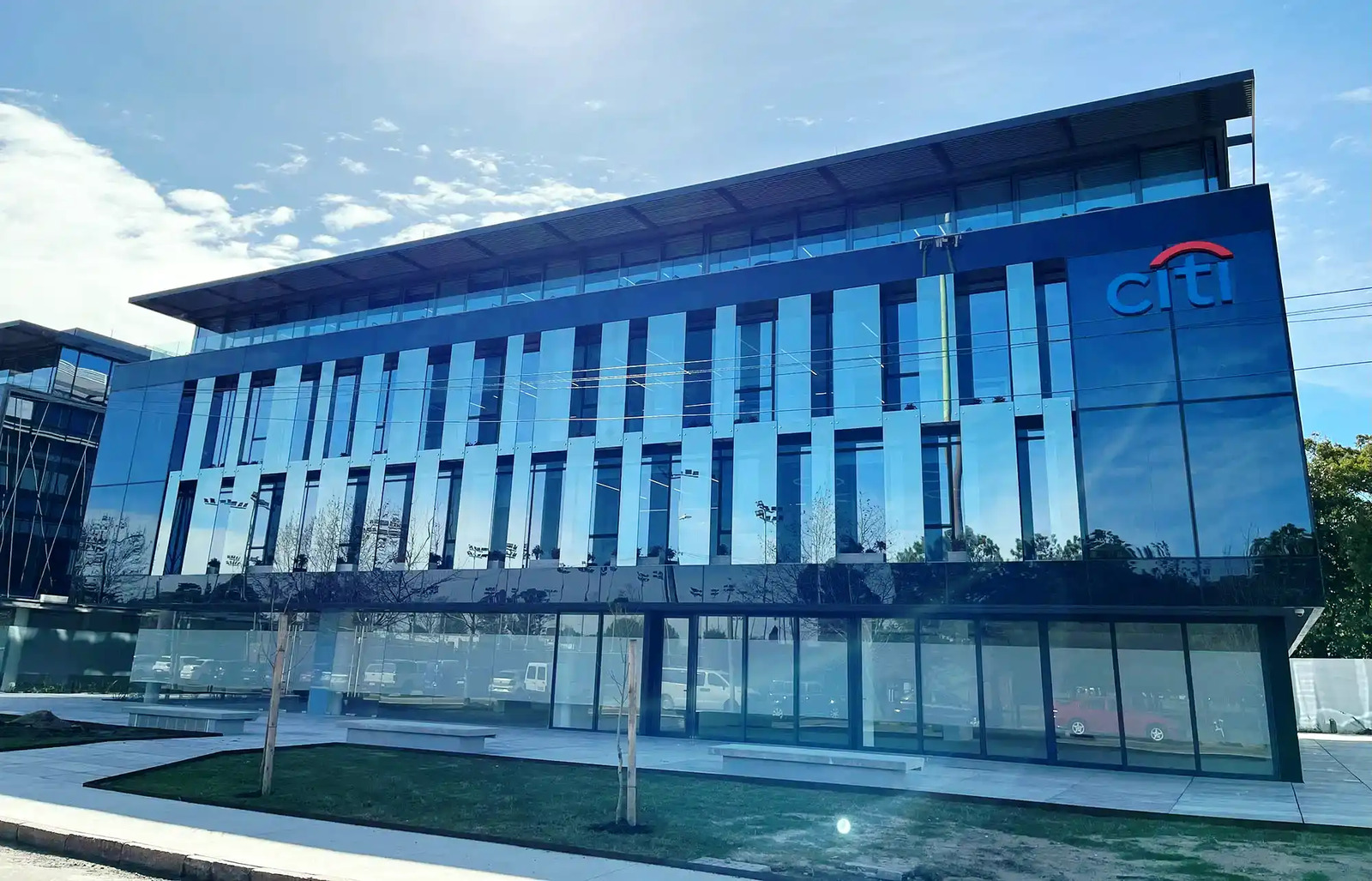

Citi Bank offices are located in the building complex Carrasco Valley in Carrasco, one of the most luxurious residential neighborhoods in Montevideo.

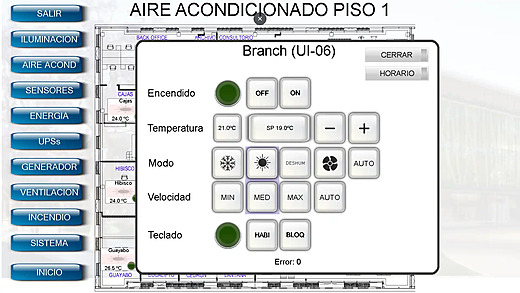

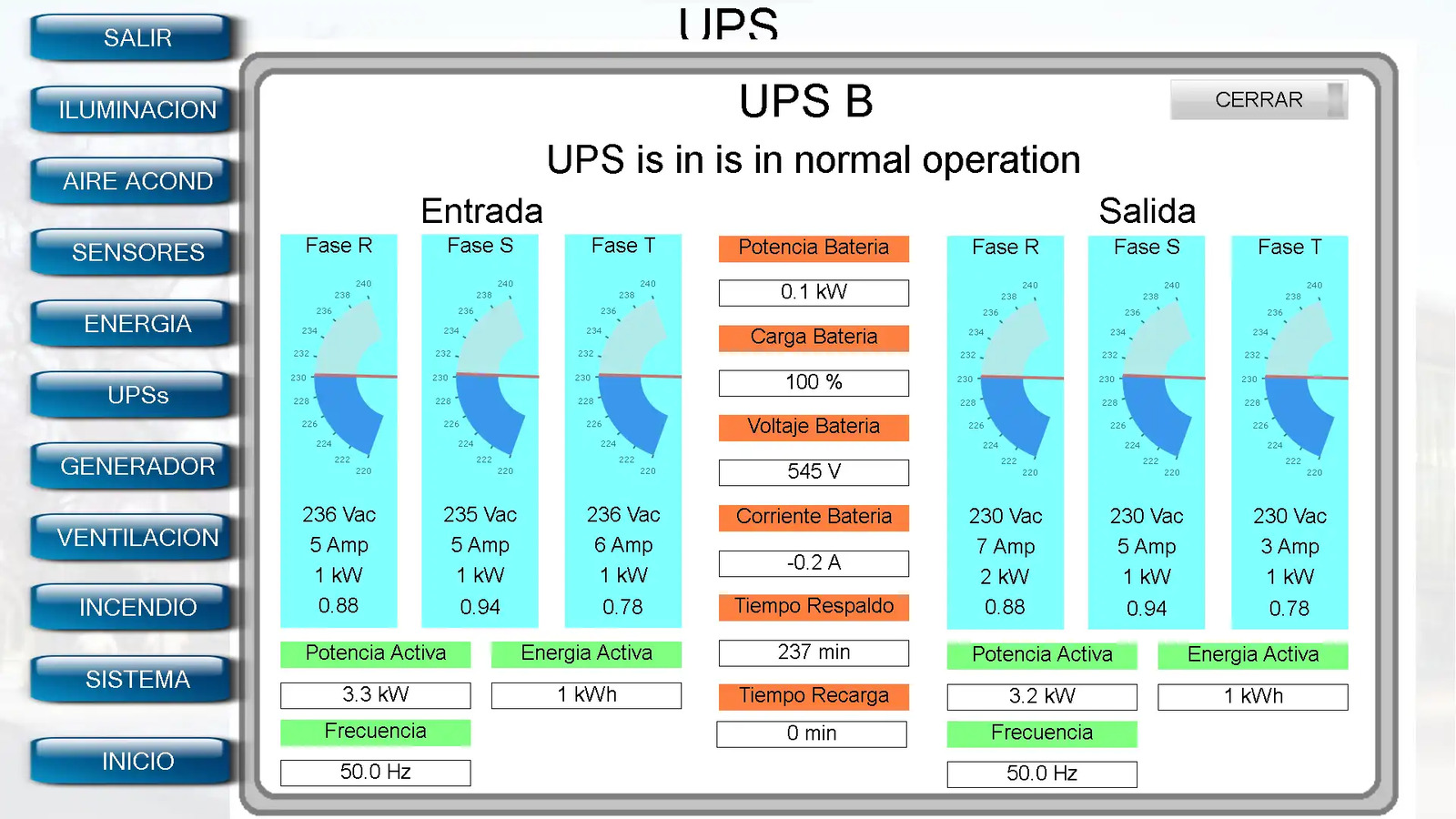

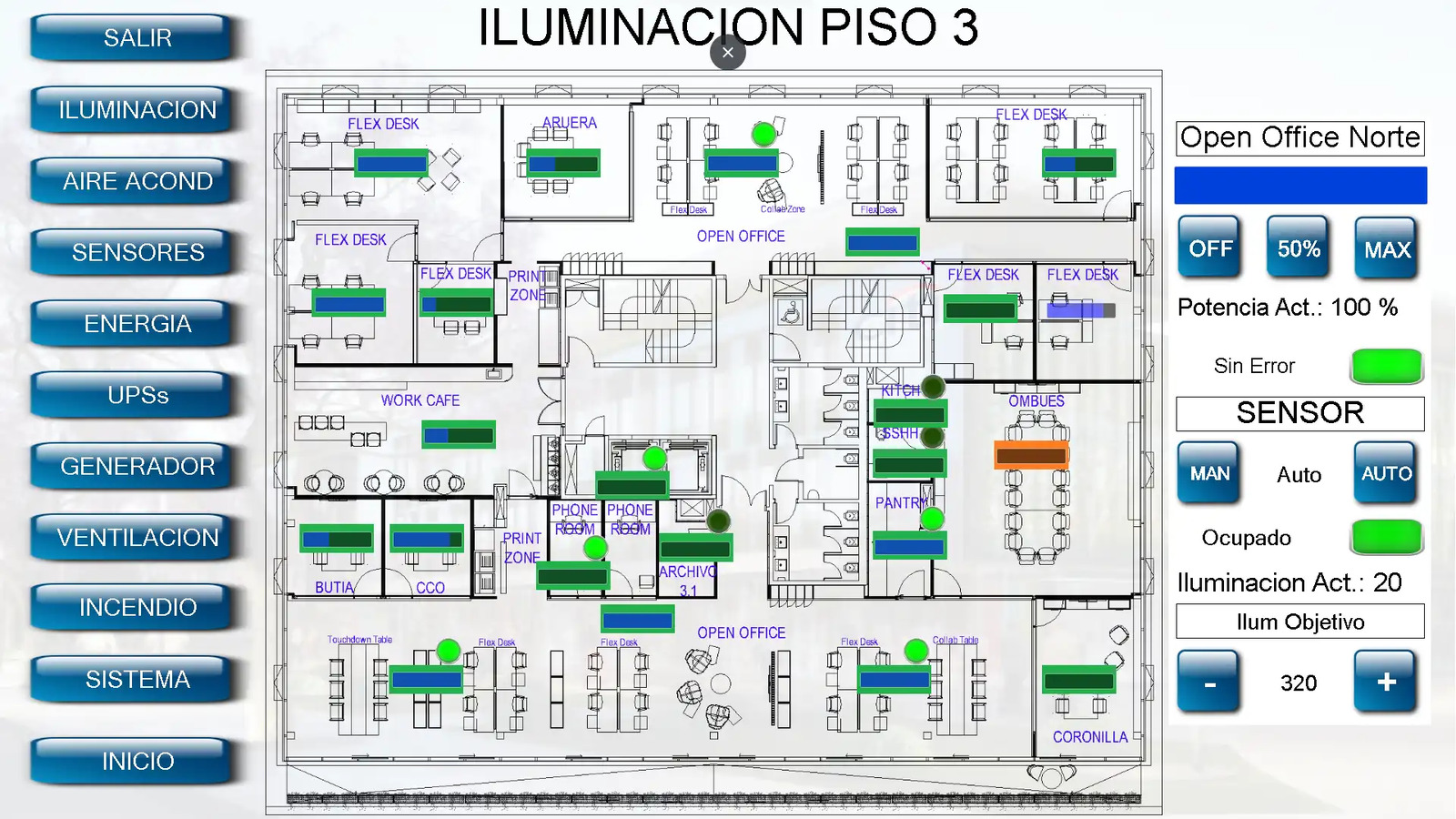

It consists of a three-story building with a Gold Leed Certification. Energy management through DALI lighting and HVAC control is achieved using presence detectors and keypads combined with calendar events.

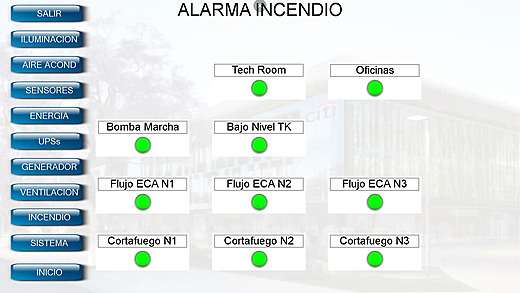

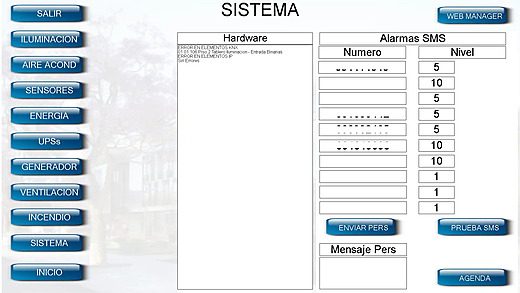

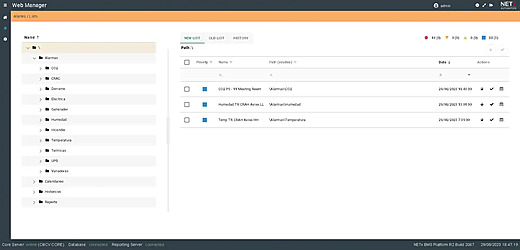

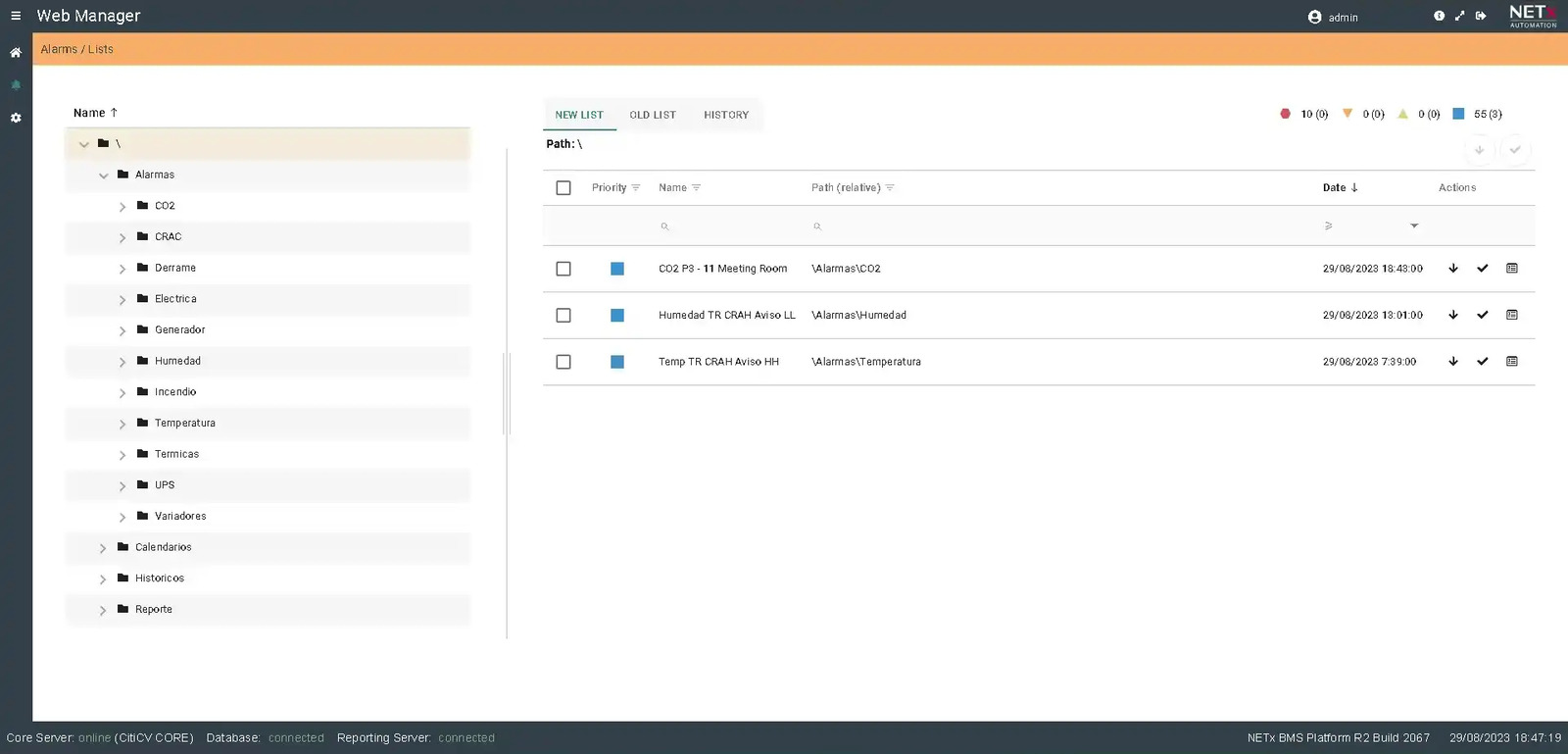

There are several services or alarm conditions considered critical by the client. Failures in such systems or alarms are reported through SMS to maintenance and managers.

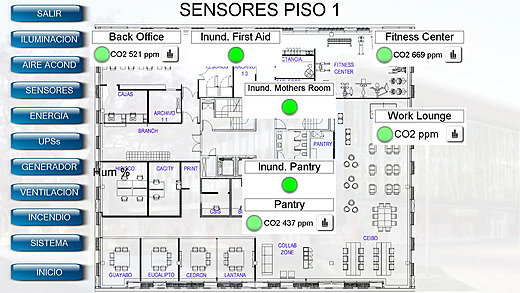

Several CO2, temperature, and humidity sensors create an air quality indicator. The BMS manages the ventilation system to guarantee optimal conditions in the building.
System integrator: SMART TECH LTDA
Pictures
Overview
Pictures
Overview

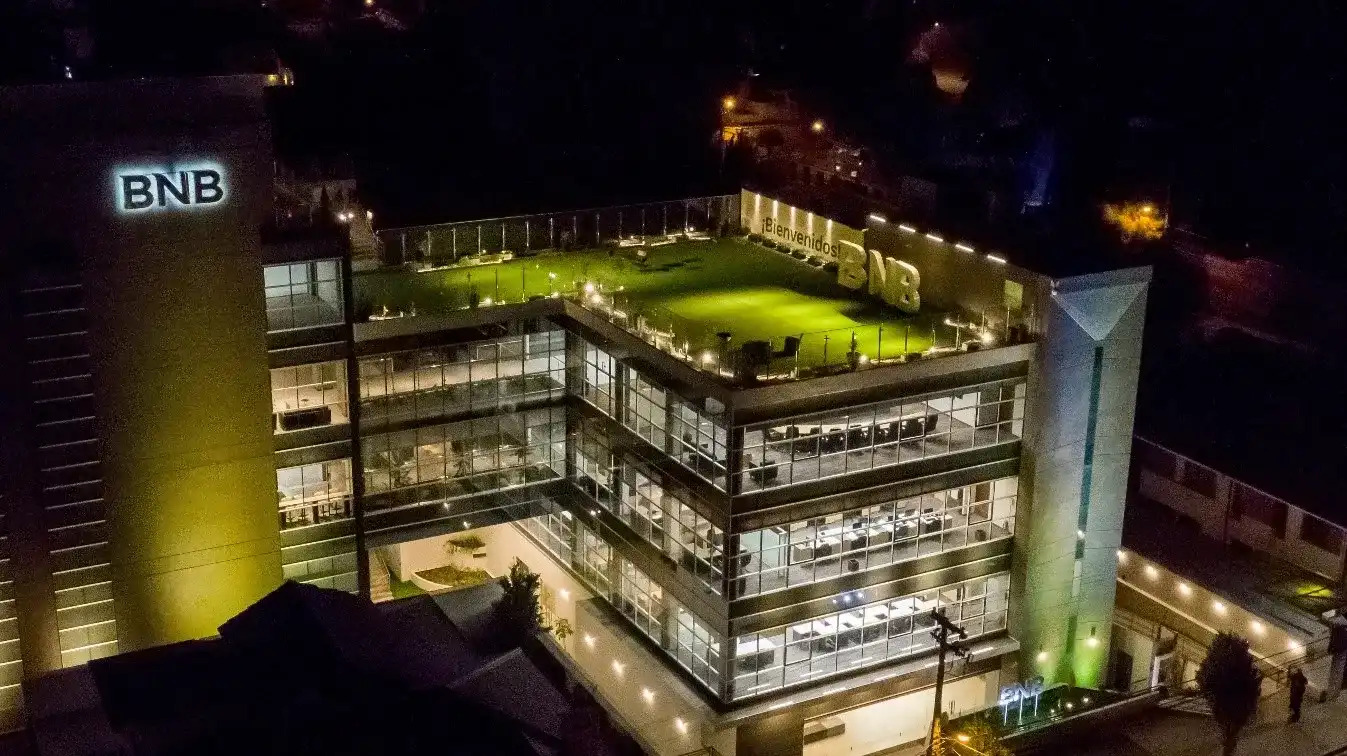

National Bank of Bolivia S.A. Florida Agency
Bolivia
- NETx BMS Platform - KNX, BACnet, Modbus, DALI, DMX
- Trades: Lighting, HVAC, UPS, Generator, Power Management
- Devices: 324
- Visualization clients: 3
- Extension modules: NETx Metering Module
- Data points: 10,000
The National Bank of Bolivia S.A. Agencia La Florida serves as the company's national headquarters, featuring a modern, sustainable design that promotes clean energy, efficient operations, and environmental protection. The building is designed for rational energy use, with centralized control and monitoring of all systems.

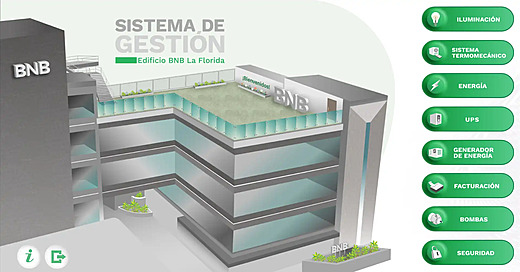

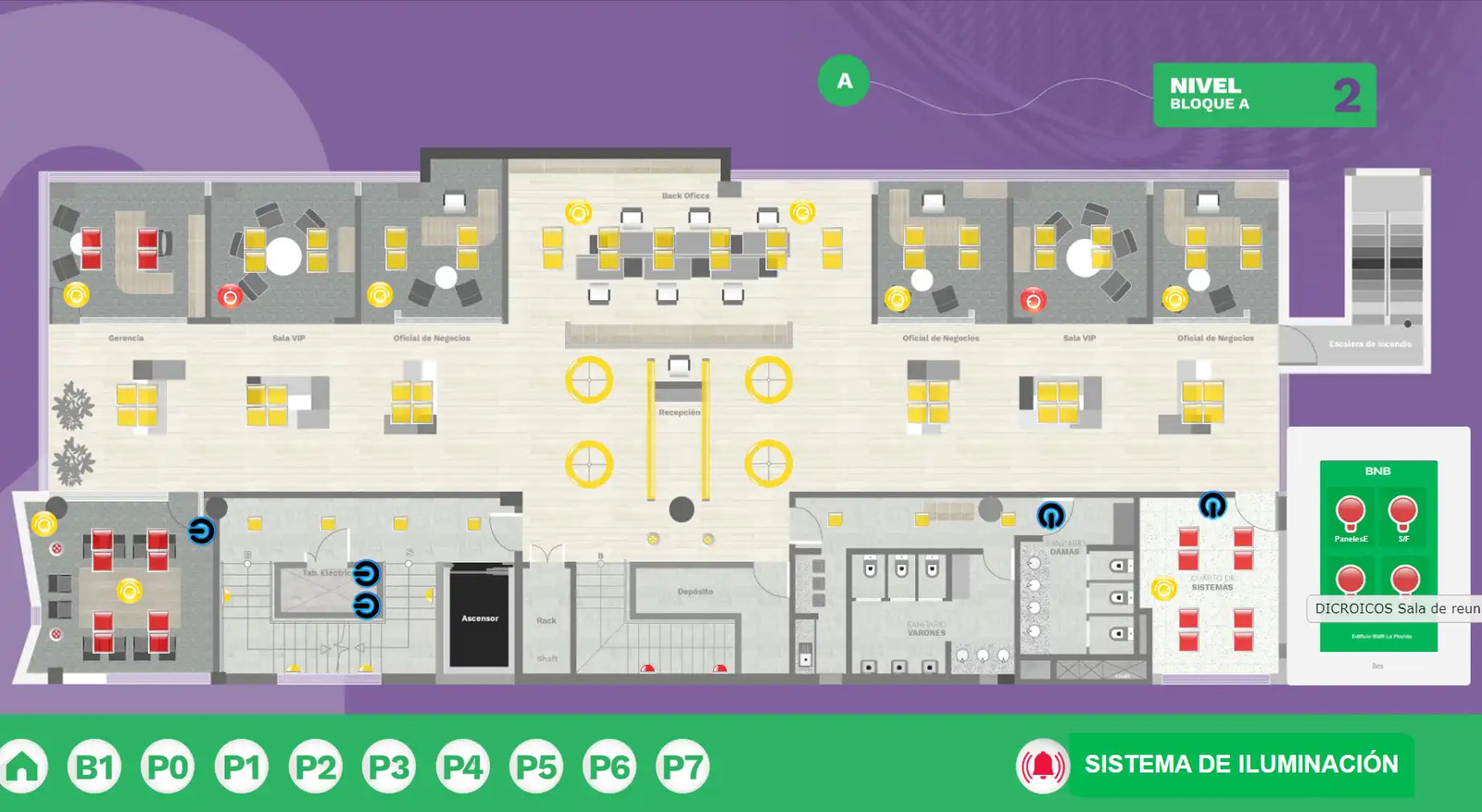

The project integrates all building systems into a single platform, enabling seamless interaction, comprehensive management, and event reporting. The user-friendly interface mirrors the facility's layout, allowing easy control and monitoring with a single click. This efficient solution supports technical and maintenance teams in decision-making and optimizing building operations.
System integrator: Electrored Bolivia S.R.L
Pictures
Overview
Pictures
Overview
Bank Bandung City
Indonesia
- NETx BMS Platform - KNX, BACnet, Modbus
- Trades: Lighting, HVAC
- Devices: 100
- Visualization clients: 2
- Group addresses: 800
- Data points: 1,200

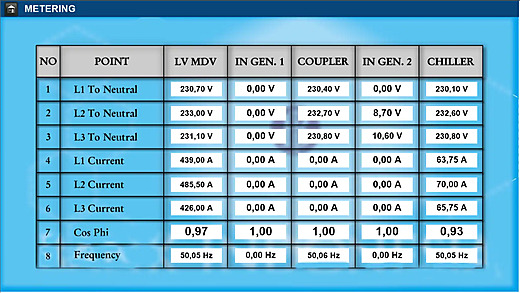

The project is located in the city of Bandung, Indonesia, and retrofits an old BMS system that mainly uses the BACnet protocol. The challenge in this project was to visualise and control the old system without changing the old controllers, and to add a KNX system for lighting control, analog sensors, and Modbus for metering. The NETx BMS Platfrom integrates all protocols.
System integrator: Nortek Defari
Pictures
Overview
Pictures
Overview
Office Building EXPO 2000
Office Building EXPO 2000
Bulgaria
- NETx MP Server - KNX, BACnet, Modbus
- Trades: Lighting, HVAC
- Devices: 750+ - KNX devices e.g. Line/Area Coupler, 24A-KNX Actuator, Room Temperature Controller, Valve Drive Actuator 6-fold, Switch Actuator 4-fold, Binary Input 8-fold, etc. BACnet IP DDC controllers with extension I/O modules and additional Modbus RTU communication modules
- Group addresses: 2,830
- Data points: 5,000

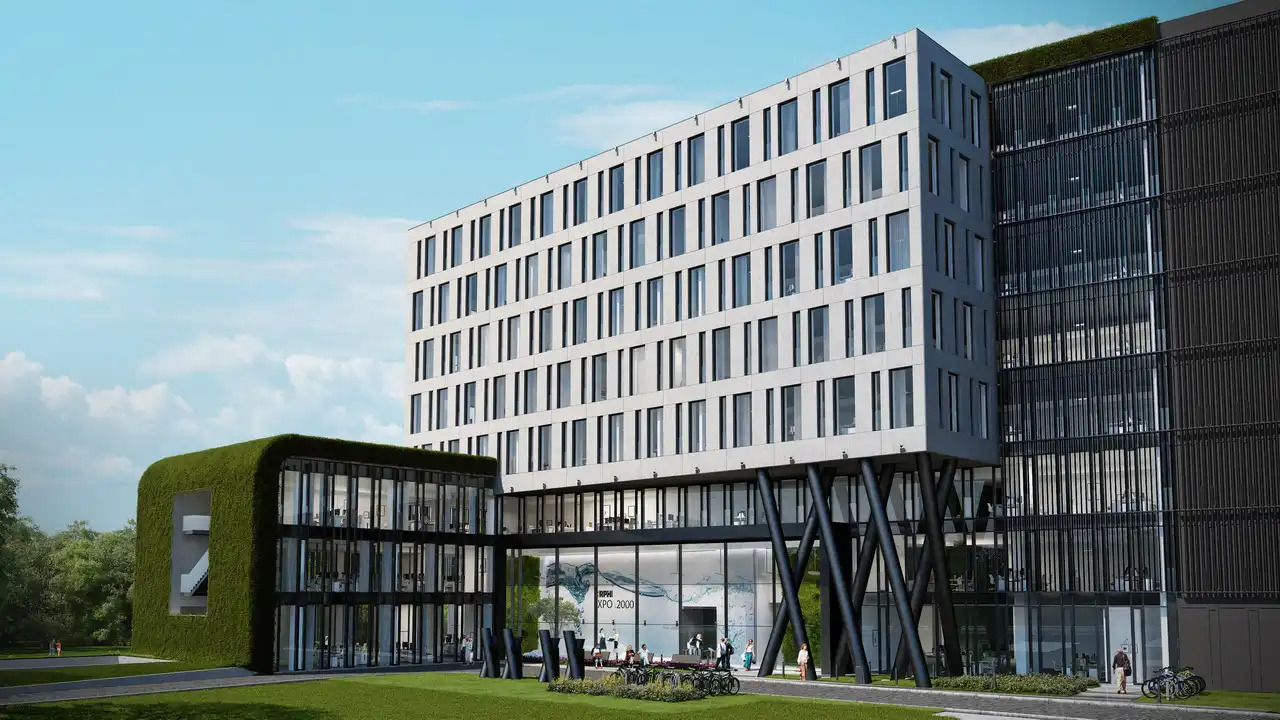

The project is located in the direct proximity of the center of Sofia. It is part of a modern business center and offers 13,400 m² of class A offices spread over seven floors.
The reason for using NETx MP Server software was to integrate all fieldbus devices using different communication protocols into a single BACnet IP system to make the relevant data available for BMS visualization.
System integrator: Rising BMS Ltd.
Pictures
Overview
Pictures
Overview
KACST HQ Offices
Saudi Arabia
- NETx BMS Server, NETx Voyager - KNX, BACnet, DALI
- Trades: Lighting, HVAC
- Visualization elements/pages: 2,100/190
- Group addresses: 9,800
- Data points: 25,000

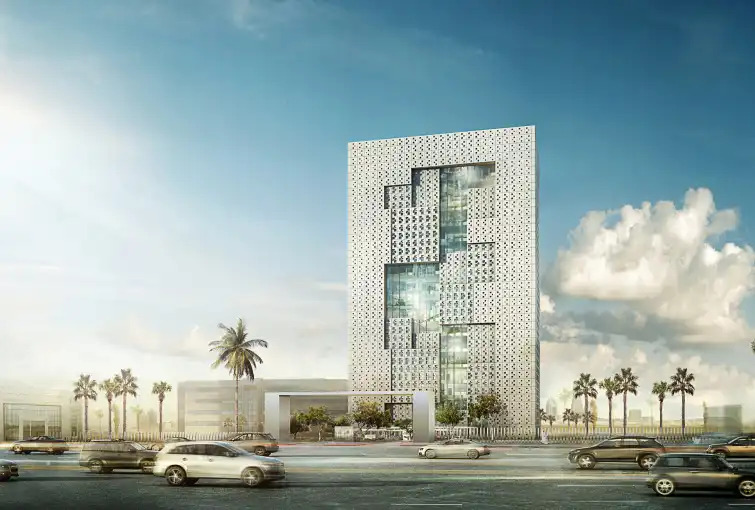

KACST HQ Offices is a building in Riyadh, consisting of a tower with 18 floors and a Three floor underground garage.

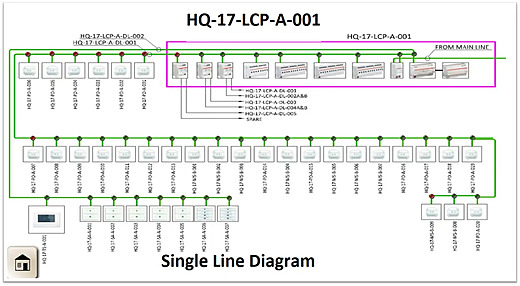

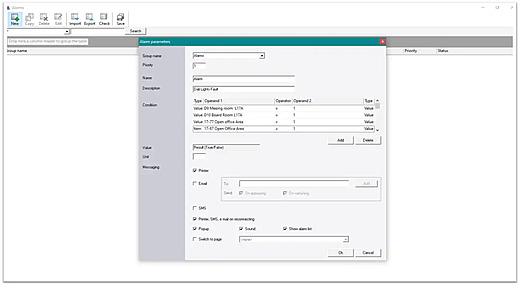

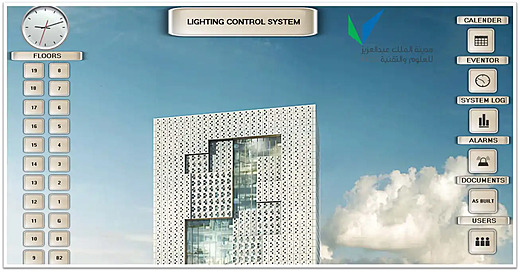

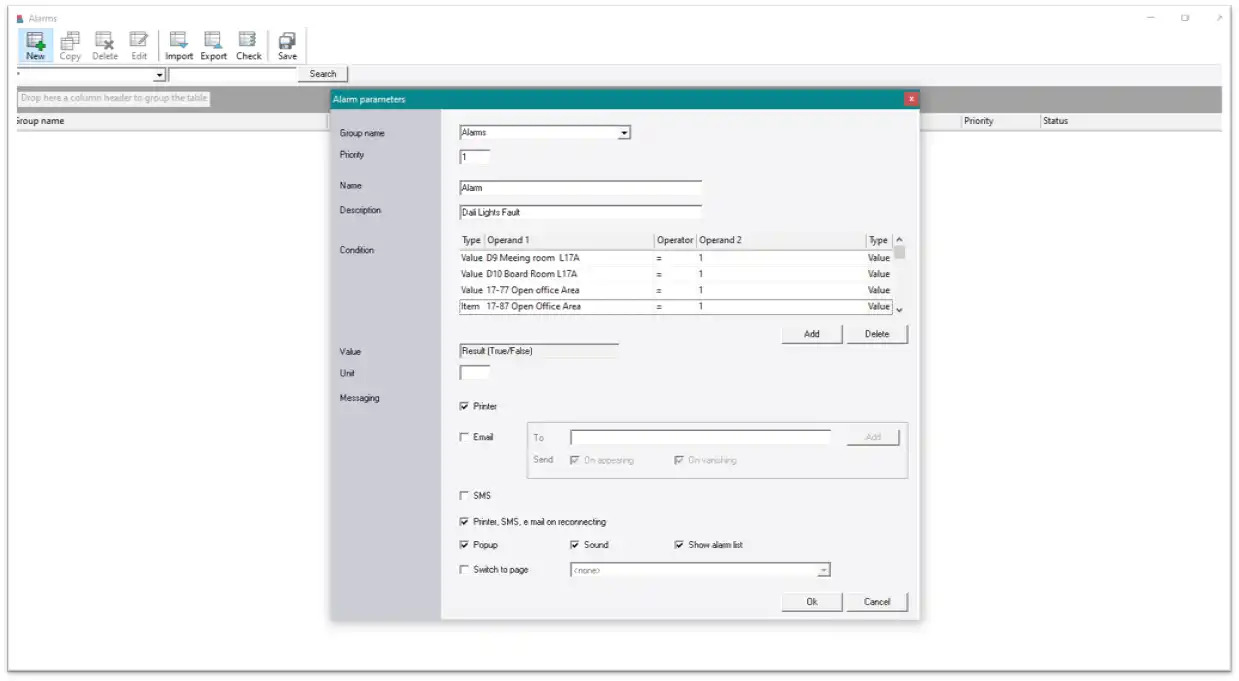

The system for lighting and shutter control is KNX. The integrator used NETx BMS Server for central management, NETx Voyager for visualization.
System integrator: Sela-Pass
Pictures
Overview
Pictures
Overview
Socar Star Management Building
Turkey
- NETx BMS Server, NETx Voyager, NETx Shutter Control - KNX, BACnet, Modbus, DALI, M-Bus
- Trades: Lighting, HVAC, shading, security
- NETx BMS Clients: 10
- Visualization: Elements 10,000 / 95 pages
- NETx MaRS Module: 250 measurement data points
- Group addresses: 9,800
- Data points: 10,000

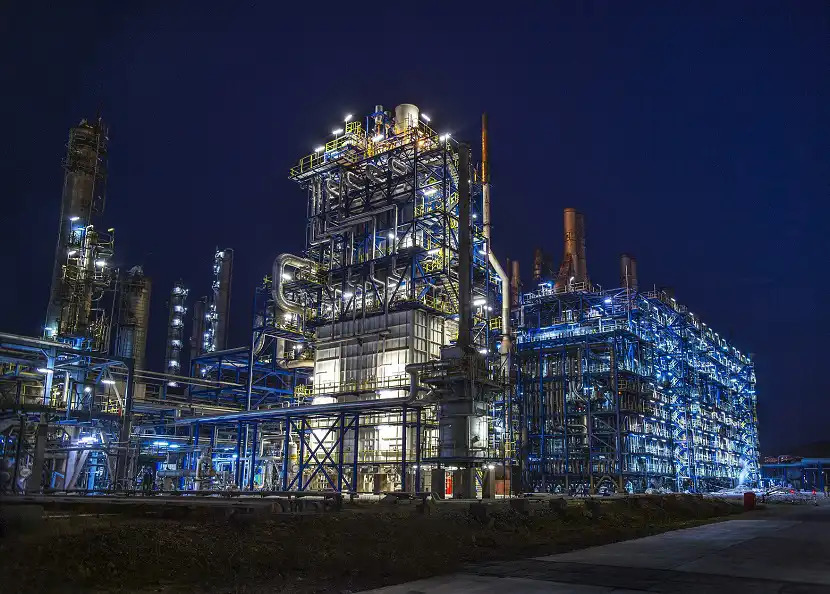

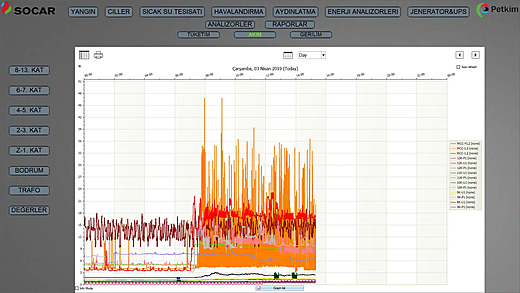

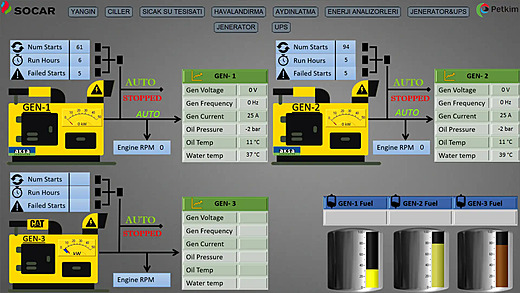

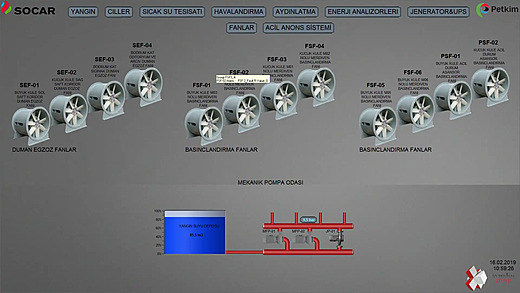

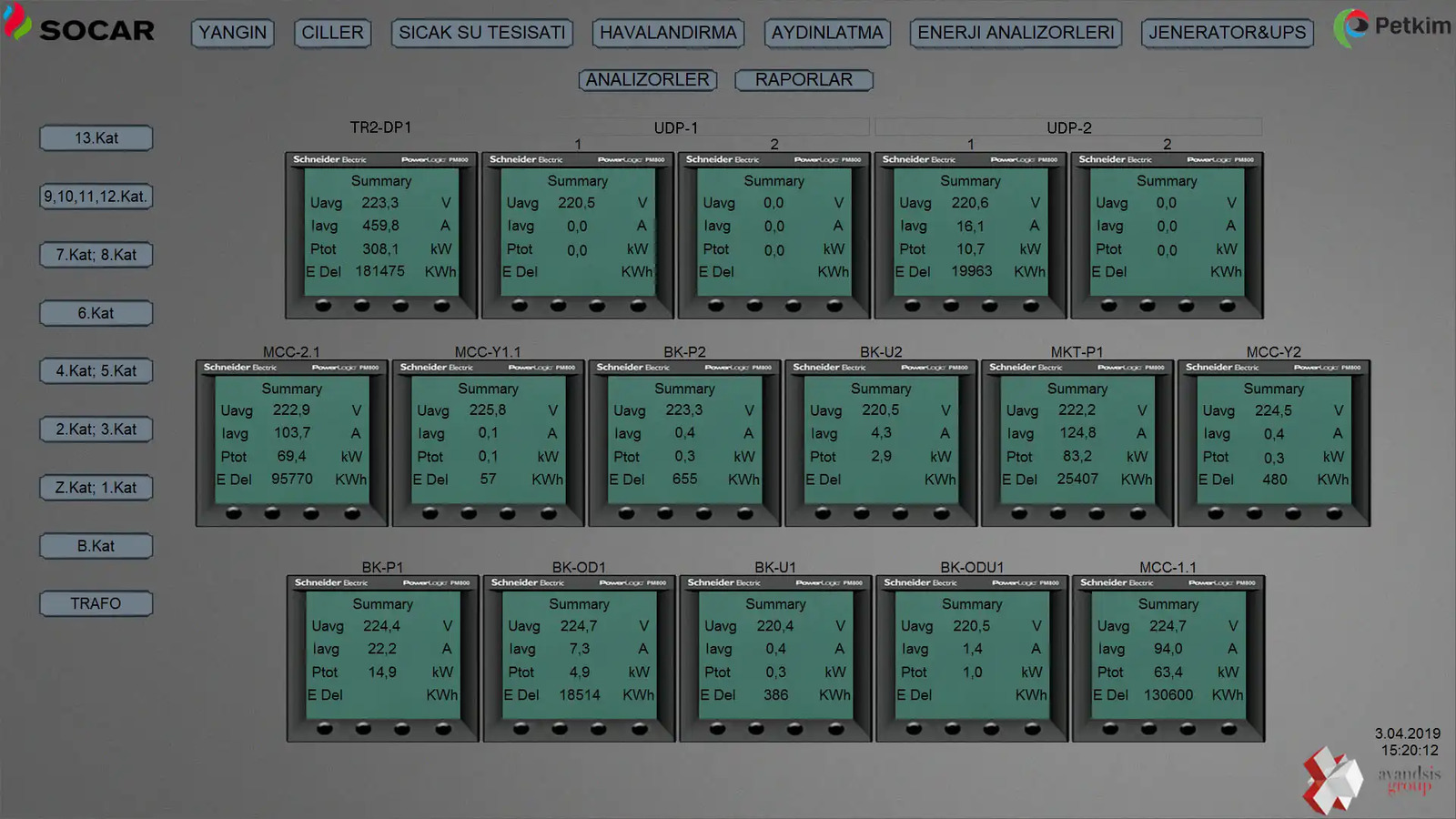

The office building is located in Aliağa, Izmir/Turkey and is named Socar Star Yönetim Binasi. For building automation, various devices and protocols are used.
System integrator: AVANDSIS GROUP
Pictures
Overview
Pictures
Overview
Novas Instalações Plural
Portugal
- NETx BMS Server - KNX, BACnet, Modbus, DALI, M-Bus
- Trades: Lighting, HVAC, shading, blackout conrol, alarm management, moisture measurement
- NETx BMS Clients: 5
- Visualization: 5,858 elements / 73 pages
- NETx MaRS Module: 69 measurement data points
- Devices: 556
- Data points: 4,995

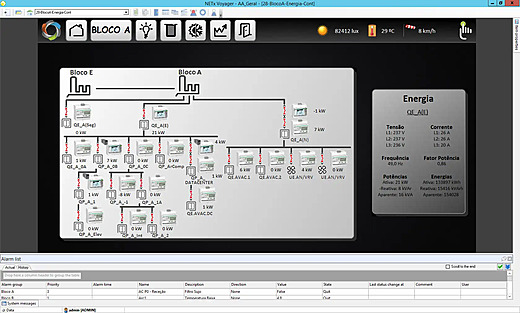

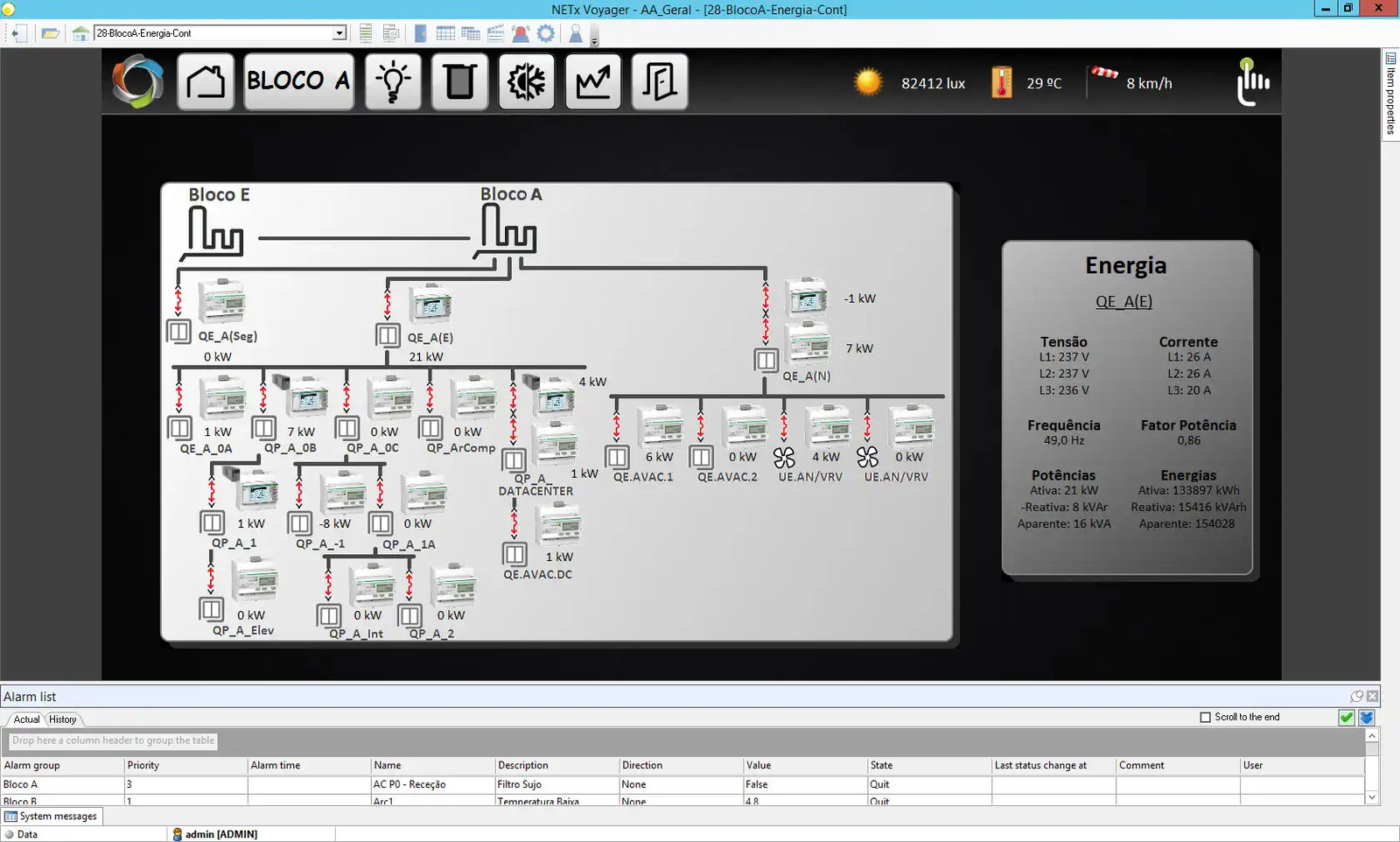

Plural is a cooperative company that carries out the activity in the storage and distribution of medicines. It interacts upstream with the Pharmaceutical Industry and downstream with Community Pharmacies as suppliers and customers. This building is the new head office of the company located in Coimbra, and rehabilitated the old Beer Factory keeping the old facade of the building. It is made up of offices, warehouses, auditorium and refectory. With the use of a building automation software, it is possible to do all the control and management of the building in lighting, blackouts, HVAC, alarms and energy consumption, being possible to calculate consumption by each service through 69 meters and 33 cost centers.
System integrator: Projedomus Lda.
Pictures
Overview
Pictures
Overview
Telemundi III
Brasil
- NETx BMS Server - KNX, BACnet, Modbus, DALI
- Trades: Lighting, HVAC
- Devices: 1,050
- Data points: 2,900

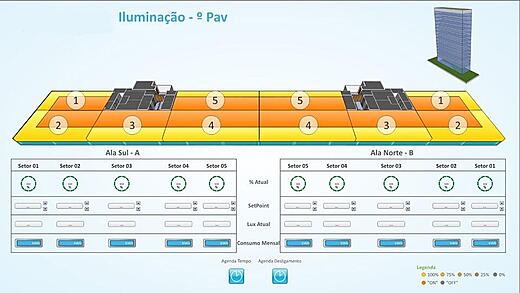

- Monitoring of the occupancy of DALI and conventional lighting fixtures
- Measure and record energy consumption from digital meters
- Integration of KNX, BACnet and Modbus
System integrator: Automatic Engenharia
Pictures
Overview
Pictures
Overview
S44
Sweden
- 2 NETx BMS Server - KNX, Modbus, DALI, EnOcean, DMX, Crestron
- Trades: Lighting, HVAC, shading, alarm management, metering, emergency lighting
- Devices: 3,563
- Group addresses 27,822
- Data points: 13,376

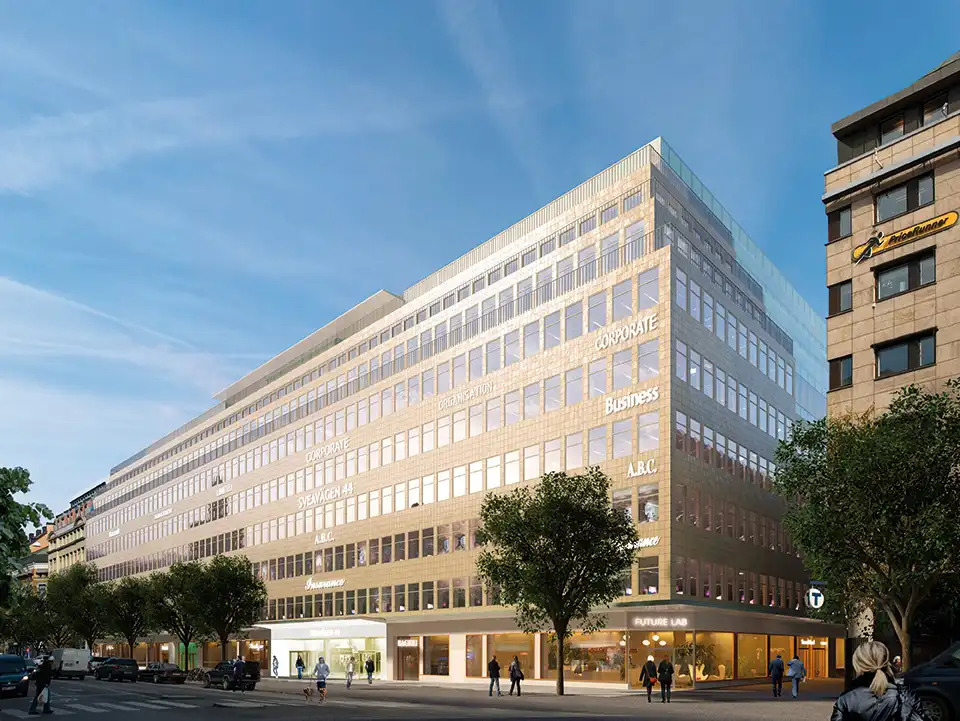

This office building offers a flexible concept that has become very attractive for tenants with demands in adjustable workplaces. The electrical installation is a corner stone in flexibility since it gives the property owner the possibility to divide the functions for lighting, shading and climate control without any physical installations needed. Due to that reason most of the push buttons are wireless to avoid cables in the walls and the temperature sensors are placed in the ceilings. There are two redundant NETx BMS Servers taking care that no information or link to the Citect SCADA is lost due to simple hardware or power problems. The BMS Server also takes care of many energy calculation tasks due to its powerful scripting possibilities.
System integrator: Elarkitektur
Pictures
Overview
Pictures
Overview
Sky Office
Croatia
- NETx BMS Server, NETx Voyager, NETx Shutter Control - KNX, BACnet, Modbus, DALI
- Trades: Lighting, HVAC, supervision of LV cubicles, shading
- Devices: 3,000
- Data points: 35,000

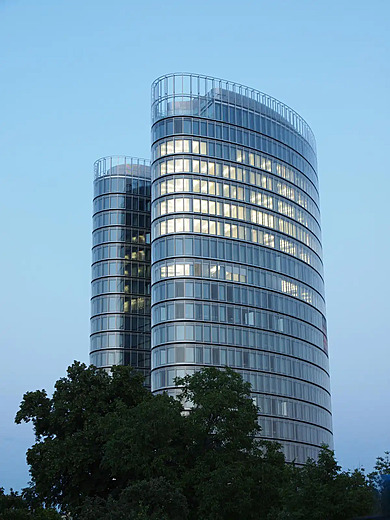

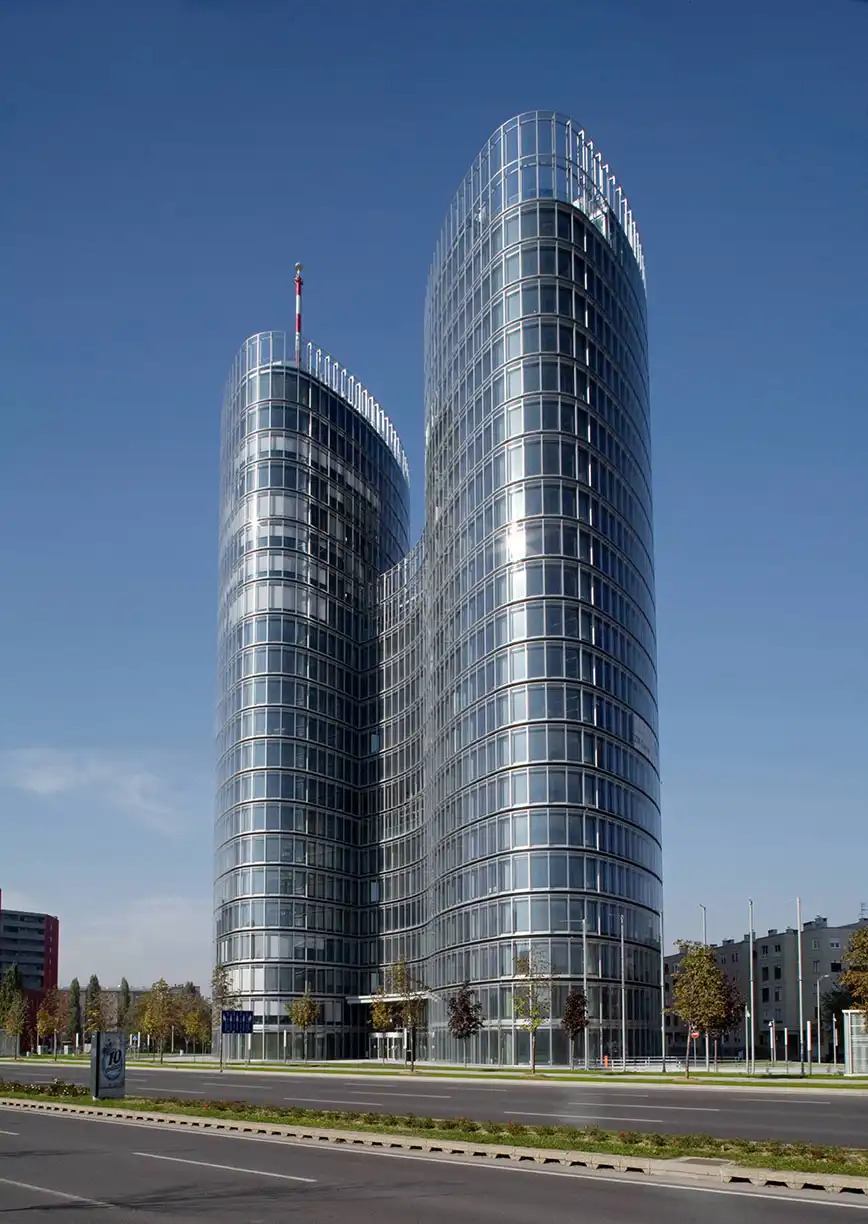

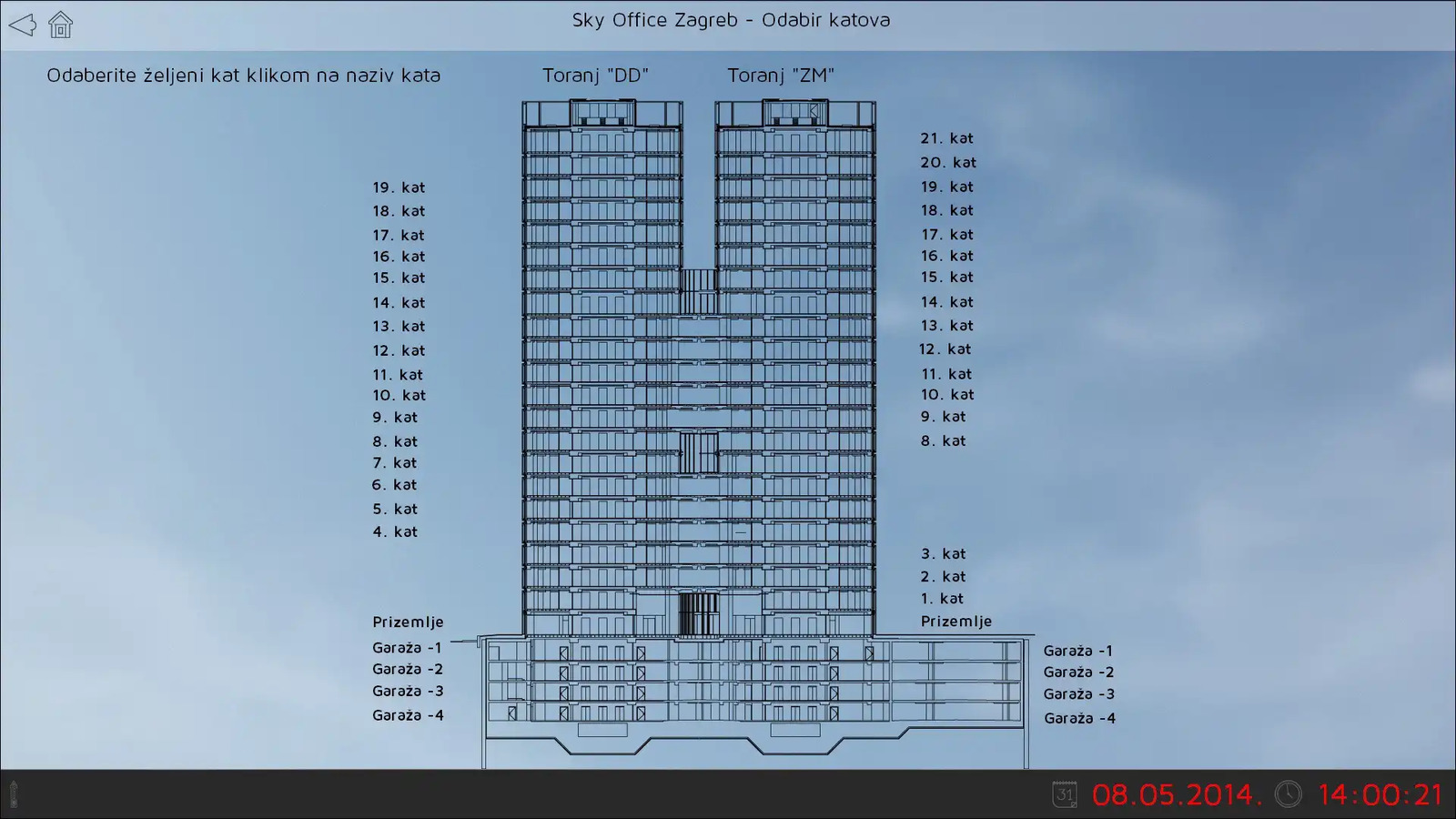

Sky Office is a business building in Zagreb, consisting of two towers with 22 floors and a four floor underground garage. With approximately 72,000 m² and a height of 81 m Sky Office is Croatia´s first object of this size on which a concept of surface heating and cooling, ventilation and humidity control is applied.
The system for lighting and shutter control is KNX. The integrator used NETx BMS Server for central management, NETx Voyager for visualisation as well as NETx Shutter Control. NETx Shutter Control is system based on meteorological data, the position of the sun, time, geographical location and information about the physics of the building and its environment. NETx Shutter Control uses all this data to control shutters and blinds. A 3D model of the building and its surroundings simulates the influence of the sun on each element for every day of the year to ensure perfect shading.
System integrator: MC2 Ltd.
Pictures
Overview
Pictures
Overview
GAMA Headquarters
Turkey
- NETx BMS Server, NETx Voyager - KNX, BACnet
- Trades: Lighting, HVAC, technical monitoring, energy management, access control
- Devices: 1,050
- Data points: 2,900
The building complex, designed as a "Green Building," has won the “LEED EB GOLD” and the 2014 KNX Award for Energy Efficiency. The NETx BMS Server handles OPC communication, HVAC control via BACnet/IP, fire detection, hazard and gas identification, and CCTV integration.
Significant energy and water savings were achieved through intelligent automation. Lighting is automated with scene and brightness controllers ensuring consistent levels, while motion detectors optimize usage in parking areas, toilets, and floors. Nighttime lighting scenes enhance security. Visualizations aid in resolving technical issues and forwarding data to mobile devices. Energy, water, and gas consumption data are collected and analyzed to optimize usage further. The system also integrates CCTV, access, and gate control for automated operation.
System integrator: Emes Elektromechanical Ind & Trd. Co Ltd
