Secure KNX Integration and Centralized System Connectivity without Complex Configurations

With the NETx BMS App Secure, the NETx BMS App, and the NETx Tunneller, KNX projects can be securely imported, systems centrally connected, and stable communication ensured - all without complex configurations.

Tools

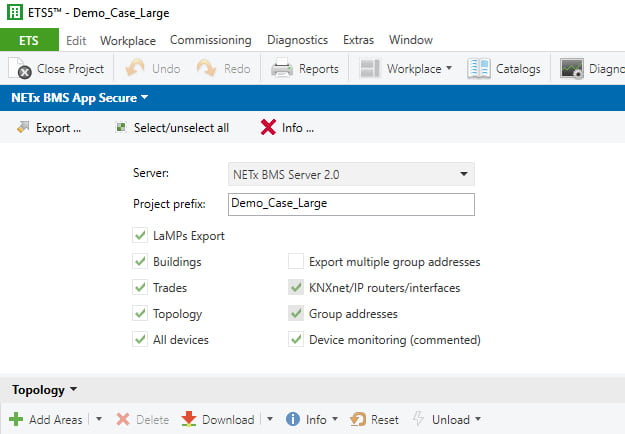

​NETx BMS App Secure

The NETx BMS App Secure enables easy import of KNX projects from ETS into the NETx Core Server, including all meta information. It automates KNX group address assignment and generates a comprehensive export file that contains KNX group addresses, security information for KNXnet/IP, network topology, and KNX/DALI gateway configurations for NETx LaMPS. This simplifies secure project integration with enhanced visibility and management.

NETx BMS App Secure

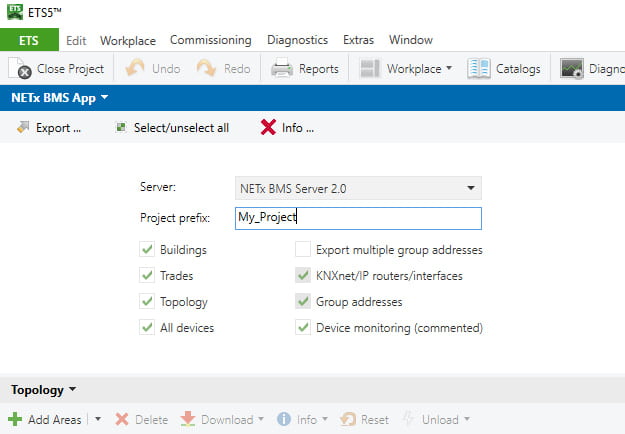

​NETx BMS App

This previous version is compatible with the NETx KNX OPC Server and available for ETS4 but lacked support for exporting Secure KNX/IP routers and KNX/DALI gateways. While suitable for the NETx BMS Server, using the newer NETx BMS App Secure is recommended for enhanced functionality and security features.

NETx BMS App

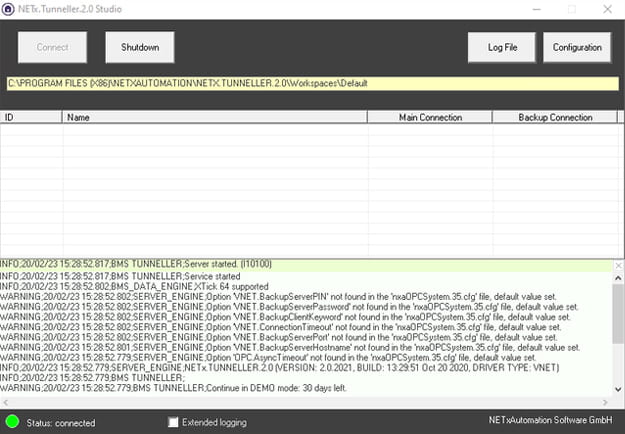

​NETx Tunneller

The NETx Tunneller offers a streamlined connection between third-party OPC clients and NETx servers, such as the NETx BMS Server, by installing directly on the OPC client’s PC. It establishes a visual connection to the OPC client and communicates with NETx servers via the VNET protocol, avoiding complex firewall and DCOM configurations. Supporting remote VNET connections over TCP/IP, it’s also available for main/backup setups, making it ideal for secure and reliable integrations.

Download

Technical Details

NETx BMS App Secure
NETx BMS App
NETx Tunneller
NETx BMS App Secure
Easy import of KNX projects from the ETS with the NETx BMS app
  • The entire KNX project with all meta information can be imported into the NETx Core Server
  • Automatic assignment of the KNX group addresses

The extended export file contains:
  • KNX group addresses
  • KNXnet/IP router and interfaces
  • Security information for Secure KNXnet/IP router and interfaces
  • ETS project structure including network topology (areas, lines, devices and communication objects)
  • Building and trade view
  • Export of all KNX data point types (KNX DPTs)
  • Export of the configuration of KNX/DALI gateways for NETx LaMPS module
NETx BMS App
Previous version of the NETx BMS App Secure
  • For NETx KNX OPC Server
  • Also available for ETS4
  • No support for export of Secure KNX / IP routers and KNX / DALI gateways
  • Also suitable for NETx BMS Server, but we recommend using the NETx BMS App Secure
NETx Tunneller
Convenient connection between third-party OPC clients and the NETx servers
  • Simplifies the connection of OPC clients from third-party manufacturers (e.g. external visualization) with the NETx server products (NETx BMS Server, NETx KNX OPC Server)
  • Installation on the PC of the third-party OPC client
  • Ocular connection between OPC client and NETx Tunneller, this communicates with the NETx server via its own VNET protocol
  • There is no need for complex Windows firewall or Windows DCOM configuration
  • Remote VNET connection via TCP/IP
  • Also available for main/backup solutions
