Various Building Projects Implemented with NETx Software Solutions
Various Building Projects Implemented with NETx Software Solutions

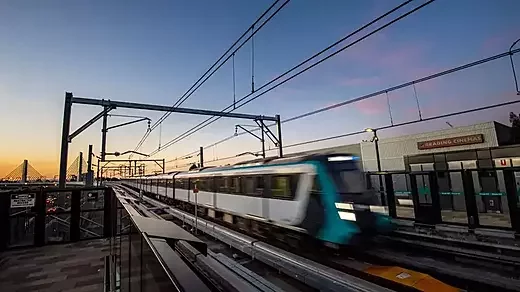

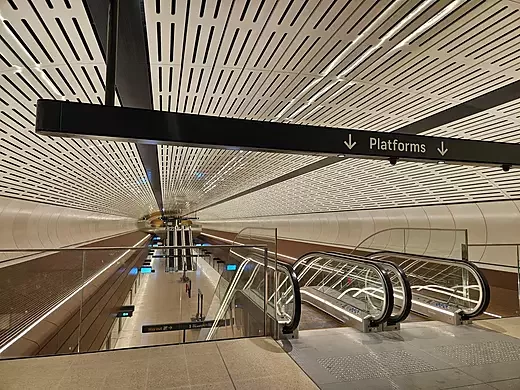

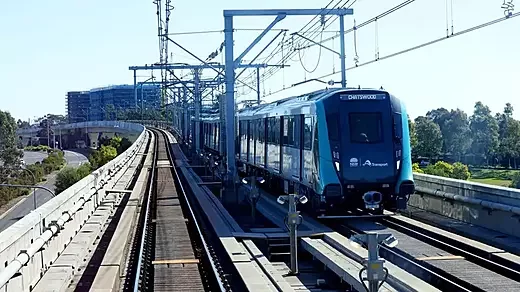

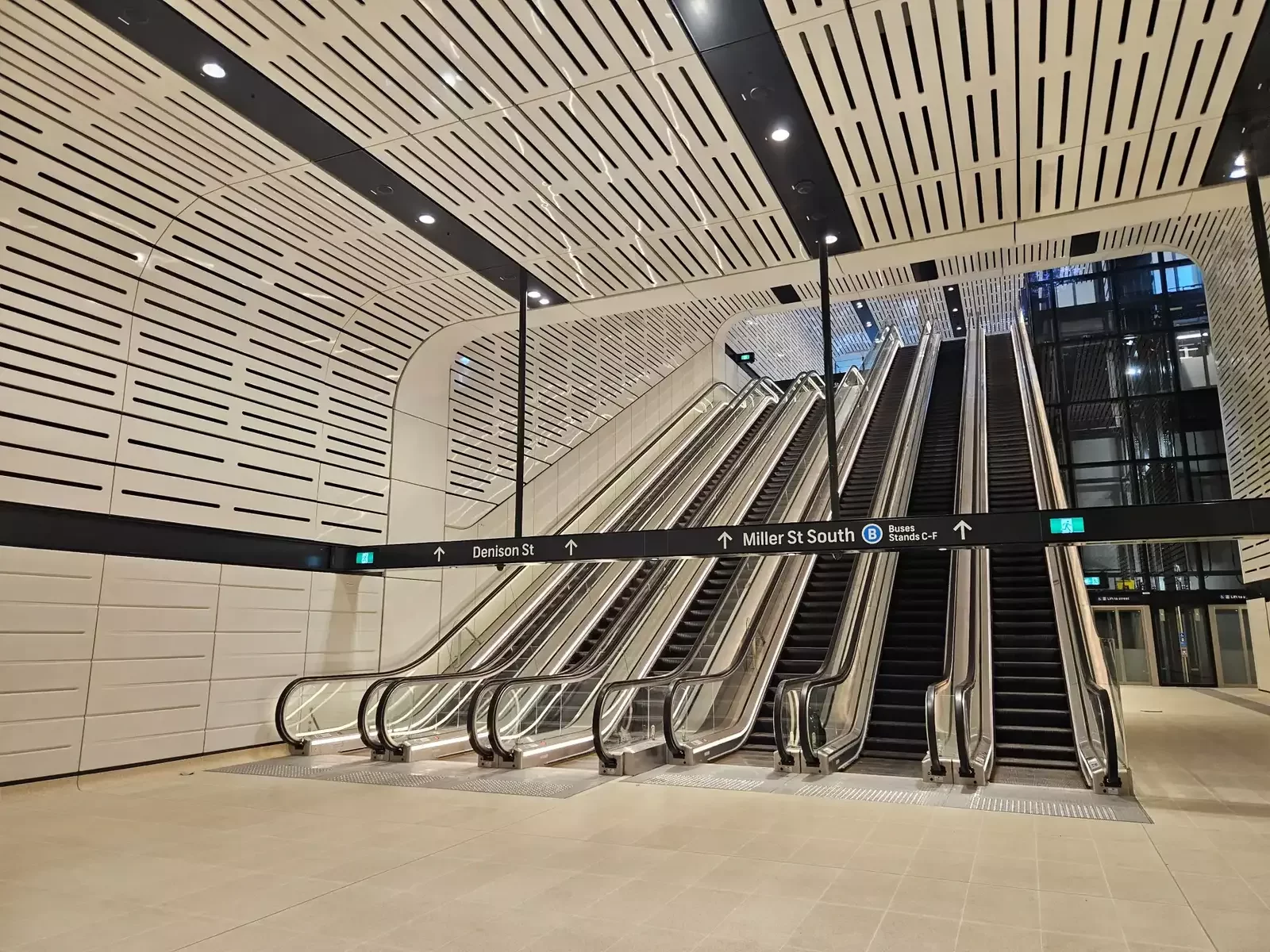

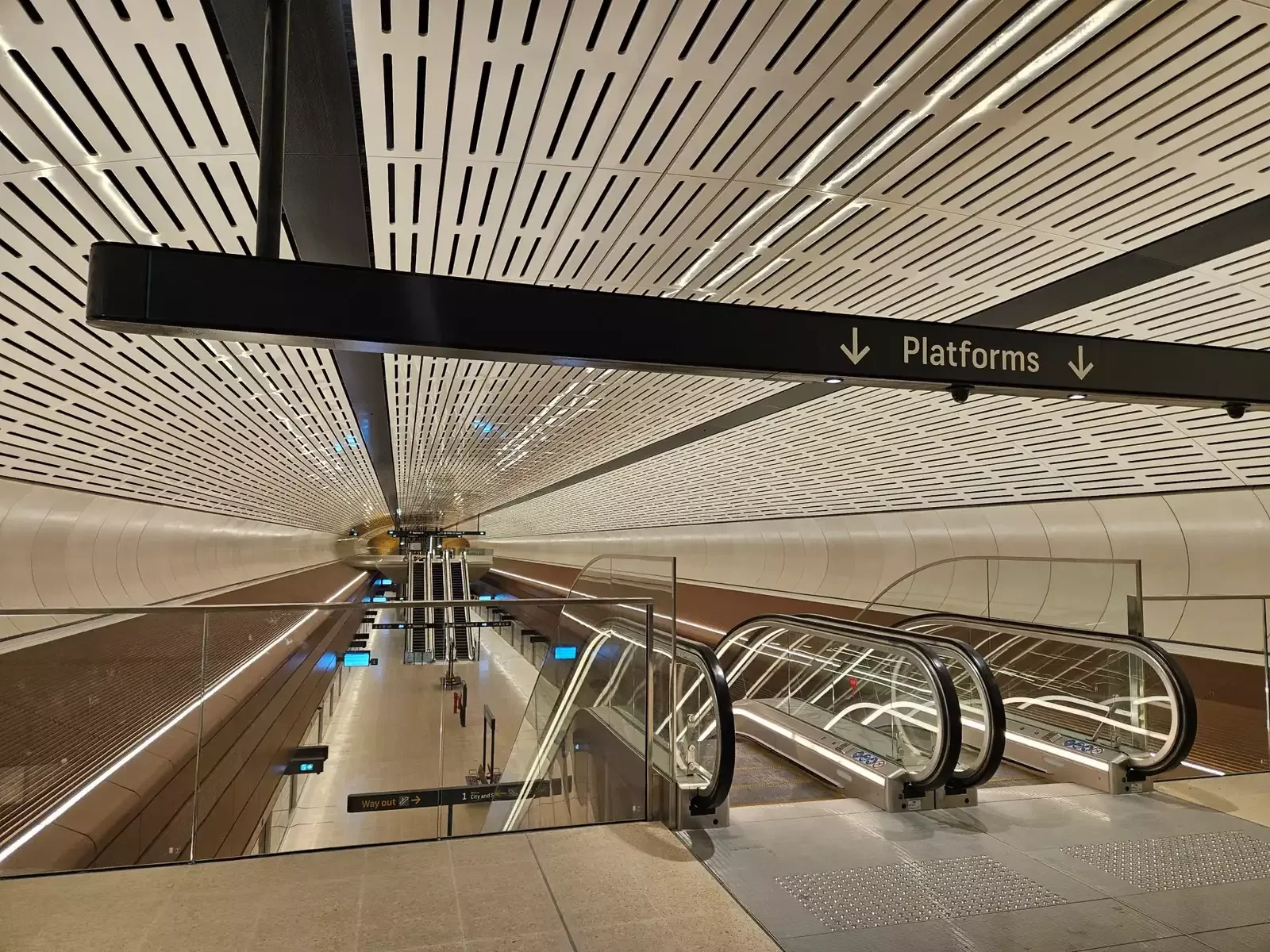

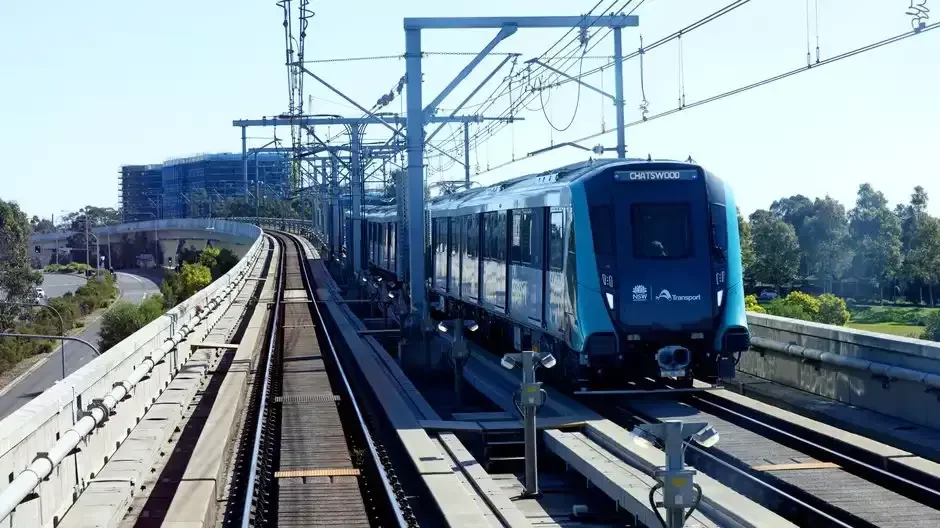

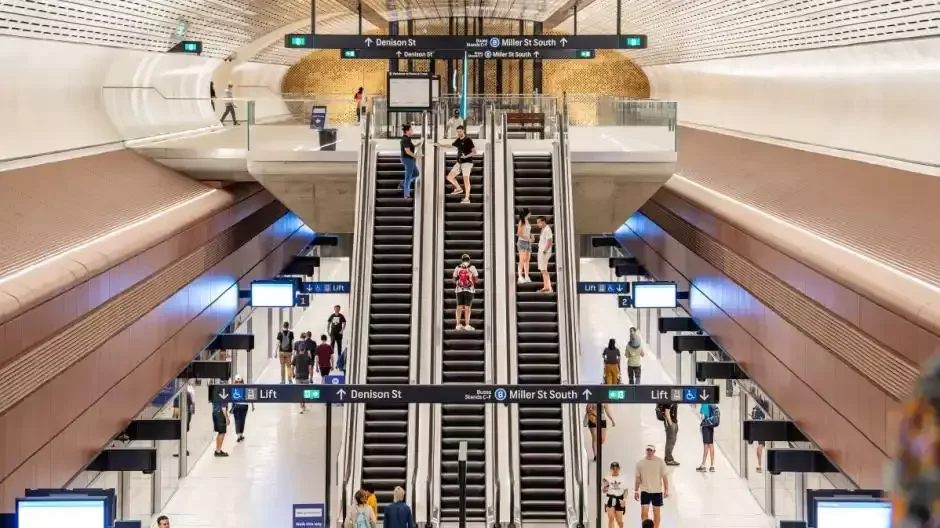

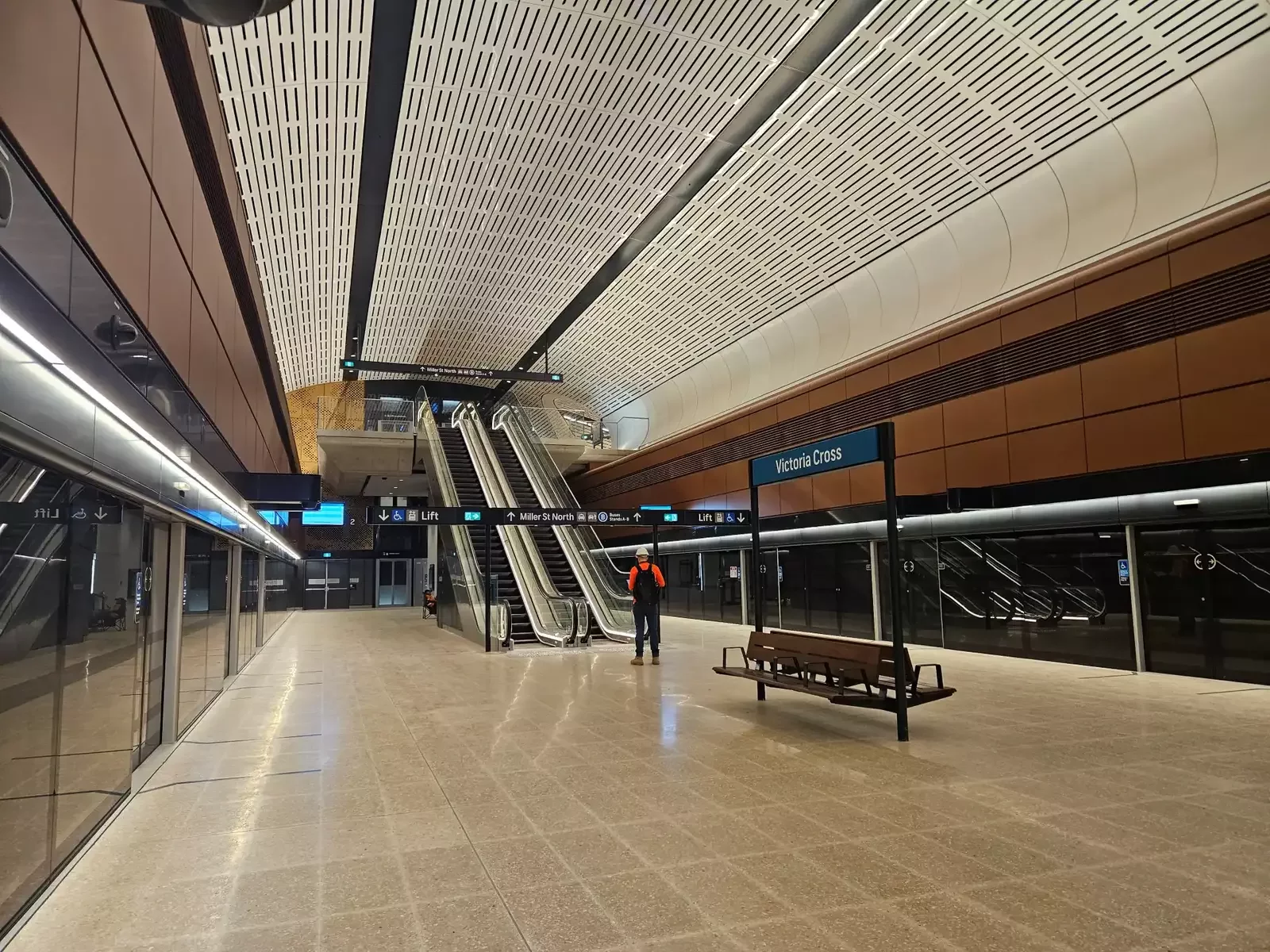

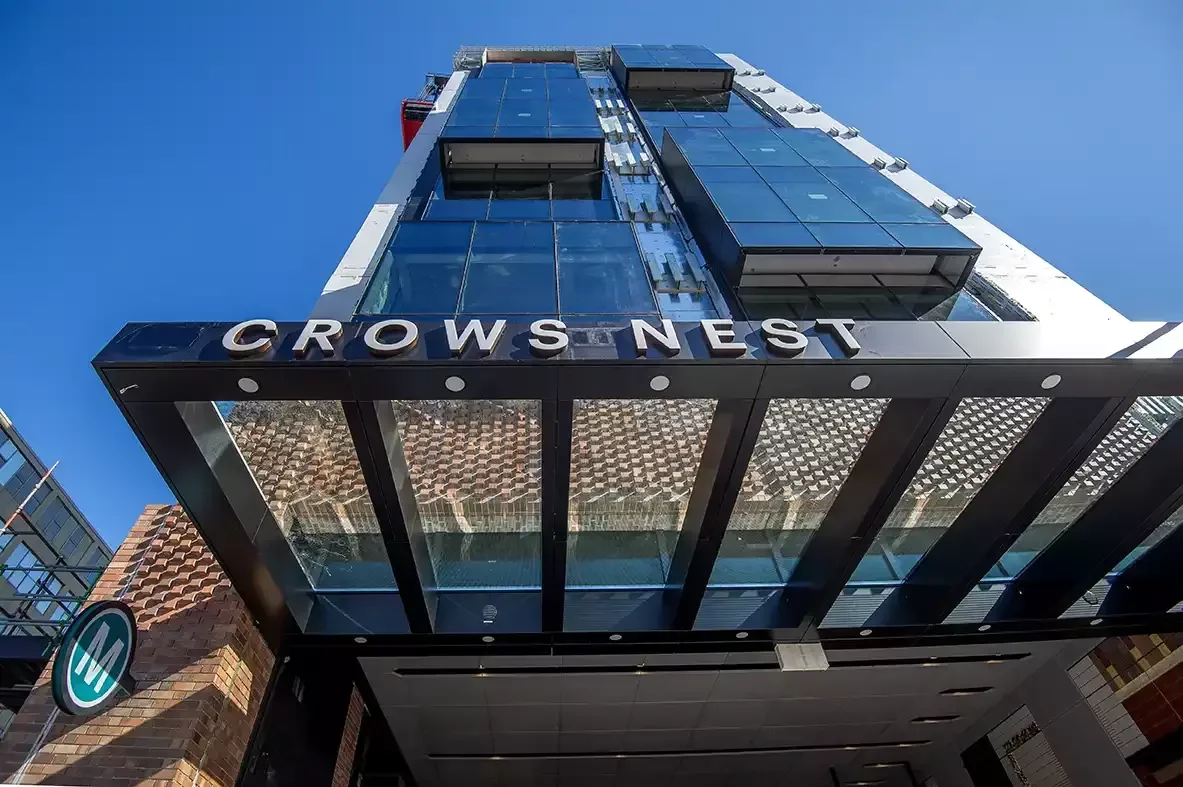

Sydney Metro Stations
Australia
- NETx BMS Platform - KNX, BACnet, DALI
- BMS clients: 2
- Trades: Lighting/DALI, HVAC, Emergency Central Battery
- Devices: 1000+ | NETx, ABB DALI and Relays, ABB Sensors, ABB inputs, Custom Central Battery Emergency reporting, Siemens sensors
- Data points: 5,000

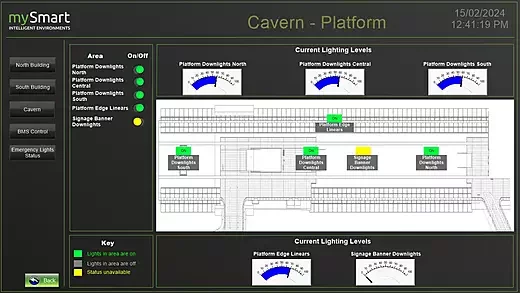

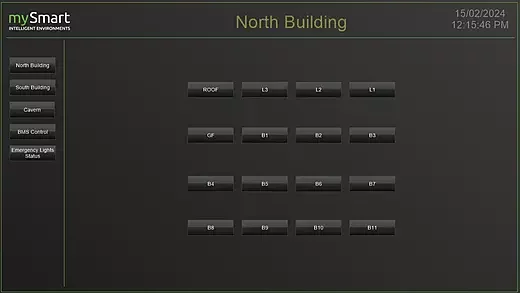

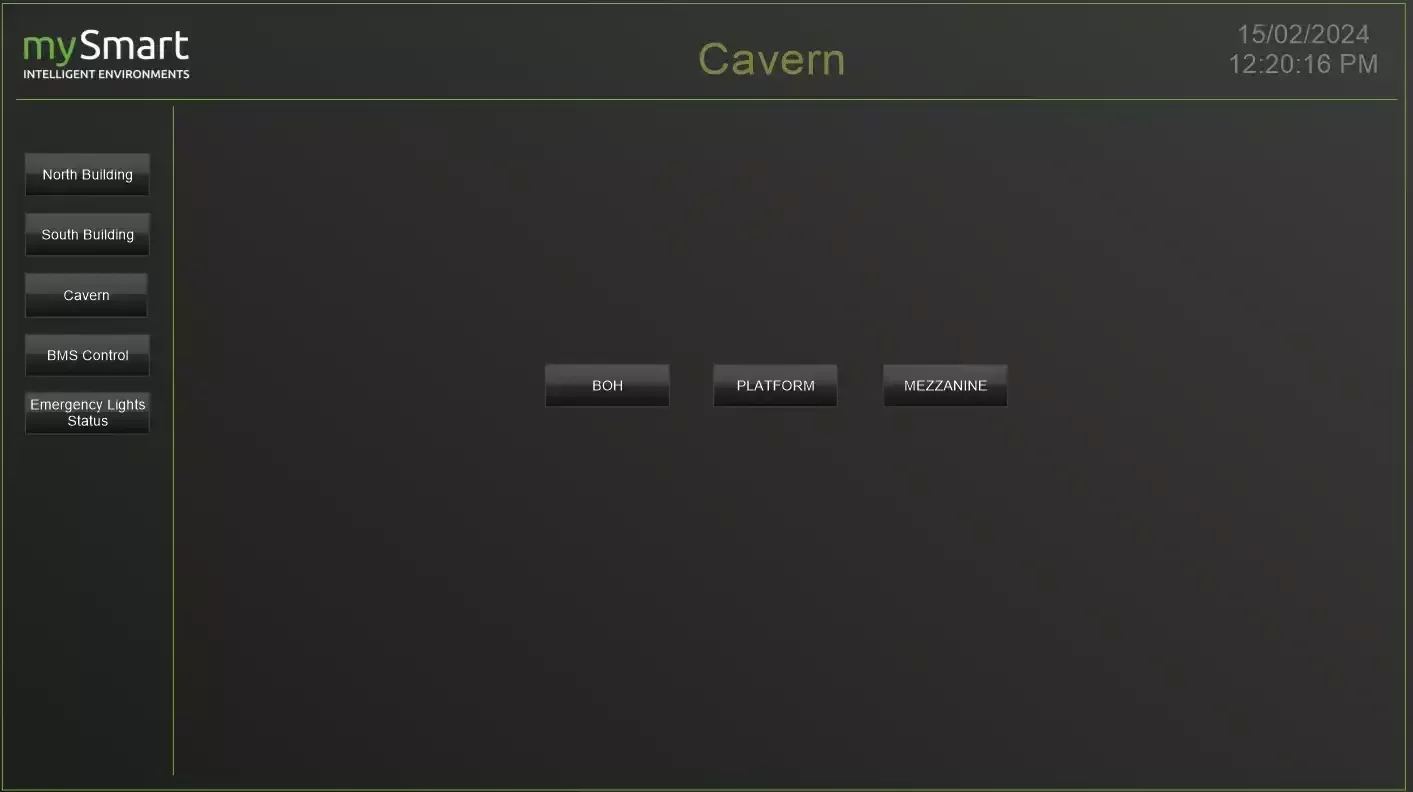

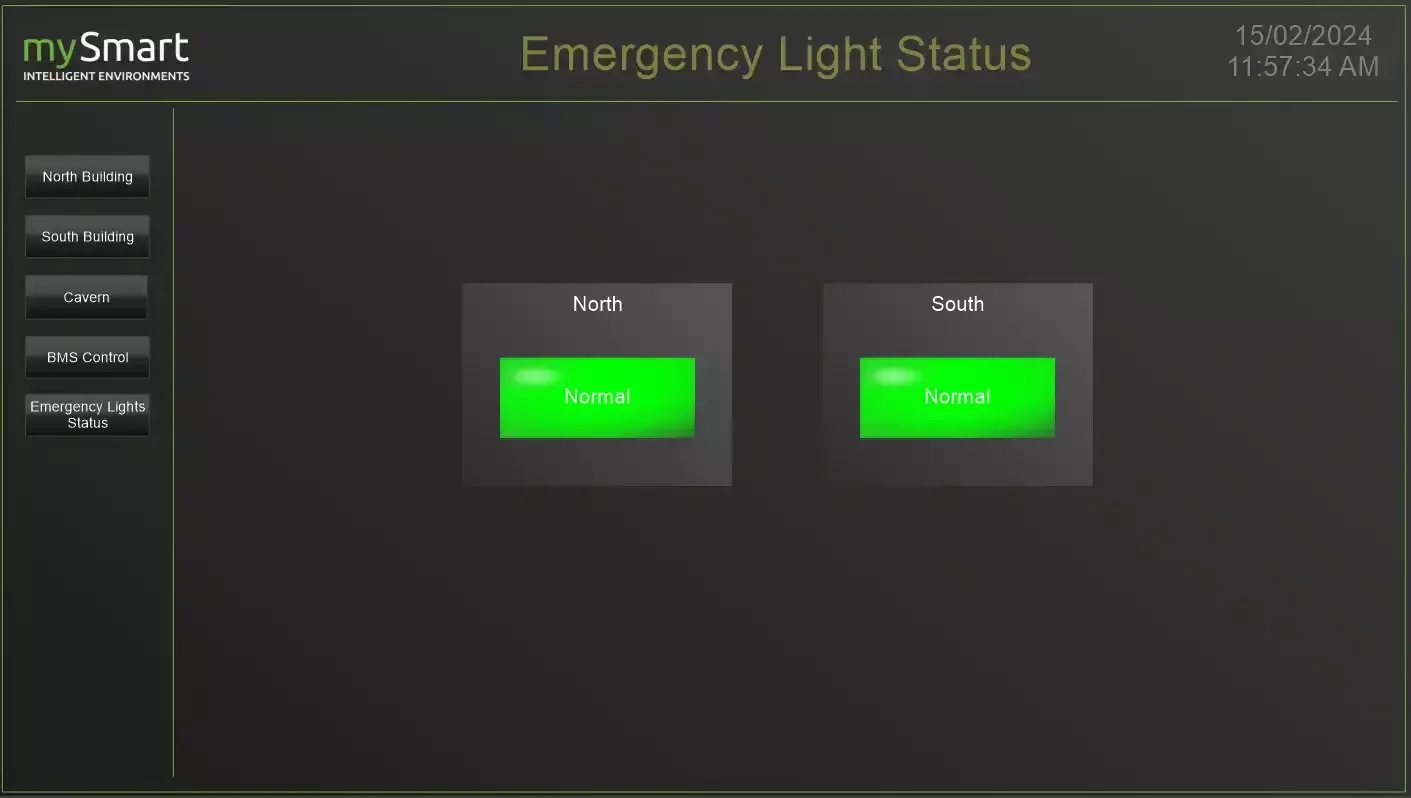

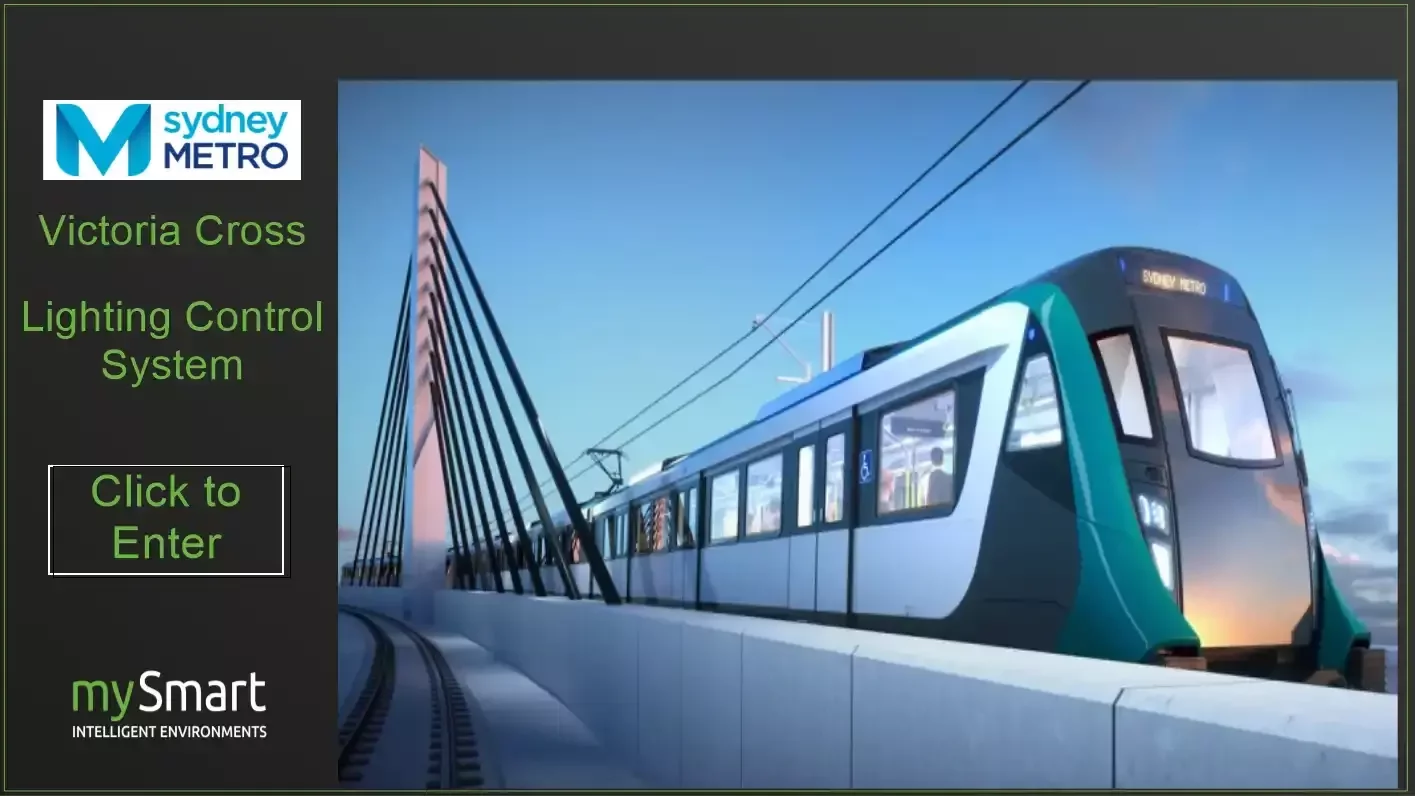

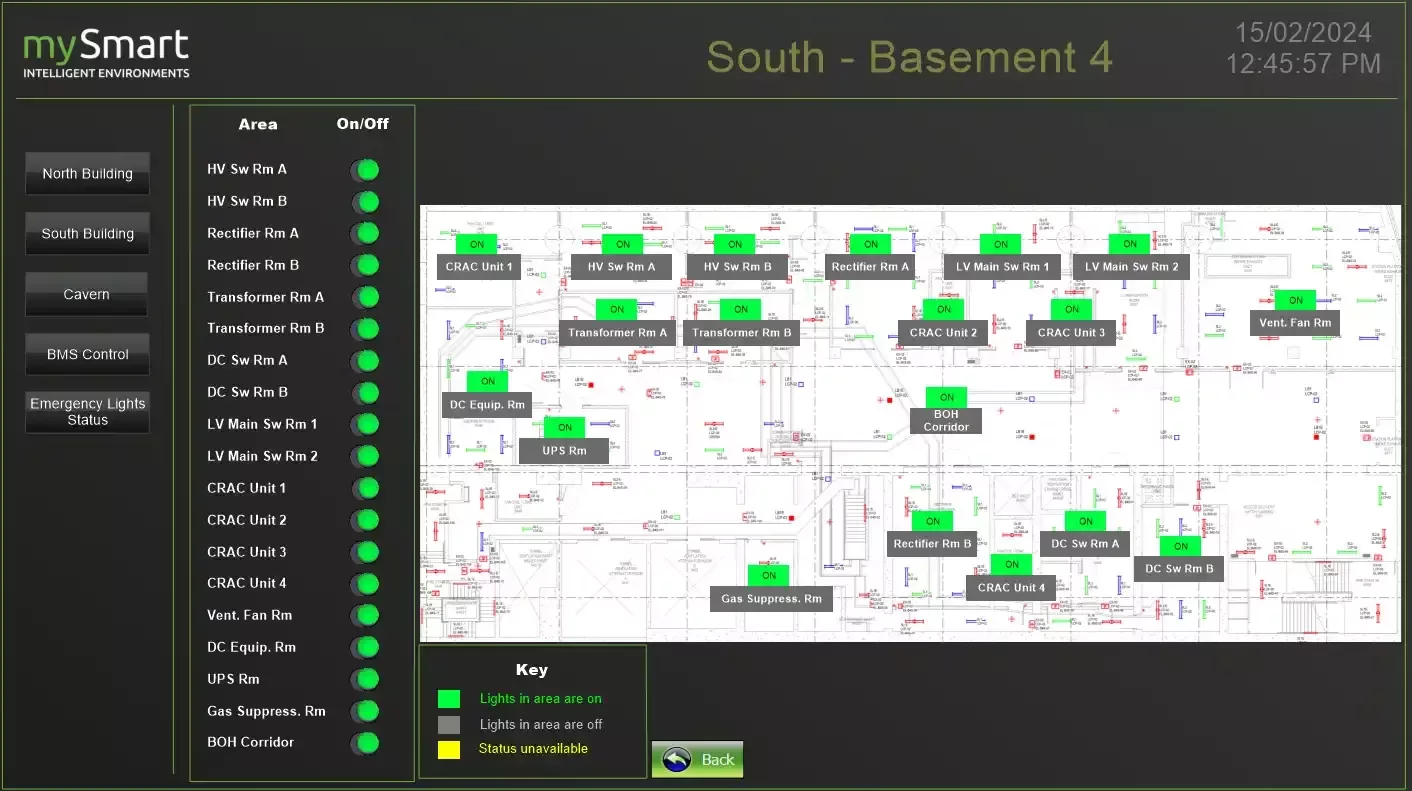

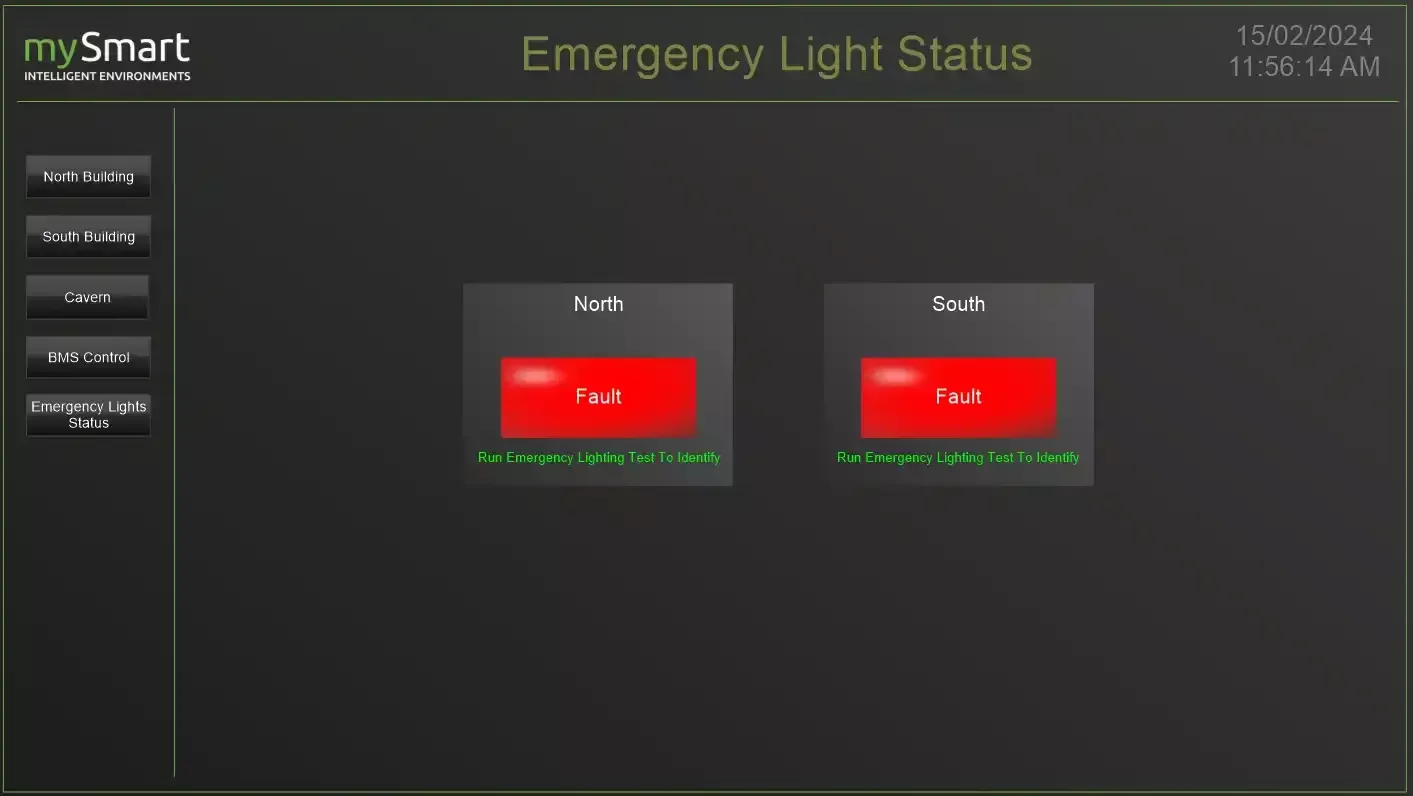

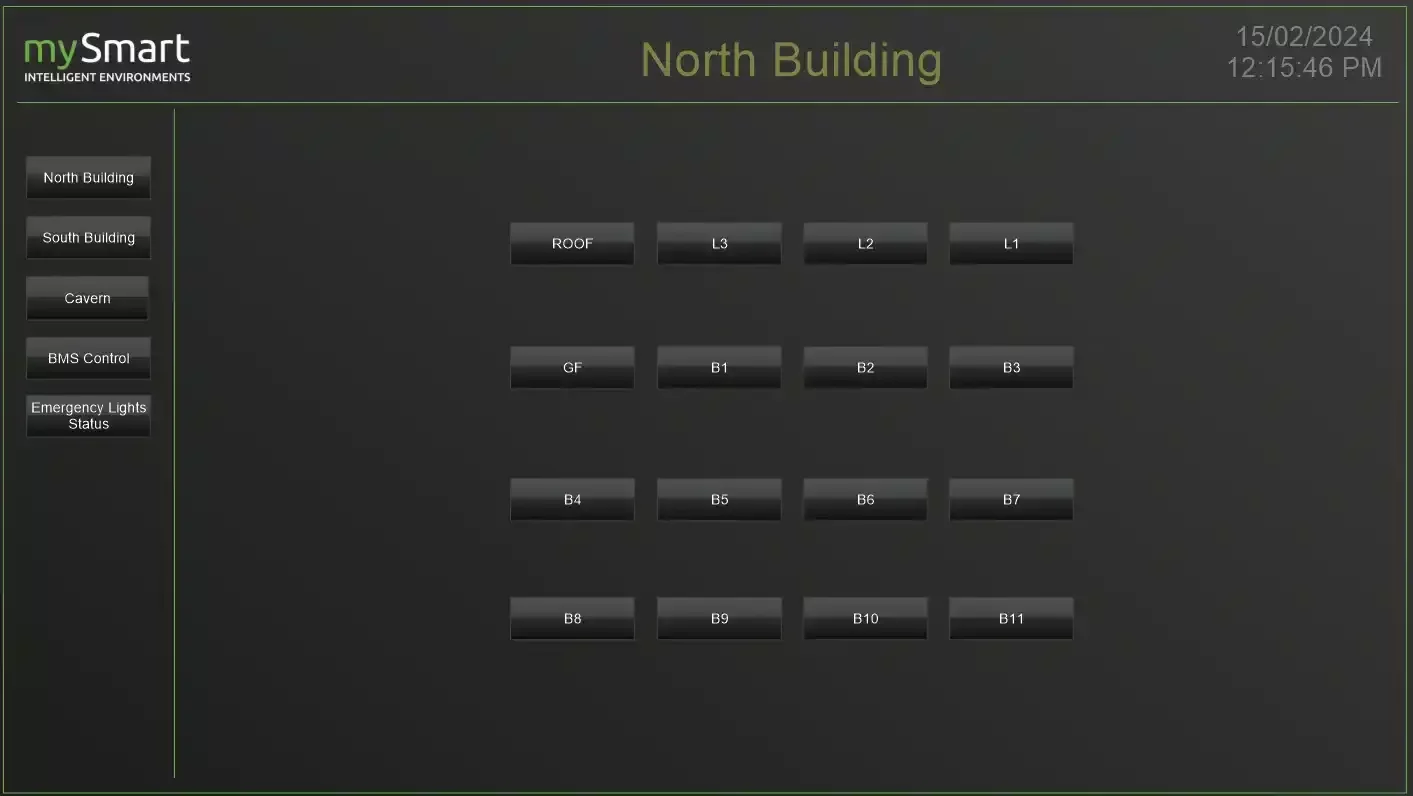

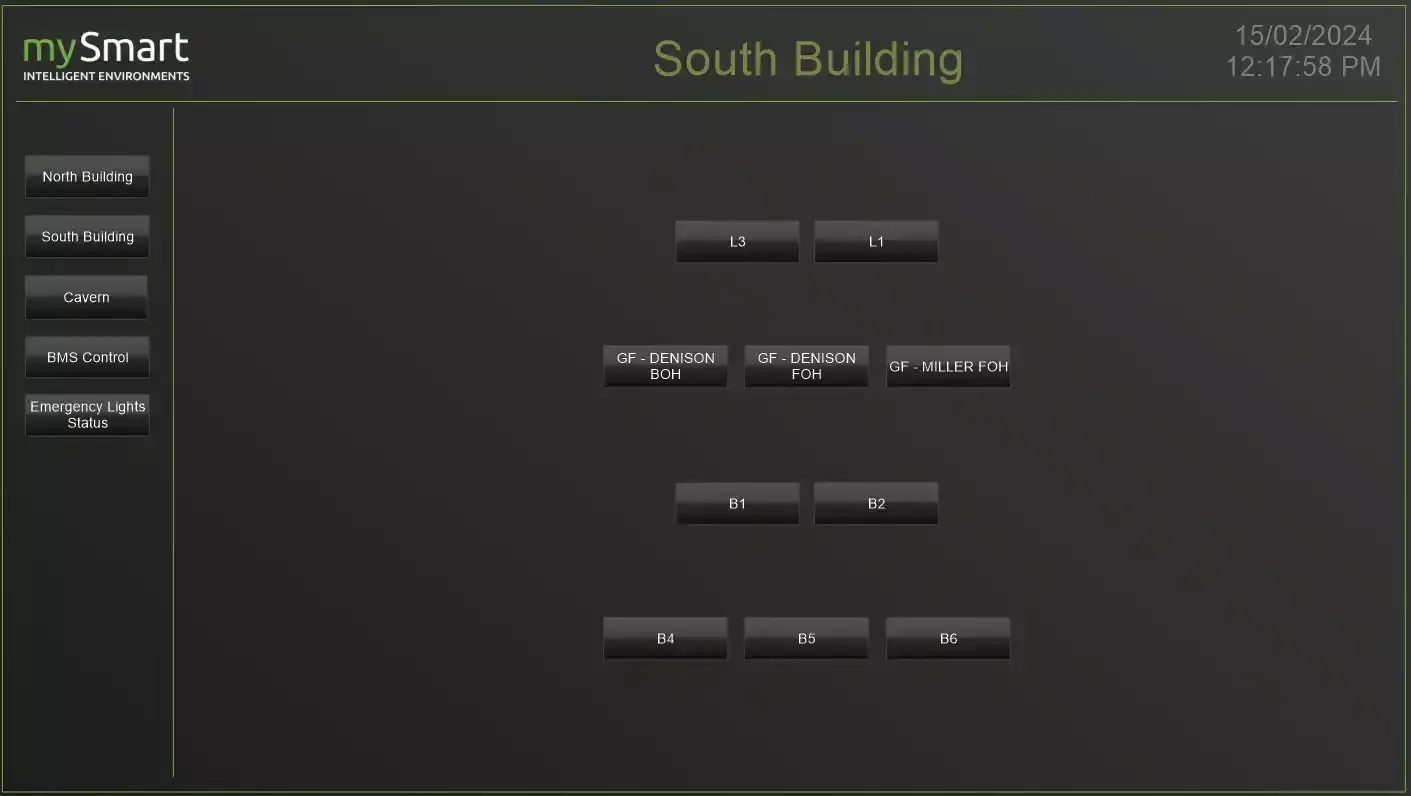

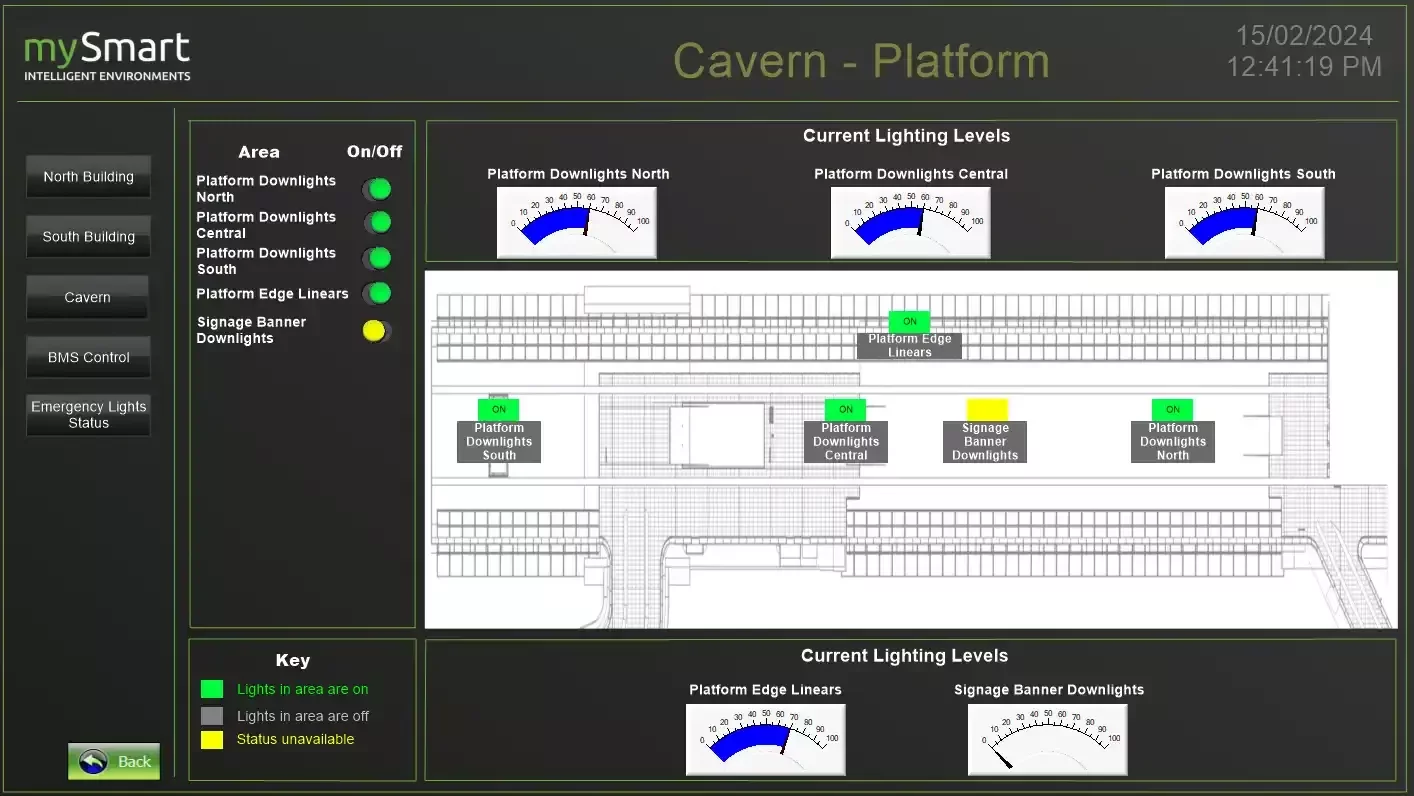

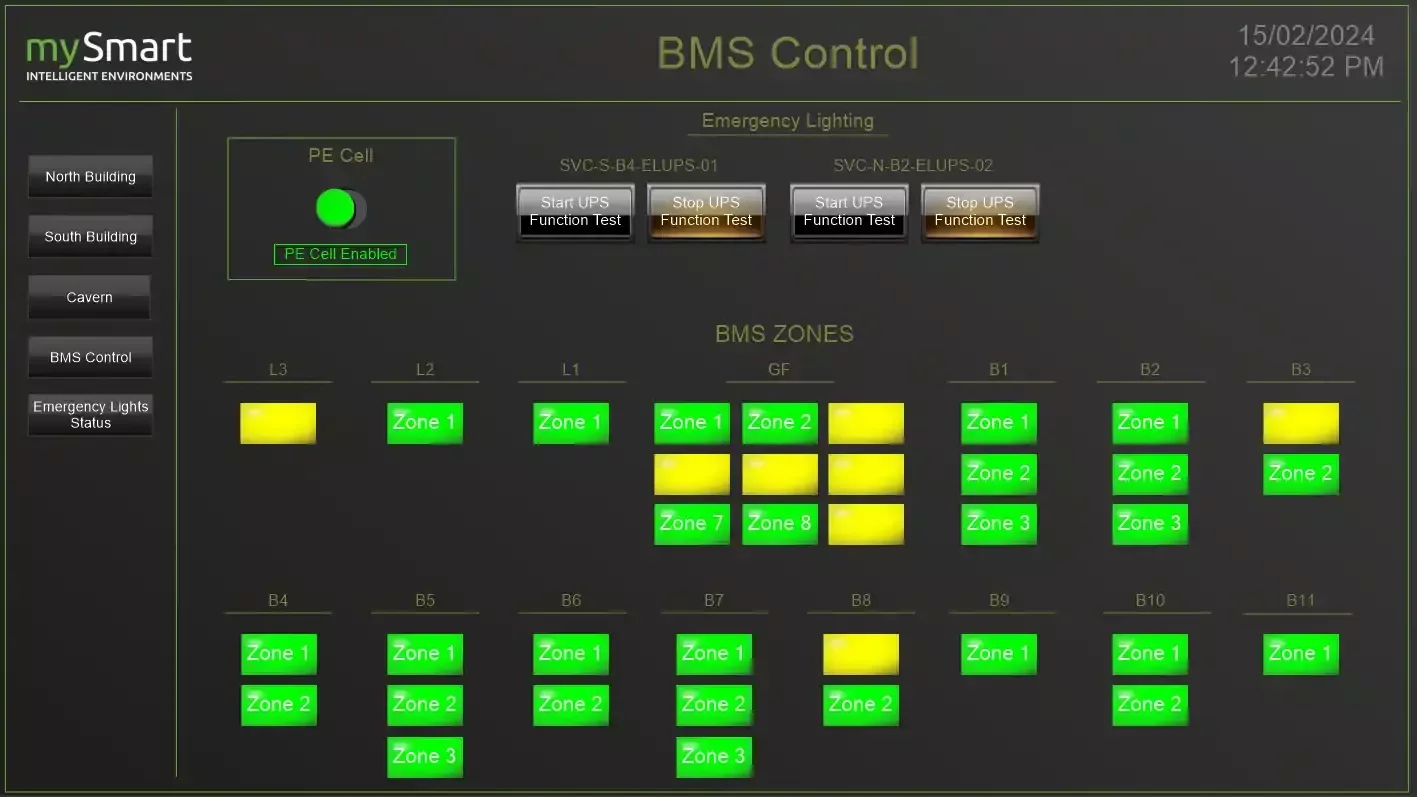

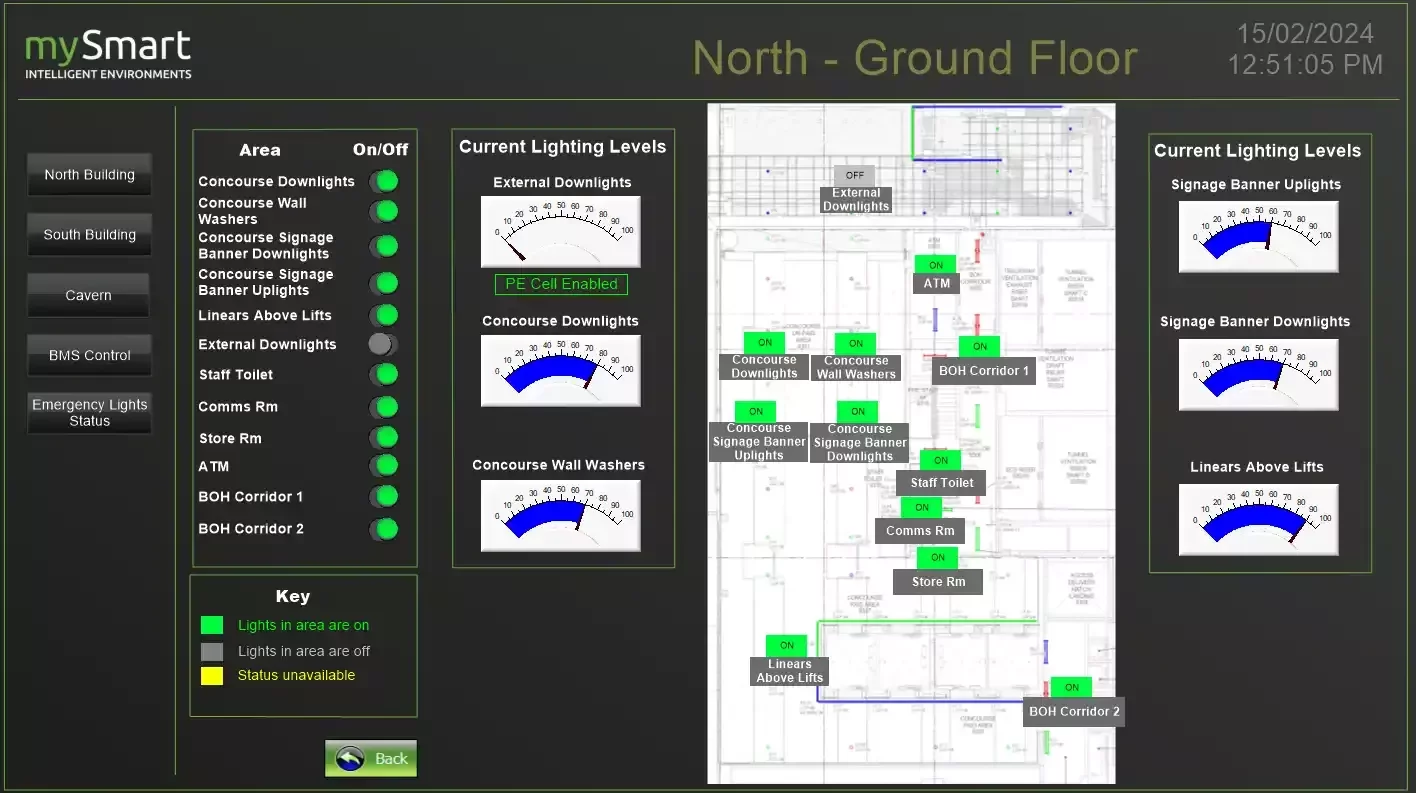

mySmart was engaged to implement a KNX-based automation system for key Sydney Metro stations. The project required reliable lighting and UPS-powered emergency lighting, meeting strict safety standards. Since standard solutions didn’t support direct UPS integration, mySmart and NETx developed a custom KNX solution using NETx software. This enabled battery-free emergency lighting, centralised control, and scalable deployment across all stations. The result is a smart, compliant, and future-ready system for Sydney Metro.
Zhongshan Road
China
- NETx BMS Server - KNX
- BMS clients: 2
- Trades: Lighting
- Devices: IPR/S 3.1.1; Switch Actuator
- Group addresses: 5,000
- Data points: 5,000

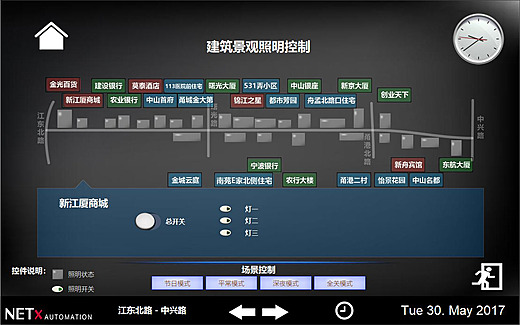

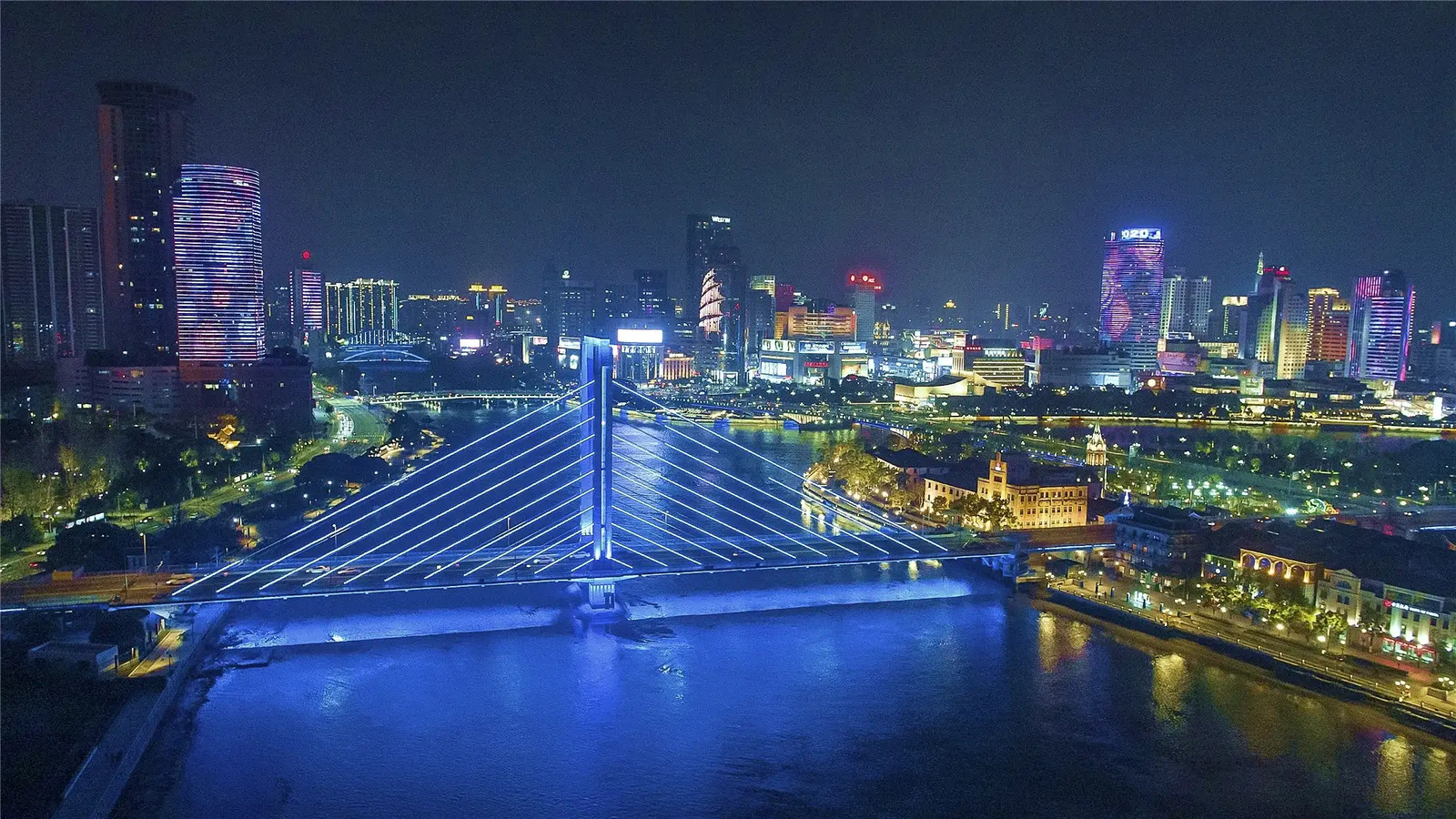

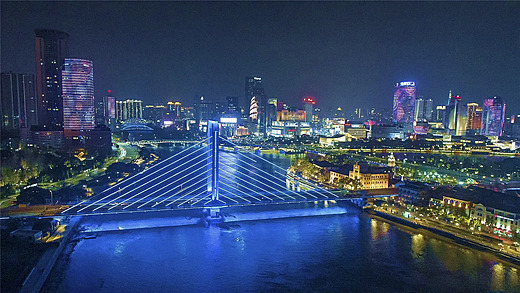

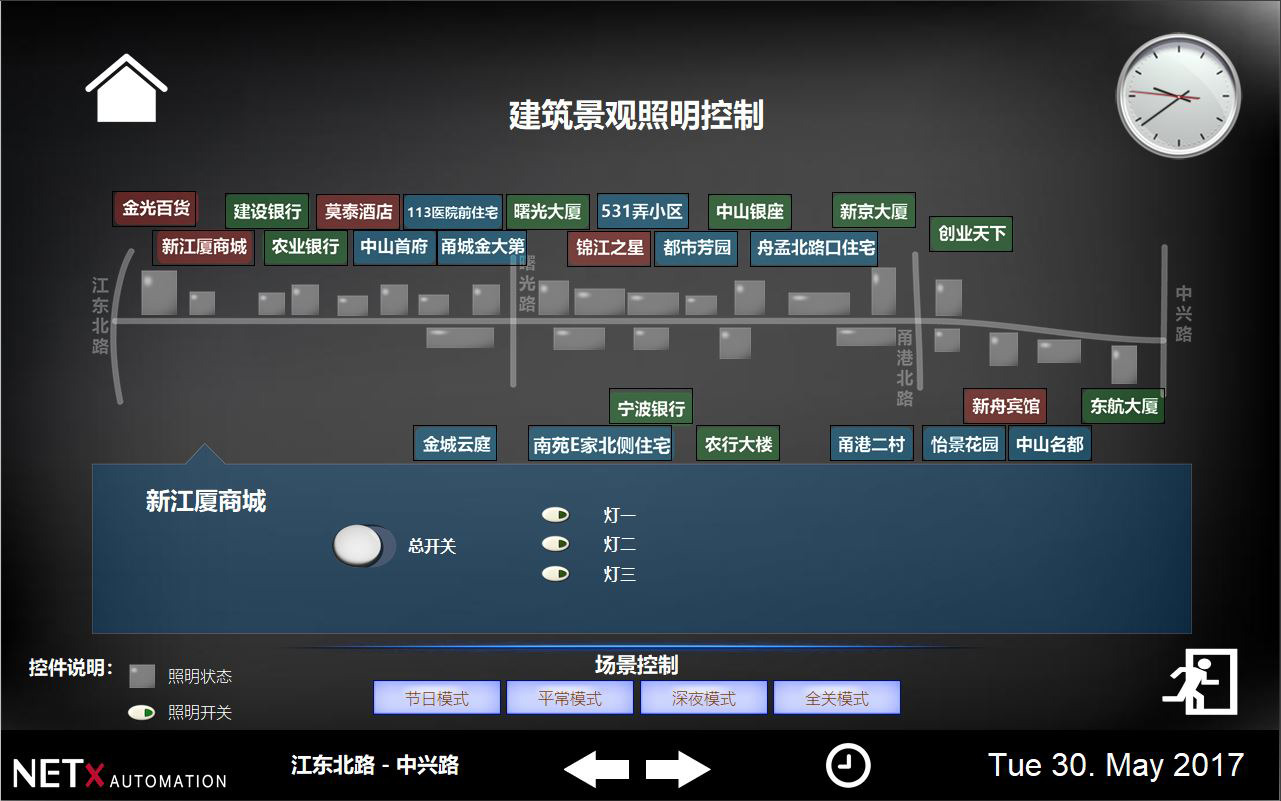

Zhongshan Road is the main urban road in Ningbo, extending from the east of the city to the west. This project is used to control the nighttime landscape lighting of buildings on both sides of Zhongshan Road. There are about 200 buildings, and each building uses an IP gateway. Considering the powerful BMS Server Gateway access capability, so it is very suitable for use in this project.
St. Margarets Complex
Australia
- NETx BMS Server, NETxVoyager - KNX, BACnet, DALI, DMX
- BMS clients: 5
- Visualization: 25 pages
- Trades: Lighting, HVAC, hydraulic services monitoring, fire services monitoring and CO monitoring
- Data points: 1,700

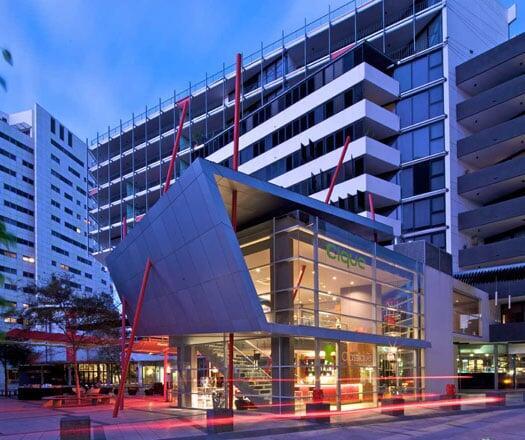

St. Margarets Complex in Surry Hills, Sydney consists of 4 buildings with mixed use like residential apartments, commercial, retail and carpark
Garden Factory (Hero Moto Corp)
India
- NETx BMS Server, NETxVoyager - KNX, OPC, DALI
- Trades: Lighting, HVAC

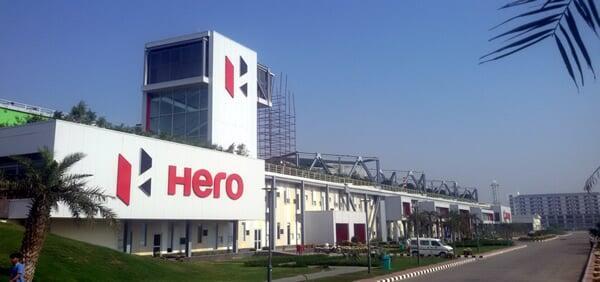

The Garden Factory is a manufacturing plant and parts center for the two-wheeler manufacturer Hero Moto Corp. Their effort to bring together innovation and nature was rewarded with beeing Indias first Platinum-rated manufactoring plant. The task of Entelechy Systems was to provide an energy-saving lighting system that is connected to HVAC, SCADA and BMS systems.
Port of Antwerp
Belgium
- NETx BMS Server - KNX, Modbus
- BMS clients: 10
- Trades: Lighting, fire detection, intrusion detection
- Data points: 25,000

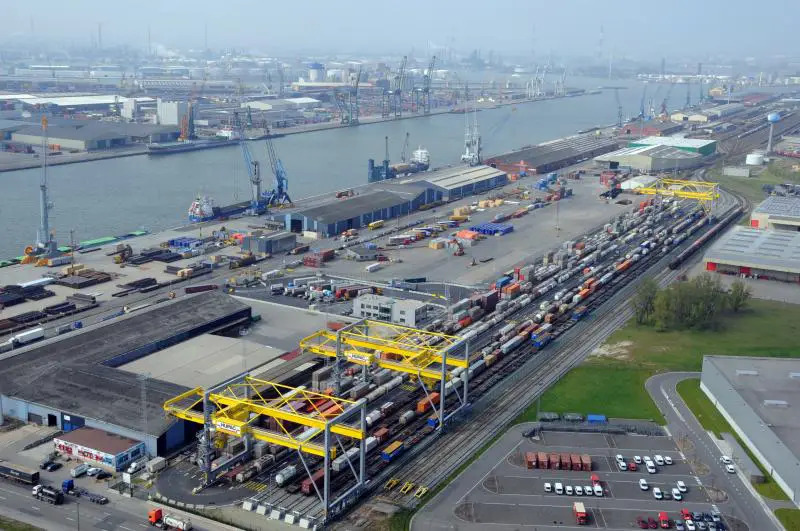

The Port of Antwerp, Europe’s second-largest seaport after Rotterdam, is accessible to capesize ships. Beacons in the harbor send SMS updates that require translation into measurements such as battery voltage, lighting schedules, solar energy data, temperature, and error notifications.

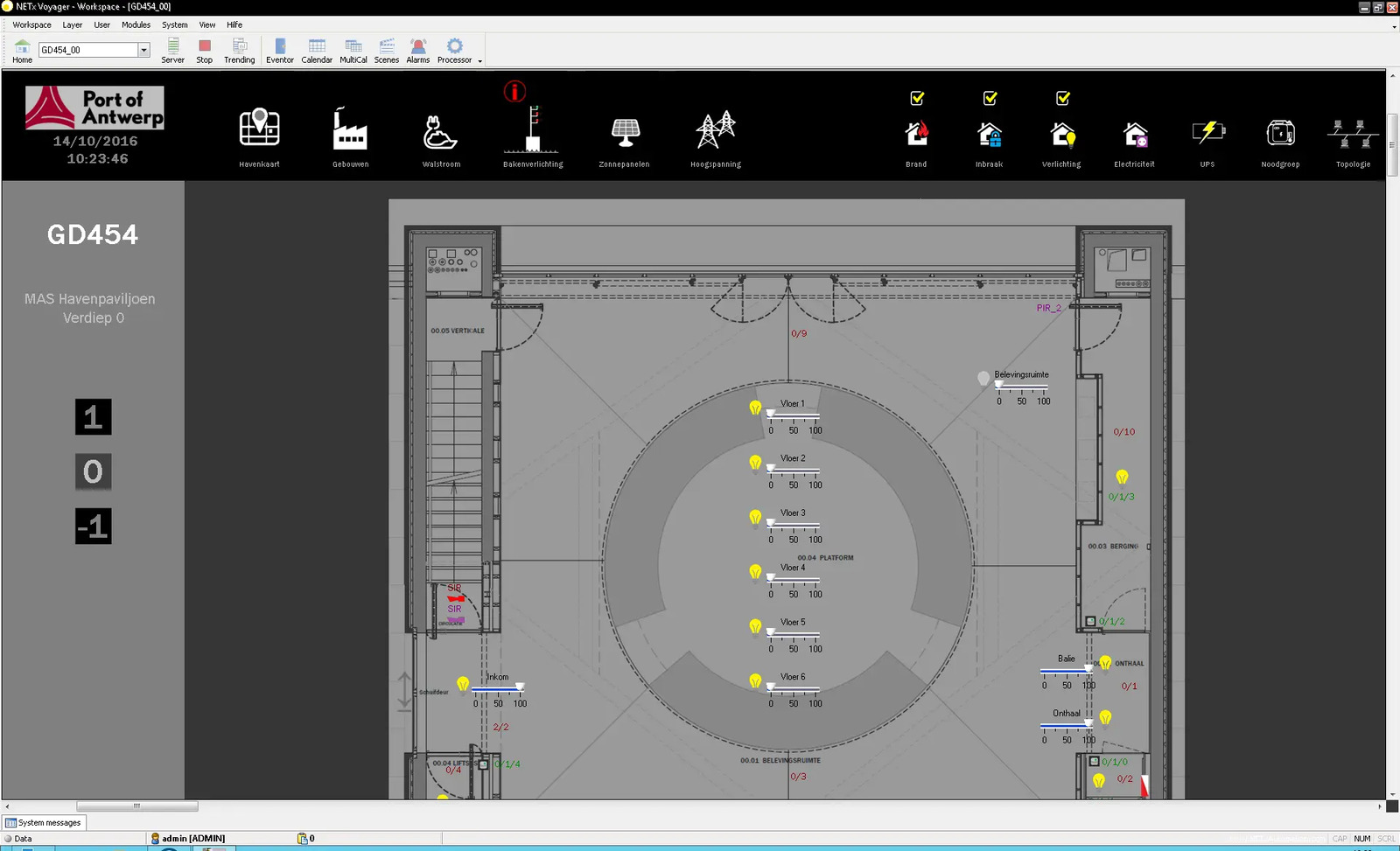

The port features building automation through Domotics KNX for status monitoring and remote control, along with emergency lighting reports compliant with EN50172, UPS systems, and emergency generators. It connects ships to shore power to reduce CO₂ emissions and includes fire and intrusion detection. Electrical cabinets at remote locations are monitored via GPRS connections.

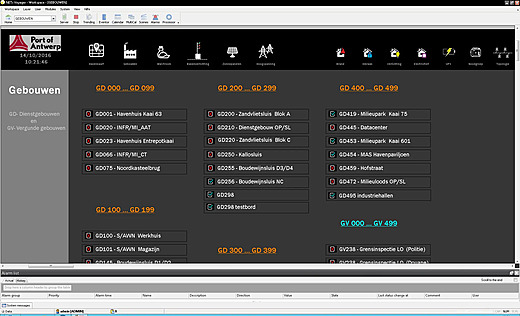

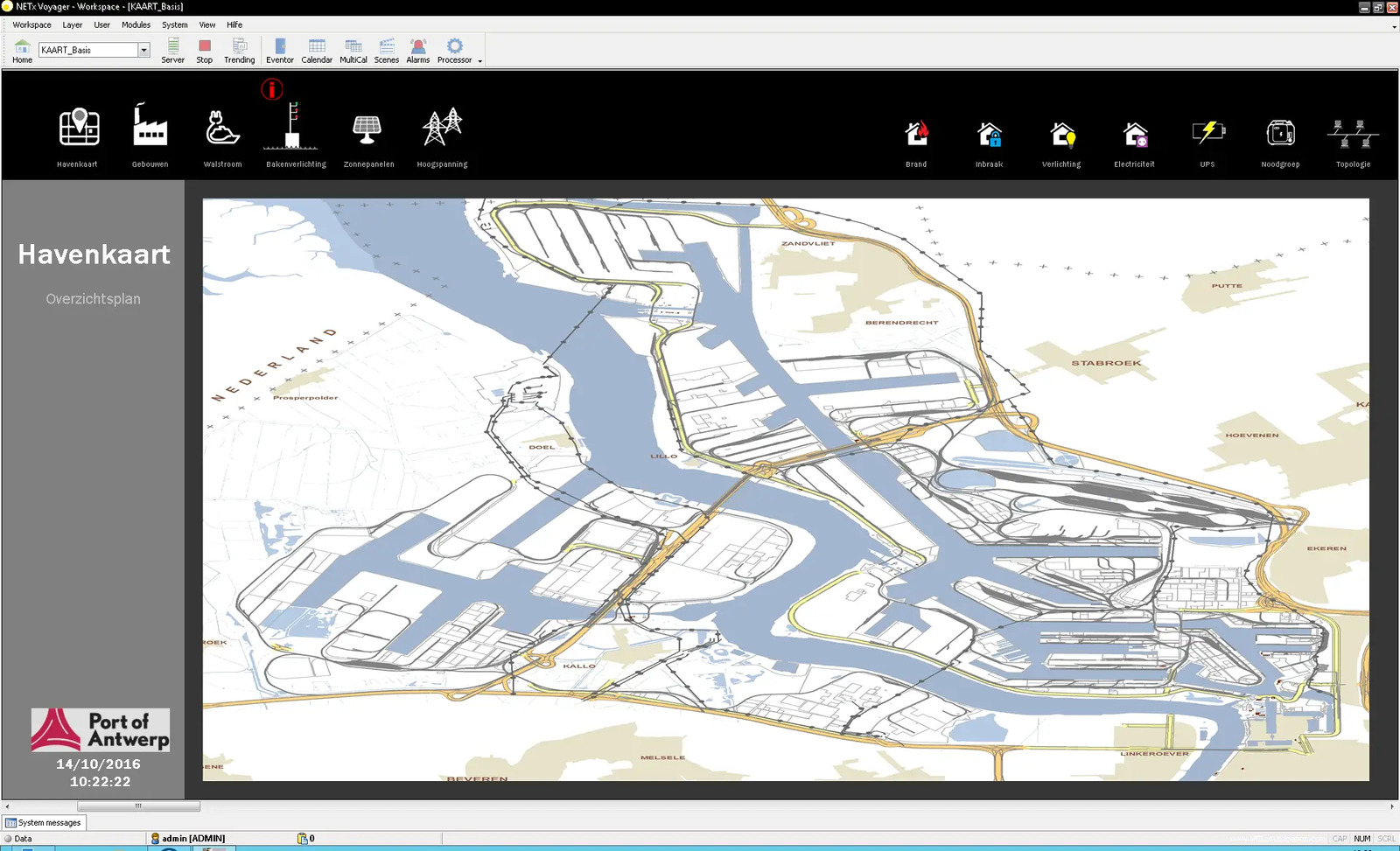

The main interface is a harbor chart divided into 16 sections, with errors causing affected areas to turn red and display an alarm.
Offices and electric charging station
Spain
- NETx BMS Server - KNX, Modbus
- Trades: Lighting, HVAC, security, access control, energy efficiency, electric vehicles

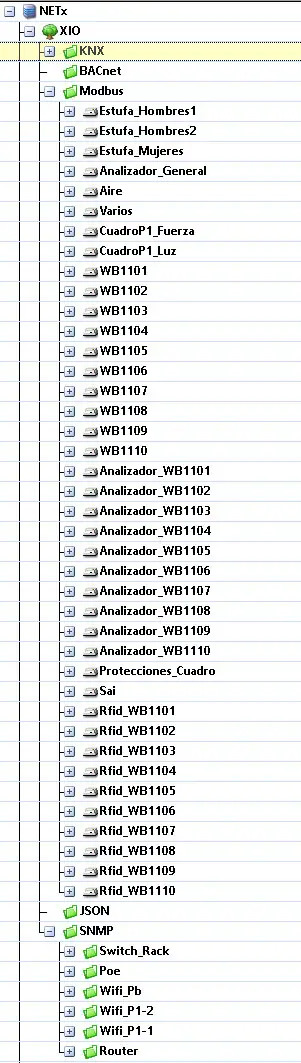

- Devices: 55 - RFID reader, Power Analizer, AP Wifi, Switch and Router, SAI, actuators, binary inputs, pulse counters
- Group addresses: 103
- Data points: 724

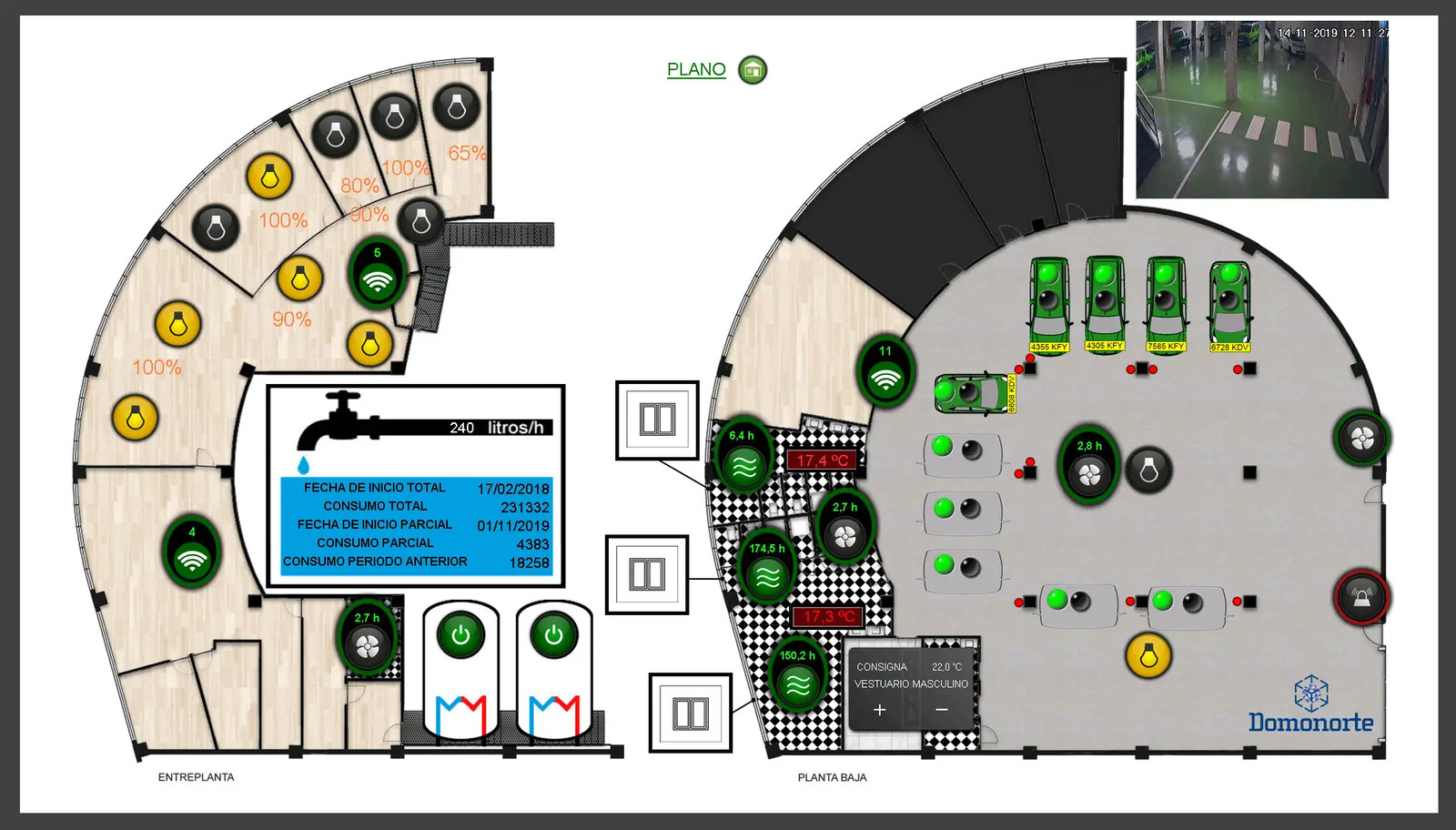

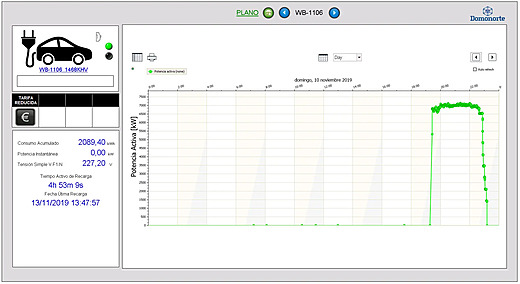

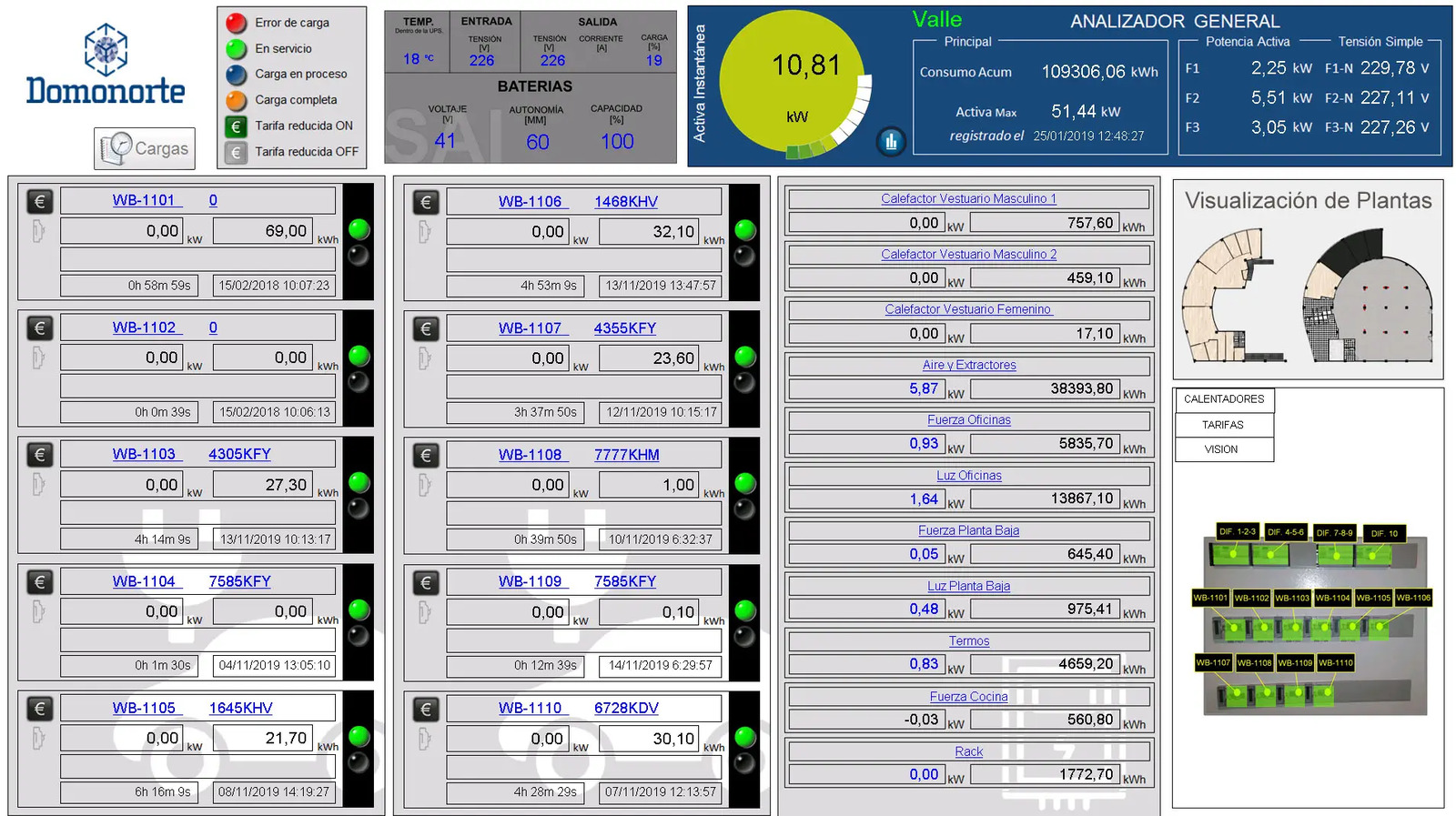

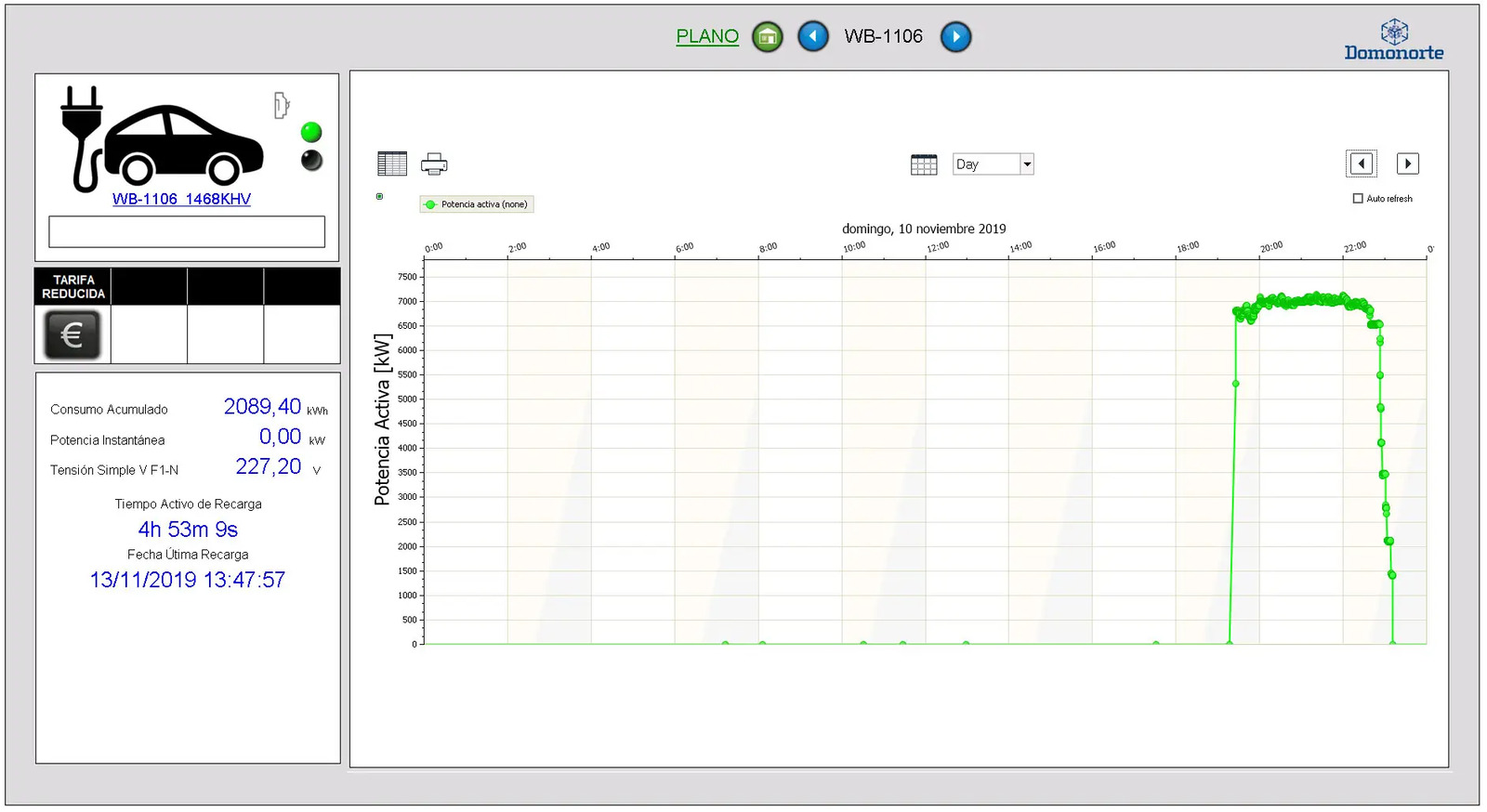

A cleaning company in Bilbao manages eight electric vehicles with limited power availability. Charging is controlled via RFID readers, and the intensity of each outlet is managed. General consumption, charging circuits, plugs, lighting, HVAC, and water usage are monitored. Office lighting activates only when brightness falls below a threshold, while locker room heaters maintain a uniform temperature during shower times and shut off when windows are open. Ventilation and thermoses are disabled during vehicle charging.

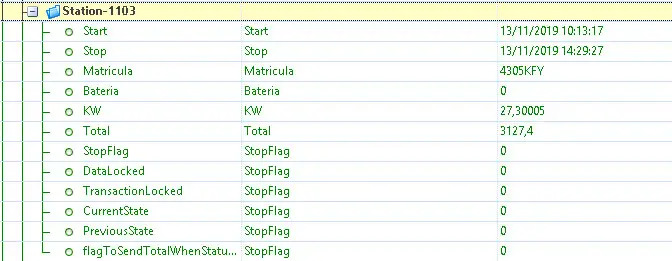

Electrical protections, LAN, Wi-Fi, and a UPS for critical systems are monitored, generating alarms when issues arise. Energy and water usage data is stored in a database and integrated into the client software daily. Vehicle charge status, RFID data, and consumption are sent in real time.
- Mercedes Benz Museum Stuttgart - Germany
SI: SYS.TEC Gebäudeautomation GmbH & Co. KG - Welios Science Center Wels - Austria
SI: EWW AG - Wissensturm Linz - Austria
SI: EQOS-ENERGIE Österreich GmbH
- National Exhibition Center ADNEC - Abu Dhabi
SI: RMJM - Kayseri Anatolia Wonderland - Turkey
SI: Emes Electromechanical Ind&Trd.Co Ltd.
- Vienna State Opera - Austria
SI: Art for Art, Theaterservice GmbH - Medina Central - Qatar
SI: KEO International
